Honeywell ScanPal EDA61K
Description
Specifications
Download

Honeywell ScanPal EDA61K

Images may not reflect the actual product

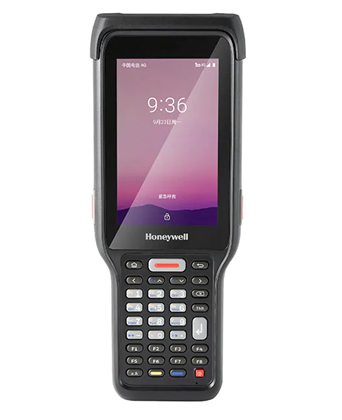

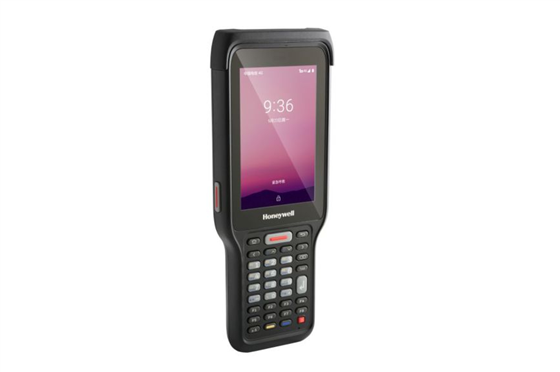

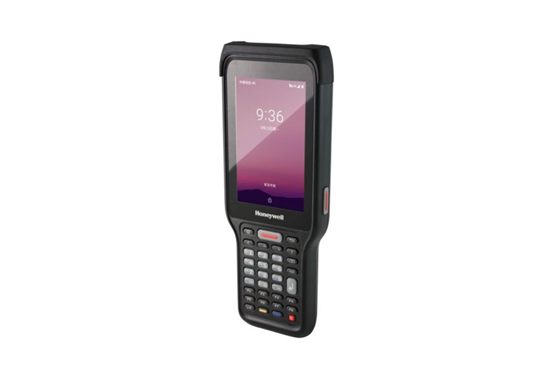

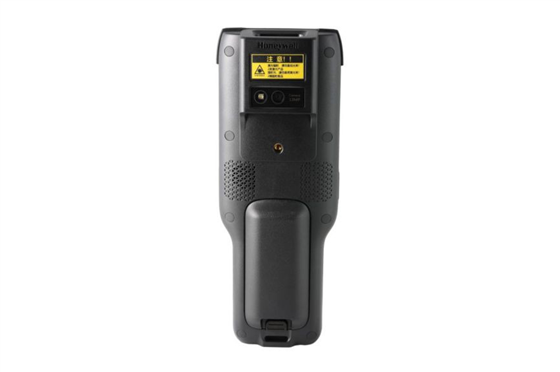

Product Image
small product image0
small product image1
small product image2
small product image3

Rugged, keyed mobile computing for warehouse, distribution, and retail-backroom workflows.

Brand update: The ScanPal EDA61K is now a Brady product, formerly sold as the Honeywell ScanPal EDA61K.

The Honeywell ScanPal EDA61K combines physical keypad input, industrial data capture, and a 4-inch touch display in an ergonomically balanced handheld built for inventory, picking, receiving, and replenishment. Its Qualcomm octa-core platform, 3 GB RAM, and dual-band Wi-Fi keep line-of-business applications responsive through busy shifts.

Choose numeric or alphanumeric keys, standard- or extended-range imaging, camera configuration, and StayLinked software licensing to match the workflow. A hot-swappable 7,000 mAh battery supports long operating periods while the IP65 housing withstands repeated 1.5 m drops to concrete.

Honeywell ScanPal EDA61K

Key Specifications

  • Operating system / support horizon: Android 9; manufacturer-documented upgrade to Android 10
  • Processor: Qualcomm SDM450 1.8 GHz octa-core
  • Memory and storage: 3 GB RAM, 32 GB flash; microSDHC expansion to 128 GB
  • Display and input: 4-inch capacitive multi-touch display; numeric or alphanumeric keypad
  • Scan engine: N6703 standard range or EX20 near/far range, depending on option
  • Wireless connectivity: 802.11 a/b/g/n/r/ac Wi-Fi and Bluetooth 4.2
  • Ruggedness and sealing: Multiple 1.5 m drops, 1,000 tumbles at 1 m, IP65
  • Battery / power: Hot-swappable 7,000 mAh Li-ion battery; up to 25 hours under the published test profile
  • Form factor, dimensions and weight: Keyed handheld; 206 x 78 x 41.9 mm; 435 g N6703 or 460 g EX20
  • Warranty: 1 year.

In the Box

  • Honeywell ScanPal EDA61K mobile computer
  • Hot-swappable extended battery
  • Power adapter and USB cable

Keypad, scan engine, camera, and StayLinked software configuration vary by selected option. Review the exact option description before ordering.

Capture Across the Workflow

Standard or extended-range imaging

N6703 configurations handle close-range everyday scanning, while EX20 near/far models extend capture to high racks and distant labels. Camera-equipped N6703 configurations add a 13-megapixel autofocus camera with LED flash.

Built for Keyed Data Entry

Touch plus physical keys

Numeric and alphanumeric layouts support scan-intensive and form-driven work without giving up the responsive 4-inch multi-touch interface. Prelicensed StayLinked configurations can reduce application setup for terminal-emulation deployments.

Power Through Long Shifts

Hot-swappable 7,000 mAh battery

Honeywell rates the smart battery for up to 25 hours under its published scan-and-Wi-Fi test profile. Hot swapping and approximately 5.5-hour charging help keep shared devices moving across extended operations.

Warehouse-Ready Durability

Rugged without excessive bulk

The EDA61K survives repeated 1.5 m drops to concrete, 1,000 tumbles at 1 m, and dusty or wet work under an IP65 seal. Its operating range of -20 to 50 degrees C supports indoor and outdoor material-handling tasks.

Dimensions (L x W x H)
206 mm x 78 mm x 41.9 mm (8.1 in x 3.1 in x 1.6 in)
Weight
N6703 version: 435 g (15.3 oz); EX20 version: 460 g (16.2 oz)
Display
4-inch LED-backlit display
Touch Screen
Multi-touch capacitive
Hard Keys and Keypad
Volume up/down, left/right scan, power and reset; 34-key numeric or alphanumeric keypad by configuration
I/O
USB Type-C with OTG support
Processor
Qualcomm SDM450 1.8 GHz octa-core
Memory
3 GB RAM, 32 GB flash
Operating System
Android 9; manufacturer-documented upgrade to Android 10
Storage Expansion
microSDHC up to 128 GB
Scan Engines
EX20 near/far or N6703SR standard range, depending on configuration
Camera
13-megapixel color camera with autofocus and LED flash; available on N6703 configurations
WLAN
IEEE 802.11 a/b/g/n/r/ac
WWAN and GPS
WWAN configurations support GSM/EDGE, WCDMA, CDMA, FDD-LTE and TDD-LTE bands; integrated GPS
Bluetooth
Bluetooth 4.2
Battery
Li-ion, 3.6 V, 7,000 mAh, hot-swappable
Charging Time and Runtime
Approximately 5.5 hours charging; up to 25 hours under Honeywell's published test profile
Status Indicators and RTC
Red/green scan notification; red/green/blue battery indication; real-time clock with 10-minute super-capacitor backup
Operating Temperature
-20°C to 50°C (-4°F to 122°F)
Storage Temperature
-30°C to 70°C (-22°F to 158°F)
Humidity
10% to 90% non-condensing
Drop
Multiple 1.5 m (5 ft) drops to concrete at room temperature
Tumble
1,000 tumbles at 1 m (3.3 ft)
Electrostatic Discharge
±8 kV direct; ±12 kV air
Vibration
Vertical RMS 1.04 g; transverse RMS 0.2 g; longitudinal RMS 0.74 g
Environmental Sealing
IP65
Warranty
One-year factory warranty
EDA61K Data Sheet
Download
EDA61K User Guide
Download
EDA61K Quick Start Guide
Download
CK62 / EDA61K Accessories User Guide
Download

Shop ScanPal EDA61K Models

EDA61K-0AC934PEUK

EDA61K Mobile Computer: Wi-Fi, 3 GB/32 GB, Standard-Range Imager, 46-Key Alphanumeric Keypad, Rear Camera, StayLinked SmartTE SCP, Power Adapter and USB Cable, SKU EDA61K-0AC934PEUK

Keypad:

46-Key Alphanumeric

Camera:

Rear Camera

Barcode Scanner:

Standard Range

StayLinked Software:

StayLinked SmartTE SCP

$1630.47

EDA61K-0AUB34PEUK

EDA61K Mobile Computer: Wi-Fi, 3 GB/32 GB, Near/Far-Range Imager, 46-Key Alphanumeric Keypad, No Rear Camera, StayLinked SmartTE SCP, Power Adapter and USB Cable

Keypad:

46-Key Alphanumeric

Barcode Scanner:

Near/Far Range

Camera:

No Camera

StayLinked Software:

StayLinked SmartTE SCP

$1951.95

EDA61K-0NC934PEUK

EDA61K Mobile Computer: Wi-Fi, 3 GB/32 GB, Standard-Range Imager, 34-Key Numeric Keypad, Rear Camera, StayLinked SmartTE SCP, Power Adapter and USB Cable

Keypad:

34-Key Numeric

Camera:

Rear Camera

Barcode Scanner:

Standard Range

StayLinked Software:

StayLinked SmartTE SCP

$1630.47

EDA61K-0ACE34PEUK

EDA61K Mobile Computer: Wi-Fi, 3 GB/32 GB, Standard-Range Imager, 46-Key Alphanumeric Keypad, Rear Camera, StayLinked SmartTE SCP, Power Adapter and USB Cable, SKU EDA61K-0ACE34PEUK

Keypad:

46-Key Alphanumeric

Camera:

Rear Camera

Barcode Scanner:

Standard Range

StayLinked Software:

StayLinked SmartTE SCP

$1625.47

EDA61K-0AC934PGUK

EDA61K Mobile Computer: Wi-Fi, 3 GB/32 GB, Standard-Range Imager, 46-Key Alphanumeric Keypad, Rear Camera, StayLinked SmartTE DCP, Power Adapter and USB Cable

Keypad:

46-Key Alphanumeric

Camera:

Rear Camera

Barcode Scanner:

Standard Range

StayLinked Software:

StayLinked SmartTE DCP

$1701.72

EDA61K-0AUB34PGUK

EDA61K Mobile Computer: Wi-Fi, 3 GB/32 GB, Near/Far-Range Imager, 46-Key Alphanumeric Keypad, No Rear Camera, StayLinked SmartTE DCP, Power Adapter and USB Cable

Keypad:

46-Key Alphanumeric

Barcode Scanner:

Near/Far Range

Camera:

No Camera

StayLinked Software:

StayLinked SmartTE DCP

$2067.94

EDA61K-0NC934PGUK

EDA61K Mobile Computer: Wi-Fi, 3 GB/32 GB, Standard-Range Imager, 34-Key Numeric Keypad, Rear Camera, StayLinked SmartTE DCP, Power Adapter and USB Cable

Keypad:

34-Key Numeric

Camera:

Rear Camera

Barcode Scanner:

Standard Range

StayLinked Software:

StayLinked SmartTE DCP

$1970.25

EDA61K-0NUB34PGUK

EDA61K Mobile Computer: Wi-Fi, 3 GB/32 GB, Near/Far-Range Imager, 34-Key Numeric Keypad, No Rear Camera, StayLinked SmartTE DCP, Power Adapter and USB Cable

Keypad:

34-Key Numeric

Barcode Scanner:

Near/Far Range

Camera:

No Camera

StayLinked Software:

StayLinked SmartTE DCP

$2067.94

Shop ScanPal EDA61K Accessories

SVCEDA61K-SG3N

Honeywell EDA61K 3-Year Gold Comprehensive Service Contract for New Devices

$267.16

EDA61K-HB-1

Honeywell EDA61K-HB-1 Home Base with Power Adapter and US Power Cord

$235.54

871-230-101

Not for customers in California and Oregon. Quad Battery Charger for CK65, CK62, CK3 (AC20), EDA60K, and EDA61K; charges up to four batteries. Requires power supply 851-061-502 and a country-specific AC power cord. Not compatible with battery 318-046-011.

$623.52

50149348-001

Honeywell 50149348-001 7000 mAh Smart Battery for EDA61K

$172.91

EDA61K-HB-0

Honeywell EDA61K-HB-0 Home Base with Power Adapter; Power Cord Sold Separately

$256.86

EDA61K-HS-3PK

Honeywell EDA61K-HS-3PK Hand Straps for EDA61K Terminal, 3-Pack

$41.62

EDA61K-SHS-3PK

Honeywell EDA61K-SHS-3PK Hand Straps for EDA61K Scan Handle, 3-Pack

$41.62

EDA61K-SH-DC

Honeywell EDA61K-SH-DC Dockable Scan Handle for EDA61K

$249.66

50136024-001

Honeywell 50136024-001 5V/2A Power Adapter Kit with US, EU, UK, ANZ, and India Plugs

$42.76

851-061-502

Honeywell 851-061-502 12V Power Supply for AC20 Quad Battery Charger; Requires Country-Specific AC Cord

$100.11

CBL-500-120-S00-05

Honeywell CBL-500-120-S00-05 USB-A to USB-C Charging and Data Cable, 1.2 m

$18.82

EDA61K-SP-10PK

Honeywell EDA61K-SP-10PK Screen Protectors for EDA61K, 10-Pack

$106.70
