Honeywell ScanPal EDA10A
Description
Specifications
Download

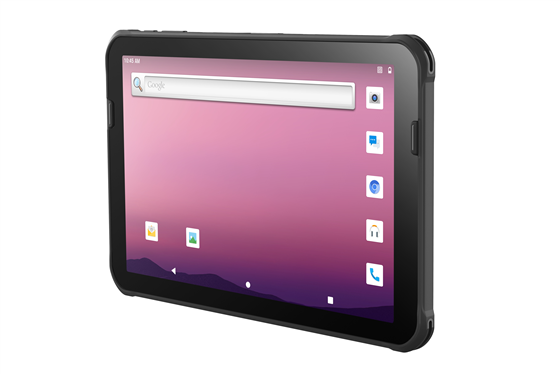

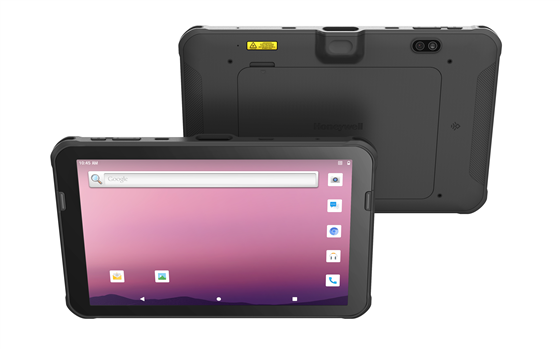

Honeywell ScanPal EDA10A

Images may not reflect the actual product
Product Image
small product image0
small product image1

ScanPal EDA10A (iOS)

ScanPal EDA10A - iOS Compatible Tablet

The Honeywell ScanPal EDA10A tablet offers a rugged yet lightweight option for mobile professionals needing fast and dependable access to mobile data on a 10-inch display. The rugged tablet also comes with a wide range of accessories that are compatible with various enterprise software solutions.

  • • Warranty: 1-Year
  • • Return Period: 15 Days
  • • Lifetime Support
  • • Free Shipping

A rugged, lightweight 10.1-inch Android tablet for connected retail, warehouse, manufacturing, and field workflows.

Brand update: The ScanPal EDA10A is now a Brady product, formerly sold as the Honeywell ScanPal EDA10A.

The Honeywell ScanPal EDA10A combines a high-resolution 10.1-inch display, enterprise barcode capture, and fast Wi-Fi 6 connectivity in a slim tablet designed for mobile business users. Available configurations let you choose 4 GB / 64 GB or 8 GB / 128 GB memory while keeping the same S0703 imager, cameras, NFC, and full-shift battery platform.

Its Gorilla Glass 5 touchscreen, IP65 sealing, and 1.3 m (4.3 ft) drop rating support daily use beyond the office. The removable 8,000 mAh battery runs for more than 12 hours under typical use and supports hot swapping, while compatible docks and mounting accessories extend the tablet to desk, display, and vehicle deployments.

Honeywell ScanPal EDA10A

Key Specifications

  • Operating system / support horizon: Android 12, upgradeable to Android 14 according to the current Honeywell US&C data sheet.
  • Processor: Qualcomm Snapdragon SM4350-AC octa-core processor, up to 2.2 GHz.
  • Memory and storage: 4 GB RAM / 64 GB flash or 8 GB RAM / 128 GB flash; microSD expansion supports up to 2 TB.
  • Display and touch: 10.1-inch Gorilla Glass 5 touchscreen, 1920 x 1200 FHD resolution, 550-nit brightness, and glove/wet/oily-hand modes.
  • Data capture and cameras: Honeywell S0703 slim 1D/2D imager; 16 MP autofocus rear camera and 8 MP front camera.
  • Wireless connectivity: Available configurations include Wi-Fi 6 (802.11ax), Bluetooth 5.1, and NFC; the broader family also supports WWAN/5G configurations.
  • Ruggedness and sealing: IP65; multiple 1.3 m (4.3 ft) drops to concrete, or 2.0 m (6.6 ft) with the optional protective boot, to MIL-STD-810H.
  • Battery / power: Removable, hot-swappable 8,000 mAh battery with more than 12 hours of stated runtime; USB-C charging.
  • Dimensions and weight: 257 x 166.5 x 11.7 mm (10.12 x 6.56 x 0.46 in); 674 g (1.49 lb).
  • Warranty: 1 year.

In the Box

  • Honeywell ScanPal EDA10A enterprise tablet in the selected memory configuration
  • Removable 8,000 mAh battery
  • USB charging/data cable

These configurations do not include a power adapter. Power adapters, docks, protective accessories, straps, mounts, and other accessories are sold separately.

Capture Barcodes Confidently

Honeywell S0703 slim imager

The integrated enterprise-level S0703 reads common 1D and 2D symbologies, including damaged barcodes, so workers can capture inventory, product, and service data without carrying a separate scanner.

Stay Connected in Dense Environments

Wi-Fi 6, Bluetooth 5.1, and NFC

Wi-Fi 6 and 2x2 MU-MIMO support responsive access to cloud applications, product images, voice, and video in busy connected environments. Bluetooth 5.1 and NFC simplify peripheral and short-range workflows.

Work Through a Full Shift

8,000 mAh hot-swappable battery

Honeywell rates the removable battery for more than 12 hours of runtime under typical use. Hot-swap support helps keep the tablet available when a fresh battery is needed during the workday.

Adapt Mobile Work to the Job

Handheld, desk, display, and vehicle use

Honeywell's EDA10A accessory range includes charging and display docks, vehicle hardware, protective and carrying components, batteries, power adapters, straps, screen protection, stylus support, and VESA mounting options.

Dimensions
257 x 166.5 x 11.7 mm (10.12 x 6.56 x 0.46 in)
Weight
674 g (1.49 lb)
Display
10.1-inch Gorilla Glass 5; 1920 x 1200 FHD; 550-nit LED backlight
Touchscreen and Keys
Multi-touch capacitive touchscreen (CTP, GFF) with glove, wet-hand, and oily-hand modes; five side keys plus one bottom scan key
Operating Temperature
-20°C to +50°C (-4°F to +122°F)
Storage Temperature and Humidity
Storage: -30°C to +70°C (-22°F to 158°F); humidity: 5% to 95% non-condensing
Drop, Vibration and Sealing
Multiple 1.3 m (4.3 ft) drops to concrete per MIL-STD-810H; 2.0 m (6.6 ft) with optional protective boot; vibration MIL-STD-810H Method 514.6 Procedure I; IP65
Electrostatic Discharge
±8 kV direct; ±15 kV air
Processor
Qualcomm Snapdragon SM4350-AC octa-core, up to 2.2 GHz
Operating System
Android 12, upgradeable to Android 14 according to the current Honeywell US&C data sheet
Memory and Storage
4 GB RAM / 64 GB flash or 8 GB RAM / 128 GB flash; microSD expansion up to 2 TB
Cameras
16 MP autofocus rear camera; 8 MP front camera
Scan Engine
Honeywell S0703 Slim Imager; 1D/2D barcode symbologies; red/green scan indication
PC and Dock Interfaces
USB 3.0 Type-C; 6-pin bottom connection
Battery and Runtime
Li-Ion 8,000 mAh, 3.85 V; removable and hot-swappable; more than 12 hours stated runtime
Charging
Less than 5.5 hours with a 10 W wall adapter or single dock in standby; 2.5 hours with a QC/PD wall adapter
WLAN
IEEE 802.11 a/b/g/n/ac/ax; 802.11 d/e/h/i/k/r/v/w/mc; 2x2 MU-MIMO
WLAN Security
OPEN, WEP, WPA/WPA2, WPA3 (OWE, SAE, Enterprise); EAP TLS, PEAP, TTLS, PWD, LEAP; CCX compliant
Bluetooth and NFC
Bluetooth 5.1/2.1 + EDR Class 2 with Bluetooth LE; integrated NFC
WWAN (EDA10A-1 Family Variants)
GSM, WCDMA, LTE, and 5G NR SA/NSA; North American 5G is data-only and requires a separate Advantix WWAN account
Sensors and Indicators
3-axis accelerometer, 3-axis gyroscope, compass, light and proximity sensors; red/green/blue battery status LED
Warranty
One-year factory warranty
ScanPal EDA10A US Data Sheet
Download
ScanPal EDA10A Quick Start Guide
Download
ScanPal EDA10A Accessories Guide
Download

Shop ScanPal EDA10A Models

EDA10A-00BE61N21RK

EDA10A Android Tablet: Wi-Fi 6, 10.1-inch Display, 4 GB/64 GB, S0703 Imager, GMS, ROW, No Power Adapter

RAM:

4 GB

Storage:

64 GB

$1022.73

EDA10A-00BE91N21RK

EDA10A Android Tablet: Wi-Fi 6, 10.1-inch Display, 8 GB/128 GB, S0703 Imager, GMS, ROW, No Power Adapter

Storage:

128 GB

RAM:

8 GB

$1160.93

Shop ScanPal EDA10A Accessories

9000186KEYBRD

EDA10A Keyboard, 86 key, Backlit, Pointing Device, USB Connector

$845.81

SVCEDA10-SG3N

EDA10 3-Year Gold Extended Warranty. Covers Accidental Damage & Normal Wear & Tear. 5-day Depot Turnaround Time for Replacements. New Contract.

$275.70

9000286KEYBRD

Keyboard, 86 Key, Backlit, Pointing Device, DB9 connector, use with Honeywell VMCs and Tablets

$845.81

EDA10A-RB-0

EDA10A Protective Rubber Boot, black

$95.99

EDA10A-DB-1

EDA10A display dock, kit includes: Dock, US power cord and power adapter

$683.09

EDA10A-HS-1PK

EDA10A rotating hand strap, 1pcs/kit

$78.38

EDA10A-SC-R

EDA10A single charging dock. Kit includes: Dock, USB Cable, 5V 2A power adapter, and plugs. For United States

$307.94

EDA10A-DB-0

EDA10A Display Dock, Kit includes Dock. Must Order Power Adapter and Power Cord Separately.

$666.28

50136024-001

Honeywell 50136024-001 5V/2A Power Adapter Kit with US, EU, UK, ANZ, and India Plugs

$42.76

CBL-500-120-S00-06

USB Type C Cable. USB type A to type C, 1.2 m (3.9 ft)

$18.82

CT45-CIGR-1

EDA10A / CT45 / CT40 S Cigarette Lighter Adapter

$43.08
