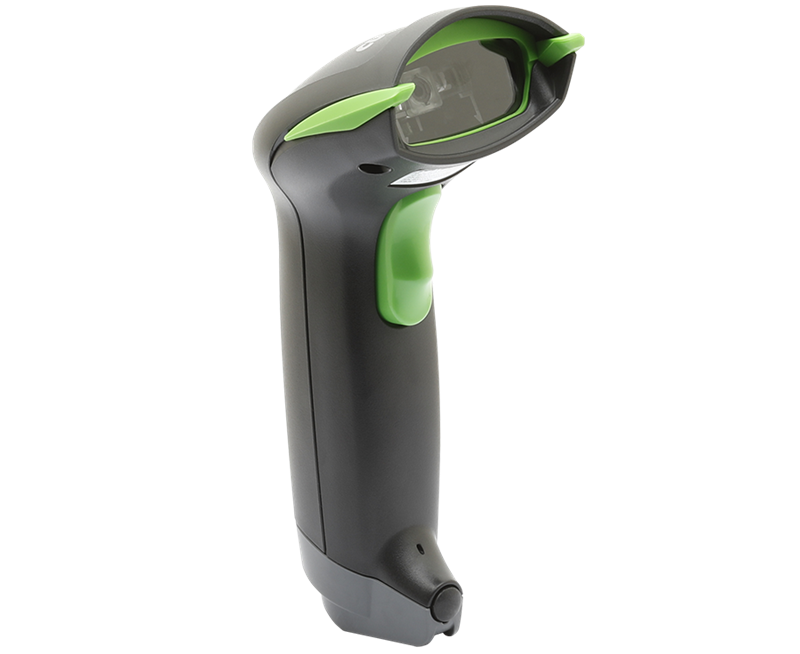

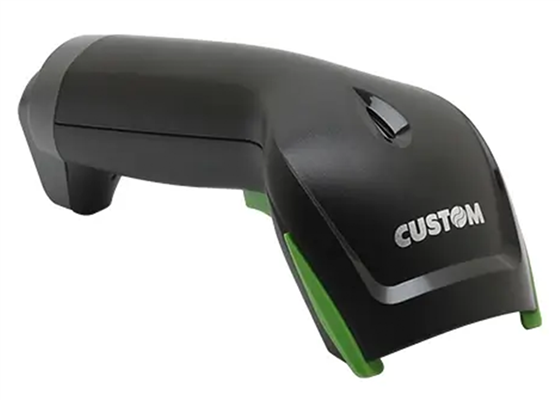

Custom America SCANMATIC SM420
A compact 2D imager for dependable point-of-sale and everyday barcode capture.
SCANMATIC SM420 combines handheld scanning with a stand-based presentation option for retail counters and service points. Its CMOS imager reads common 1D and 2D symbols, including QR Code, Data Matrix, and PDF417.
USB, USB HID, and VCOM support simplify connection to POS and host systems, while the IP42 enclosure and 1.8 m drop resistance suit daily counter use.
Key Specifications
- Scanner configuration: Handheld 2D imager with stand
- Barcode capability: 1D, Data Matrix, PDF417, and QR Code
- Reading range: Up to 250 mm
- Interfaces / connectivity: USB, USB HID, and VCOM
- Durability: 1.8 m drop resistance
- Environmental sealing: IP42
- Dimensions and weight: 73.5 W × 173 L × 76.2 H mm
- Image sensor / rate: CMOS; 60 frames per second
In the Box
- SCANMATIC SM420 2D barcode scanner
- Scanner stand
- USB interface cable
The listed SM420 kit includes the stand and USB interface cable.
Scanning Performance
Everyday 1D and 2D capture
The 60 fps CMOS imager supports common retail and service-point symbols, with 3 mil Code 39 and 8 mil QR Code capability documented by Custom America.
Deployment and Durability
Flexible host connection
USB, USB HID, and VCOM modes support common POS integration patterns. The IP42 housing and drop resistance help the scanner handle routine counter use.
Shop SCANMATIC SM420 Models
CTM-997ED030000003
SCANMATIC SM420 2D Barcode Scanner Kit with Stand — USB
