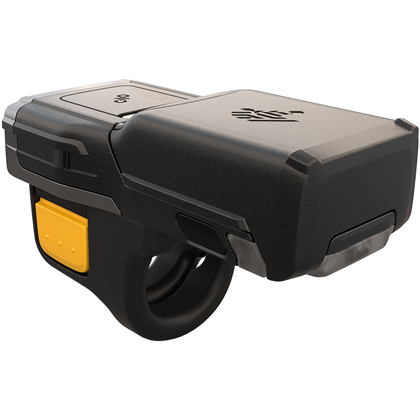

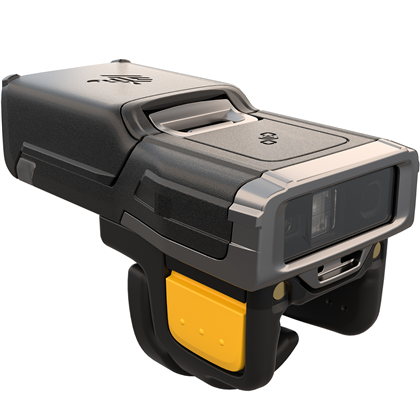

Zebra RS6100
Maximum versatility, power and performance
The RS6100 is a compact, lightweight wearable scanner with a multi-focus engine that captures 1D and 2D barcodes from close range to the top shelf of a rack 40 ft / 12.2 m away. It reads scratched, dirty, poorly printed and shrink-wrapped codes across demanding warehouse and dock environments.
Five interchangeable wearing styles help fit different users and tasks. Choose cordless operation with standard or extended removable batteries or battery-free corded operation, and reuse many RS5100 trigger assemblies, batteries and mounts when upgrading.
POSGuys introduces the Zebra RS6100 wearable scanner.
Key Specifications
- SE55 1D/2D Advanced Range engine with IntelliFocus technology
- Typical working range from 2 in / 5.08 cm to 40 ft / 12.2 m
- Bluetooth 5.2 with BLE and NFC tap-to-pair
- 480 mAh standard or 735 mAh extended removable PowerPrecision+ battery; corded adapters available
- Five interchangeable wearing styles
- 6 ft / 1.8 m drop rating and IP65 sealing
- Freezer operation to -22° F / -30° C with extended battery
In the Box
The selected configuration includes:
- RS6100 wearable scanner
- One selected battery: standard 480 mAh, extended 735 mAh, or freezer 660 mAh
- Regulatory Guide
- Optional trigger-mount screw in a separate bag
Configuration note: Only one battery is included, according to the selected configuration. The trigger-mount screw is optional.
Maximum versatility
Small and practically weightless
The RS6100 is less than half the size and weight of the RS6000, weighing just over two ounces with a volume of roughly two cubic inches.
Cordless or corded — it’s your choice
Pair with supported Bluetooth Zebra mobile computers or compatible Bluetooth phones, tablets and PCs. Optional corded adapters power the scanner from select Zebra wearable and handheld computers.
Five interchangeable wearing styles
Enterprise hand, single-finger, double-trigger, back-of-hand and retracting-lanyard choices let users match the scanner to the task. Interchangeable mounts and adjustable positions improve comfort for scan-intensive work.
Use it everywhere — including the freezer
The rugged scanner operates in warehouse aisles, freezers, coolers, vehicles and loading docks through rain, heat and subzero cold.
Instant pairing — just tap and go
NFC allows a worker to tap the RS6100 to a supported Zebra device without scanning a pairing barcode or navigating Bluetooth settings.
Direct users with programmable line-of-sight LEDs
Programmable LEDs on the back of the scanner can confirm successful scans, indicate exceptions and guide workers through item-picking workflows.
Prevent the spread of germs with personal trigger assemblies
A modular two-piece design separates the trigger from the scanner body, allowing each worker to keep a personal trigger assembly while scanner bodies remain shared.
Maximum power and performance
Unmatched advanced range scanning
The SE55 Advanced Range engine with IntelliFocus scans from items in hand to barcodes 40 ft / 12.2 m away. PRZM Intelligent Imaging handles damaged, dirty, low-contrast and shrink-wrapped labels, including small, dense codes.
An advanced removable and replaceable battery
Standard and extended PowerPrecision+ batteries can be exchanged rather than taking the scanner out of service. PowerPrecision Console helps identify batteries that can no longer support a full shift.
Maximum durability, reliability and management simplicity
Rugged and ready for constant use
The RS6100 is tested for sealing, drops and tumbling, including drop testing across its operating-temperature range for dependable hot- and cold-environment use.
No Wi-Fi™ interference — guaranteed
Wi-Fi Friendly Mode helps eliminate interference between RS6100 Bluetooth traffic and nearby Wi-Fi mobile devices.
Triggers built for intensive scanning
Trigger assemblies are rated for millions of actuations, reducing replacement frequency in high-volume workflows.
Minimize downtime with maximum replaceable parts
Batteries, trigger assemblies, charge contacts and the vibration engine can be replaced onsite, minimizing depot visits and downtime.
Save time and money with high capacity chargers
High-capacity ShareCradles charge up to 20 scanners or 40 batteries, reducing the cables, outlets and management time needed for large fleets.
Maximum upgrade simplicity
Easily and cost-effectively upgrade from the RS5100
Many RS5100 single- and double-trigger assemblies, batteries, battery chargers and updated mounts work with the RS6100, simplifying mixed deployments and staged upgrades.
Shop RS6100 Models
RS61B0-KBBHZWR
RS6100 Wearable Scanner, Standard Battery, Back of Hand Mount (Requires Charging Cradle & Matching Power Supply)
RS61B0-KFSSYWR
RS6100 Wearable Scanner, Extended Battery with Freezer Rating, Single Side Trigger Ring Mount. (Requires Charging Cradle & Matching Power Supply)
RS61B0-KBENZWR
RS6100 Wearable Scanner, Standard Battery, Enterprise Hand Mount, Includes Mounting Frame and Trigger, (Requires Separate Purchase of Hand Wrap + Charging Cradle & Power Supply)
RS61B0-KEENXWR
RS6100 Wearable Scanner, Extended Battery with Freezer Rating, Enterprise Hand Mount, Includes Mounting Frame and Trigger, (Requires Separate Purchase of Hand Wrap + Charging Cradle & Power Supply)
RS61B0-KBDSZWR
RS6100 Wearable Scanner, Standard Battery, Double Sided Trigger Ring Mount. (Requires Charging Cradle & Matching Power Supply)
RS61B0-KBSSZWR
RS6100 Wearable Scanner, Standard Battery, Single Side Trigger Ring Mount. (Requires Charging Cradle & Matching Power Supply)
RS61B0-KEDSXWR
RS6100 Wearable Scanner, Extended Battery with Freezer Rating, Double Sided Trigger Ring Mount. (Requires Charging Cradle & Matching Power Supply)
RS61B0-KESSXWR
RS6100 Wearable Scanner, Extended Battery with Freezer Rating (660mAh), Single Trigger Ring Mount. (Requires Charging Cradle & Matching Power Supply)
RS61B0-KCSSXWR
RS6100 Wearable Scanner, Corded Adapter for WT6X with Freezer Rating, Single Side Trigger Ring Mount. (Requires Charging Cradle & Matching Power Supply)
RS61B0-KNNTZWR
RS6100 Wearable Scanner, SE55, No Trigger, No Battery, Worldwide. (Requires Charging Cradle & Matching Power Supply)
Shop RS6100 Accessories
CRD-RS61-4SCHG-01
RS6100 4-Slot Ring Scanner Charger. Allows Charging of 4 RS6100 ring scanners. Requires PWR-BGA12V50W0WW, DC cable CBL-DC-388A1-01 and 3-wire grounded country specific AC line cord, sold separately.
KT-RS5X6-2SCPWR-01
RS5100/RS6100 2 Bay Charger Kit includes 2 Bay Charger, PWR-WUA5V12W0US and CBL-TC5X-USBC2A-01
SHIM-CRD-R5X62B-01
RS5100/RS6100 2 Bay Charger Shim to use with battery. 1 Shim included.
CRD-RS61-20SCHG-01
RS6100 20-Slot Ring Scanner Charger. Allows Charging of 20 RS6100 ring scanners. Requires PWR-BGA12V108W0WW, DC line cord CBL-DC-382A1-01 and 3-wire grounded country specific AC line cord, sold separately.
SAC-RS51-8SCHG-01
8-Slot Spare Battery Charger. Requires PWR-BGA12V50W0WW, DC CABLE CBL-DC-388A1-01, and 23844-00-00R Line Cord.
KT-RS51-8SAC-PS-CB
8-Slot Spare Battery Charger Kit. Includes Power Supply, DC and AC Line Cords.
SAC-RS51-40SCHG-01
40-Slot Spare Battery Charger Kit. Requires PWR-BGA12V108W0WW, DC Line Cord CBL-DC-382A1-01 and 3-Wire Grounded Country Specific AC Line Cord, Sold Separately.
BRKT-SCRD-SMRK-01
Rack/Wall bracket, allows to install any Multi-Slot sharecradle on a wall or a 19inch IT rack and provides a holder for pwrs and cords. It also allows to install up to four spare battery chargers. Includes screws required for installation
BT-RS5X6-DNGL-01
Bluetooth Adapter. Bluetooth Interface between RS5100/RS6100 Ring Scanners and non-mobile host. Requires USB Scanner Cable (CBA-U46-S07ZAR)
KT-RS5X6-BTDCBL-01
Bluetooth Dongle Kit for RS5100/RS6100. Includes Bluetooth Dongle and USB Cable (CBA-U46-S07ZAR).
CBA-U46-S07ZAR
Shielded USB Cable for Zebra Barcode Scanners: Series A Connector, 7ft. Straight
CBL-TC5X-USBC2A-01
USB C to USB A Communications and Charging Cable, 1m Long
SG-RS51-TRGSS-03
RS5100 Spare Trigger Assembly, Single Sided, Includes Comfort Pad & Nylon Strap, Increased Pull Force. Provides Trigger Button that can be switched from left to right hand orientation.
SG-RS51-TRGDS-01
RS5100/RS6100 Spare Trigger Assembly, Double Sided
SG-RS51-TRGDV-01
RS5100/RS6100 Spare Trigger Assembly, Double Sided, Vibrator
SG-RS51-TRGDU-01
RS5100 & RS6100 Replacement Trigger Assembly, Double Sided Trigger With USB-C.
SG-RS51-STRPN2-10
RS5100 & RS6100 Nylon Finger Strap. Single Side Trigger. 10-Pack
SG-RS5X6-BHMT-01
RS5100 / RS6100 Back-of-Hand Mount, includes hand strap.
SG-RS51-BHSTP-01
Replacement strap for RS5100 & RS6100 back of hand mount
SG-RS51-BHSTLG-01
Replacement strap for RS5100 / RS6100 back of hand mount - Large
SG-RS5X6-BHSTX-01
Replacement Hand Strap for RS6100 Low Temperature Back of Hand Mount
SG-WEAR-HNWPRM-02
Spare Wrap for RS6100 Enterprise Hand Mount Adapter, Improved Durability. Right Hand Medium
SG-WEAR-HNWPLL-02
Spare Wrap for RS6100 Enterprise Hand Mount Adapter, Improved Durability. Left Hand Large
SG-WEAR-HNWPLM-02
Spare Wrap for RS6100 Enterprise Hand Mount Adapter, Improved Durability. Left Hand Medium
SG-WEAR-HNWPLS-02
Spare Wrap for RS6100 Enterprise Hand Mount Adapter, Improved Durability. Left Hand Small
SG-WEAR-HNWPRL-02
Spare Wrap for RS6100 Enterprise Hand Mount Adapter, Improved Durability. Right Hand Large
SG-WEAR-HNWPRS-02
Spare Wrap for RS6100 Enterprise Hand Mount Adapter, Improved Durability. Right Hand Small
SG-RS5X6-HMTRA-01
RS5100 / RS6100 Slim Hand Mount, Integrated Trigger, Right Hand
SG-RS5X6-HMTLA-01
RS5100 / RS6100 Slim Hand Mount, Integrated Trigger, Left Hand
SG-RS5X6-HMTLA-10
RS5100 / RS6100 Slim Hand Mount, Integrated Trigger, Left Hand, 10 Pack
SG-RS5X6-HMTRA-10
RS5100 / RS6100 Slim Hand Mount, Integrated Trigger, Right Hand, 10 Pack
SG-RS5X6-LNYD-01
RS5100 / RS6100 Lanyard Trigger Assembly. Requires separate purchase of SG-RS5X6-RLYD1-01 for neck or hip mounting.
CBL-DC-388A1-01
7.5ft. DC Cable For Use with Power Supply Brick PWR-BGA12V50W0WW
PWR-BGA12V50W0WW
Power Supply, Requires DC Line Cord CBL-DC-388A1-01 & AC Line Cord 23844-00-00R, Replaces PWRS-14000-148R (Presentation Cradle). EM45 use CBL-DC-388A2-01 for DC Line Cord.
KIT-PWR-12V50W
Power Supply Kit for Zebra RS6100. Includes Power Supply (PWR-BGA12V50W0WW) and DC Line Cord (CBL-DC-388A1-01). Purchase US-Specific AC Cord (23844-00-00R) Separately.
PWR-BGA12V108W0WW
Cable, Level VI AC/DC Power Supply Brick. AC Input: 100-240V, 2.8A. DC Output: 12V, 9A, 108W. Requires: DC line cord and Country specific grounded AC line cord.
23844-00-00R
7.5ft. AC Line Cord, For Use with PWRS-14000-148R and PWR-BGA12V50W0WW
BTRY-RS51-4MA-01
RS5100 Spare Standard Capacity Battery with PowerPrecision+ (480 mAh). Provides 10 hours run time at high scan rate (16+ scans/min) while operating at room temperature.
BTRY-RS51-4MA-10
RS5100/RS6100 PowerPrecision+ Lithium Ion Battery 10-Pack, Standard Capacity 480mAh, Worldwide
BTRY-RS51-7MA-01
RS5100 Lithium Ion Battery, Extended 735mAh, Worldwide
BTRY-RS51-7MA-10
RS5100 Lithium Ion Battery 10-pack, Extended 735mAh, Worldwide
BTRY-RS5X6-6MA-01
RS5100 / RS6100 Lithium Ion Battery for Freezer Operation, 660mAh, Worldwide. Enables Operation From -30C/-22F To 50C/122F With RS6100 And -20C/-4F To 50C/122F With RS5100
CBL-RS5X6-ADPWT-01
RS5100 / RS6100 Corded Adapter for WT6x, Terminal Supplies Power to Scanner, Communication via Bluetooth
CBL-RS5X6-ADPTC-01
RS5100 / RS6100 Corded Adapter for TC2x, TC5x, USB-C connector, Terminal Supplies Power to Scanner, Communication via Bluetooth
Z1AE-RS6XXX-5C20
5 Year Comprehensive Warranty For Zebra RS6100 Mobile Barcode Scanner. Includes Accidental Damage and Issues Caused By Wear & Tear. 2-Business-Day Repair Depot Turnaround. Can Be Added Up to 30 Days After Product Purchase.
PWR-WUA5V12W0US
Power Supply Brick, US Plug, For Zebra Mobile Computers, Requires CBL-TC5X-USBC2A-01.
CBL-DC-381A1-01
Cable, DC PWR CRD, 4 or 5 Slot Cradle
SG-RS5X6-HNMT-02
Enterprise Hand Mount for RS5100 / RS6100, includes mounting frame with trigger. Requires separate purchase of hand wrap.
SG-RS5X6-BHFSS-10
Replacement small finger strap for RS6100 low temperature back of hand mount, for use with gloves, one finger, 10 pack
SG-RS5X6-BHFSX-10
Replacement extra large finger strap for RS6100 low temperature back of hand mount, for use with mittens, 10 pack
SG-RS5X6-BHFSM-10
Replacement medium finger strap for RS6100 low temperature back of hand mount, for use with gloves, two finger, 10 pack
SG-RS51-RLYD1-01
RS5100 Retractor with Magnetic Recoil, for use with RS51B0-LBLNWR, RS51B0-TBLNWR or SG-RS51-LNYD-01
CRD-RS5X6-2SCHG-01
RS5100/RS6100 2 Bay Charger. Each bay can be used to charge a platform scanner and/or battery with the addition of a removal shim. Requires PWR-WUA5V12W0US and CBL-TC5X-USBC2A-01. Optional Shim for battery charging is SHIM-CRD-R5X62B-01.
SG-RS5X6-BHMTX-01
RS6100 Back of Hand Mount - Includes Hand Strap, for Use in Low Temperature Operations
