Zebra RS2100 Wearable Scanner

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6
small product image7
small product image8

The world’s smallest enterprise wearable scanner

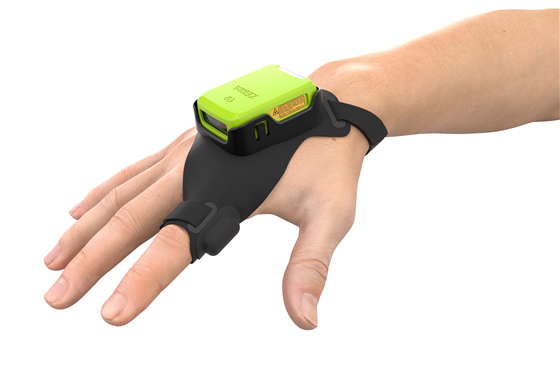

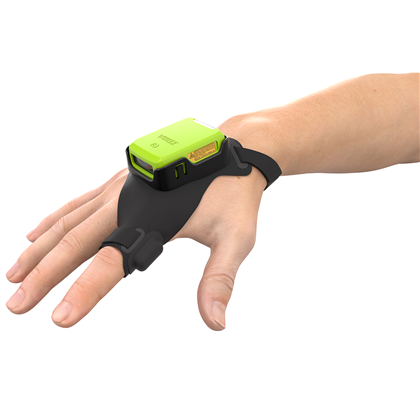

The RS2100 Wearable Scanner combines an innovative back-of-hand design with an extremely low profile, leaving the palm unobstructed for secure item handling and easier picking in confined spaces. At just over one ounce, it is designed for comfortable hands-free scanning through a full shift.

The embedded battery and size-adjustable mount simplify purchasing and deployment, while optional Device Tracker tools help locate a misplaced unit. The RS2100 works with Zebra mobile computers as well as supported Apple, Android and PC hosts.

POSGuys demonstrates the compact Zebra RS2100 wearable scanner.

Key Specifications

  • SE4770 1D/2D standard-range imager with PRZM Intelligent Imaging
  • 1.1 oz / 31 g and 0.57 in / 14.6 mm high
  • Bluetooth 5.2 with BLE and NFC tap-to-pair
  • 480 mAh embedded lithium-ion battery

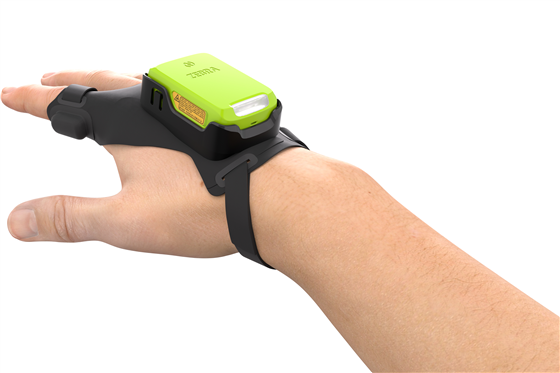

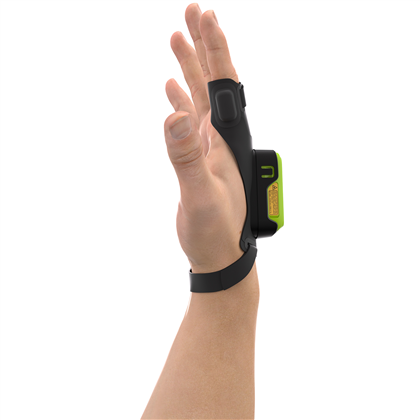

  • Right- and left-hand back-of-hand mount choices
  • 6 ft / 1.8 m drop rating and IP54 sealing
  • One-year Zebra warranty

In the Box

The standard package includes:

  • RS2100 ring scanner
  • Regulatory Guide

Accessory note: Zebra's unpacking list does not include the slim mount or charger, so they are not asserted as package contents.

A New Standard in Worker Comfort and Productivity

Smallest enterprise wearable scanner in the market

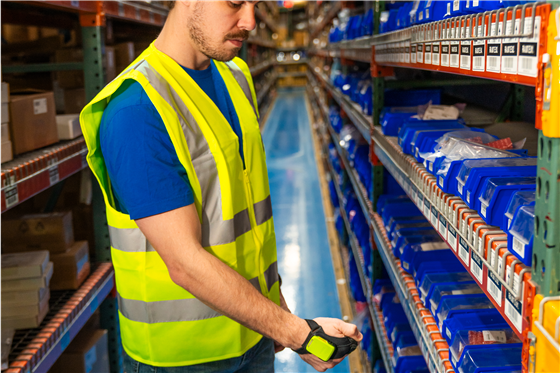

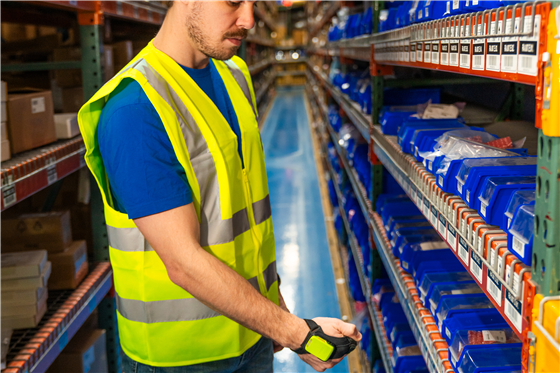

At 1.1 oz / 31 g and only 0.57 in / 14.6 mm high, the RS2100 minimizes fatigue and remains unobtrusive while workers pick in tight spaces.

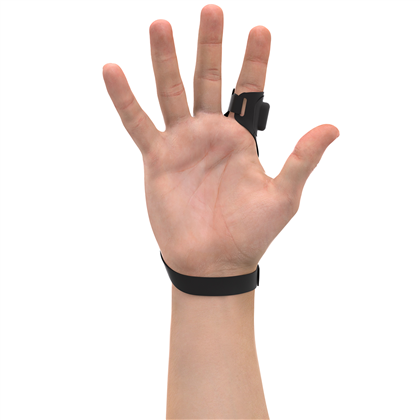

Best-in-class “bare palm” gripping capability

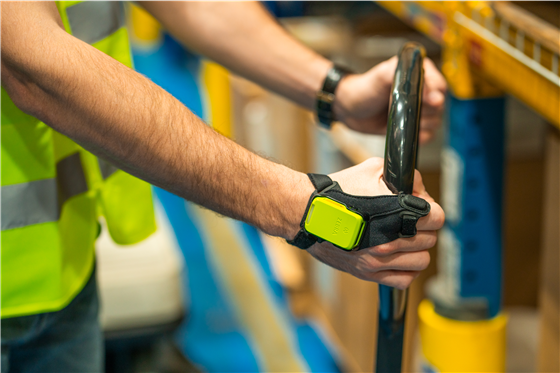

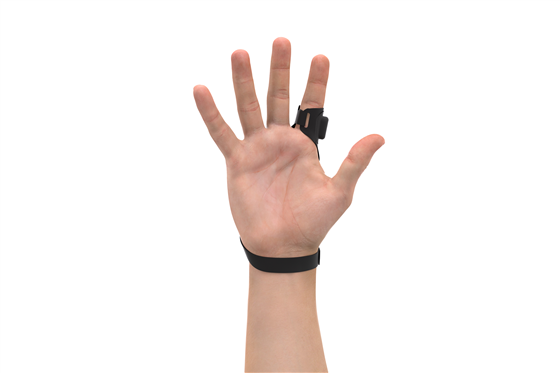

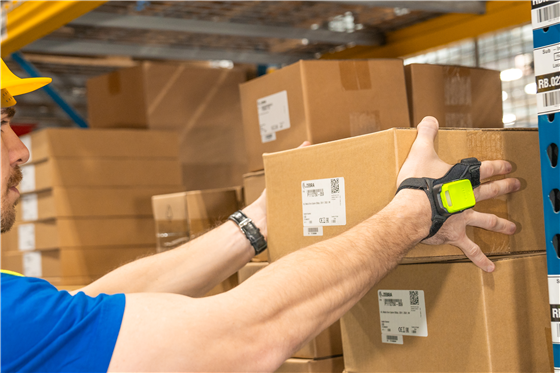

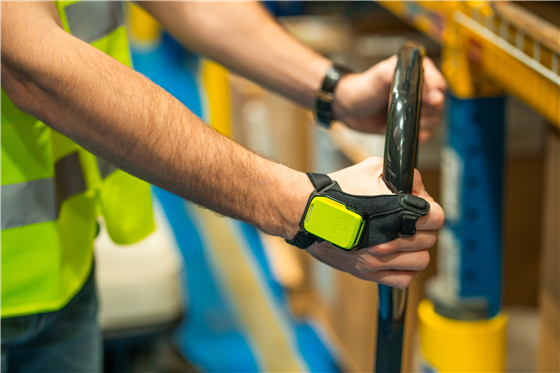

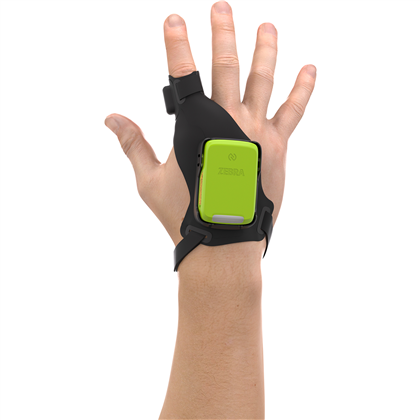

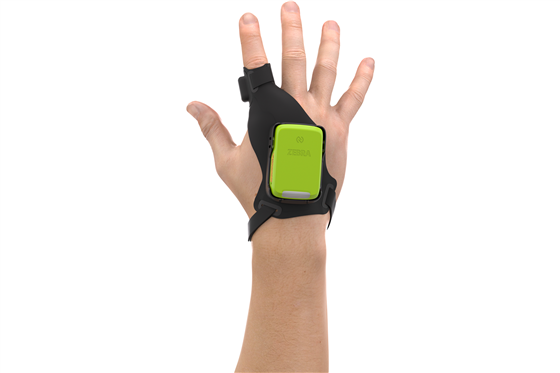

The back-of-hand mount leaves the entire palm uncovered so workers can grip cartons and products securely without a strap or device crossing the palm.

The Easiest Wearable Experience for Your Workforce

Ready to use right out of the box

The adjustable mount fits a broad range of hand sizes, requiring only a right- or left-hand choice. An embedded battery eliminates separate battery handling.

No more lost scanners

Optional Device Tracker can locate a missing scanner and create a virtual tether that alerts workers before the wearable or its host computer is left behind.

Fast and flawless barcode capture

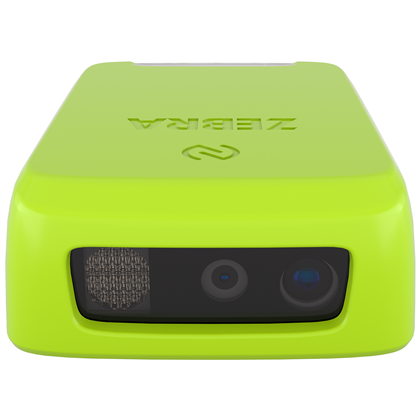

PRZM Intelligent Imaging and a wide field of view provide fast capture of damaged, poorly printed and dirty 1D and 2D barcodes across a large aiming sweet spot.

Durable for all-day, every-day use

The scanner is built for 6 ft drops to concrete and IP54 sealing, supporting dusty backrooms, receiving docks and routine exposure to splashes.

Flexible notifications for easy scan confirmation

Line-of-sight LEDs and an audible beeper provide immediate good-scan feedback without requiring the worker to look away from the task.

Ideal for packing stations

Zebra's Bluetooth Adapter connects the RS2100 to a USB host PC, and as many as seven scanners can pair to one non-mobile host for shared packing workflows.

Compatible with Zebra mobile computers and consumer devices

The RS2100 works with Zebra handheld and wearable computers plus supported Apple and Android phones and tablets and PCs.

Enterprise-level service at the right price

Optional Zebra OneCare Essential and Select plans add accidental-damage coverage, technical support and service choices suited to different operational requirements.

The Zebra-only Difference — Zebra DNA

Scanner configuration made easy

123Scan guides configuration, data formatting and firmware updates, helping both new and experienced administrators deploy the scanner and adapt captured data to each workflow.

Prevent Bluetooth interference with Wi-Fi™ Friendly Mode

Wi-Fi Friendly Mode limits cordless operation to Bluetooth channels that are not shared with the Wi-Fi network.

Split-second device pairing

Tap the scanner to a supported NFC host, or use Scan-to-Connect to pair with a Bluetooth PC, tablet or phone by scanning the onscreen pairing barcode.

Dimensions
2.05 in. L x 1.40 in. W x 0.57 in. H
52 mm L x 35.5 mm W x 14.6 mm H
Weight
1.1 oz./31 g
Optical Resolution
1280 x 800 pixels
Roll
360°
Pitch
±60°
Skew
±60°
Aiming Element
SE4770: 655 nm Laser
Illumination Element
SE4770: 1 Hyper Red 660 nm LED
Field of View
SE4770: Horizontal: 48°, Vertical: 30°
Ambient Light Immunity (from total darkness)
Max 107,639 lux (direct sunlight)
Supported 1D Symbologies
Code 39, Code 128, Code 93, Codebar/NW7, Code 11, MSI, UPC/EAN, I 2 of 5, Korean 3 of 5, GSI DataBar, Base 32 (Italian Pharma)
Supported 2D Symbologies
PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
Supported OCR Symbologies
OCR-A, OCR-B
Power
480 mAh embedded Li-ion battery pack
Network Connections
WPAN (Bluetooth)
Scanner Support
SE4770 1D/2D standard range imaging engine
Pairing
NFC; Tap to Pair
User Environment
RoHS Directive 2011/65/EU; Amendment 2015/863 REACH SVHC 1907/2006
Operating Temperature
32° F to 122° F/0° C to 50° C
Storage Temperature
-40° F to 140° F/-40° C to 60° C
Humidity
5% - 95% non-condensing
Drop Specification
Multiple 6 ft./1.8 m drops to concrete over the operating temperature range
Tumble Specification
1,000 1.64 ft./0.5 m tumbles
Sealing
IEC 60529: IP54
Vibration
Sine 5-2000Hz, 4g peak, 1 hour per axis; Random 20-2000Hz, 6g RMS or 0.04g2/Hz, 1 hour per axis
Electrostatic Discharge (ESD)
±15kVdc air discharge; ±8kVdc contact discharge
LED
2 RGB LEDs located at the back side of the device
Beeper
Up to 85 dBA @ 10 cm from the back of the device beeper port
Bluetooth
Class 1 and 2, Bluetooth v5.2 with Bluetooth Low Energy (BLE); Supported profiles: Serial Port Profile (SPP), Human Interface Device Profile (HID), Service Discovery Application Profile (SDAP)
Symbology Resolution
Near/Far
Decode Ranges
  • Code 39: 3 mil: 3.0 in. / 7.6 cm to 5.8 in. / 14.7 cm
  • Code 128: 5 mil: 2.3 in. / 5.8 cm to 9.8 in. / 24.9 cm
  • PDF417: 5 mil: 3.0 in. / 7.6 cm to 7.9 in. / 20.1 cm
  • PDF 417: 6.67 mil: 2.5 in. / 6.3 cm to 10.1 in. / 25.7 cm
  • DataMatrix: 10 mil: 2.1 in. / 5.3 cm to 11.0 in. / 27.8 cm
  • UPCA (100%): 1.6 in. / 4.1 cm to 24.9 in. / 63.2 cm
  • Code 128: 15 mil: 2.4 in. / 6.1 cm to 27.8 in. / 70.6 cm
  • Code 39: 20 mil: 1.6 in. / 4.1 cm to 36.1 in. / 91.7 cm
  • QR Code: 20 mil: 1.1 in. / 2.8 cm to 17.5 in. / 44.5 cm
Warranty
1 Year
RS2100 Hand Mount Manual
Download
RS2100 Scanner Product Manual
Download
RS2100 Spec Sheet
Download

Shop RS2100 Wearable Scanner Models

RS21C0-TS00ZWR

RS2100 Wearable Scanner, SE4770 2D Imager, Integrated Battery, Worldwide. Hand Mount With Embedded Trigger Must Be Ordered Separately: SG-RS2X-HMTRA-01 (Right Hand) or SG-RS2X-HMTLA-01 (Left Hand).

$548.00

Shop RS2100 Wearable Scanner Accessories

CRD-RS2X-2SCHG-01

RS2100 2-Slot Scanner Charger, Allows Charging of 2 RS2100 Wearable Scanners. Requires AC Power Supply PWR-WUA5V12W0 and USB-C to USB-A Cable CBL-TC5X-USBC2A-01.

$90.75

CBL-TC5X-USBC2A-01

USB C to USB A Communications and Charging Cable, 1m Long

$18.80

PWR-WUA5V12W0US

Power Supply Brick, US Plug, For Zebra Mobile Computers, Requires CBL-TC5X-USBC2A-01.

$40.09

CRD-RS2X-20SCHG-01

RS2100 20-Slot Scanner Charger, Allows Charging of 20 RS2100 Wearable Scanners. Requires PWR-BGA12V108W0WW, DC line cord CBL-DC-382A1-01 and 3-wire grounded country specific AC line cord, sold separately.

$719.95

PWR-BGA12V108W0WW

Cable, Level VI AC/DC Power Supply Brick. AC Input: 100-240V, 2.8A. DC Output: 12V, 9A, 108W. Requires: DC line cord and Country specific grounded AC line cord.

$174.97

CBL-DC-382A1-01

DC Power Cord for RS6100 4 Slot Charge Cradle

$44.11

BT-RS5X6-DNGL-01

Bluetooth Adapter. Bluetooth Interface between RS5100/RS6100 Ring Scanners and non-mobile host. Requires USB Scanner Cable (CBA-U46-S07ZAR)

$241.94

CBA-U46-S07ZAR

Shielded USB Cable for Zebra Barcode Scanners: Series A Connector, 7ft. Straight

$56.36

KT-RS5X6-BTDCBL-01

Bluetooth Dongle Kit for RS5100/RS6100. Includes Bluetooth Dongle and USB Cable (CBA-U46-S07ZAR).

$298.20

SG-RS2X-HMTRA-01

RS2100 Hand Mount with Embedded Trigger, Right Hand, One Size Fits All

$60.50

SG-RS2X-HMTRA-10

RS2100 Hand Mount with Embedded Trigger, Right Hand, One Size Fits All. 10-Pack

$594.00

SG-RS2X-HMTLA-01

RS2100 Hand Mount with Embedded Trigger, Left Hand, One Size Fits All

$60.50

SG-RS2X-HMTLA-10

RS2100 Hand Mount with embedded Trigger, Left Hand, One Size Fits All 10-Pack

$653.40
