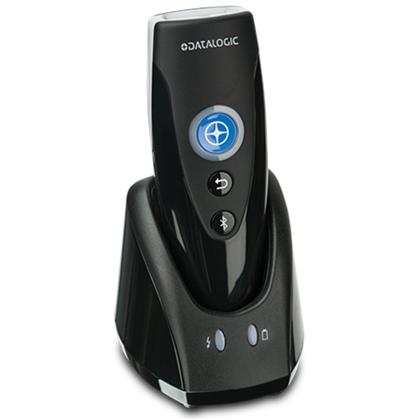

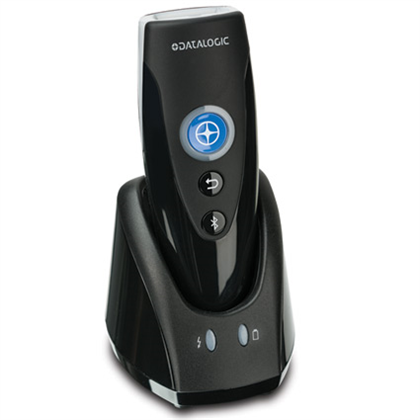

DataLogic RIDA DBT6400

Name: DataLogic RIDA DBT6400
Brand: DataLogic
Price: 344.62 USD
Availability: InStock

Images may not reflect the actual product

Pocket-sized scanning for tablets and other mobile devices

Datalogic's RIDA DBT6400 brings Bluetooth 1D and 2D scanning to tablets, smartphones and computers in a pocket-sized reader. It captures printed labels and barcodes on mobile screens, with Green Spot, vibration and polyphonic sound to confirm each read.

Key Specifications

Scanner configuration: Pocket-sized cordless 2D area imager
Barcode capability: 1D, 2D, postal and stacked/composite codes
Reading range: Typical: 5.5–39 cm for 13 mil UPC/EAN
Interfaces / connectivity: Bluetooth 4.0 Class 2, HID/SPP; optional BC6020 USB base
Durability: Repeated 1.5 m (5 ft) drops onto concrete
Environmental sealing: IP50
Dimensions: 11.25 × 4.23 × 2.75 cm (4.4 × 1.6 × 1.0 in)
Weight: 85 g (3 oz), including battery
Battery: 700 mAh; 3,000+ reads or 5 hours at one read per 6 seconds
Charging: 2.5 hours via base or host-powered micro-USB
Warranty: 3 years

Reading range varies with barcode size, print quality and lighting. Other typical ranges: 5 mil, 6.5–21 cm; Data Matrix 15 mil, 4–25 cm. The BC6020 base supports USB COM, USB-OEM and USB keyboard; the reader uses micro-USB for charging.

In the Box

DBT6400-BK
- RIDA DBT6400 black scanner

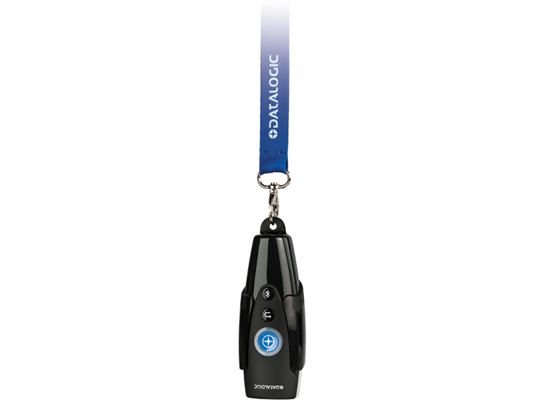

- Micro-USB cable and neck lanyard
DBT6400-HC
- RIDA DBT6400 healthcare scanner
DBT6420-BK-BTK1 USB kit
- RIDA DBT6400 black scanner
- BC6020-BK Bluetooth base and USB cable
DBT6420-HC-BTK1 USB kit
- RIDA DBT6400 healthcare scanner
- BC6020-HC Bluetooth base and USB cable

The BC6020 base is included with USB kits and sold separately for reader-only options.

Capture labels and mobile-screen codes

Read low-contrast, damaged and poorly printed barcodes as well as codes on mobile displays. White illumination and a four-dot aimer with a center cross help target the code you need.

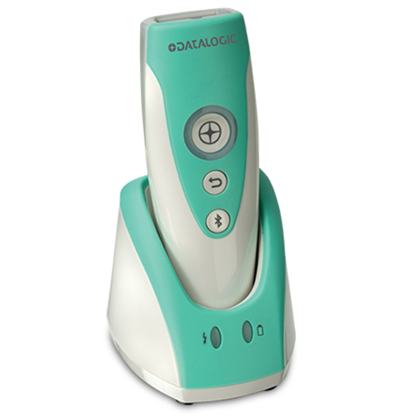

Standard and healthcare models

Choose the standard model for retail tasks or the healthcare model for bedside point-of-care work. The healthcare enclosure is disinfectant-ready and treated with antimicrobial additives to ISO 22196.

Compatibility

Android™
Apple® iOS
Windows Mobile® devices
Standard laptops equipped with Bluetooth wireless technology

Scanner Configuration

2D Imager

Bluetooth Radio

Bluetooth 4.0 Class 2, 2.4 GHz; SPP / HID. Range: 25 m (82 ft) in open air measured using the base; range with other Bluetooth hosts varies. Data encryption and scanner authentication.

1D / Linear Codes

Automatic discrimination of standard 1D codes including GS1 DataBar linear codes.

2D Codes

Aztec Code, Aztec Mesas, Data Matrix, MaxiCode, QR Code, Micro QR Code and China Han Xin Code.

Postal Codes

Australian Post, British Post, Canadian Post, China Post, Japanese Post, KIX Post, Korea Post, Planet Code, Postnet and Royal Mail Code (RM4SCC).

Stacked / Composite Codes

EAN/JAN composites; GS1 DataBar composites, Expanded Stacked, Stacked and Stacked Omnidirectional; MacroPDF, MicroPDF417, PDF417 and UPC A/E composites.

Battery

Removable 700 mAh lithium-ion; 2.5-hour charging in base or through host-powered micro-USB.

Reads per Charge

3,000+ reads or 5 hours at one read every 6 seconds; actual runtime varies with workload and settings.

Batch Memory

Up to 2,000 linear barcode records.

Input Voltage

5 VDC +/-5%

Ambient Light

0-100,000 lux

Drop Resistance

Repeated 1.5 m (5 ft) drops onto concrete.

ESD Protection

16 kV air discharge

Humidity

5-95%, non-condensing

Environmental Sealing

IP50

Temperature

Operating: 0-50 deg C (32-122 deg F); storage/transport: -20 to 70 deg C (-4 to 158 deg F).

Interfaces

BC6020 base only: USB COM, USB-OEM and USB keyboard. Scanner charging: micro-USB.

Colors

Black, black/silver or light green/white, depending on model.

Dimensions

11.25 x 4.23 x 2.75 cm (4.4 x 1.6 x 1.0 in)

Healthcare Enclosure

Healthcare model only: disinfectant-ready enclosure with antimicrobial additives, ISO 22196 compliant.

Weight

85 g (3 oz), including battery

Image Capture

BMP, JPEG, TIFF; grayscale: 256, 16 or 2 levels.

Image Sensor

Wide VGA, 752 x 480 pixels

Light Source

Aiming: 650 nm VLD laser; illumination: white.

Motion Tolerance

25 IPS

Print Contrast Ratio

15% minimum

Reading Angle

Pitch: +/-65 degrees; roll: up to 360 degrees; skew: +/-60 degrees.

Reading Indicators

Vibration, polyphonic beeper, Green Spot, side/upper illumination and good-read LED.

Resolution (Maximum)

4 mil

Typical Depth of Field

5 mil: 6.5-21 cm (2.6-8.2 in); 13 mil: 5.5-39 cm (2.2-15.2 in); Data Matrix 15 mil: 4-25 cm (1.6-9.8 in). Typical ranges depend on barcode, print quality, angle and lighting.

Agency Approvals

Consult the model Quick Reference Guide and regulatory addendum for applicable certifications.

Environmental Compliance

China RoHS and EU RoHS

Optical Classification

Aiming: Class 2 laser (IEC 60825); illumination: IEC 62471 exempt risk group.

Datalogic Aladdin

Manufacturer configuration utility.

OPOS / JavaPOS

Datalogic RIDA DBT6400

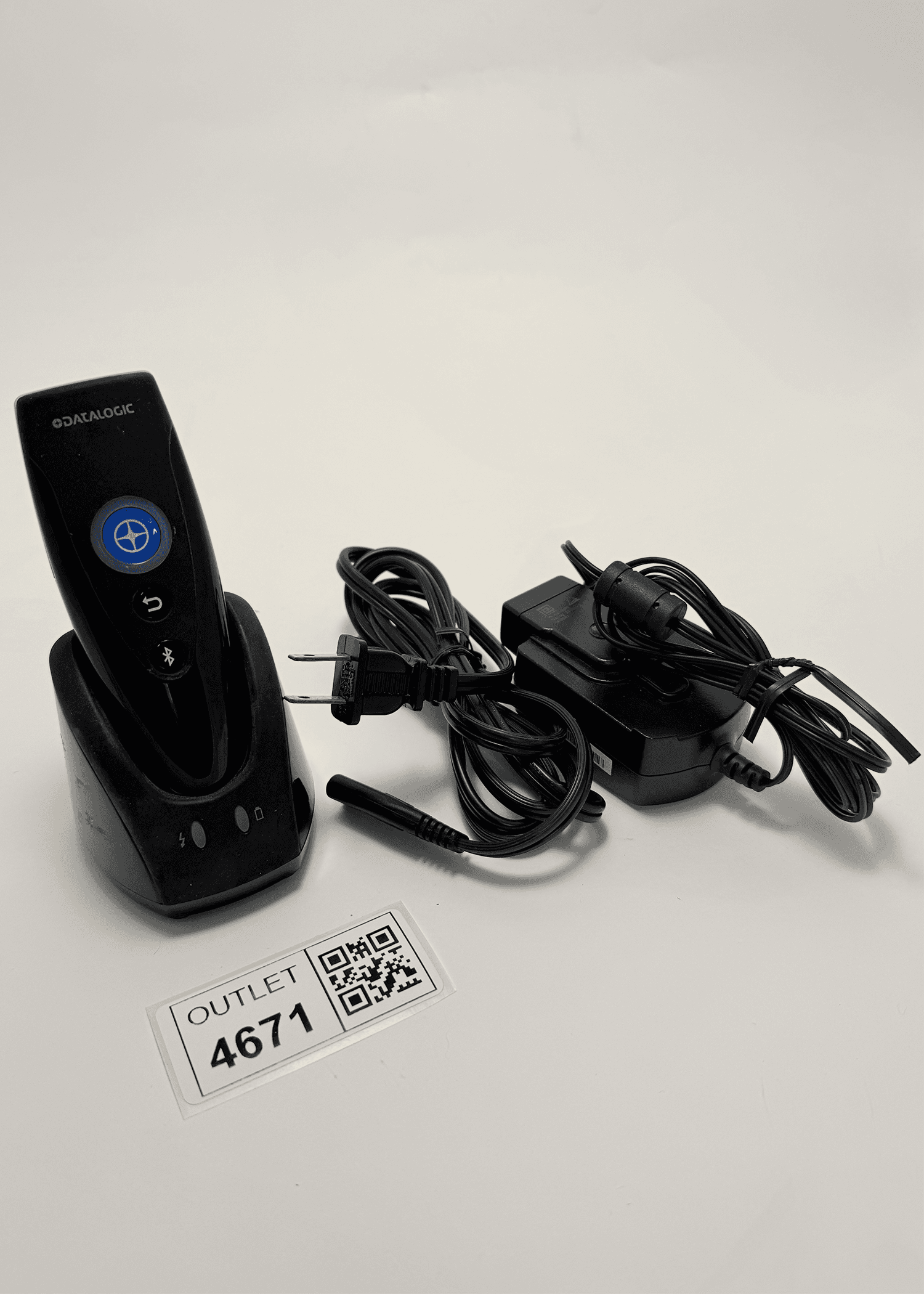

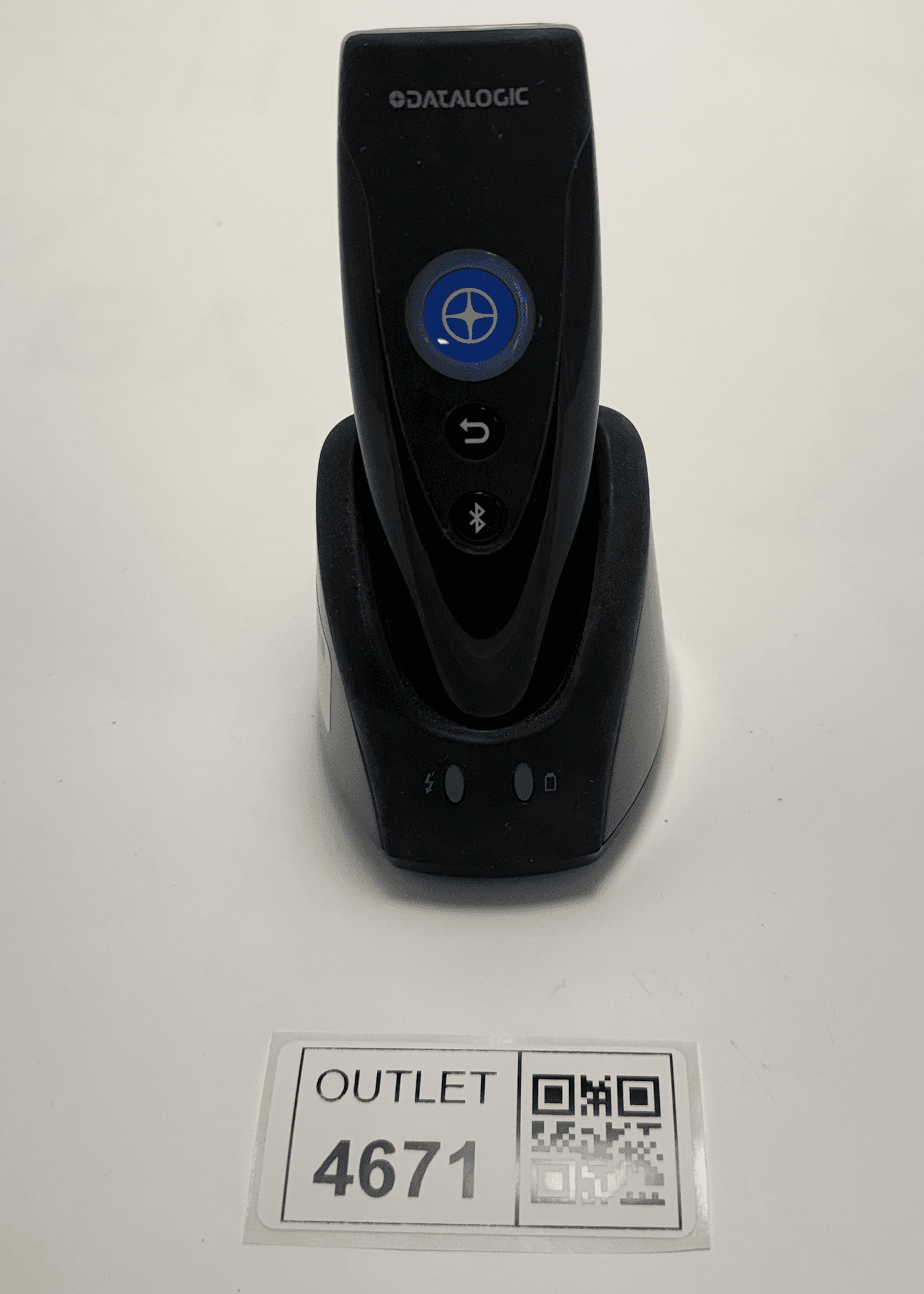

Datalogic RIDA DBT6400 Wireless Pocket Barcode Scanner Bluetooth (Renewed, Reconditioned).USB (via base). Black. (DBT6400-BK) CID: 4671

Item Number: DBT6400-BK

1 Reconditioned Available

CID: 4671

$232.17

Shop RIDA DBT6400 Accessories

CHR-DBT60-BK

RIDA DBT6400 charging-only cradle, black (CHR-DBT60-BK). Includes power supply; regional plug adapter sold separately.

$71.40

ZSC2DBT6X31

RIDA DBT6400, 3-year EASEOFCARE, 2-day comprehensive service (ZSC2DBT6X31).

$45.43

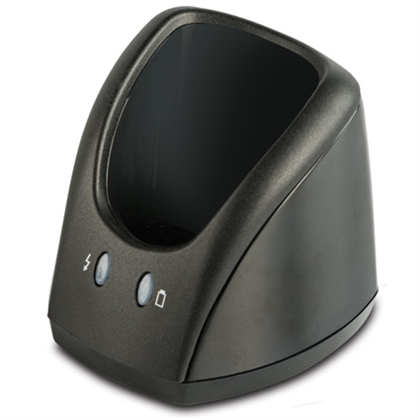

BC6020-BK

BC6020 Base/Charger, Black

$136.88

RBP-DBT6X

RBP-6400 Battery Pack, Removable.

$20.37

94A051968

Skorpio X3 Interface Cable, Connects Dock to PC, USB Interface

$21.00

BC6020-HC

BC6020 Base/Charger, Healthcare

$153.40

90ACC0287

Power Supply, 5V 3A, Line Cord Not Included

$28.00

90ACC0306

Datalogic US/Japan plug adapter for 90ACC0287 5V power supply. Power supply sold separately.

$13.41
