DataLogic QuickScan QD2220 Imager
Description
Specifications
Download

DataLogic QuickScan QD2220 Imager

Images may not reflect the actual product

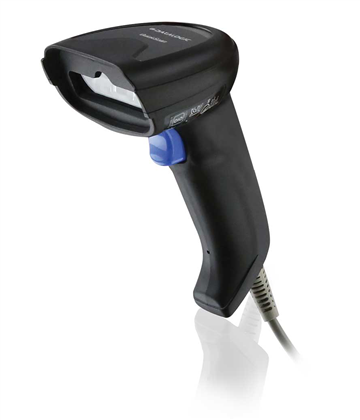

Product Image
small product image0
small product image1
small product image2
small product image3

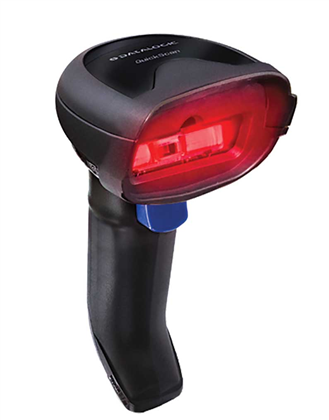

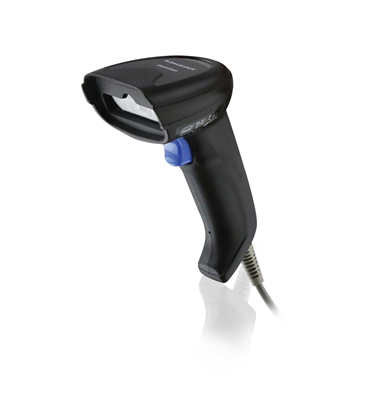

Corded 1D scanning for retail checkout

The Datalogic QuickScan QD2220 is a lightweight linear imager for checkout, loyalty cards and electronic coupons. Its wide scan line captures long 1D barcodes, while a sharp aiming line and Green Spot good-read feedback help operators target and confirm each scan.

Key Specifications

  • Scanner configuration: Handheld, corded linear imager
  • Barcode capability: Standard 1D barcodes, including GS1 DataBar
  • Reading range: Typical 13 mil UPC: 0.4–26.8 in (1–68 cm); varies with barcode size, contrast and lighting
  • Interfaces / connectivity: USB; USB-C host cable available separately
  • Durability: Repeated 5 ft (1.5 m) drops onto concrete; 3 million trigger actuations
  • Environmental sealing: IP42
  • Dimensions: 6.1 × 2.6 × 4.2 in (15.6 × 6.7 × 10.7 cm)
  • Weight: 4.3 oz (123 g)
  • Warranty: 5 years

In the Box

  • QD2220-BK
    • QD2220 scanner

    USB cable and stand sold separately.

  • QD2220-BKK1
    • QD2220 scanner
    • 90A052065 USB cable
  • QD2220-BKK1S
    • QD2220 scanner
    • 90A052065 USB cable

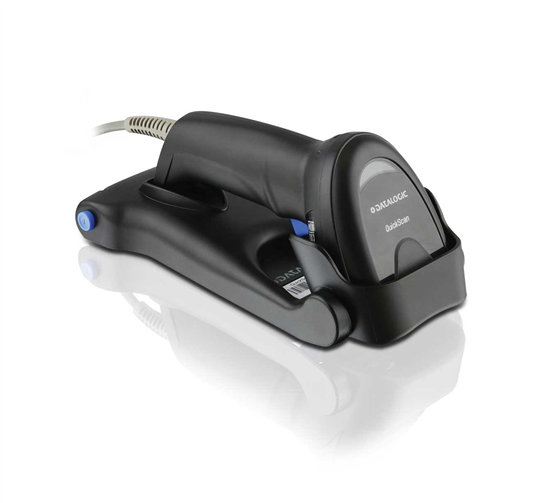

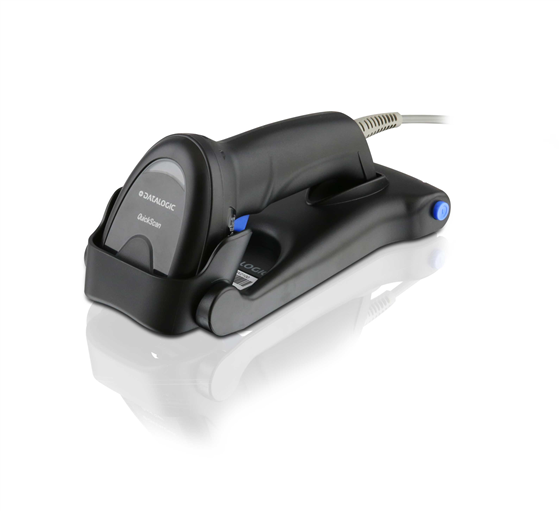

    • STD-QW25-BK collapsible stand

Wide-angle linear reading

The extra-wide scan angle and extended depth of field suit long 1D labels. The QD2220 also reads electronic coupons on smartphone screens and through Plexiglas barriers.

Clear good-read feedback

Datalogic Green Spot projects a confirmation onto the barcode. An adjustable beeper and good-read LED provide additional feedback at busy checkout counters.

1D / Linear Codes
Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
Current
Operating: < 165 mA at 5 V; standby/idle: < 40 mA at 5 V.
Input Voltage
5 VDC ± 5%
Ambient Light
0–120,000 lux
Drop Resistance
Repeated drops from 1.5 m / 5 ft onto concrete.
Trigger Resistance
3 million actuations
ESD Protection (Air Discharge)
16 kV
Humidity (Non-Condensing)
0–95%
Particulate and Water Sealing
IP42
Temperature
Operating: 0 to 50 °C / 32 to 122 °F; storage/transport: -40 to 70 °C / -40 to 158 °F.
Interfaces
USB; Cable to USB-C connector is available
Colors Available
Black
Dimensions
15.6 x 6.7 x 10.7 cm / 6.1 x 2.6 x 4.2 in
Weight
123.0 g / 4.3 oz
Imager Sensor
CCD Solid-State
Field Of View
56° +/- 2°
Light Source
Illumination: Red LED 617nm
Read Rate (Maximum)
1,000,000 pixels/sec (400 reads/sec)
Motion Tolerance
40 IPS
Print Contrast Ratio (Minimum)
15%
Reading Angle
Pitch: +/- 65°; Roll (Tilt): +/- 45°; Skew (Yaw): +/- 65°
Reading Indicators
Beeper (Adjustable Tone); Datalogic ‘Green Spot’ Good-read Feedback on the Code; Good-read LED
Resolution (Maximum)
0.077 mm / 3 mils
Typical Depth of Field
Typical ranges depend on symbol length, scan angle, print resolution, contrast and ambient light.
Code 39, 4 mil: 2.5–22 cm / 1.0–8.7 in
Code 39, 5 mil: 2–30 cm / 0.8–12.0 in
Code 39, 7.5 mil: 1–45 cm / 0.4–17.7 in
Code 39, 10 mil: 1–60 cm / 0.4–23.6 in
Code 39, 20 mil: 3–103 cm / 1.2–40.6 in
EAN/UPC, 13 mil: 1–68 cm / 0.4–26.8 in
Agency Approvals
Meets the safety and regulatory requirements for its intended use; see the Quick Reference Guide and regulatory addendum for certifications.
Environmental Compliance
China RoHS; EU RoHS
LED Classification
Exempt group according to IEC 62471
Datalogic Aladdin
Configuration utility available at no charge.
OPOS / JavaPOS
OPOS and JavaPOS utilities available at no charge.
Remote Host Download
Supports remote host download for device servicing.
Warranty
5-year factory warranty
QuickScan 2200 Series Datasheet (Rev B, January 2023)
Download
QuickScan I QD2200 Quick Reference Guide
Download

Shop QuickScan QD2220 Imager Models

QD2220-BKK1

QuickScan I QD2220, Kit, Linear Imager, USB-only, Black (Kit includes Scanner and USB Cable 90A052065)

Accessories:

Interface Cable

$74.93

QD2220-BKK1S

QuickScan I QD2220, Kit, Linear Imager, USB-only, Black (Kit includes Scanner, USB Cable 90A052065 and Stand STD-QW25-BK)

Accessories:

Interface Cable and Stand

$85.67

QD2220-BK

QuickScan I QD2220, Linear Imager, USB-only, Black

Accessories:

Scanner Only

$69.62

Shop QuickScan QD2220 Imager Accessories

ZSC2QD2251

QuickScan QD2200, 5-year EASEOFCARE, 2-day comprehensive service (ZSC2QD2251).

$12.44

90ACC0306

Datalogic US/Japan plug adapter for 90ACC0287 5V power supply. Power supply sold separately.

$13.41

STD-QW25-BK

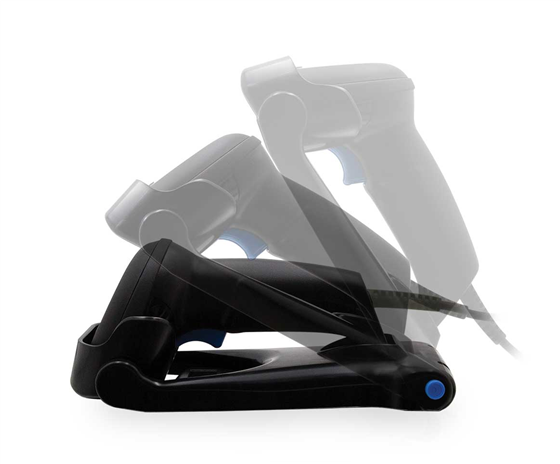

Datalogic QuickScan Stand, Autosense. Collapsible. Black

$11.90

STD-AUTFLX-QD25-BK

Datalogic QD2xxx Stand, Autosense Flex, Black

$23.00

11-0360

Datalogic Barcode Scanner Holder, Multi-Purpose, Black

$14.75

HLD-Q040-BK

Datalogic Desk/Wall Mount Holder, QD2xxx Series, Black

$23.00

90A052285

Datalogic Scanner Cable, USB, Type A,TPUW, Coiled, 2.4m, Black

$33.56

90A052065

Cable, USB, Type A, Enhanced, Straight, Power Off Terminal, 2M (USB Certified)

$15.40

90ACC1886

Datalogic US 2-Pin AC Power Cord

$4.00

90ACC0287

Power Supply, 5V 3A, Line Cord Not Included

$28.00

90A052352

Cable, USB, Type C, PVCW, Straight, 2M, Black

$19.72

STD-AUTO-QD25-BK

Stand, Autosense, Black.

$19.94
