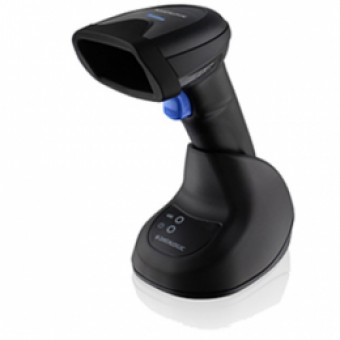

DataLogic QuickScan QBT2500

Name: DataLogic QuickScan QBT2500
Brand: DataLogic
Price: 207.2 USD
Availability: InStock

Images may not reflect the actual product

QuickScan QBT2500 (iOS)

QuickScan QBT2500 - iOS Compatible 2D Barcode Scanner (Bluetooth, USB) The QuickScan QBT2500 imager from Datalogic is an entry-level 2D Bluetooth handheld scanner offering powerful wireless scanning at an affordable price. Designed for retail environments, it effortlessly reads a full range of barcodes, including damaged, hard-to-read, or poorly printed codes.

• Warranty: 5-Year
• Return Period: 15 Days
• Lifetime Support
• Free Shipping

Bluetooth 2D scanning for retail checkout

The Datalogic QuickScan QBT2500 is a cordless area imager for checkout counters and customer service. It reads damaged labels, smartphone barcodes and codes behind Plexiglas, with Bluetooth connectivity that lets staff move around the counter. Direct USB-C charging and a removable battery support flexible charging setups.

Key Specifications

Scanner configuration: Cordless handheld area imager; 1 MP sensor
Barcode capability: 1D, 2D, postal, stacked and composite codes; Digimarc and OCR
Reading range: Typical 13 mil UPC: 0.2–20.1 in (0.5–51 cm); depends on barcode quality, scan angle and lighting
Interfaces / connectivity: Bluetooth 5.0 Class 1; BC2090 base supports USB, USB-C and RS-232
Wireless range: Up to 164 ft (50 m) in open air using the base; other Bluetooth hosts vary
Durability: Repeated 5 ft (1.5 m) drops onto concrete; 10 million trigger actuations
Environmental sealing: IP52
Dimensions: 6.2 × 2.7 × 4.2 in (15.9 × 6.8 × 10.7 cm)
Weight: 7.3 oz (206.5 g), including battery
Warranty: 5 years for the scanner; consumables excluded

In the Box

QBT2500-BK
- QBT2500 scanner
- Base station / charger
Host cable sold separately.
QBT2500-BK-BTK1
- QBT2500 scanner
- Base station
- 90A052258 USB cable
QBT2500-BK-BTK+
- QBT2500 scanner
- USB-C cable
Base station not included.

Clear aiming and confirmation

Two blue triangles frame the barcode target. Datalogic Green Spot, a good-read LED and an adjustable beeper help operators confirm each successful scan.

Flexible charging

Charge directly through the scanner’s USB-C port or use a compatible cradle. A 3,250 mAh lithium-ion battery is removable without tools; charging time varies with the host and power connection.

Bluetooth Radio

Bluetooth 5.0 Class 1; SPP and HID profiles; 2.4 GHz. Up to 50 m / 164 ft in open air using the base station; range with other Bluetooth hosts varies. Data encryption and scanner authentication.

1D / Linear Codes

Standard 1D codes, including GS1 DataBar.

2D Codes

Aztec, China Han Xin, Data Matrix, MaxiCode, Micro QR, QR Code and Dot Code.

Postal Codes

Australian Post, British Post, China Post, IMB, Japanese Post, KIX Post, Planet, Postnet and Royal Mail RM4SCC.

Stacked / Composite Codes

EAN/JAN and UPC A/E composites; GS1 DataBar composites, expanded stacked, stacked and stacked omnidirectional; MacroPDF, MicroPDF417 and PDF417.

Digital Watermarking

Digimarc barcode decoding.

OCR

OCR-A, OCR-B and MICR.

Battery

Battery Type: Lithium-Ion: 3250 mAh Charge Time (Scanner only): Type-C External Power: 3 Hours; Charge Time (via Cradle): External Power: 4 Hours @ 12 VDC;

Reads Per Charge

Manufacturer rating: 115,000 reads per charge; actual results vary with workload and settings.

Cradle Indicators

Flashing orange or green during battery charging; steady green when charging is complete.

Charging Current

Typical scanner charging: 500 mA at 3.7 V; BC2090 cradle operating current: 45 mA at 5 V.

Input Voltage

Scanner USB-C: 5 V ±5%; BC2090 cradle: 4.5–14 VDC ±5%.

Ambient Light

0–110,000 lux.

Drop Resistance

Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.

Trigger Resistance

10 million trigger actuations.

ESD Protection

16 kV air discharge.

Humidity

0–95%, non-condensing.

Environmental Sealing

IP52

Temperature

Operating: 0–50 °C / 32–122 °F; storage and transport: -40–70 °C / -40–158 °F.

Interfaces

BC2090 base: USB, USB-C and RS-232 multi-interface.

Color

Black.

Dimensions (H x L x W)

15.9 x 6.8 x 10.7 cm / 6.2 x 2.7 x 4.2 in

Weight

206.5 g / 7.3 oz (battery included)

Image Capture

Graphic Formats: BMP, JPEG, TIFF; Greyscale: 256, 16, 2

Image Sensor

1 Megapixel (1280 x 800 pixels)

Light Source

Blue 468 nm LED aiming; red 617 nm LED illumination.

Motion Tolerance

30 inches per second.

Print Contrast Ratio

15% minimum.

Reading Angle

Pitch ±65°; roll 360°; skew ±65°.

Reading Indicators

Adjustable beeper tone and volume; Green Spot confirmation on the code; good-read LED.

Resolution (Max)

1D Linear: 0.077 mm / 3 mils;
PDF417: 0.077 mm / 3 mils;
Data Matrix: 0.127 mm / 5 mils;
QR Code: 0.17 mm / 6.7 mils

Typical Depth of Field

Typical ranges depend on symbol length, scan angle, print resolution, contrast and ambient light.
Code 39, 5 mil: 0.5–25 cm / 0.2–9.8 in
Code 39, 10 mil: 0.5–38 cm / 0.2–14.9 in
Data Matrix, 10 mil: 0.5–21.5 cm / 0.2–8.5 in
EAN/UPC, 13 mil: 0.5–51 cm / 0.2–20.1 in
PDF417, 6.7 mil: 0.5–21 cm / 0.2–8.3 in
QR Code, 20 mil: 0–37 cm / 0–14.6 in

Agency Approvals

Meets applicable safety and regulatory requirements for intended use; consult the model-specific regulatory documentation.

Environmental Compliance

China RoHS and EU RoHS.

LED Classification

Illuminator: Exempt Group; aimer: Risk Group 1 under IEC 62471.

Datalogic Aladdin

Configuration utility available at no charge.

OPOS / JavaPOS

OPOS and JavaPOS utilities available at no charge.

Remote Host Download

Remote configuration/service support.

Warranty

5-year factory scanner warranty; consumables excluded under manufacturer terms.

Shop QuickScan QBT2500 Models

QBT2500-BK-BTK1

QuickScan QBT2500, Bluetooth Kit. Black (Kit includes Scanner, Base Station and USB Cable 90A052258)

Package Contents:

Scanner, Base and USB Cable

$267.44

QBT2500-BK-BTK+

QuickScan QBT2500, Bluetooth 2D scanner kit, black; includes scanner and USB-C cable. Base station not included.

Package Contents:

Scanner and USB-C Cable

$207.20

QBT2500-BK

Quickscan QBT2500, Bluetooth. Black. Scanner & Base Only.

Package Contents:

Scanner and Base

$356.54

Shop QuickScan QBT2500 Accessories

90A052258

Straight USB Cable for Datalogic Barcode Scanners. Type A, TPUW. 2 Meter, Black

$25.00

BC2090-BK

BC2090 Bluetooth Base Station/Charger. Black. Used with Datalogic QuickScan 2500

$211.40

ZSC2QM2531

QuickScan QM/QBT2500, 3-year EASEOFCARE, 2-day comprehensive service (ZSC2QM2531).

$27.73

RBP-QBT25-BK

Battery Pack, Removable, RBP-2500, Black.

$35.07

90A052352

Cable, USB, Type C, PVCW, Straight, 2M, Black

$19.72

8-0935

Power Supply, Requires Line Cord 6003-0941

$19.00

6003-0941

Power Cord, 110V, US

$15.00

90A052285

Coiled USB Cable for Datalogic Barcode Scanners. Type A, TPUW. 2.4 Meter, Black

$33.56

90A052289

Cable, USB, Type A, TPUW, Coiled, Power off Terminal, 5M, Black

$45.64

90A052354

Cable, USB, Type C, PVCW, Coiled 2.4M, Black

$26.86

90ACC0287

Power Supply, 5V 3A, Line Cord Not Included

$28.00

90ACC1886

Datalogic US 2-Pin AC Power Cord

$4.00
