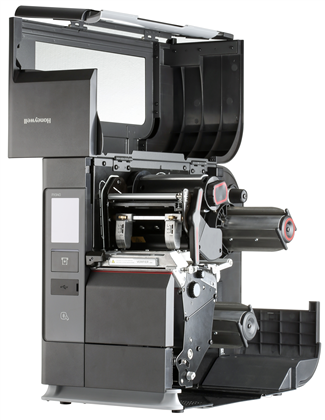

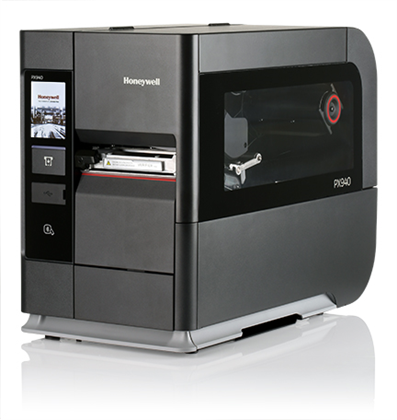

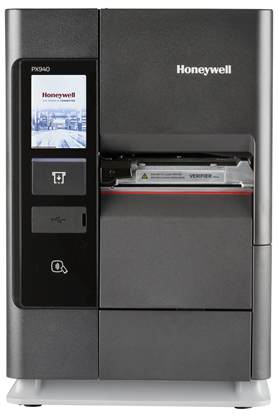

Honeywell PX940
High-performance industrial printing with exceptional registration accuracy and optional integrated barcode verification.
Honeywell PX940 Overview
The PX940 is built for operations where a bad label can stop a process, trigger rework, or create a compliance problem. It combines industrial output with ±0.2 mm registration accuracy for small, exact labels and demanding barcode placement.
Choose the PX940A for precision printing or the PX940V with integrated verification to check every printed barcode and report pass/fail status with ANSI grading.
Key Specifications
- Print method: Thermal transfer and direct thermal
- Resolution: 203, 300, or 600 dpi
- Maximum print width: 4.25 in at 203 dpi; 4.16 in at 300/600 dpi
- Print speed: Up to 14 ips at 203 dpi, 12 ips at 300 dpi, or 6 ips at 600 dpi
- Media and ribbon handling: Media to 4.5 in and 8.38 in roll OD; ribbons to 1,476 ft; option-dependent rewinder and peel
- Connectivity: Ethernet, USB host/device, RS-232, Bluetooth LE, and NFC; optional Wi-Fi and industrial interfaces
- Duty/application fit: High-precision industrial and regulated labeling
- Dimensions and weight: 19.92 × 15.70 × 10.28 in; 50.71 lb standard or 51.81 lb with verifier
- Warranty: 1-year factory warranty
In the Box
Selected configuration: Honeywell PX940 printer; integrated verifier and perpetual verification license only when named.
Installed hardware: Rewinder, peel-off module, label-taken sensor, and 3-inch media core only when named.
Power and supplies: US power cord only when stated. Labels and thermal-transfer ribbon are sold separately.
Enhanced Accuracy and Integrated Verification
±0.2 mm Registration
Tight print registration helps reduce unreadable labels and supports high-precision applications in regulated environments.
PX940V Verification
Integrated verification checks barcode quality immediately, provides ANSI grading, and gives operators a clear pass/fail result.
Built for Regulated, High-Uptime Work
Smart, Operator-Friendly Design
A color touchscreen, quick side loading, and smart-printing capability simplify configuration, loading, and host-independent operation.
Operational Intelligence
Predictive analytics and real-time printer-health data help teams find issues before they disrupt production.
Industrial Performance
An all-metal mechanism and speeds up to 14 ips support transportation, healthcare, pharmaceutical, automotive, and logistics work.
Fast Routine Service
Easy printhead access and tool-free platen-roller replacement help keep downtime under control.
Shop PX940 Models
PX940V30100060200
PX940 Industrial Label Printer. Verifier with Perpetual License, Full Touch Display, Universal Firmware, Ethernet, USB, Serial, Bluetooth LE, Ribbon Ink-Side In/Out, Internal Rewinder, Peel-Off, Label-Taken Sensor, 3-Inch Media Core, Direct Thermal and Thermal Transfer, 203 dpi. Order Power Cord Separately.
DPI:
203
Verification:
Integrated Verifier
Media Handling:
Rewinder + Peel-Off + LTS
PX940V30100060600
PX940 Industrial Label Printer. Verifier with Perpetual License, Full Touch Display, Universal Firmware, Ethernet, USB, Serial, Bluetooth LE, Ribbon Ink-Side In/Out, Internal Rewinder, Peel-Off, Label-Taken Sensor, 3-Inch Media Core, Direct Thermal and Thermal Transfer, 600 dpi. Order Power Cord Separately.
DPI:
600
Verification:
Integrated Verifier
Media Handling:
Rewinder + Peel-Off + LTS
PX940A00100060300
PX940 Industrial Label Printer. Without Verifier, Full Touch Display, Universal Firmware, Ethernet, USB, Serial, Bluetooth LE, Ribbon Ink-Side In/Out, Internal Rewinder, Peel-Off, Label-Taken Sensor, 3-Inch Media Core, Direct Thermal and Thermal Transfer, 300 dpi. Order Power Cord Separately.
DPI:
300
Verification:
No Verifier
Media Handling:
Rewinder + Peel-Off + LTS
PX940V30100060300
PX940 Industrial Label Printer. Rest of World, Verifier, Ribbon Ink-Side In/Out, 3-Inch Core, Rewinder/Peel-Off/Label-Taken Sensor, 300 dpi.
DPI:
300
Verification:
Integrated Verifier
Media Handling:
Rewinder + Peel-Off + LTS
PX940A00100060302
PX940 Industrial Label Printer. Rest of World, Without Verifier, Ribbon Ink-Side In/Out, Rewinder/Peel-Off/Label-Taken Sensor, 300 dpi, US Power Cord.
DPI:
300
Verification:
No Verifier
Media Handling:
Rewinder + Peel-Off + LTS
PX940V30100060602
PX940 Industrial Label Printer. Rest of World, Verifier, Ribbon Ink-Side In/Out, 3-Inch Core, Rewinder/Peel-Off/Label-Taken Sensor, 600 dpi, US Power Cord.
DPI:
600
Verification:
Integrated Verifier
Media Handling:
Rewinder + Peel-Off + LTS
PX940A00100060202
PX940 Industrial Label Printer. Rest of World, Without Verifier, Ribbon Ink-Side In/Out, 3-Inch Core, Rewinder/Peel-Off/Label-Taken Sensor, 203 dpi, US Power Cord.
DPI:
203
Verification:
No Verifier
Media Handling:
Rewinder + Peel-Off + LTS
PX940V30100000602
PX940 Industrial Label Printer. Rest of World, Verifier, Ribbon Ink-Side In/Out, 3-Inch Core, 600 dpi, US Power Cord.
DPI:
600
Verification:
Integrated Verifier
Media Handling:
Standard
PX940V30100000202
PX940 Industrial Label Printer. Rest of World, Verifier, Ribbon Ink-Side In/Out, 3-Inch Core, 203 dpi, US Power Cord.
DPI:
203
Verification:
Integrated Verifier
Media Handling:
Standard
PX940V30100000302
PX940 Industrial Label Printer. Rest of World, Verifier, Ribbon Ink-Side In/Out, 3-Inch Core, 300 dpi, US Power Cord.
DPI:
300
Verification:
Integrated Verifier
Media Handling:
Standard
PX940A00100000302
PX940 Industrial Label Printer. Rest of World, Without Verifier, Ribbon Ink-Side In/Out, 3-Inch Core, 300 dpi.
DPI:
300
Verification:
No Verifier
Media Handling:
Standard
PX940A00100000202
PX940 Industrial Label Printer. Rest of World, Without Verifier, Ribbon Ink-Side In/Out, 3-Inch Core, 203 dpi.
DPI:
203
Verification:
No Verifier
Media Handling:
Standard
