Touch Dynamic Pulse Ultra
Description
Specifications
Download

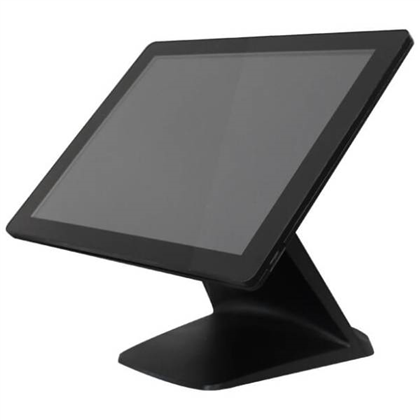

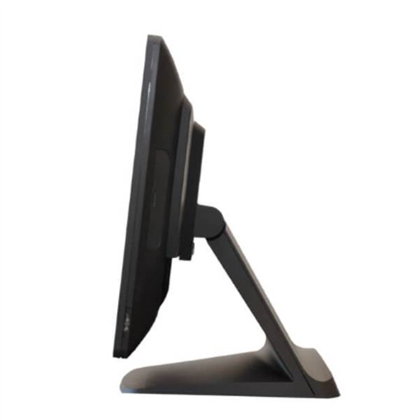

Touch Dynamic Pulse Ultra

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2

Configurable POS with true-flat multi-touch

The Touch Dynamic Pulse Ultra combines a true-flat PCAP touchscreen with configurable Intel processing and POS peripherals. Screen size, operating system, memory, readers and base packages vary by model, with current and earlier hardware generations kept distinct in the model details.

Touch Dynamic Pulse Ultra

Key Specifications

  • Processor: Intel Celeron or Core; exact generation by option
  • Memory and storage: RAM and SSD capacity vary by model
  • Display and touch: 15-inch or 17-inch PCAP; resolution by size
  • Operating system: No OS or Windows configurations; see exact model
  • Ports and connectivity: USB, serial, LAN and cash drawer; generation dependent
  • Mount / stand: Base package by selected option
  • Peripheral options: MSR, fingerprint, scanner and rear-display options
  • Serviceability: Memory/storage expansion depends on motherboard
  • Dimensions (W × D × H): Varies by display and base; see Specs
  • Warranty: 3 years

In the Box

  • Pulse Ultra touchscreen computer
  • Selected base and peripherals only as stated in the exact model

Included peripherals and installed software depend on the selected configuration.

Configurable checkout

CPU and peripheral options let the selected system match the checkout workload.

Staff and customer interaction

Optional rear displays, MSR and fingerprint readers extend the workstation for different workflows.

Processor
15-inch Elkhart/Tiger Lake: Celeron J6412, Core i3-1115G4 or Core i5-1135G7. Earlier listed generations include Celeron J3455 and Skylake Core; exact CPU is option-specific.
Memory
Elkhart/Tiger Lake: DDR4, up to 32GB. Earlier J3455/Skylake: DDR3L, up to 8GB per matching older sheet. Installed memory is stated by option.
Storage
128GB SSD in new listed configurations; NVMe support and storage options depend on motherboard generation.
Current Platform OS Support
Windows 10 IoT, Windows 11 IoT/Pro, Linux and Android 13; exact installed OS and supported platform depend on processor generation.
Display
15-inch: 1024 × 768.17-inch: 1280 × 1024. True-flat PCAP multi-touch; available listed sizes are identified by option.
Aspect Ratio
15-inch: 4: 3; 17-inch: 5: 4, from native resolution.
Current 15-inch USB
2 × USB 3.0; 2 × USB 2.0; 2 × USB-C. J6412 USB-C data only; Core i3/i5 have one video/power-delivery port and one data-only port.
Current 15-inch Serial
2 × DB9 serial ports with power option.
Current 15-inch Video
Custom mini DisplayPort convertible to HDMI or VGA.
Current 15-inch Other I/O
Gigabit LAN, RJ11 cash drawer and 4-pin latched power input; optional audio output.
Older Generation I/O
Matching J3455/Skylake sheet: 2 × USB 2.0, 4 × USB 3.0, 3 × RJ45 serial with DB9 adapters, Gigabit LAN, cash drawer and optional DisplayPort/audio.
Current 17-inch Platform
Manufacturer family sheet covers N97/i3-N305 platforms with a different USB/serial layout. Do not apply these hardware details to an older17-inch option without exact confirmation.
Power
Generation dependent: older J3455 65W/19V, Skylake Core 90W; current J6412 65W/19V and Tiger Lake Core120W/19V. Powered expansion requires the compatible power configuration.
Optional Peripherals

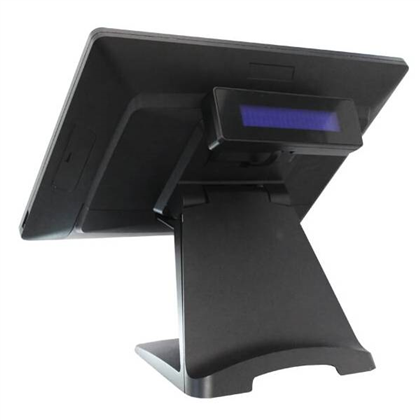

USB MSR, fingerprint reader, LCM 2 × 20 display, rear touch displays, 2D Honeywell scanner and compatible PIN pad brackets.
Mount / Base
Standard/non-foldable, printer-base or wall-mount options depend on exact configuration.
Dimensions
Current family reference W × H × D: 15-inch14.2 × 13.1 × 8.3 inches; 17-inch15.4 × 14.2 × 8.3 inches. Earlier bases and attached peripherals differ.
Older Generation Environment
Matching older sheet: 5–35°C operating; FCC/CE Class A, LVD.
Warranty
3 years.
Pulse Ultra Current Platform Specifications
Download
Pulse-Ultra Spec Sheet
Download

Shop Pulse Ultra Models

P5180LN1N-00NNNNN

Pulse Ultra, Celeron J6412 CPU, 8GB RAM, 128GB NVMe SSD, Windows 11 IoT, Ultra Base II (Non-Foldable)

SSD:

128GB

RAM:

8GB

Processor:

Intel Celeron J6412

Card Reader (MSR):

Not included

Operating System:

Windows 11 IoT

$1145.60

P51801N1N-00NNNNN

Pulse Ultra, Celeron J6412 CPU, 8GB RAM, 128GB NVMe SSD, Windows 11 Pro, Ultra Base II (Non-Foldable)

SSD:

128GB

RAM:

8GB

Processor:

Intel Celeron J6412

Card Reader (MSR):

Not included

Operating System:

Windows 11 Pro

$1279.20

P5280NN1N-00NNNNN

Pulse Ultra, i3-1115G4 CPU, 8GB RAM, 128GB NVMe SSD, No OS, Ultra Base II (Non-Foldable)

SSD:

128GB

RAM:

8GB

Processor:

Intel Core i3-1115G4

Operating System:

No OS

Card Reader (MSR):

Not included

$1585.60

P5280LN1N-00NNNNN

Pulse Ultra, i3-1115G4 CPU, 8GB RAM, 128GB NVMe SSD, Windows 11 IoT, Ultra Base II (Non-Foldable)

SSD:

128GB

RAM:

8GB

Processor:

Intel Core i3-1115G4

Card Reader (MSR):

Not included

Operating System:

Windows 11 IoT

$1632.00

P52801N1N-00NNNNN

Pulse Ultra, i3-1115G4 CPU, 8GB RAM, 128GB NVMe SSD, Windows 11 Pro, Ultra Base II (Non-Foldable)

SSD:

128GB

RAM:

8GB

Processor:

Intel Core i3-1115G4

Card Reader (MSR):

Not included

Operating System:

Windows 11 Pro

$1765.60

LI-P64GNN1N-00NNNNN-MAG02

Pulse Ultra All In One 15" LCD Projected Capacitive Touch True Flat Intel Core i3-6100U Skylake Processor 3M Cache 2.30GHz CPU, 8GB LV RAM WD 128GB SSD No OS Ultra Base II (Non-Foldable), Thumbscrew, Load MAGSTAR

SSD:

128GB

RAM:

8GB

Processor:

Intel Core i3-6100U

Operating System:

No OS

Card Reader (MSR):

Not included

$1458.52

P63GNN1N-00NNNNN

15" Pulse Ultra, Intel Core i3-6100U CPU 2.3GHz without MSR, 4GB LV RAM, 128GB SSD, NO OS

SSD:

128GB

RAM:

4GB

Processor:

Intel Core i3-6100U

Operating System:

No OS

Card Reader (MSR):

Not included

$1371.85

P63GMA1N-00NNNNN

Pulse Ultra All In One 15" LCD, Projected Capacitive Touch True Flat, Intel Core i3-6100U Skylake Processor 3M Cache, 2.30GHz CPU, 4GB LV RAM, WD 128GB SSD, Windows 10 IOT Enterprise (64 Bit), Ultra MSR, Ultra Base II (Non-Foldable)

SSD:

128GB

RAM:

4GB

Processor:

Intel Core i3-6100U

Card Reader (MSR):

MSR

Operating System:

Windows 10 IoT

$1499.25

P53GMN1N-00NNNNN

Pulse Ultra with 15" Projected Capacitive Touch Screen Intel Celeron J3455 Processor 2.3Ghz Fanless, 4 GIG RAM, 128 GIG SSD, WIN 10 IOT (64 Bit)

SSD:

128GB

RAM:

4GB

Processor:

Intel Celeron J3455

Card Reader (MSR):

Not included

Operating System:

Windows 10 IoT

$938.52

LI-P64GNN1N-00NNNNN-MAG01

Pulse Ultra All In One 15" LCD, Projected Capacitive Touch True Flat, Intel Core i3-6100U Skylake Processor 3M Cache, 2.30GHz CPU, 8GB LV RAM, WD 128GB SSD, No OS, Ultra Base II (Non-Foldable), LOAD MAGSTAR IMAGE

SSD:

128GB

RAM:

8GB

Processor:

Intel Core i3-6100U

Operating System:

No OS

Card Reader (MSR):

Not included

$1458.52

P63GMN1N-00NNNNN

Pulse Ultra All In One 15" LCD, Projected Capacitive Touch True Flat, Intel Core i3-6100U Skylake Processor 3M Cache, 2.30GHz CPU, 8GB LV RAM, 64GB SSD, Windows 10 IOT Enterprise 2016 LTSB (64 Bit), Ultra Base II (Non-Foldable)

SSD:

64GB

RAM:

8GB

Processor:

Intel Core i3-6100U

Card Reader (MSR):

Not included

Operating System:

Windows 10 IoT

$1419.25

P5100MA1N-00NNNNN

Pulse Ultra All In One Touch Computer. 15" Projected Capacitive LCD Touch. Intel Celeron J6412 Elkhart Lake Processor. 4GB DDR4 RAM. 128GB SSD. Windows 10 IOT Enterprise (64 Bit). Ultra MSR. Ultra Base II (Non-Foldable).

SSD:

128GB

RAM:

4GB

Processor:

Intel Celeron J6412

Card Reader (MSR):

MSR

Operating System:

Windows 10 IoT

$948.62

P53801N1N-00NNNNN

Pulse Ultra, i5-1135G7 CPU, 8GB RAM, 128GB NVMe SSD, Windows 11 Pro, Ultra Base II (Non-Foldable)

SSD:

128GB

RAM:

8GB

Processor:

Intel Core i5-1135G7

Card Reader (MSR):

Not included

Operating System:

Windows 11 Pro

$1948.14

P5380LN1N-00NNNNN

Pulse Ultra, i5-1135G7 CPU, 8GB RAM, 128GB NVMe SSD, Windows 11 IoT, Ultra Base II (Non-Foldable)

SSD:

128GB

RAM:

8GB

Processor:

Intel Core i5-1135G7

Card Reader (MSR):

Not included

Operating System:

Windows 11 IoT

$1814.81

P5180NN1N-00NNNNN

Pulse Ultra, Celeron J6412 CPU, 8GB RAM, 128GB NVMe SSD, No OS, Ultra Base II (Non-Foldable)

SSD:

128GB

RAM:

8GB

Processor:

Intel Celeron J6412

Operating System:

No OS

Card Reader (MSR):

Not included

$1099.20

Shop Pulse Ultra Accessories

C-ENCR

7" and 10" Upgrade for Encrypted MSR (Encryption Key to be specified at time of order)

$40.00

PH-8TMPCAP-ULT-BASE

Integrated rear LCD for the pulse ultra, standard base

$265.18

AIO-8 FP01

AIO Steel Coat Finger Print Reader, Cover, and Bracket for Pulse & Breeze AIO, Pulse and Breeze Ultra Center

$176.29

PH-8TMPCAP-UB-BASE

Integrated Rear Projected Capacitive Touch 8" LCD, Breeze Ultra Folding Base

$265.18

C-8GBFS3-LV

Upgrade to 8GB RAM

$160.00

MSR-ULTRAID

Touch Dynamic MSR IDTech for Ultra Systems

$96.29

br-wallmount

Vesa Wall Mount Bracket

$50.37

ULTRA-CUST-DISPLAY-PB-01

Touch Dynamic VFD 2 × 20 2nd Display for Slim Printer Base; requires compatible Slim Printer Base, sold separately.

$140.74

C-ADP-FEDP-HDMI

Touch Dynamic fEDP to HDMI Cable (for non-Razor displays)

$23.70

C-ADP-FEDP-VGA

Touch Dynamic fEDP to VGA Cable (for non-Razor displays)

$16.29

CBL-FEDPTOFEDP-6FT

Touch Dynamic 6-foot fEDP-to-fEDP cable for compatible Razor 11.6-inch or 15.6-inch rear displays only.

$18.40

ULTRA-0063

Touch Dynamic Steel Coat fingerprint Reader for Ultra Systems

$146.66

ULTRA-CUST-DISPLAY-01

Touch Dynamic VFD 2 × 20 2nd Display for Ultra Foldable and Non Foldable Base

$140.68

RZ-11DISP-ULT-01

Touch Dynamic 11.6" Rear Display for Ultra Foldable and Non Foldable Base

$358.52

RZ-11DISP-PB-01

Touch Dynamic 11.6" Rear Display for Slim Printer Base; requires compatible Slim Printer Base, sold separately.

$358.52

CM-2DSCANNER-KIT02

Touch Dynamic Honeywell 2D Scanner for Pulse Ultra and Breeze 185 Ultra

$326.40

WIRELESS-M2-KIT5

Touch Dynamic Wireless Card Kit compatible with Elkhart Lake, Tiger Lake, Whiskey Lake CPUs

$100.00

SLIM-PRINTER BASE-U

Touch Dynamic Slim Printer Base with Epson USB/Ethernet M30 Series Printer

$518.52

TD-WALLMOUNT-01

Touch Dynamic VESA Wall Mount Bracket with Power Supply Holder

$51.85

C-256GBSSDWD01

Upgrade to 256GB SSD

$66.66
