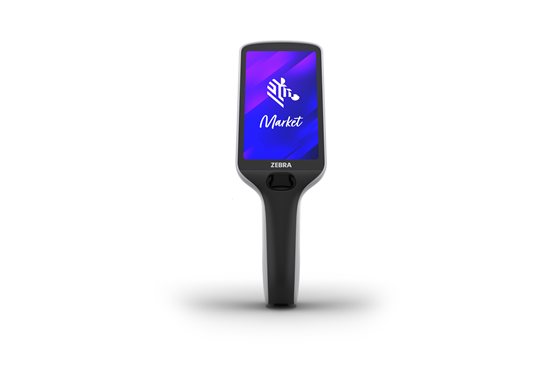

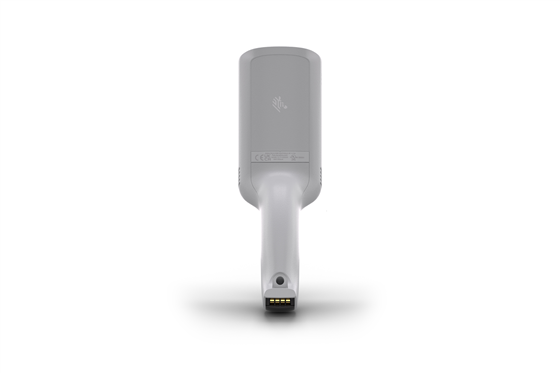

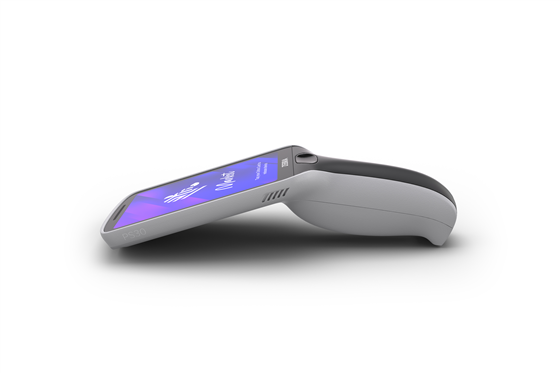

Zebra PS30 Personal Shopper

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6
small product image7
small product image8

A personalized, low-friction self-scan shopping experience

The Zebra PS30 Personal Shopper connects shoppers with digital lists, promotions, product information and in-store navigation while enabling them to scan and bag items as they shop.

Its ergonomic single-button design, large display and retail-ready scanning are designed for intuitive customer use. PS30 Plus configurations add advanced locationing and NFC capabilities, including support for contactless interactions.

See how the Zebra PS30 supports a connected self-scan shopping journey.

Key Specifications

  • 4.7-inch HD 1280 x 720 color display with Corning Gorilla Glass
  • Bright, ergonomic design with a single dedicated scan button
  • Enterprise 1D/2D imager for printed and electronic barcodes
  • Wi-Fi 6E and Bluetooth 5.3 wireless connectivity
  • NFC and advanced locationing sensors on PS30 Plus configurations
  • Integrated microphone and speaker for virtual or live assistance
  • Rugged 4 ft. drop and tumble-tested retail design
  • Backwards compatible with supported Zebra Personal Shopper charging infrastructure

In the Box

The standard package includes:

  • PS30 personal shopper
  • Lithium-ion battery
  • Regulatory Guide

Engage Every Shopper on Every Shopping Trip

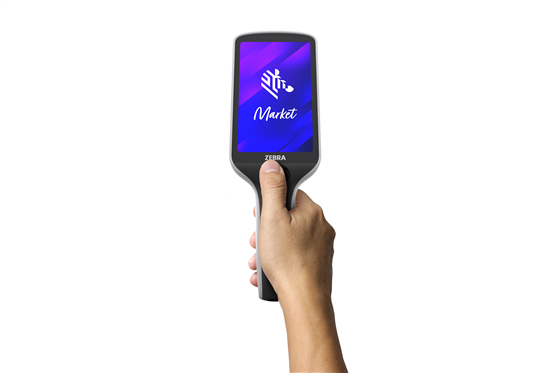

Advanced ergonomics and an alluring design

The PS30 is intended for grocery, mass-merchandise and other self-scan environments where shoppers need lists, product information, directions, promotions and assistance in hand. Advanced locationing and NFC features are specific to PS30 Plus configurations and should not be assumed on the base model.

The durability you need for reliable operation

A 4 ft. drop rating, tumble testing and chemically resistant housing materials help the PS30 withstand shared daily use. Gorilla Glass protects the display and imager window, while dirt-resistant charging contacts reduce maintenance at the cradle.

One tap device release

The unibody housing, large dedicated scan button and clear haptic feedback make the PS30 approachable for first-time users. Its 4.7-inch display is approximately one-third larger than the PS20 display, providing more room for lists, maps, product information and assistance screens.

Effortless first-time every time barcode scanning

Shoppers can scan and bag products as they move through the store, check prices and totals, and request virtual or live help from the device. Retailer and payment-provider integration can support a tap-to-pay journey that bypasses a traditional checkout lane; NFC payment functions require a PS30 Plus configuration and compatible payment services. The enterprise imager can automatically capture printed or electronic barcodes when the device is presented in the supported hands-free orientation. It is designed to handle poorly printed, damaged or difficult retail codes, helping customers avoid repeated scan attempts.

A large 4.7 inch display with exceptional clarity

The unibody housing, large dedicated scan button and clear haptic feedback make the PS30 approachable for first-time users. Its 4.7-inch display is approximately one-third larger than the PS20 display, providing more room for lists, maps, product information and assistance screens.

Take on-the-spot contactless mobile payment

Shoppers can scan and bag products as they move through the store, check prices and totals, and request virtual or live help from the device. Retailer and payment-provider integration can support a tap-to-pay journey that bypasses a traditional checkout lane; NFC payment functions require a PS30 Plus configuration and compatible payment services.

Engage Every Shopper on Every Shopping Trip

Shoppers can get instant help with the press of a button

The PS30 can associate a shopper with loyalty data, digital shopping lists, dietary preferences and relevant coupons when integrated with the retailer's applications. Customers can unlock a device by scanning a loyalty code at a CC6000 kiosk or, where configured, by using NFC, a supported card or a mobile wallet at the cradle.

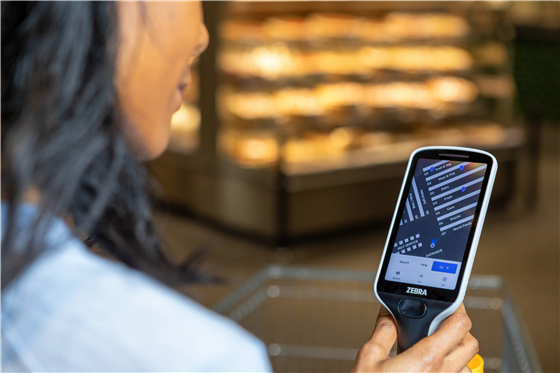

Enhanced ‘no infrastructure required’ locationing

PS30 Plus models support Zebra's infrastructure-free location technology for turn-by-turn guidance, contextual promotions and device locating without a separate beacon deployment. Zebra reports an average basket-size increase of 10% in the referenced customer results, but actual results depend on the retailer's application, merchandising and deployment. Retail applications can present aisle-level directions, surface coupons near relevant products and help shoppers find an associate. The same location data can support traffic analysis, merchandising decisions and labor planning when combined with the retailer's software and analytics.

Powerful Business Features that Deliver Big Benefits

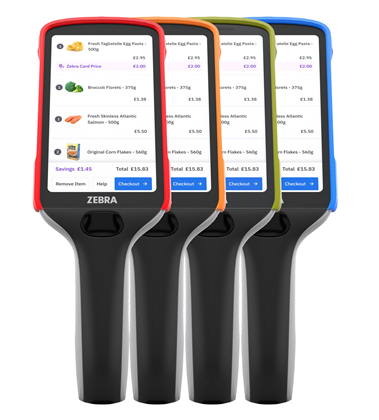

Customize with your brand

An integrated speaker and microphone support voice assistance and communication with store staff through the retailer's application. The bright housing is easy to spot, and retailers can add branding so shoppers can quickly identify the device and service.

Never lose a device

PowerPrecision+ batteries expose health and state-of-charge information to supported management tools so teams can retire aging batteries before they interrupt a shopping trip. Optional Device Tracker software can help locate misplaced units, and an electronic article surveillance tag can be fitted to discourage devices from leaving the store.

The power to support the most demanding apps

The PS30 is backward compatible with supported Zebra Personal Shopper charging infrastructure, protecting selected investments from earlier deployments. Self-provisioning cradles and centralized Zebra DNA tools can simplify staging large fleets, subject to the selected cradle and software configuration. Wi-Fi 6E provides modern enterprise wireless capacity when paired with compatible access points, while Bluetooth 5.3 supports approved peripherals.

Easy battery management with PowerPrecision+

PowerPrecision+ batteries expose health and state-of-charge information to supported management tools so teams can retire aging batteries before they interrupt a shopping trip. Optional Device Tracker software can help locate misplaced units, and an electronic article surveillance tag can be fitted to discourage devices from leaving the store.

Mobility DNA

Mobility DNA capabilities support deployment, security, troubleshooting and ongoing control of the retail fleet. Zebra OneCare service plans are available for repair and support, helping retailers plan for device uptime across multi-store rollouts.

Easily Upgrade or Deploy New Devices

Cost effectively upgrade to the latest self-service technologies

The PS30 is backward compatible with supported Zebra Personal Shopper charging infrastructure, protecting selected investments from earlier deployments. Self-provisioning cradles and centralized Zebra DNA tools can simplify staging large fleets, subject to the selected cradle and software configuration.

Faster deployment with cradle setup software

The PS30 is backward compatible with supported Zebra Personal Shopper charging infrastructure, protecting selected investments from earlier deployments. Self-provisioning cradles and centralized Zebra DNA tools can simplify staging large fleets, subject to the selected cradle and software configuration. Network performance and access to the 6 GHz band depend on regional regulations, device configuration and installed infrastructure.

Get the Ultimate in Device Support Options

Maximize device value with Zebra’s optional support services

The PS30 is backward compatible with supported Zebra Personal Shopper charging infrastructure, protecting selected investments from earlier deployments. Self-provisioning cradles and centralized Zebra DNA tools can simplify staging large fleets, subject to the selected cradle and software configuration.

Dimensions
0.76 in. H x 8.52 in. L x 2.83 in. W
19.4 mm H x 216.5 mm L x 72 mm W
Weight
Standard: 9.95 oz./282 g
Display
4.7 inch color HD (1280x720); optically bonded to touch panel glass; 540 NITS
Touch Panel
Corning Gorilla Glass; capacitive multi-touch
Imager Window
Corning Gorilla Glass
Interface/ Communication s
USB 2.0 Client Cable for device maintenance
Voice and Audio
One (1) microphone and two (2) speakers for voice query and assistance
Notifications
Audible tone; multi-color LED; haptic feedback
Button
1 dedicated scan button
CPU
Qualcomm® QCS4490 Kryo octa-core; 2.4 GHz
Operating System
Upgradeable to Android 17
Memory
6 GB RAM/64 GB Flash
Power
PowerPrecision+ 3500 mAh capacity Li Ion rechargable battery
Operating Temp.
14° F to 122° F/-10° C to 50° C
Storage Temp.
5% - 95% non condensing
Drop Spec.
Multiple 4 ft./1.2 m drops to concrete across the entire operating temperature range
Tumble Spec.
1,000 1.64 ft./0.5 m tumbles at room temperature
Sealing
PSS Casual Spill
Disinfectant Ready
Advanced chemical resistant plastics built to withstand frequent cleanings with a wide selection of disinfectants. For information on Zebra-approved disinfectants and guidelines on cleaning, please visit: www.zebra.com/ps30

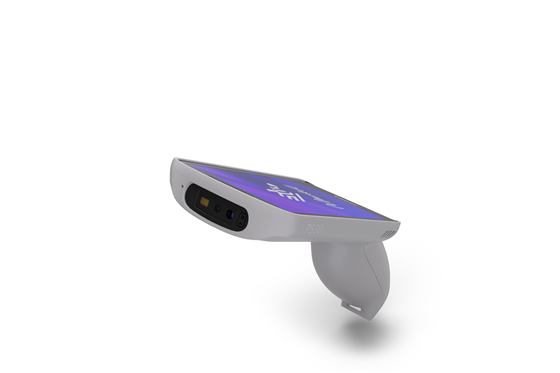

Scanning
SE4710 1D/2D imager with hands-free scanning and Digimarc support
Light Source
Red LED Illumination with LED dot aim pattern
NFC
C Plus model only: ISO 14443 Type A and B; Mifare, Sony FeliCa and ISO15693 cards; Card Emulation Via Host, Contactless payment support, Google Smart Tap ready
Interactive Sensor Technology
3-axis accelerometer; gyroscope; magnetometer; barometer (pressure sensor); proximity sensor for handsfree scan trigger
Radio
IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc; 2x2 MU-MIMO; Tri-band (2.4 GHz, 5 GHz, 6 GHz); Wi-Fi CERTIFIED 6™ (Wi-Fi 6E); Dual Band Simultaneous; IPv4, IPv6
Bluetooth
Class 2, Bluetooth v5.3; Bluetooth Low Energy (BLE)
Warranty
Subject to the terms of Zebra’s hardware warranty statement, the PS30 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit: www.zebra.com/warranty
PS30 Accessories Guide
Download
PS30 Spec Sheet
Download
PS30 User Manual
Download

Shop PS30 Personal Shopper Models

PS30JP-0H1NA00

PS30, PLUS WLAN, GMS, 4.7", 6GB/64GB, SE4710, No Camera, NFC, Sensors

$1948.11

PS30JB-0H1NA00

PS30, BASE WLAN, GMS, 4.7", 6GB/64GB, SE4710, No Camera, No Sensors

$1702.72

Shop PS30 Personal Shopper Accessories

CRD-MC18-1SLOT-01

MC18, Single Slot Locking Cradle. Display Facing Out. Requires Power Supply PWR-BGA12V108W0WW, DC line cord and Country Specific AC line cord sold separately.

$363.28

CRD-MC18-3SLOTH-01

PSS High Density 3-Slot Non-Locking Cradle. Display facing out. Requires PWR-BGA12V108W0WW, DC line cord and Country Specific Grounder AC line cord sold separately.

$1178.63

CRD-MC18-3SLCKH-01

MC18, High Density HD LOCKING 3-Slot Charging Cradle Display facing out. Requires PWR-BGA12V108W0WW, DC line cord and Country Specific AC line cord sold separately.

$1267.43

BTRY-PS30-35MA-01

PS30 Batt, FF-A(3K5 mAh) Standard 3500mAh New Fuel gauge

$81.58

BTRY-PS30-35MA-10

PS30 Batt, 10 Pack FF- A(3K5 mAh) Standard 3500mAh New Fuel gauge

$774.92

CBL-DC-394A1-01

Cable, DC Line Cord 19.5inch for running a MC17 or MC18cradle from a single Level VI power supply PWRBGA12V108W0WW, Level VI replacement for PWRS-14000-241R

$6.83

CBL-DC-393A1-02

DC "Y" Line Cord 39.7inch (1M) for running two MC18/PS20 cradle from a single Level VI power supply PWRBGA12V108W0WW. Supports a maximum of 12 devices (up to 6 devices powered off each leg of the cable) depending on charging mode required.

$26.26

CBL-DC-392A1-02

DC "Y" Line Cord 79.4inch (2M) for running two MC18/PS20 cradles from a single Level VI power supply PWRBGA12V108W0WW. Supports a maximum of 12 devices (up to 6 devices powered off each leg of the cable) depending on charging mode required.

$31.02

25-66431-01R

Cable, PSS Cradle Interconnection Cable 12.6 Inch. Connects Cradles to each other to run off one power supply PWR-BGA12V108W0WW at a maximum of 12 cradles.

$42.65

CBL-MC18-EXINT1-01

MC18, Cradle Interconnection Extension Cable 12.6 Inch. Connects two Interconnection Cables 25-66431-01R sold separately together in order to provide power up to 6 terminals via one Power Supply.

$42.65

23844-00-00R

7.5ft. AC Line Cord, For Use with PWRS-14000-148R and PWR-BGA12V50W0WW

$17.94

50-16000-678R

Cable, AC Line Cord, 36inchL grounded, three wire. Associated Country: United States

$17.94

50-16000-221R

Cable, AC Line Cord, 1.8M, grounded, USA NEMA 5-15P. Associated Country: United States.

$26.47

PSS-3SH01-00R

MC17, PSS Cartholder Mounting Kit; Provides mounting of the MC17 mobile computer on a shopping cart.

$22.11

KT-MC18-CKEY-20

MC18, 3 Slot Locking/Charging Cradles ONLY- 20pk. PLEASE NOTE: for MC18 Single Slot Locking Cradle -Please purchase PSS-3KY01-00R Cradle Tool.

$110.91

KT-MC18-REBOOT-05

MC18, Terminal Reboot Tool; 5-PK

$82.11

KT-MC18-CTOOL-01

MC18, Cradle Housing Service Tool used for easy removal of cradle top housing when in super/high density racks where space is limited. QTY-1

$35.28

KT-MC18-CSTKIT-01

MC18, Deployment Starter Kit- includes 20-pack of Release Keys KT-MC18-CKEY-20, 5-pack of Terminal Reboot Tool KT-MC18-REBOOT-05, and 1 Cradle Housing Removal Tool KT-MC18-CTOOL-01

$152.08

CBL-PS30-USBCHG-01

PS30 USB Programming Cable

$129.15

SG-PS20-SFTHLT-01

MC18/PS20 Soft Holster, allows to wear the device on the hip (includes belt clip) or crossbody with an additional shoulder strap. For both MC18 and PS20.

$97.05

MISC-PS30-SCRN-05

PS30 Screen Protector (5 pack)

$61.17

50-12500-066

Wrist Strap, Attaches to bottom of Snap-on Trigger Handle (SKU# TRG-TC2L-SNP1-01).

$4.08

MISC-PS30-TAGBOOT100

Electronic article surveillance (EAS) tag boot, Set of 100 electronic article surveillance tag boot.

$154.00
