DataLogic PowerScan PM9600
Description
Specifications
Download

DataLogic PowerScan PM9600

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6

Cordless industrial scanning with two-way STAR radio

The Datalogic PowerScan PM9600 brings cordless 1D/2D scanning to manufacturing and warehouse work through Datalogic’s STAR Cordless System. Offered models use 433 or 910 MHz radio, with Standard Range or High Performance optics. Choose a plain scanner or an OLED display version with four or sixteen keys when operators need on-screen feedback and data entry. A matching radio base connects the scanner to the host.

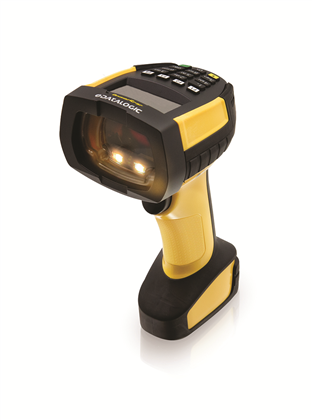

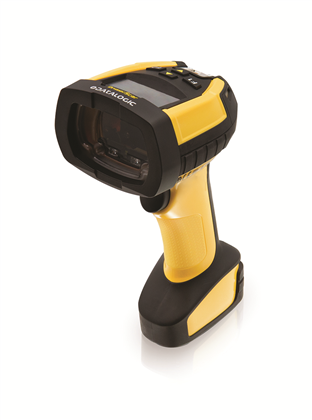

Datalogic PowerScan PM9600 industrial scanner with OLED display and 16-key keypad

Key Specifications

  • Scanner configuration: Cordless industrial area imager
  • Barcode capability: 1D / 2D, stacked and postal codes
  • Reading range: SR or HP; code and optic dependent
  • Interfaces / connectivity: STAR 433/910 MHz; base-dependent host
  • Durability: 50 drops from 2.5 m at 20°C
  • Environmental sealing: Scanner IP65 and IP67
  • Dimensions: 19.7 × 14.9 × 7.9 cm
  • Weight: 425–455 g
  • Battery capacity: Removable 3350 mAh lithium-ion
  • Display / keypad: None, OLED with 4 or 16 keys
  • Warranty: 3 years

Radio range is measured in open air and depends on band and speed. Scanner and base must use the same radio frequency. Reading ranges vary by optic and code size; see Technical Specs.

In the Box

  • USB kits — K10
    • Selected PM9600 scanner with removable battery

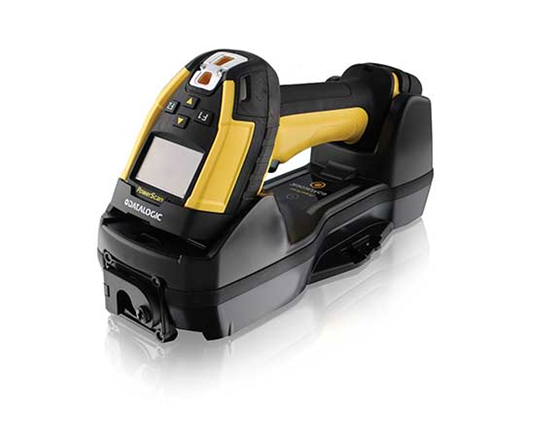

    • Matching BC9630-433 or BC9630-910 base
    • CAB-552 USB cable and 8-0935 power supply
    • 6003-0940 line cord for 433 MHz kits; 6003-0941 US cord for 910 MHz kits
  • RS-232 kits — K20
    • Selected scanner, battery and matching BC9630 base
    • CAB-548 RS-232 cable, 8-0935 power supply and band-specific line cord
  • 910 MHz Ethernet kit — HP910RBK30
    • HP scanner, removable battery and BC9680-910 base
    • 8-0935 power supply and 6003-0941 US line cord
  • Scanner-only models
    • Selected scanner with removable battery
    • Base, host cable and external power ordered separately

Two-way feedback away from the host

STAR radio supports point-to-point or multipoint operation, with up to sixteen scanners per receiver. Display models let operators receive immediate host feedback, while configurable four- or sixteen-key keypads support the chosen workflow.

Charging without exposed scanner contacts

Inductive charging removes the scanner’s battery charging contacts and pins, reducing a common wear point. The rugged housing combines IP65/IP67 sealing with repeated-drop testing and a trigger tested for ten million actuations.

Scanner Configuration
Cordless handheld 1D/2D area imager using Datalogic STAR Cordless System; Standard Range and High Performance optics offered. No-display, 4-key display and 16-key display configurations.
Radio Frequency
Datalogic STAR Cordless System: 433 MHz or 910 MHz; choose the scanner and base for the same radio band.
Effective Radiated Power
433 MHz: less than 10 mW; 910 MHz: less than 50 mW.
Radio Configuration
Point-to-point and multipoint; up to 16 readers per radio receiver; two-way communications.
Radio Range — 433 MHz
Open air: 150 m / 492 ft at low speed; 100 m / 328 ft at high speed.
Radio Range — 910 MHz
Open air: 230 m / 754 ft at low speed with frequency hopping; 180 m / 590 ft at high speed.
Battery Type
Removable 3350 mAh lithium-ion battery.
Battery Charging
At 12 VDC external power: 2.5 hours to 95%, 3.2 hours to 100%.
Reads per Charge
80,000 reads under the manufacturer’s test conditions.
Charging Technology

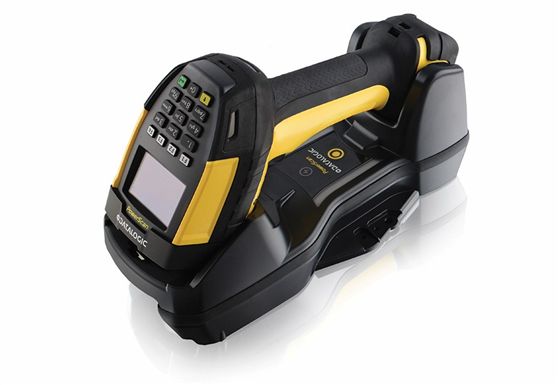

Inductive wireless charging through a compatible PowerScan 9600 base; eliminates scanner charging contacts and pins.
Charging Temperature
0 to 40°C nominal; 0 to 35°C ideal.
Display

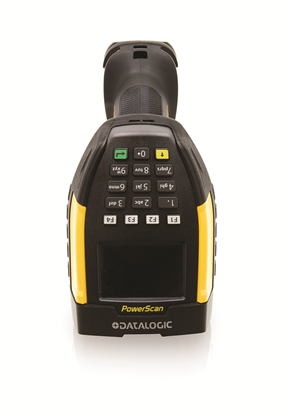

PM9600-D and PM9600-DK: 1.8-inch OLED graphic display with user-selectable font dimensions; plain PM9600 has no display.
Keyboard

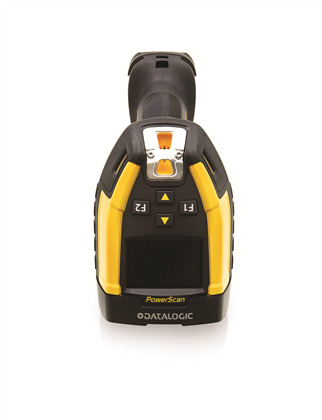

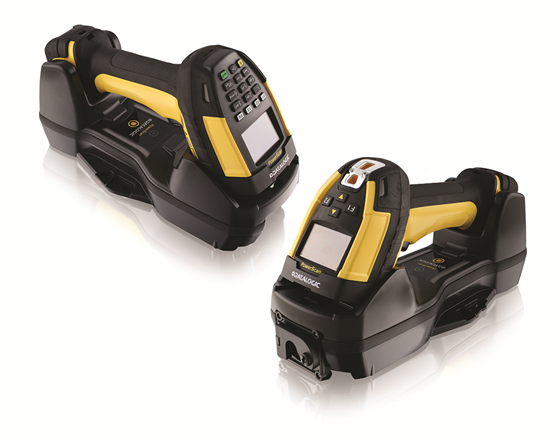

PM9600-D: 4 configurable keys. PM9600-DK: 16 configurable keys. Plain PM9600: no keypad.
1D / Linear Codes
All standard linear codes, including GS1 DataBar linear codes.
2D Codes
Aztec, China Han Xin, Data Matrix, MaxiCode, Micro QR, QR and Dot Code.
Postal Codes
Australian Post, British Post, China Post, IMB, Japanese Post, KIX, Planet, Postnet and Royal Mail RM4SCC.
Stacked Codes
EAN/JAN composites; GS1 DataBar composites, Expanded Stacked, Stacked and Stacked Omnidirectional; MacroPDF, MicroPDF417, PDF417 and UPC-A/E composites.
Digital Watermarking
Digimarc barcodes on High Performance models.
Operating Current
Cordless models: operating 480 mA at 3.7 V. Typical charging power less than 15 W. BC96xx cradle operating current 150 mA at 5 V.
Input Voltage
Cordless system: host powered 5 VDC ±5% or 10–30 VDC; external power supply 10–30 VDC ±5%.
Ambient Light
0–100,000 lux.
Drop Resistance
Withstands 50 drops from 2.5 m / 8.2 ft at 20°C; 50 drops from 2.0 m / 6.6 ft at −20°C.
Trigger Resistance
Tested for 10 million actuations.
ESD Protection
20 kV air discharge.
Humidity
0–95%, non-condensing.
Environmental Sealing
Scanner: IP65 and IP67. Cradle: IP65 on specifically rated models only.
Temperature
Operating: −20 to 50°C / −4 to 122°F. Storage / transport: −40 to 70°C / −40 to 158°F.
Interfaces
Host interfaces depend on the selected base: RS-232, USB, Ethernet and industrial protocols. Offered complete kits use USB, RS-232 or standard Ethernet bases.
Colors
Yellow / black.
Dimensions (H x L x W)
19.7 × 14.9 × 7.9 cm / 7.8 × 5.9 × 3.1 in.
Weight
PM9600: 425 g / 15.0 oz; PM9600-D: 445 g / 15.7 oz; PM9600-DK: 455 g / 16.0 oz.
Image Sensor
1280 × 800 pixels.
Light Source

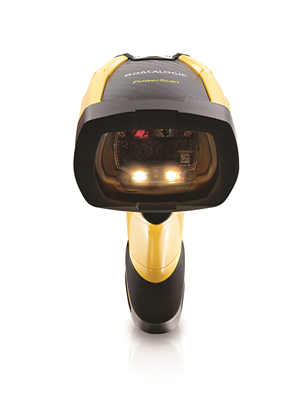

Aiming: 630–680 nm visible laser diode. Illumination: white LED reading light.
Print Contrast
15% minimum.
Reading Angle
Pitch and skew ±52°; roll 360°.
Field of View
SR and HP: 38° horizontal × 24° vertical.
Reading Indicators
Adjustable beeper, Datalogic 3GL Green Spot and dual good-read LEDs, plus vibration.
Maximum Resolution
SR: 1D 3 mil, 2D 6 mil. HP: 1D 2.5 mil, 2D 4 mil.
SR Reading Ranges
Code 128: 5 mil 6.4–30.9 cm; 20 mil 4.0–103.7 cm; 40 mil 5.5–175.0 cm. EAN/UPC 13 mil: 4.0–67.5 cm. Data Matrix 10 mil: 6.0–30.0 cm.
HP Reading Ranges
Code 128: 2.5 mil 6.3–11.5 cm; 5 mil 3.8–41.0 cm; 40 mil 5.5–242.9 cm. EAN/UPC 13 mil: 4.0–120.0 cm. PDF417 10 mil: 0.5–46.1 cm. Data Matrix 10 mil: 4.2–32.0 cm.
Reading Range Conditions
Minimum distance depends on symbol length and scan angle. All distance figures depend on print resolution, contrast and ambient light; long-range maxima require the specified code size.
Agency Approvals
Meets necessary safety and regulatory approvals for intended use; consult the Regulatory Addendum or Quick Reference Guide for the certification list.
Environmental Compliance
China RoHS, EU RoHS and REACH.
Laser Classification
CDRH Class II; IEC 60825 Class 2. Do not stare into the beam.
LED Classification
IEC 62471 Exempt.
Configuration Utility
Datalogic Aladdin available at no charge.
OPOS / JavaPOS
Utilities available at no charge.
Warranty
3-year factory warranty.
PowerScan 9600 Series Datasheet — Rev C (2024)
Download
PowerScan 9600 Auto Range Datasheet — Rev B (2024); related family models
Download

Shop PowerScan PM9600 Models

PM9600-SR910RBK10

PowerScan PM9600-SR, Standard Range, 910MHz, USB Kit (Kit includes Scanner PM9600-SR, cradle BC9630-910, Cable CAB-552 , Power Supply 8-0935 and Power Cord 6003-0941)

Radio Frequency:

910MHz

Accessories:

Cradle & Power Supplies Included

Display:

No Display

Keys:

No Keys

Scan Engine:

Standard Range

Interface:

USB

$891.45

PM9600-DHP910RBK10

PowerScan PM9600, High Performance, 910MHz, Display/4-Key Keypad, Removable Battery, USB Kit (Kit includes Scanner, cradle BC9630-910, Cable CAB-552, Power Supply 8-0935 and Power Cord 6003-0941)

Keys:

4 Key

Radio Frequency:

910MHz

Accessories:

Cradle & Power Supplies Included

Display:

Display

Scan Engine:

High Performance

Interface:

USB

$1056.46

PM9600-DHP910RBK20

PowerScan PM9600, High Performance, 910MHz, Display/4-Key Keypad, Removable Battery, RS-232 Kit (Kit includes Scanner, cradle BC9630-910, Cable CAB-548, Power Supply 8-0935 and Power Cord 6003-0941)

Keys:

4 Key

Radio Frequency:

910MHz

Accessories:

Cradle & Power Supplies Included

Display:

Display

Scan Engine:

High Performance

Interface:

RS-232

$1056.46

PM9600-DKHP433RB

PowerScan PM9600, High Performance, 433 MHz, Display/16-key Keypad, Removable Battery. Scanner Only - Order Cradle & Cables Separately.

Keys:

16 Key

Radio Frequency:

433MHz

Display:

Display

Scan Engine:

High Performance

Accessories:

No Accessories. Scanner Only.

Interface:

USB/RS-232 - Order Cables Separately

$777.62

PM9600-DHP433RB

PowerScan PM9600, High Performance, 433MHz, Display/4-Key Keypad, Removable Battery. Scanner Only - Order Cradle & Cables Separately.

Keys:

4 Key

Radio Frequency:

433MHz

Display:

Display

Scan Engine:

High Performance

Accessories:

No Accessories. Scanner Only.

Interface:

USB/RS-232 - Order Cables Separately

$704.46

PM9600-HP433RBK20

PowerScan PM9600-HP, High Performance, 433MHz, RS232 Kit (Kit includes Scanner PM9600-HP, cradle BC9630-433, Cable CAB-548, Power Supply 8-0935 and Power Cord 6003-0940)

Radio Frequency:

433MHz

Accessories:

Cradle & Power Supplies Included

Scan Engine:

High Performance

Display:

No Display

Keys:

No Keys

Interface:

RS-232

$900.93

PM9600-SR910RB

PowerScan PM9600-SR, Standard Range, 910MHz, Removable Battery. Scanner Only - Order Cradle & Cables Separately.

Radio Frequency:

910MHz

Accessories:

No Accessories. Scanner Only.

Display:

No Display

Keys:

No Keys

Scan Engine:

Standard Range

Interface:

USB/RS-232 - Order Cables Separately

$565.93

PM9600-HP910RB

PowerScan PM9600-HP, High Performance, 910MHz, Removable Battery. Scanner Only - Order Cradle & Cables Separately.

Radio Frequency:

910MHz

Scan Engine:

High Performance

Accessories:

No Accessories. Scanner Only.

Display:

No Display

Keys:

No Keys

Interface:

USB/RS-232 - Order Cables Separately

$608.17

PM9600-HP910RBK20

PowerScan PM9600-HP, High Performance, 910MHz, RS232 Kit (Kit includes Scanner PM9600-HP, cradle BC9630-910, Cable CAB-548, Power Supply 8-0935 and Power Cord 6003-0941)

Radio Frequency:

910MHz

Accessories:

Cradle & Power Supplies Included

Scan Engine:

High Performance

Display:

No Display

Keys:

No Keys

Interface:

RS-232

$933.69

PM9600-HP910RBK10

PowerScan PM9600-HP, High Performance, 910MHz, USB Kit (Kit includes Scanner PM9600-HP, cradle BC9630-910, Cable CAB-552 , Power Supply 8-0935 and Power Cord 6003-0941)

Radio Frequency:

910MHz

Accessories:

Cradle & Power Supplies Included

Scan Engine:

High Performance

Display:

No Display

Keys:

No Keys

Interface:

USB

$933.69

PM9600-SR433RB

PowerScan PM9600-SR, Standard Range, 433 MHz, Removable Battery. Scanner Only - Order Cradle & Cables Separately.

Radio Frequency:

433MHz

Accessories:

No Accessories. Scanner Only.

Display:

No Display

Keys:

No Keys

Scan Engine:

Standard Range

Interface:

USB/RS-232 - Order Cables Separately

$587.64

PM9600-SR910RBK20

PowerScan PM9600-SR, Standard Range, 910MHz, RS-232 Kit (Kit includes Scanner PM9600-SR, cradle BC9630-910, Cable CAB-548 , Power Supply 8-0935 and Power Cord 6003-0941)

Radio Frequency:

910MHz

Accessories:

Cradle & Power Supplies Included

Display:

No Display

Keys:

No Keys

Interface:

RS-232

Scan Engine:

Standard Range

$891.45

PM9600-DKSR910RB

PowerScan PM9600, Standard Range, 910 MHz, Display/16-key Keypad, Removable Battery

Keys:

16 Key

Radio Frequency:

910MHz

Display:

Display

Accessories:

No Accessories. Scanner Only.

Scan Engine:

Standard Range

Interface:

USB/RS-232 - Order Cables Separately

$816.84

PM9600-HP910RBK30

PowerScan PM9600-HP, High Performance, 910MHz, Ethernet Kit (Kit includes Scanner PM9600-HP, Cradle BC9630-910, Power Supply 8-0935 and Power Cord 6003-0941)

Radio Frequency:

910MHz

Accessories:

Cradle & Power Supplies Included

Interface:

Ethernet

Scan Engine:

High Performance

Display:

No Display

Keys:

No Keys

$1373.24

PM9600-DHP433RBK10

PowerScan PM9600, High Performance, 433MHz, Display/4-Key Keypad, Removable Battery, USB Kit (Kit includes Scanner, cradle BC9630-433, Cable CAB-552, Power Supply 8-0935 and Power Cord 6003-0940)

Keys:

4 Key

Radio Frequency:

433MHz

Accessories:

Cradle & Power Supplies Included

Display:

Display

Scan Engine:

High Performance

Interface:

USB

$1020.11

PM9600-DKHP910RB

PowerScan PM9600, High Performance, 910 MHz, Display/16-key Keypad, Removable Battery. Scanner Only - Order Cradle & Cables Separately.

Keys:

16 Key

Radio Frequency:

910MHz

Display:

Display

Scan Engine:

High Performance

Accessories:

No Accessories. Scanner Only.

Interface:

USB/RS-232 - Order Cables Separately

$806.40

PM9600-DKHP910RK10

PowerScan PM9600, High Performance, 910MHz, Display/16-Key Keypad, Removable Battery, USB Kit (Kit includes Scanner, cradle BC9630-910, Cable CAB-552, Power Supply 8-0935 and Power Cord 6003-0941)

Keys:

16 Key

Radio Frequency:

910MHz

Accessories:

Cradle & Power Supplies Included

Display:

Display

Scan Engine:

High Performance

Interface:

USB

$1131.92

PM9600-DHP433RBK20

PowerScan PM9600, High Performance, 433MHz, Display/4-Key Keypad, Removable Battery, RS-232 Kit (Kit includes Scanner, cradle BC9630-433, Cable CAB-548, Power Supply 8-0935 and Power Cord 6003-0940)

Keys:

4 Key

Radio Frequency:

433MHz

Accessories:

Cradle & Power Supplies Included

Display:

Display

Scan Engine:

High Performance

Interface:

RS-232

$1020.11

PM9600-DKHP910RK20

PowerScan PM9600, High Performance, 910MHz, Display/16-Key Keypad, Removable Battery, RS-232 Kit (Kit includes Scanner, cradle BC9630-910, Cable CAB-548, Power Supply 8-0935 and Power Cord 6003-0941)

Keys:

16 Key

Radio Frequency:

910MHz

Accessories:

Cradle & Power Supplies Included

Display:

Display

Scan Engine:

High Performance

Interface:

RS-232

$1131.92

PM9600-DHP910RB

PowerScan PM9600, High Performance, 910MHz, Display/4-Key Keypad, Removable Battery. Scanner Only - Order Cradle & Cables Separately.

Keys:

4 Key

Radio Frequency:

910MHz

Display:

Display

Scan Engine:

High Performance

Accessories:

No Accessories. Scanner Only.

Interface:

USB/RS-232 - Order Cables Separately

$731.50

PM9600-SR433RBK10

PowerScan PM9600-SR, Standard Range, 433 MHz, USB Kit (Kit includes Scanner PM9600-SR, cradle BC9630-433, Cable CAB-552, Power Supply 8-0935 and Power Cord 6003-0940)

Radio Frequency:

433MHz

Accessories:

Cradle & Power Supplies Included

Display:

No Display

Keys:

No Keys

Scan Engine:

Standard Range

Interface:

USB

$928.66

Shop PowerScan PM9600 Accessories

6003-0941

Power Cord, 110V, US

$15.00

BC9630-910

BC9600 Base Station/Charger, 910 MHz, Multi-Interface (RS-232, USB)

$365.40

BC9631-910

BC9600 Base Station/Charger, 910 MHz, Multi-Interface (RS-232, USB), IP65

$368.90

RBP-PM96

Battery Pack, Removable, PowerScan 9600

$49.00

MC-P096-E2

Multi Battery Charger, Extension, 2-Slot

$100.10

MC-P096-M2

Multi Battery Charger, Master, 2-Slot (requires the 90ACC0350 power supply)

$134.40

MC-P096-M4

Multi Battery Charger, Master, 4-Slot (requires the 90ACC0350 power supply)

$224.70

CAB-552

Cable CAB-552, USB Type A, Straight, 2m / 6.5 ft, IP67

$23.10

HLS-P080

Holster, Universal, HLS-8000

$47.75

PC-P096

Protective Case/Belt Holster, PowerScan 9600

$19.60

HLD-P096

Holder, Desk/Wall Mount, PowerScan 9600

$16.48

STD-P096

Stand, Hands-free, PowerScan 9600

$27.30

ZSC2PM9631

Datalogic Ease of Care 3 Year Comprehensive Warranty for PowerScan PM/BT96XXSR. Covers Normal Wear & Tear and Accidental Breakage Coverage. 2-Business-Day Turnaround For Replacement Unit (Excluding Transit). Both Ways Freight Paid By Datalogic. Note: Standard Range Unit Only.

$70.00

8-0935

Power Supply, Requires Line Cord 6003-0941

$19.00
Have Questions?Call Us at: (800) 241-6264
