DataLogic PowerScan PD9630

Name: DataLogic PowerScan PD9630
Brand: DataLogic
Price: 425.7 USD
Availability: InStock

Images may not reflect the actual product

Corded scanning with optics matched to the industrial task

The Datalogic PowerScan PD9630 is a corded industrial barcode scanner for manufacturing traceability, receiving and warehouse work. Standard Range models suit routine scanning, High Performance models handle denser codes and extend the reading distance, and Document Capture models add a color sensor for image capture. The offered Auto Range USB kit supports scanning from nearby labels to large codes farther away. Choose the optics and cable package that fit the work area and host.

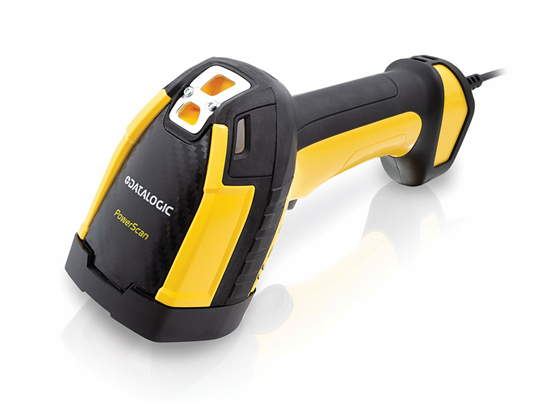

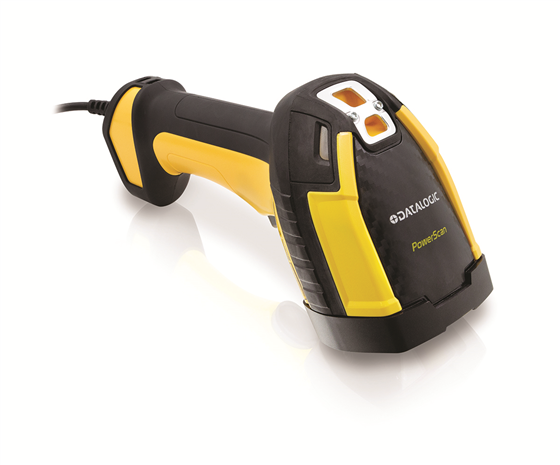

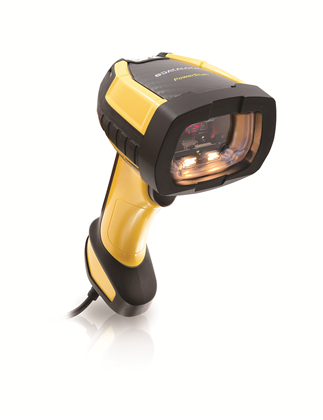

Datalogic PowerScan PD9630 yellow and black corded industrial scanner

Key Specifications

Scanner configuration: Corded handheld area imager
Barcode capability: 1D / 2D, stacked and postal codes
Reading range: Model and code dependent; AR up to 20 m
Interfaces / connectivity: USB / RS-232; matching cable required
Durability: 50 drops from 2.5 m at 20°C
Environmental sealing: IP65 and IP67
Dimensions: 19.0 × 14.0 × 7.9 cm
Weight: 318–320 g
Optics choices: SR, HP, DC and Auto Range
Trigger life: 10 million tested actuations
Warranty: 3 years

The AR maximum of 20 m applies to 100 mil Code 128. Distance depends on code size, print quality, contrast and light. See Technical Specs for each optic’s ranges.

In the Box

USB kits — SRK1, HPK1, DCK1 and ARK1
- PD9630 scanner with the selected optic
- CAB-553 coiled USB cable
RS-232 kits — SRK2 and HPK2
- PD9630 scanner with the selected optic
- CAB-549 coiled RS-232 cable
Scanner only — SR, HP and DC
- PD9630 multi-interface scanner
- Host cable ordered separately

Kits contain the scanner and stated cable. A battery, charging base or separate power supply is not listed in these kit packages; any external power required by the host installation is separate.

Optics for close work or distant labels

HP uses a dual-camera system for high-density codes and a wider working distance. DC supports color document capture, while AR autofocus serves applications that alternate between nearby pick lists and larger warehouse labels. Each optic has its own resolution and reading-range limits.

Feedback for demanding work areas

Good-read LEDs, vibration and an adjustable beeper help operators confirm a scan. SR, HP and DC also project Datalogic’s Green Spot onto the code. IP65/IP67 sealing, repeated-drop testing and a trigger tested for 10 million actuations support frequent industrial handling.

Scanner Configuration

Corded handheld 1D/2D area imager; Standard Range (SR), High Performance (HP), Document Capture (DC) and Auto Range (AR) models offered.

1D / Linear Codes

All standard linear codes, including GS1 DataBar linear codes.

2D Codes

Aztec, China Han Xin, Data Matrix, MaxiCode, Micro QR, QR and Dot Code.

Postal Codes

SR/HP/DC: Australian Post, British Post, China Post, IMB, Japanese Post, KIX, Planet, Postnet and Royal Mail RM4SCC. AR: Australian Post, China Post, IMB, Japanese Post, KIX, Planet, Portuguese Post, Postnet, Royal Mail RM4SCC and Swedish Post.

Stacked Codes

EAN/JAN composites; GS1 DataBar composites, Expanded Stacked, Stacked and Stacked Omnidirectional; MacroPDF, MicroPDF417, PDF417 and UPC-A/E composites.

Digital Watermarking

Digimarc barcode support on HP and DC models.

Operating Current

SR typical: 200 mA at 5 V / 120 mA at 12 V. HP/DC typical: 280 mA at 5 V / 140 mA at 12 V. AR maximum: 770 mA at 5 V (550 mA in compatibility mode) / 310 mA at 12 V.

Standby / Idle Current

SR/HP/DC typical: 187 mA at 5 V / 92 mA at 12 V. AR maximum: 140 mA at 5 V / 80 mA at 12 V.

Input Voltage

5–30 VDC ±5% for corded models.

Ambient Light

0–100,000 lux.

Drop Resistance

Withstands 50 drops from 2.5 m / 8.2 ft at 20°C; 50 drops from 2.0 m / 6.6 ft at −20°C.

Trigger Resistance

Tested for 10 million actuations.

ESD Protection

20 kV air discharge.

Humidity

0–95%, non-condensing.

Environmental Sealing

IP65 and IP67 for the scanner.

Temperature

SR/HP/DC operating: −20 to 50°C. AR corded operating: −30 to 50°C. Storage / transport: −40 to 70°C. Battery charging temperatures apply to cordless family models, not this corded scanner.

Interfaces

USB and RS-232 multi-interface scanner models; kits include the matching USB or RS-232 cable. Ethernet and industrial protocols require appropriate separate connection hardware. No Bluetooth or STAR radio on PD9630.

Colors

Yellow / black.

Dimensions (H x L x W)

19.0 × 14.0 × 7.9 cm / 7.5 × 5.5 × 3.1 in for corded models.

Weight

SR/HP/DC: 318 g / 11.2 oz. AR: 320 g / 11.2 oz.

Image Sensor

1280 × 800 pixels. DC provides a color sensor for document capture.

Light Source

SR/HP/DC: 630–680 nm visible laser aiming, white LED reading light. AR: 650 nm visible laser aiming, red LED reading light.

Print Contrast

Minimum: SR/HP/DC 15%; AR 20%.

Reading Angle

SR/HP/DC: pitch and skew ±52°, roll 360°. AR: pitch and skew ±60°, roll 360°.

Field of View

SR and HP: 38° horizontal × 24° vertical.

Reading Indicators

SR/HP/DC: adjustable beeper, Datalogic 3GL Green Spot and dual good-read LEDs, plus vibration. AR: adjustable beeper, dual good-read LEDs and vibration.

Maximum Resolution

SR/DC: 1D 3 mil, 2D 6 mil. HP: 1D 2.5 mil, 2D 4 mil. AR: 1D 2.5 mil, 2D 5 mil.

SR Reading Ranges

Code 128: 5 mil 6.4–30.9 cm; 20 mil 4.0–103.7 cm; 40 mil 5.5–175.0 cm. EAN/UPC 13 mil: 4.0–67.5 cm. Data Matrix 10 mil: 6.0–30.0 cm.

HP Reading Ranges

Code 128: 2.5 mil 6.3–11.5 cm; 5 mil 3.8–41.0 cm; 40 mil 5.5–242.9 cm. EAN/UPC 13 mil: 4.0–120.0 cm. PDF417 10 mil: 0.5–46.1 cm. Data Matrix 10 mil: 4.2–32.0 cm.

AR Reading Ranges

Maximum distances: Code 39 3 mil 95 cm, 20 mil 600 cm; EAN/UPC 13 mil 320 cm; Code 128 40 mil 1000 cm, 100 mil 2000 cm; Data Matrix 10 mil 110 cm, 55 mil 650 cm, 100 mil 1000 cm.

Reading Range Conditions

Minimum distance depends on symbol length and scan angle. All distance figures depend on print resolution, contrast and ambient light; long-range maxima require the specified code size.

Agency Approvals

Meets necessary safety and regulatory approvals for intended use; consult the Regulatory Addendum or Quick Reference Guide for the certification list.

Environmental Compliance

China RoHS, EU RoHS and REACH.

Laser Classification

CDRH Class II; IEC 60825 Class 2. Do not stare into the beam.

LED Classification
