DataLogic PowerScan PBT9501

Name: DataLogic PowerScan PBT9501
Brand: DataLogic
Price: 810.66 USD
Availability: InStock

Images may not reflect the actual product

Bluetooth scanning for industrial labels and direct part marks

The Datalogic PowerScan PBT9501-DPM EVO reads 1D and 2D barcodes, including codes etched, printed or dot-peened directly onto parts. Its close-range DPM engine suits traceability work in manufacturing and assembly, while Bluetooth communication lets the operator move away from the host. Choose a DPM USB or RS-232 kit, a DPM scanner-only model, or the standard-optics PBT9501-RBK10-CC35 USB kit for printed barcodes. Direct Part Marking capability applies only to DPM models.

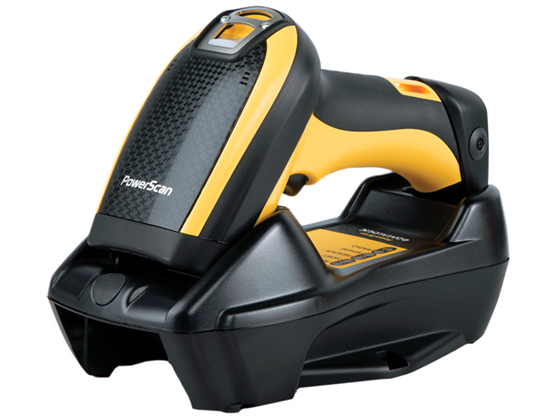

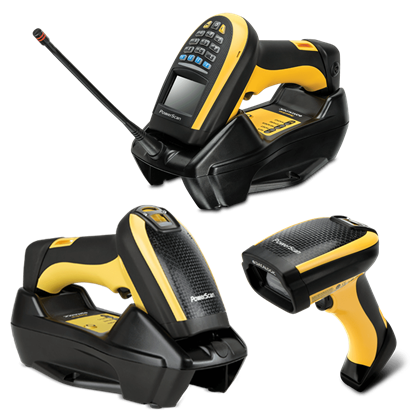

Datalogic PowerScan PBT9501 yellow and black cordless scanner with base station

Key Specifications

Scanner configuration: Cordless handheld; standard or DPM optics
Barcode capability: 1D / 2D; direct marks on DPM models
Reading range: DPM: contact to about 4–5 cm; surface dependent
Interfaces / connectivity: Bluetooth 3.0 Class 1; USB or RS-232 kit
Durability: 50 drops from 2 m / 6.6 ft onto concrete
Environmental sealing: IP65
Dimensions: 21.2 × 11.0 × 7.4 cm
Weight: 400 g / 14.1 oz
Radio range: Exceeds 100 m / 328 ft in open air with base
Battery: 3350 mAh removable; 60,000+ continuous reads
Warranty: 3 years

The technical figures above and in Specs describe the DPM EVO models. PBT9501-RBK10-CC35 uses standard optics. Direct-mark distance depends on code resolution, marking method and the part’s surface. Bluetooth range is measured in open air with the base station.

In the Box

Both US DPM kits
- PBT9501-DPM scanner with removable battery
- BC9030-BT charging / communication base
- 8-0935 power supply
- 6003-0941 US power cord
PBT9501-DPMRBK10US — USB
- CAB-438 USB host cable
PBT9501-DPMRBK20US — RS-232
- CAB-433 RS-232 host cable

PBT9501-RBK10-CC35: Standard-optics scanner with removable battery, BC9030-BT base, CAB-438 USB cable, 8-0935 power supply and 6003-0941 US power cord.

PBT9501-DPMRB: DPM scanner with removable battery only. Base, host cable and power accessories sold separately; the pictured base is not included.

Read confirmation in busy work areas

Datalogic 3GL combines a Green Spot projected onto the code with two good-read LEDs and an audible signal. Operators can confirm a successful read while watching the part, with adjustable beeper tone and volume to suit the work area.

Replaceable battery for cordless shifts

The removable 3350 mAh lithium-ion battery supports more than 60,000 continuous reads per charge. External power charges it in about 4.5 hours; charging through host power takes about 10 hours. The sealed scanner withstands repeated drops onto concrete for industrial handling.

Scan Method

Cordless handheld area imager; PBT9501-DPM EVO Direct Part Marking engine.

Bluetooth Protocol

Bluetooth 3.0, Class 1.

Bluetooth Profiles

HID (Human Interface Device) and SPP (Serial Port Profile).

Radio Frequency

2.40–2.48 GHz.

Radio Range

Exceeds 100 m / 328 ft in open air using the base station. Range with other Bluetooth peripherals may differ.

Piconet Capacity

Up to 7 readers per commercial Bluetooth dongle; up to 4 readers per cradle.

Wireless Security

Data encryption and scanner authentication.

1D Codes

All standard linear codes, including GS1 DataBar linear codes.

2D Codes

Aztec, China Han Xin, Data Matrix, MaxiCode, Micro QR and QR Code.

Postal Codes

Postnet and Royal Mail RM4SCC.

Stacked Codes

EAN/JAN composites; GS1 DataBar composites, Expanded Stacked, Stacked and Stacked Omnidirectional; MacroPDF, MicroPDF417, PDF417; UPC-A/E composites.

Battery

Removable lithium-ion, 3350 mAh.

Recharge Time

4.5 hours with external power; 10 hours with host power.

Reads Per Charge

60,000+ continuous reads.

Cradle Indicator LEDs

Charging: red; charge complete: green; power/data: yellow.

Cradle Power

10–30 VDC; <8 W. Maximum 500 mA in host/bus-powered mode, measured with factory default configuration.

Operating Current

Typical 150 mA at 10 VDC.

Input Voltage

External power: 10–30 VDC; power over terminal (POT): 5 VDC ±10%.

Ambient Light

0–100,000 lux.

Drop Specification

Scanner: withstands 50 drops from 2 m / 6.6 ft onto concrete. Cradle: withstands 50 drops from 1.2 m / 3.9 ft onto concrete.

ESD Protection

20 kV air discharge.

Humidity

0–95%, non-condensing.

Environmental seal

IP65.

Temperature

Operating: −20 to 50°C; battery charging: 0 to 45°C; storage/transport: −40 to 70°C.

Interfaces

BC9030-BT multi-interface base supports USB, RS-232 and keyboard wedge with the appropriate cable. Displayed kits include either CAB-438 USB or CAB-433 RS-232. Optional Ethernet requires a suitable separate base; Ethernet is not included in these kits.

Colors

Yellow / black.

Dimensions (W x D x H)

Scanner overall dimensions: 21.2 × 11.0 × 7.4 cm / 8.3 × 4.3 × 2.9 in (manufacturer order). Cradle: 24.0 × 10.8 × 9.5 cm / 9.4 × 4.3 × 3.8 in.

Weight

Scanner: 400 g / 14.1 oz.

Direct Part Marking

Reads laser-etched, chemically etched and inkjet-marked codes; also reads dot-peened Data Matrix codes. Performance depends on marking method, code size and surface.

Image Capture

BMP, JPEG and TIFF; 256, 16 or 2 grayscale levels.

Image Sensor

864 × 544 pixels.

Light Source

Aiming: 630–680 nm visible laser diode; illumination: white LEDs.

Print Contrast

Minimum 15%.

Reading Angle

Pitch ±40°; roll 360°; skew ±40°.

Reading Indicators

3GL feedback: Green Spot on the code and dual good-read LEDs, plus a loud beeper with adjustable tone and volume.

Resolution

Maximum decoding resolution: 1D 2.5 mil; 2D 4 mil.

DPM Reading Range

Typical direct-mark reading from contact to about 4–5 cm / 1.5–1.9 in. Distance varies with marking technology, resolution and surface material or finish.

Printed Label Reading Ranges

Black-on-white paper labels: 2 mil 2.8–6.3 cm; 2.5 mil 2.5–7.8 cm; 5 mil 1.2–9.0 cm; Data Matrix 4 mil 2.6–5.2 cm, 5 mil 2.2–7.2 cm, 10 mil 2.0–10.5 cm; PDF 5 mil 1.2–9.0 cm, 10 mil 1.0–12.5 cm; EAN-13 13 mil 2.5–16.0 cm. These paper-label ranges do not establish DPM distances.

Agency Approvals

Meets necessary safety and regulatory approvals for its intended use. Consult the product Quick Reference Guide for the certification list.

Environmental Compliance

China RoHS, EU RoHS and REACH.

Laser Classification

CDRH Class II; IEC 60825 Class 2. Do not stare into the beam.

LED Classification

IEC 62471 Class 1 LED.

Configuration Utility

Datalogic Aladdin is available at no charge.

OPOS / JavaPOS

Utilities available at no charge.

Remote Host Download

Available on request.

Warranty

3-year factory warranty.

Shop PowerScan PBT9501 Models

PBT9501-DPMRBK10US

PowerScan PBT9501, Direct Part Marking, USB Kit, Removable Battery (Kit includes Scanner, Base Station BC9030-BT, Cable CAB-438, Power Brick 8-0935 and Power Cord 6003-0941.)

Accessories:

Cradle, cable and power included

Accessories:

Cradle, cable and power included

Optics:

Direct Part Marking

Optics:

Direct Part Marking

Interface:

USB

$1236.05

PBT9501-DPMRBK20US

PowerScan PBT9501, Direct Part Marking, Removable Battery, Yellow/Black. RS-232 Kit, (Kit Includes Scanner, Base Station BC9030-BT, Cable CAB-433, Power Brick 8-0935 and Power Cord 6003-0941.)

Accessories:

Cradle, cable and power included

Accessories:

Cradle, cable and power included

Optics:

Direct Part Marking

Optics:

Direct Part Marking

Interface:

RS-232

$1236.05

PBT9501-DPMRB

PowerScan PBT9501, Bluetooth, Direct Part Marking EVO, Removable Battery, Scanner Only. Base Station, Interface Cable and Power Supply Sold Separately.

Interface:

Base/cable separate

Optics:

Direct Part Marking

Accessories:

Scanner only

$933.97

PBT9501-RBK10-CC35

PowerScan PBT9501 Standard Optics. Removable Battery. USB Kit (Kit includes Scanner, Base Station BC9030-BT, Cable CAB-438, Power Brick 8-0935 and Power Cord 6003-0941.)

Accessories:

Cradle, cable and power included

Optics:

Standard optics

Interface:

USB

$810.66

Shop PowerScan PBT9501 Accessories

STD-P090

Hands Free Stand Powerscan 9501

$28.00

RBP-PM91-BK

BATTERY PACK, REMOVABLE, RBP-9001, BLACK

$49.00

BC9030-BT

PowerScan PBT9500 Charging/Communications Cradle, Required Power Brick 8-0935 and Power Cord 6003-0941 not Included

$309.40

8-0935

Power Supply, Requires Line Cord 6003-0941

$19.00

6003-0941

Power Cord, 110V, US

$15.00

CAB-433

Cable 6 Feet, RS232 9-Pin Female Straight, POT) for the PowerScan

$31.76

CAB-438

Datalogic PowerScan USB Interface Cable

$31.76

90ACC0306

Datalogic US/Japan plug adapter for 90ACC0287 5V power supply. Power supply sold separately.

$13.41
