DataLogic PowerScan 9100 Series

Name: DataLogic PowerScan 9100 Series
Brand: DataLogic
Price: 373.75 USD
Availability: InStock

Images may not reflect the actual product

Industrial 1D scanning with a green scanning line

The Datalogic PowerScan 9100 family combines a linear imager with a green scanning line for industrial 1D barcode reading. Choose the corded PD9130, Bluetooth 3.0 PBT9100 or 910 MHz STAR radio PM9100. PM models offer a basic scanner, a display with four keys or a display with sixteen keys, depending on the part number. These are 1D scanners; select a 2D family when QR or Data Matrix reading is required.

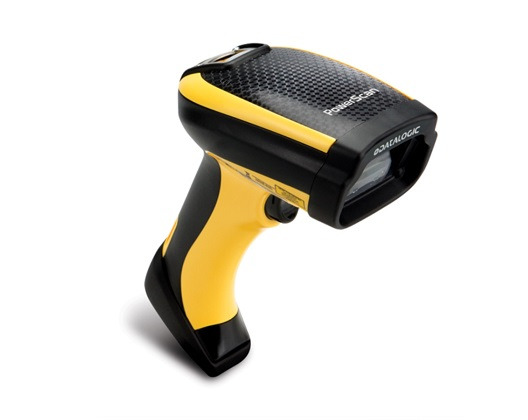

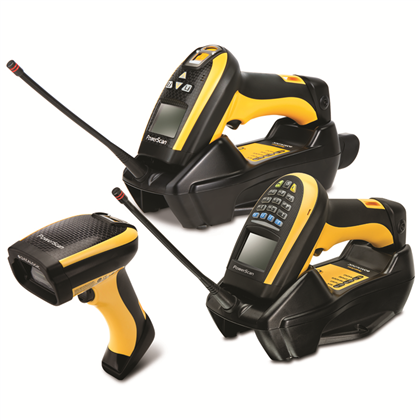

Datalogic PowerScan 9100 industrial scanner family; configuration varies by model

Key Specifications

Scanner configuration: Corded, Bluetooth or STAR radio
Barcode capability: 1D linear barcodes
Reading range: Code 39 40 mil: 3–230 cm
Interfaces / connectivity: USB / RS-232 kits; other bases optional
Durability: 50 drops from 2.0 m to concrete
Environmental sealing: IP65
Dimensions: 21.2 × 11.0 × 7.4 cm
Weight: 340–435 g
Display / keypad: PM basic, 4-key or 16-key versions
Battery capacity: Cordless: 3350 mAh lithium-ion
Warranty: 3 years

The maximum reading distance applies to large 40 mil Code 39 labels. Code size, print quality, lighting and scan angle affect range. Bluetooth Class 1 reaches up to 100 m in open air; STAR 910 MHz reaches up to 400 m only at 36.8 KB/s with frequency hopping.

In the Box

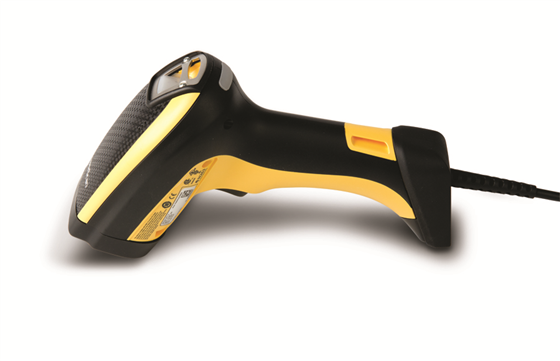

PD9130 corded kits
- PD9130 scanner
- K1: CAB-524 USB cable; K2: CAB-434 RS-232 cable
PM9100 / PBT9100 cordless kits
- Selected scanner and removable battery
- PM: matching 910 MHz BC9030-910 base; PBT: BC9030-BT Bluetooth base
- USB: CAB-438; RS-232: CAB-433
- 8-0935 power supply and 6003-0941 US line cord
Scanner-only models
- Selected scanner; removable battery on cordless models
- PD9130 needs the appropriate host cable
- Cordless models need a compatible base, interface cable and power as required; PBT can also connect to a compatible Bluetooth host

Match STAR scanner and base frequency. PM9100-D uses four keys; PM9100-DK uses sixteen. Basic PM9100 has no display or keypad.

Green illumination and clear read confirmation

A green scanning line makes the target visible while the linear imager reads 1D labels. Datalogic’s 3GL feedback combines a Green Spot on the code, dual good-read LEDs and a beeper, giving operators several ways to confirm a successful scan.

Cordless choices for industrial workflows

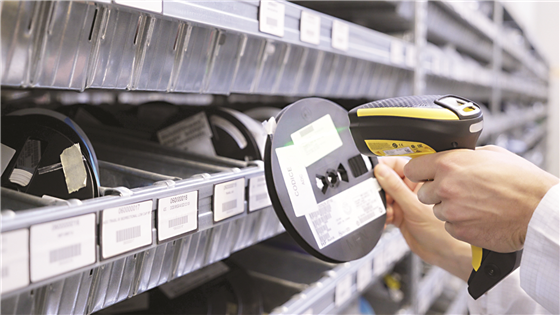

PBT9100 supports Bluetooth HID and SPP connections with up to seven scanners per base. PM9100 supports STAR multipoint operation with up to sixteen readers per receiver and two-way communication. Replaceable cordless batteries, IP65 sealing and repeated-drop resistance support daily warehouse and manufacturing work.

Scanner Configuration

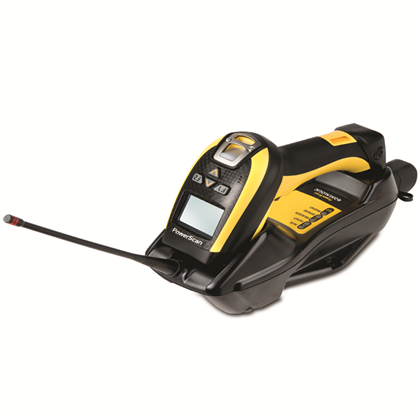

1D linear imager family: corded PD9130, Bluetooth PBT9100 and Datalogic STAR Cordless System PM9100. Offered PM models use 910 MHz; basic, display/4-key and display/16-key versions.

Bluetooth Protocol

PBT9100: Bluetooth 3.0 certified Class 1; configurable Class 1 or Class 2.

Bluetooth Profiles

PBT9100: HID (Human Interface Device) and SPP (Serial Port Profile).

Bluetooth Frequency

PBT9100: 2.40–2.48 GHz.

Bluetooth Range

PBT9100 Class 1: up to 100 m / 328 ft in open air.

Bluetooth Network

PBT9100: up to 7 scanners per base station; data encryption and scanner authentication.

STAR Cordless System

PM9100: STAR Cordless System 2.0; point-to-point or multipoint with up to 16 readers per radio receiver; seamless roaming and two-way communications.

STAR Radio Frequency

PM9100 family: 433 or 910 MHz. The PM9100 models offered here use 910 MHz; match scanner and base band.

STAR Radio Range

Open air: 910 MHz 50 m at 500 KB/s, 400 m at 36.8 KB/s with frequency hopping, or 50 m at 36.8 KB/s fixed channel. Family 433 MHz: 50 m at 500 KB/s or 100 m at 19.2 KB/s.

Barcode Capability

GS1 DataBar linear codes, UPC/EAN, UPC/EAN P2/P5 add-ons, UPC/EAN Coupons, ISBN, Code 128, EAN 128, Code 39, Code 39 Full ASCII, Code 39 CIP, Code 32, Codabar, Interleaved 2 of 5, IATA, Industrial 2 of 5, Standard 2 of 5, Code 11, MSI, Plessey, Code 93, Follet 2/5, Code 4, Code 5, Datalogic 2 of 5 and Codablock F. No general 2D/QR capability.

Battery

PBT9100 / PM9100: user-replaceable 3350 mAh lithium-ion battery.

Reads per Charge

PBT9100 / PM9100: 60,000+ in continuous reading.

Charging Time

PBT9100 / PM9100: 4.5 hours with external power; 10 hours with host power.

Cradle Indicators

Battery charging: red; charge completed: green; power/data: yellow.

Cordless Charging Current

PBT9100 / PM9100: external power maximum 10 W during charging; power-off-terminal maximum 500 mA during charging.

Cordless Input Voltage

External power: 10–30 VDC; power off terminal: 5 VDC ±10%.

Corded Operating Current

PD9130 typical: 440 mA at 4.5 V; 380 mA at 5 V; 75 mA at 30 V.

Corded Input Voltage

PD9130: 4.5–30 VDC.

Ambient Light

Designed for office/facility lighting and direct sunlight exposure.

Drop Resistance

Withstands 50 drops from 2.0 m / 6.6 ft to concrete.

ESD Protection

Air discharge: 20 kV.

Humidity

0–95%, non-condensing.

Environmental Sealing

IP65.

Operating Temperature

−20 to 50°C / −4 to 122°F.

Storage / Transport Temperature

−40 to 70°C / −40 to 158°F.

Host Interfaces

Keyboard Wedge; RS-232; USB OEM, USB COM and USB HID Keyboard. Optional standard/industrial Ethernet through appropriate cordless bases. Offered kits use USB or RS-232.

Colors

Yellow/black; other colors and custom logos subject to manufacturer minimum quantities.

Scanner Dimensions

21.2 × 11.0 × 7.4 cm / 8.3 × 4.3 × 2.9 in.

Cradle Dimensions

24.0 × 10.8 × 9.5 cm / 9.4 × 4.3 × 3.8 in.

Display

PM9100-D / PM9100-DK: graphic display with white backlight, 48 × 132 pixels; user-selectable font size, default 6 lines × 21 columns. Basic PM, PBT and PD models have no display.

Keypad

PM9100-D: 4 configurable keys; PM9100-DK: 16 configurable keys. Basic PM, PBT and PD models have no keypad.

Weight

PD9130: 340 g / 11.9 oz; basic PM9100 and PBT9100: 405 g / 14.2 oz; PM9100-D / PM9100-DK: 435 g / 15.3 oz.

Light Source

Green LED scanning line.

Print Contrast

Minimum 15%.

Reading Angle

Pitch ±75°; roll/tilt ±45°; skew/yaw ±70°.

Reading Indicators

Beeper and Datalogic 3GL: Green Spot on the code plus dual good-read LEDs.

Maximum Resolution

2.5 mil.

Reading Range Conditions

Minimum distance depends on symbol length and scan angle; range depends on printing resolution, contrast, ambient light and symbology.

Code 39 Reading Ranges

5 mil: 3–32 cm; 7.5 mil: 2–48 cm; 10 mil: 2–66 cm; 20 mil: 3–110 cm; 40 mil: 3–230 cm.

EAN 13 Reading Range

2–61 cm. The source’s inch conversion is inconsistent; metric value retained.

Agency Approvals

Meets applicable safety/regulatory approvals for intended use; consult the manufacturer Regulatory Addendum for details.

Environmental Compliance

China RoHS and EU RoHS.

LED Classification

Compliant with IEC 62471.

Configuration Utility

Datalogic Aladdin configuration software available at no charge.

OPOS / JavaPOS

Utilities available at no charge.

Remote Host Download

Available on request from Datalogic.

Warranty

3-year factory warranty.
