Custom America Peak Android
Commercial-grade Android touch computing for flexible customer and staff workflows.
Custom PEAK Android is available with a 15.6-inch or 21.5-inch Full HD multi-touch display for POS, self-service, price-checking, endless-aisle, kitchen-display, and digital-signage deployments. Its slim chassis can sit on the optional counter stand or use standard VESA mounting for kiosk, wall, and shelf installations.
Every current POSGuys configuration combines Android 12, a Qualcomm SDA660 processor, 4 GB of LPDDR4 memory, and 64 GB of eMMC storage. Standard models provide Wi-Fi and Bluetooth; Premium models add an integrated 802.3bt Type 3 PoE module for single-cable power and network deployment.
Key Specifications
- Processor: Qualcomm SDA660.
- Memory and storage: 4 GB LPDDR4 memory and 64 GB eMMC storage.
- Display and touch: 15.6-inch or 21.5-inch, 1920 x 1080 True-Flat PCAP multi-touch; 300 nits (15.6-inch) or 250 nits (21.5-inch).
- Operating system: Android 12.
- Ports and connectivity: Four USB-A, one data-only USB-C, four bezel Micro USB, two powered RS-232, Gigabit LAN, cash-drawer, dedicated display, and 4-pin connections; Wi-Fi 5 and Bluetooth 4.1.

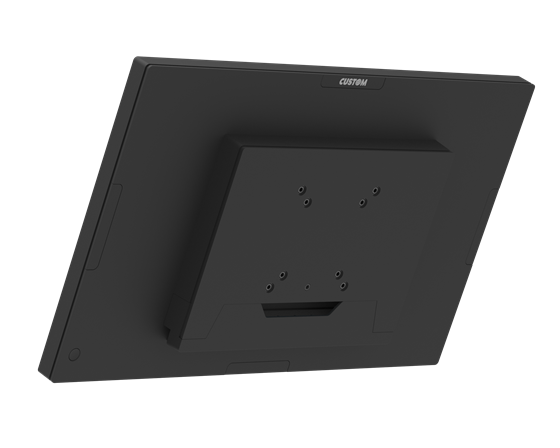

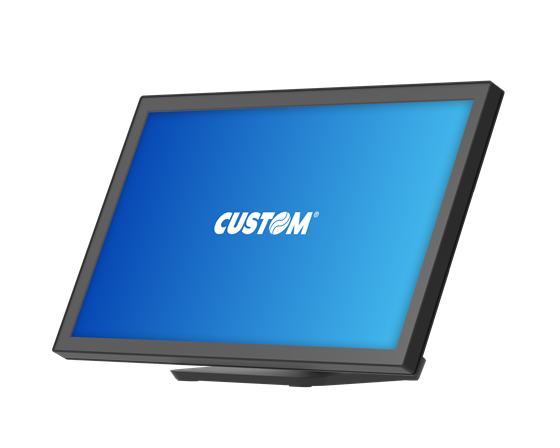

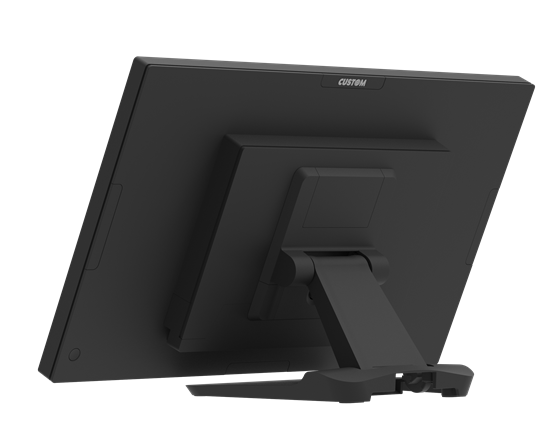

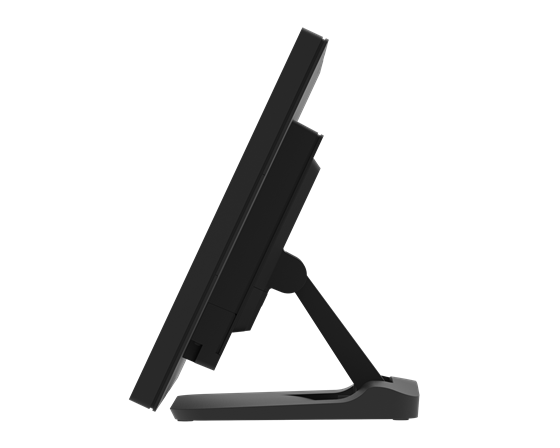

- Mount / stand: Optional PEAK counter stand; 75 x 75 mm and 100 x 100 mm VESA mounting.
- Peripheral options: NFC reader, 2D scanner, 5M webcam, fingerprint reader, LED light bar, terminal stand, and 11.6-inch touch second display.
- Serviceability: Removable compute box and bezel-mounted modular peripherals; Premium models add 802.3bt Type 3 PoE up to 60 W.
- Dimensions and weight: 15.6-inch: 370 x 235 x 42 mm, 3.0 kg; 21.5-inch: 518 x 310 x 49.3 mm, 5.3 kg.
- Warranty: 3 years
In the Box
- Custom PEAK Android touch computer in the selected screen size and connectivity configuration
- 65 W / 19 V power supply
The counter stand, readers, scanner, webcam, light bar, second display, and other modular accessories are sold separately unless the selected option explicitly lists them.
Fit More Customer Touchpoints
Two display sizes for POS, kiosk, and digital workflows
Choose the 15.6-inch model for compact counters and price-checking stations or the 21.5-inch model when self-service, kitchen-display, and digital-signage applications benefit from a larger canvas.
Build a Modular Station
Purpose-built readers, imaging, display, and mounting options
Bezel-mounted peripherals let one PEAK platform support scanning, contactless interaction, identity workflows, status indication, video, and customer-facing display requirements without redesigning the core computer.
Simplify Deployment and Service
Optional PoE and a removable compute box
Premium configurations reduce installation to a single PoE cable, while the removable compute box supports easier maintenance and future expansion across countertop, kiosk, wall, and shelf deployments.
Manage It as Part of the Fleet
Android 12 with MDM-ready deployment
Custom positions PEAK for commercial application use and certifies the platform with leading mobile-device-management providers so administrators can add and manage devices alongside the rest of the deployed fleet.
Shop Peak Android Models
935KY111400L33
Peak Android 15.6-inch POS Touch Computer — Qualcomm SDA660, 4 GB RAM, 64 GB eMMC, Wi-Fi and Bluetooth, Android 12 (stand sold separately)
Screen Size:
15.6-inch
Connectivity:
Wi-Fi and Bluetooth
935KY111700L33
Peak Android 21.5-inch POS Touch Computer — Qualcomm SDA660, 4 GB RAM, 64 GB eMMC, Wi-Fi, Bluetooth, and PoE, Android 12 (stand sold separately)
Screen Size:
21.5-inch
Connectivity:
Wi-Fi, Bluetooth, and PoE
935KY111500L33
Peak Android 15.6-inch POS Touch Computer — Qualcomm SDA660, 4 GB RAM, 64 GB eMMC, Wi-Fi, Bluetooth, and PoE, Android 12 (stand sold separately)
Screen Size:
15.6-inch
Connectivity:
Wi-Fi, Bluetooth, and PoE
935KY111600L33
Peak Android 21.5-inch POS Touch Computer — Qualcomm SDA660, 4 GB RAM, 64 GB eMMC, Wi-Fi and Bluetooth, Android 12 (stand sold separately)
Screen Size:
21.5-inch
Connectivity:
Wi-Fi and Bluetooth
Shop Peak Android Accessories
932AD050100002
11.6-inch Rear Touch Display for Custom America Ascent and Peak All-in-One Computers
976K1100000000
LED Light Bar for Peak Terminal
938KY450000002
Fingerprint Reader for Peak Terminal
938KY450000003
2D Scanner for Peak Terminal
938KY450000005
5M Webcam with Microphone for Peak Terminal
938KY110000003
NFC Reader for Peak Terminal (Android/Windows)
938KY450000009
FeDP-to-HDMI Adapter Cable for Peak Terminal
938KY450000011
Stand for Custom America Peak POS Terminal
9SRSW230200010
Custom America 3-Year CustomCare Advanced Exchange Warranty for Ascent, Daytona, and Peak 15-inch All-in-One Computers
9SRSW230200030
Custom America 5-Year CustomCare Advanced Exchange Warranty for Ascent, Daytona, and Peak 15-inch All-in-One Computers
9SRSW230200040
3-Year CustomCare Advanced Exchange Warranty for Peak and Trek 22-inch Touch Computers
