Elo TouchSystems Pay 15-inch Tap to Pay

Name: Elo TouchSystems Pay 15-inch Tap to Pay
Brand: Elo TouchSystems
Price: 2056.15 USD
Availability: InStock

Images may not reflect the actual product

Android self-service POS with integrated contactless NFC.

Elo Pay 15-inch Tap to Pay combines a 15.6-inch Full HD TouchPro touchscreen with front-facing NFC, Android 14 and Qualcomm QCS6490 processing. The platform supports self-order, self-checkout, ticketing and customer check-in applications with integrated contactless payment capability.

Four Elo Edge Connect ports and universal VESA mounting let you adapt the terminal to your installation. The E488611 configuration includes 8GB RAM, 64GB storage, an 8MP camera and a power supply. A stand and compatible payment/application software are supplied separately.

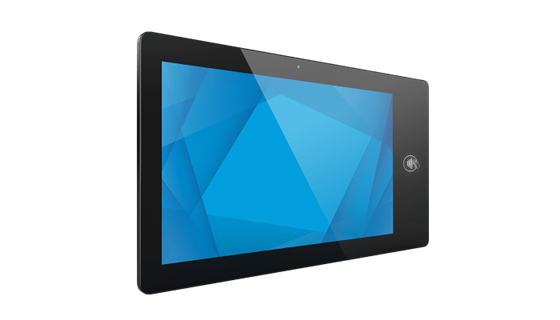

Elo Pay 15-inch Tap to Pay terminal with integrated NFC, no stand

Key Specifications

Processor: Qualcomm QCS6490
Memory / storage: 8GB RAM; 64GB storage
Display / touch: 15.6-inch, 1920 × 1080; TouchPro PCAP up to 10 touches
Operating system: Android 14 with GMS; planned upgrades require OS 360
Payment interface: Front-facing NFC; SoftPOS compatible
Connectivity: Gigabit LAN, Wi-Fi 802.11ax and Bluetooth 5.2
Ports: USB-A, USB-C, microSD, GPIO and four Edge Connect ports

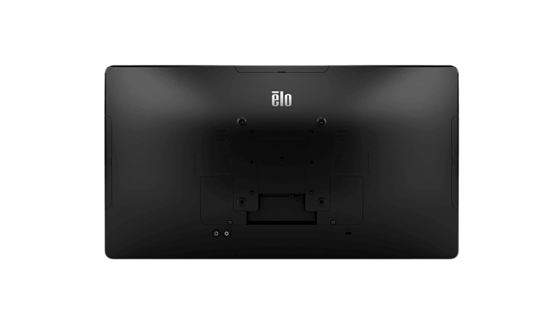

Mount / stand: 75/100 mm VESA; stand sold separately
Peripheral options: Compatible Elo scanners, MSR, RFID, status light and other Edge Connect devices
Serviceability: Cable cover with supplied screws; lithium clock battery
Power: Included 65W supply; optional PoE module
Dimensions / weight: 455.2 × 249.7 × 22.3 mm; 1.81 kg
Warranty: 2 years

In the Box

E488611 Elo Pay 15-inch Tap to Pay terminal
Power brick and North America/European power cables
Quick Installation Guide
Cable-cover screws, located in the power/Ethernet bay

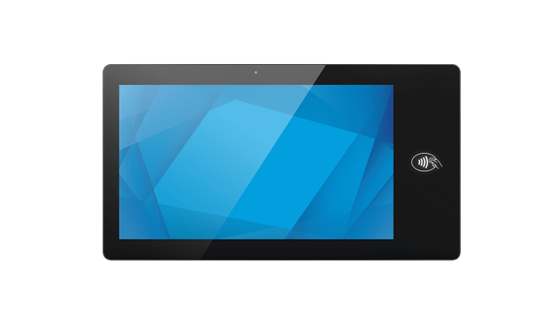

Contactless interaction at the touchscreen

The front-facing NFC antenna and programmable illuminated contactless logo support SoftPOS integration. An 8MP autofocus camera, dual digital microphones and stereo speakers extend the terminal’s interactive capabilities.

Build around your installation

Pair the 75 mm or 100 mm VESA mount with a compatible countertop, pole, wall or self-service stand. Four Elo Edge Connect ports support modular peripherals, while an optional E669163 PoE module can combine network and power over one cable.

Part number

E488611; Elo Pay 15-inch Tap to Pay with integrated NFC, black, no stand

Display type

15.6-inch active-matrix TFT LCD with LED backlight

Aspect ratio

16:9

Active display area

344 × 194 mm (13.55 × 7.62 in)

Resolution

1920 × 1080 at 60Hz

Touch technology

TouchPro projected capacitive (PCAP), up to 10 touches

Touch through

Up to 6 mm glass or 3 mm plastic, up to two touches; integration requirements apply

Colors

8-bit, 16.7 million colors

Brightness

Typical: LCD panel 300 nits; with TouchPro PCAP 258 nits

Response time

Typical total: 30 ms

Contrast ratio

800:1

Viewing angles

Horizontal and vertical: ±85°, 170° total

Processor

Qualcomm Snapdragon QCS6490

Memory

8GB RAM

Storage

64GB

Operating system

Android 14 with Google Play Services and EloView content deployment and management support

OS upgrades / security

Planned Android 16 and Android 18 upgrades and bi-monthly Android security updates require the optional Elo OS 360 subscription; future upgrades are planned, not installed

NFC

Front-facing NFC antenna; programmable rear-lit white LED contactless logo; SoftPOS compatible. Manufacturer specification sheet states EMV Level 1 compliance for integrated NFC

Payment integration

Compatible SoftPOS/payment application and provider integration required; payment/application software and processing service are not included in the hardware package

Camera

8MP autofocus camera; maximum 3264 × 2448 at 30fps

Wireless

IEEE 802.11a/b/g/n/ac/ax; Bluetooth 5.2

Ethernet

One Gigabit RJ45 LAN port

USB-A

One USB-A 3.0 port, up to 900mA

USB-C

One USB-C output; up to 15W with the standard 65W power brick, up to 27W with optional 90W brick. See user guide for operating details

Other I/O

MicroSD slot, GPIO and DC input

Edge Connect ports

Four micro-USB 2.0 Elo Edge Connect ports; 1.2A on one port and 500mA on each remaining port

Audio

Two built-in digital microphones; two 1.5W speakers

Power supply

Standard 65W power brick; 100–240V AC input, 50–60Hz; North America and European cords included

Typical power consumption

On 9.2W; sleep 2.0W; off 0.2W

Power over Ethernet

Requires optional Elo PoE device E669163; reference the compatible I-Series 5 guide for details

Dimensions

455.2 × 249.7 × 22.3 mm (17.92 × 9.8 × 0.9 in), per manufacturer

Device weight

1.81 kg (4.0 lb)

Shipping dimensions

548 × 160 × 340 mm (21.6 × 6.3 × 13.4 in)

Packaged weight

3.8 kg (8.4 lb)

Operating temperature

0–40°C (32–104°F)

Storage temperature

−20–50°C (−4–122°F)

Humidity

Operating 20–80% RH; storage 10–90% RH

Mounting

75 mm and 100 mm VESA; no stand included

Sealing

Touchscreen sealed to LCD

Real-time clock

Lithium coin-cell battery

MTBF

50,000 hours demonstrated, per manufacturer product page

Regulatory

UL/cUL, FCC, IC, CE, CB, VCCI/MIC, RCM, BSMI/NCC and NOM, per manufacturer data sheet

GMS supported countries

Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey and Brazil. Application/payment availability depends on the provider

Included items

Terminal, North America and European power cables, power brick, Quick Installation Guide and cable-cover screws in the power/Ethernet bay

OS 360 services

Optional: E897877 three-year, E898079 four-year, E898282 five-year

Extended warranty services

Optional: E819394 three-year; E819598 four-year; E819795 five-year; E819985 two-year plus AUR; E820186 three-year plus AUR; E820388 four-year plus AUR; E820582 five-year plus AUR

Accidental-damage service options

Optional ADP: E130329 three-year, E130530 four-year, E130719 five-year. AUR plus ADP: E131490 two-year, E131674 three-year, E131859 four-year, E132053 five-year. Eligibility and service terms apply

Warranty

2 years standard
