Custom America PATH15
A compact 15-inch touch POS built for retail and hospitality counters.
Custom PATH15 is a fanless PC POS with a true-flat projected-capacitive touch display, aluminum construction, and a serviceable 128 GB SSD platform. Its compact footprint and integrated customer-display support make it a practical base for checkout and hospitality deployments.
Select the no-OS configuration for a managed Windows environment or the Windows 10 IoT configuration when the operating system must be included.
Key Specifications
- Processor: Intel Celeron Bay Trail J1900, up to 2.42 GHz.
- Memory and storage: 4 GB DDR3L memory, expandable to 8 GB; removable 128 GB SSD.
- Display and touch: 15-inch 1024 × 768 TFT LCD with 300 cd/m² brightness and true-flat PCAP touch.
- Operating system: No OS or Windows 10 IoT, depending on the selected model.
- Ports and connectivity: Four USB 2.0, three RS-232, LAN, cash-drawer RJ11, VGA, and audio in/out.
- Mount / stand: Integrated counter stand with 75 × 75 mm VESA support.
- Peripheral options: Integrated/removable customer display; optional magnetic-card reader.
- Serviceability: Fanless aluminum construction with a removable SSD for straightforward maintenance.
- Dimensions and weight: 361.6 W × 207.5 D × 312.7 H mm.
In the Box
- PATH15 terminal in the selected model configuration
- Power supply
- Integrated stand / customer-display hardware where specified by the selected model
MSR, cables, cash drawer, and other peripherals are sold separately unless the selected option explicitly includes them.
Built for Counter Service
Fanless, touch-first operation
The true-flat PCAP screen and fanless aluminum chassis keep the station focused and easy to maintain.
Connect the Station
Ports for common POS peripherals
USB, serial, LAN, VGA, audio, and cash-drawer connectivity support printers, scanners, payment devices, and displays.
Configure the Deployment
No-OS or Windows 10 IoT models
Choose the no-OS model for a managed Windows environment, or select Windows 10 IoT when the operating system must be included.
Add the Essentials
MSR and customer-display accessories
PATH15 supports an integrated three-track MSR and a two-line VFD customer display where the selected configuration or accessory provides it.
Shop PATH15 Models
935KY440300733
Custom America PATH15 — J1900, 4 GB RAM, 128 GB SSD, Windows 10 IoT x64
Operating System:
Windows 10 IoT x64
Outlet Items

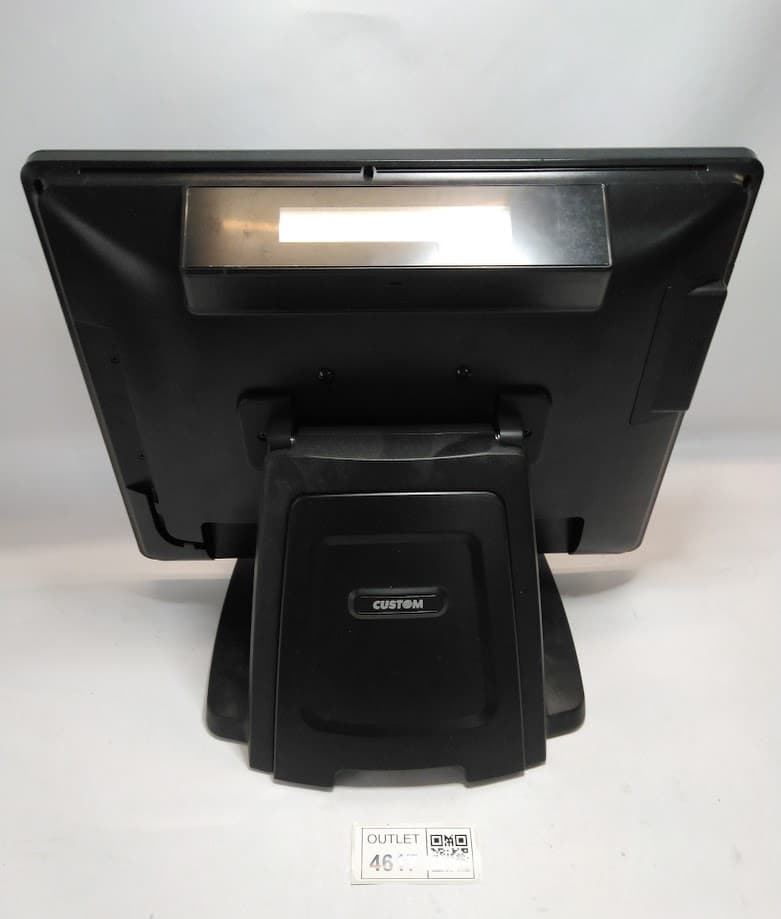

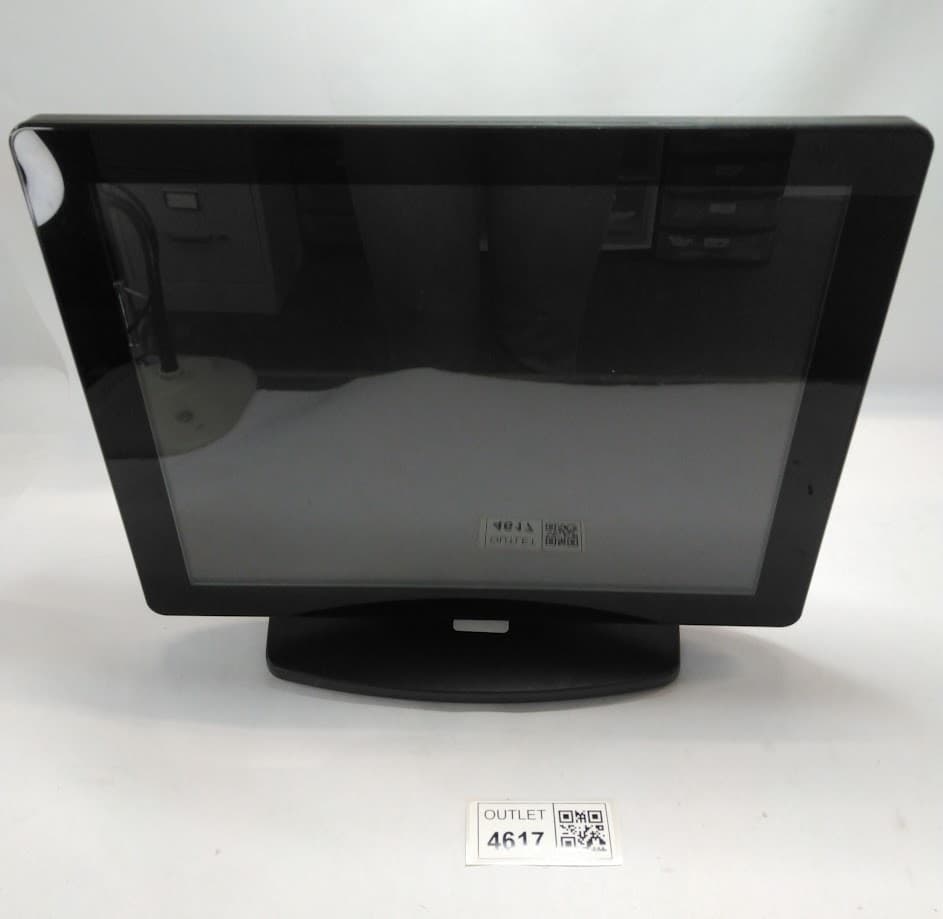

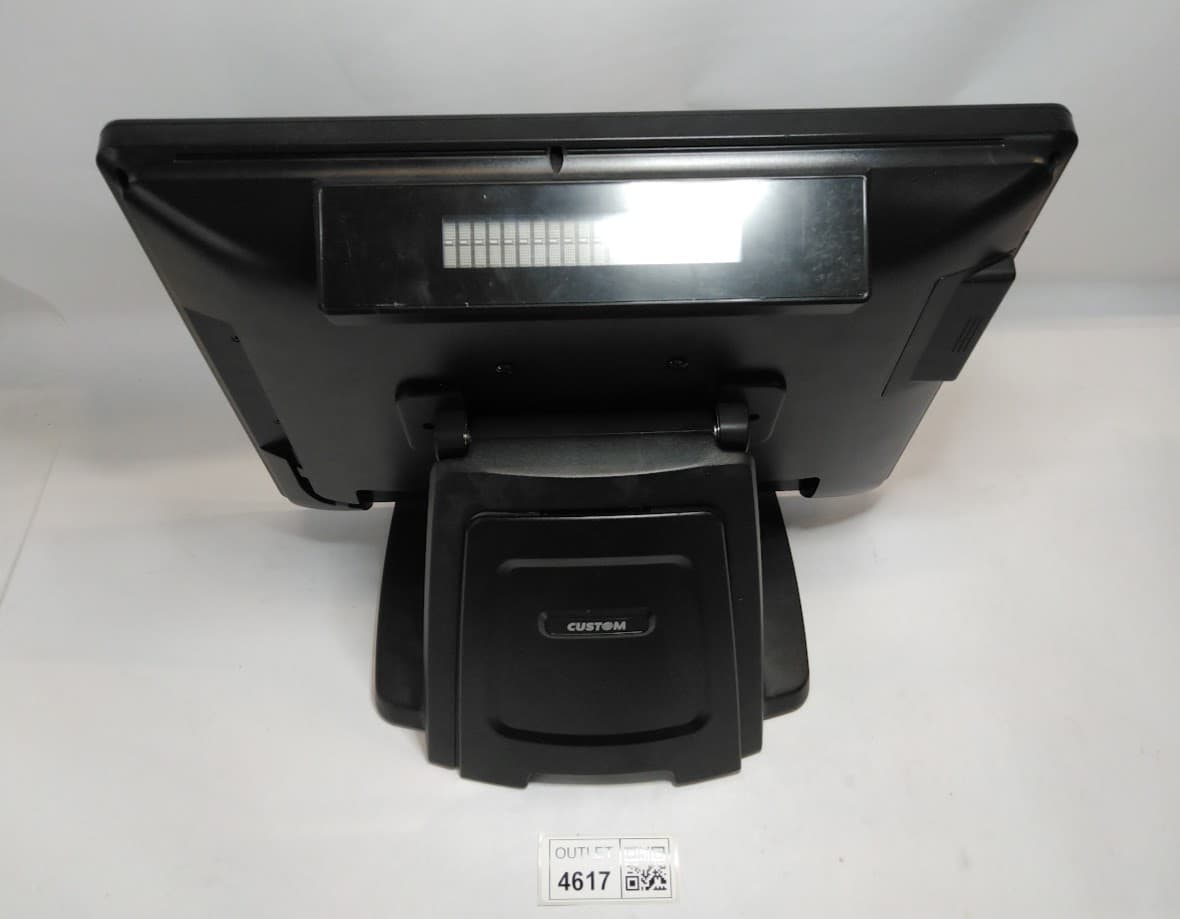

Custom America PATH15
Custom America, 935KY440300733 PATH15, J1900, 4GB RAM, 128GB, Win10 IoTx64, CID:4617
Item Number: 935KY440300733
1 Open Box AvailableCID: 4617
Shop PATH15 Accessories
42000000013200
RJ45-to-DB9 Serial Converter for Daytona and PATH15
976ZZ010000021
Custom America AC Power Cable
48000000006100
Power Supply for PATH15; AC power cable 976ZZ010000021 sold separately
