Custom America P-Ranger
Rugged Android data capture for retail, warehouse, transportation, and field workflows.

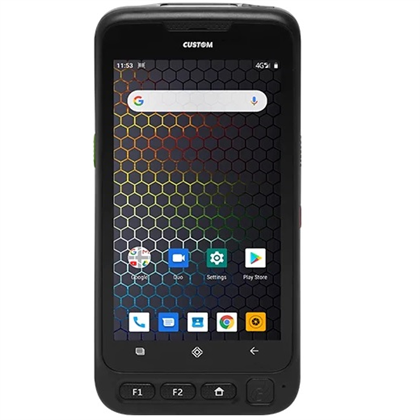

Custom P-Ranger is a rugged 5-inch handheld computer built to replace consumer devices in barcode-driven operations. Its integrated Zebra SE4710 imager, LTE data, dual-SIM support, and business-focused Android platform help employees capture information and stay connected across indoor and outdoor workflows.
Current POSGuys configurations cover Android 10 and Android 12 with 4 GB of memory and 64 GB of storage. IP67 sealing, MIL-STD-810G certification, 4-foot drop resistance, and optional charging, mounting, protection, and extended-battery accessories support demanding daily use.
Key Specifications
- Operating system / support horizon: Android 10 with GMS or Android 12 with GMS, depending on the selected model.
- Processor: MT6762 octa-core 2.0 GHz on Android 10; MT6765 octa-core 2.3 GHz on Android 12.
- Memory and storage: 4 GB RAM and 64 GB storage on current POSGuys configurations; microSD expansion up to 32 GB.
- Display and input: 5-inch, 1280 x 720 HD Dragontrail/AGC touch display with physical function and scan keys.
- Scan engine: Zebra SE4710 imager for 1D and 2D barcodes.
- Wireless connectivity: Dual-band 802.11 a/b/g/n Wi-Fi, Bluetooth 4.0 or 5.0, integrated NFC, 4G LTE, and dual Nano SIM.
- Ruggedness and sealing: IP67, MIL-STD-810G certified, and rated for 1.22 m (4 ft.) drops.
- Battery / power: Removable 4,000 mAh battery; optional 8,000 mAh extended battery.
- Form factor, dimensions and weight: Handheld; 165 x 76 x 15.6 mm; 186 g without battery.
- Warranty: 3 years
In the Box
- Custom P-Ranger mobile computer
- 4,000 mAh battery
- Hand strap
- User manual and warranty card
Charging equipment, cradles, mounts, protective accessories, and the optional extended battery are sold separately unless the selected option explicitly lists them.
Capture Barcodes at the Point of Work
Integrated SE4710 1D/2D scanning
The built-in Zebra imager reads common retail, warehouse, postal, and mobile barcodes without requiring a separate scanner, while physical side triggers support repeated data-capture tasks.
Stay Connected Across Workflows
Wi-Fi, LTE, dual SIM, Bluetooth, and NFC
Dual-band Wi-Fi supports facility networks while LTE data and dual Nano SIM slots extend connectivity into transportation, field service, delivery, and other mobile environments.
Built for Demanding Daily Use
IP67 sealing and 4-foot drop resistance
MIL-STD-810G certification, IP67 environmental protection, and a strengthened Dragontrail/AGC display help the P-Ranger withstand routine drops, dust, and exposure in mobile operations.
Configure the Deployment
Charging, mounting, protection, and battery choices
Single-slot and four-slot cradles, vehicle mounting, protective covers, a pistol grip, tempered glass, and standard or extended batteries let teams adapt the same handheld platform to fixed, vehicle, and walk-around work.
Shop P-Ranger Models
93DKZ014200L33
P-Ranger Mobile Computer — SE4710 1D/2D Scanner, 4 GB RAM, 64 GB storage, Android 12 GMS, Wi-Fi, Bluetooth 5.0, 4G LTE, and GPS
Operating System:
Android 12
Processor:
MT6765 2.30 GHz
93DKZ010100L33
P-Ranger Mobile Computer — SE4710 1D/2D Scanner, 4 GB RAM, 64 GB storage, Android 10 GMS, Wi-Fi, Bluetooth 4.0, and 4G LTE
Operating System:
Android 10
Processor:
MT6762 2.00 GHz
Shop P-Ranger Accessories
9T2CO020000006
3-Year Extended Warranty for Custom America P-Ranger
938KZ010400033

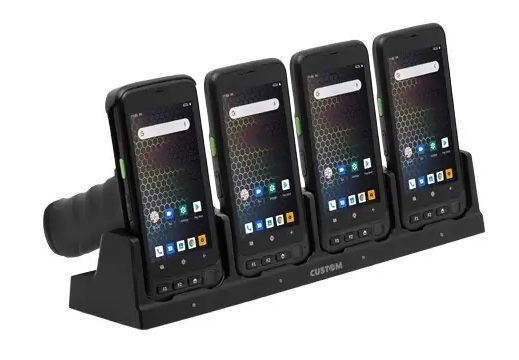

P-Ranger Four-Slot Charging Cradle; power supply and U.S. power cable sold separately
938KZ010800033

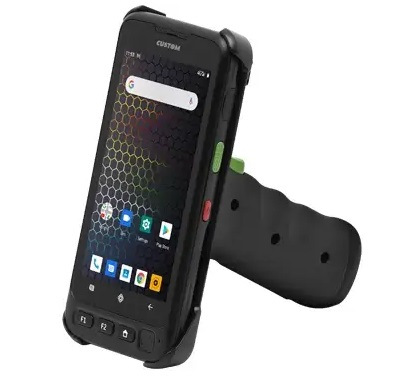

Pistol Grip for P-Ranger
976KZ010000002
P-Ranger Silicone Cover Protection
976KZ010000003
Protective Tempered Glass for P-Ranger
938KZ010100033
Car Holder for P-Ranger
938KZ011500033
P-Ranger Four-Slot Cradle Power Supply; U.S. Power Cable 976ZZ010000020 Sold Separately
938KZ010500033

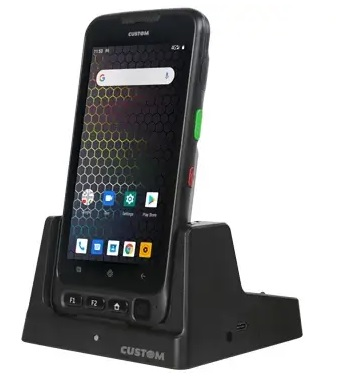

P-Ranger Single-Slot Charging Cradle with USB Cable; U.S. wall charger 996ED040000039 sold separately
4B000000026600
P-Ranger Wrist Strap
9T2CO020000007
Custom America P-Ranger 5 Year CUSTOM4U Portal Subscription. Call For More Information Prior to Purchase.
48000000004500
4,000 mAh Standard Replacement Battery for P-Ranger
42000000009900
USB Cable for P-Ranger
48000000018100
8,000 mAh Extended Replacement Battery for P-Ranger
996ED040000039
USB Wall Charger for P-Ranger Single-Slot Cradle
976ZZ010000020
U.S. Power Cable for P-Ranger Four-Slot Cradle
