MicroTouch Outdoor Touch Monitor Series
Outdoor Touch Monitor Series (iOS)
MicroTouch outdoor touch monitors for bright, weather-exposed self-service and industrial installations.Sunlight-readable outdoor touch monitors for self-service, industrial and public-facing installations.
MicroTouch Outdoor Touch Monitors combine a bright 1,500-nit display with 10-point projected-capacitive touch for deployments that must remain clear and responsive in changing outdoor light.
Choose 10.1, 21.5 or 27 inches for portrait or landscape installation. Optical bonding, etched anti-glare glass, UV protection and front-panel IP66 sealing help protect the viewing surface, while ambient-light, proximity and thermal sensors support dependable operation.
Key Specifications
- Product type: Outdoor projected-capacitive touch monitor
- Models: M1-101OD-A1, M1-215OD-A1 and M1-27OD-A1
- Display: 10.1 in. at 1280 × 800; 21.5 or 27 in. at 1920 × 1080
- Brightness: 1,500 nits
- Touch: 10-point PCAP
- Connectivity: USB-C with DisplayPort Alt Mode and power, USB-A and HDMI 1.4
- Power: External 100-240 V AC adapter; 24 V DC for 10.1/21.5 in. and 12 V DC for 27 in.
- Protection: IP66 front, IK10 glass, etched anti-glare surface and UV protection
- Mounting: Portrait or landscape; VESA 100 × 100 mm (10.1 in.) or 200 × 100 mm (21.5/27 in.)
- Size and net weight: 256.4 × 176.6 × 41.1 mm / 3.1 kg; 536 × 330 × 50.44 mm / 8.8 kg; 658 × 414.9 × 65.7 mm / 16.4 kg
- Warranty: 3 years
In the Box
- Selected MicroTouch M1 Outdoor Touch Monitor
- External AC power adapter
- Regional power cable
- HDMI cable
- USB-C to USB-A cable
- Wired remote control
Mounting hardware and other deployment accessories are sold separately unless the selected configuration states otherwise.
Outdoor Readability
Optically bonded 1,500-nit display
The bright, optically bonded panel combines etched anti-glare glass and UV protection to preserve contrast and visibility in high ambient light.
Protected for Deployment
IP66 front and IK10-rated glass
Front-panel sealing and impact-rated glass support unattended kiosks, wayfinding, outdoor ordering and industrial installations.
Flexible Integration
Modern video, touch and power connections
USB-C supports DisplayPort Alt Mode and power, while HDMI 1.4 and USB-A provide practical alternatives for host integration.
Three Installation Sizes
10.1, 21.5 and 27-inch models
Select the compact 10.1-inch 1280 × 800 model or a 21.5/27-inch Full HD model. Every size supports portrait or landscape mounting.
Shop Outdoor Touch Monitor Series Models

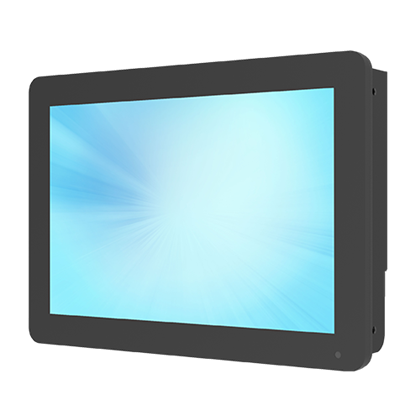

M1-101OD-A1
MicroTouch M1-101OD-A1 Outdoor Touch Monitor, 10.1 in., 1280 × 800, 1,500 Nits, USB-C/HDMI
Screen Size:
10.1 in.
Resolution:
1280 × 800

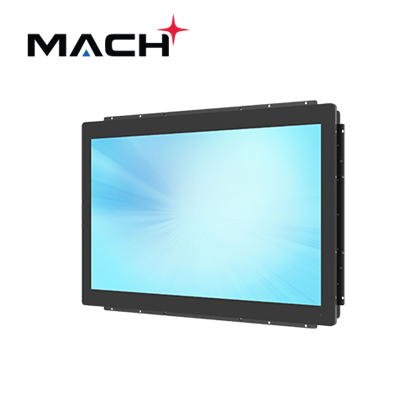

M1-215OD-A1
MicroTouch M1-215OD-A1 Outdoor Touch Monitor, 21.5 in., 1920 × 1080, 1,500 Nits, USB-C/HDMI
Resolution:
1920 × 1080
Screen Size:
21.5 in.
M1-27OD-A1
MicroTouch M1-27OD-A1 Outdoor Touch Monitor, 27 in., 1920 × 1080, 1,500 Nits, USB-C/HDMI
Resolution:
1920 × 1080
Screen Size:
27 in.
