Honeywell Orbit 7190g
Hybrid 1D and 2D presentation scanning for fast, space-conscious checkout lanes
Brand update: The Orbit 7190g is now a Brady product, formerly sold as the Honeywell Orbit 7190g.
The Honeywell Orbit 7190g combines the familiar speed of omnidirectional laser scanning with an integrated area imager for 2D barcodes and digital coupons. It is designed for convenience, specialty and general retail counters where operators need quick pass-through reads without giving up mobile-screen scanning.
The compact scan head tilts through 30 degrees and can be lifted for bulky merchandise. Automatic interface detection and Honeywell EZConfig support simplify deployment and configuration.
The adjustable head supports presentation scanning at the counter and handheld scanning for larger items.
Key Specifications
- Scanner configuration: corded countertop hybrid laser and area-imaging presentation scanner
- Barcode capability: 1D, PDF and 2D barcodes, including mobile-screen codes
- Reading range: standard-range hybrid engine; official 0–1 m class, barcode dependent
- Interfaces / connectivity: USB, RS-232, RS-485 or keyboard wedge, depending on configuration
- Durability: fixed-use counter design; drop/tumble rating not published
- Environmental sealing: IP5X
- Dimensions and weight: 108 × 103 × 148 mm; weight not published by Honeywell
- Scan pattern: 20-line omnidirectional laser plus area imager
- Adjustability: scan head tilts up to 30°
- Warranty: 3 years
In the Box

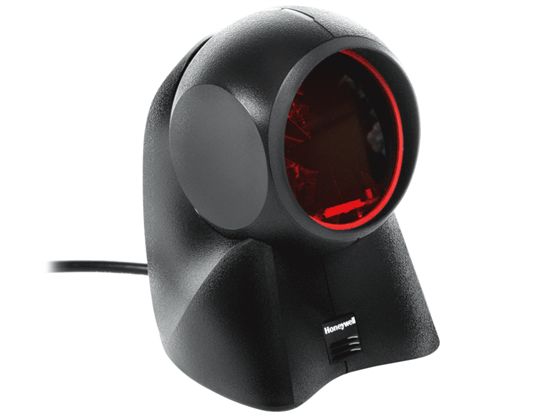

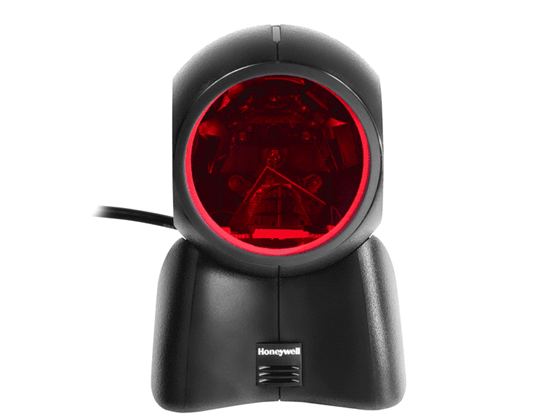

- 7190G-2USBX-0: black Orbit 7190g scanner and 3 m USB Type-A host-power cable

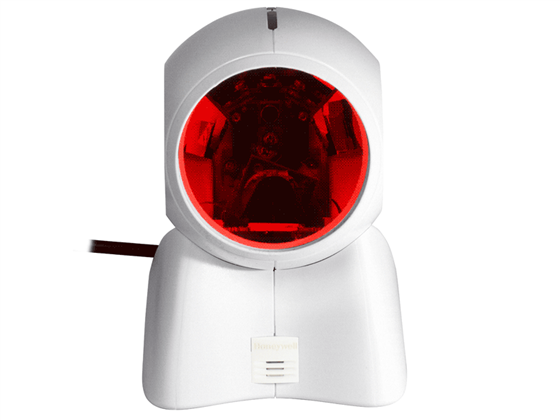

- 7190G-0USBX-0: white Orbit 7190g scanner and 3 m USB Type-A host-power cable
Hybrid scanning performance
The laser engine handles fast pass-through reads of common linear barcodes while the area imager captures 2D symbols.
Mobile barcode ready
Read digital coupons, loyalty codes and other supported barcodes directly from customer phone screens.
Flexible counter placement
The small footprint and adjustable head help fit the scanner into tight checkout spaces and varied presentation angles.
Straightforward deployment
Automatic interface detection and supported Honeywell EZConfig workflows help standardize installation and settings.

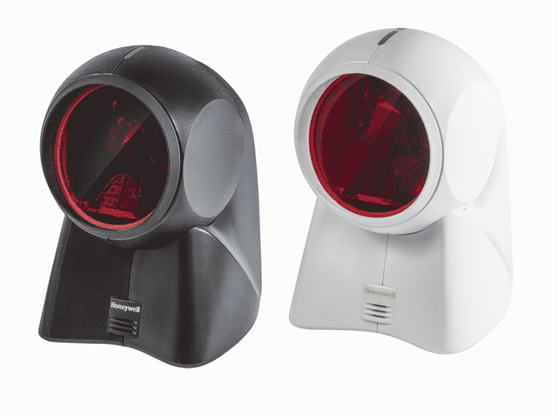

Shop Orbit 7190g Models
7190G-2USBX-0
Orbit 7190g 1D/2D Presentation Scanner USB Kit, Black, 3m USB Cable Included
Color:
Black
7190G-0USBX-0
Orbit 7190g 1D/2D Presentation Scanner USB Kit, White, 3m USB Cable Included
Color:
White
Shop Orbit 7190g Accessories
SVC7190G-SG3N
Orbit, Edge Service, Gold, 1 Day, 3 Year, New Contract
CBL-500-300-S00-07
3m (9.8ft) Straight USB Type A (5V Host Power) Cable - Black - Orbit 7190g
