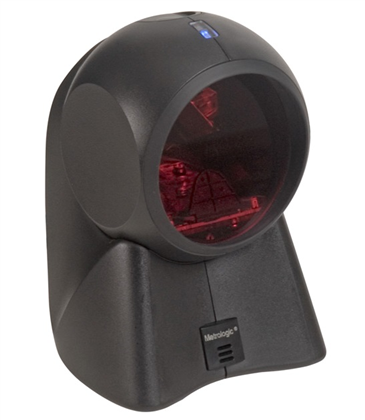

Honeywell Orbit 7120/7180
Compact omnidirectional laser scanning for space-conscious retail counters
The Honeywell Orbit 7120 and OrbitCG 7180 are corded 1D presentation scanners built around a fast, easy-to-find omnidirectional scan zone. Their compact, award-winning shape suits convenience, specialty and general retail counters where space matters.

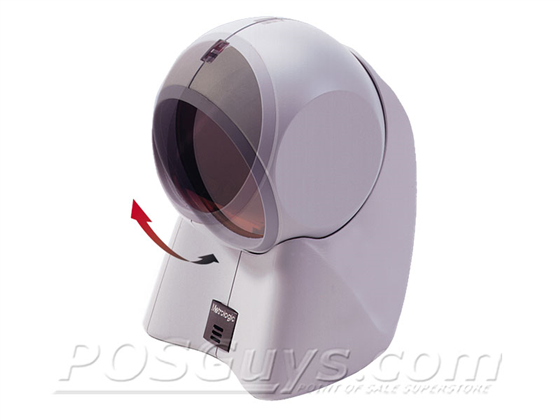

The adjustable head tilts through 30 degrees, and the scanner can be lifted for large or bulky items. The 7180 adds CodeGate targeting and RF EAS support for compatible checkout deployments.
Orbit's compact head adjusts to the item and the available counter space.
Key Specifications
- Scanner configuration: Corded presentation laser scanner for hands-free or handheld use
- Barcode capability: Standard 1D and GS1 DataBar symbologies
- Reading range: Orbit 7120 reads 13 mil barcodes from contact to 8.5 in. (215 mm); range varies by barcode density
- Interfaces / connectivity: USB, RS-232, keyboard wedge and RS-485 support by configuration
- Durability: Designed to withstand 4 ft. (1.2 m) drops
- Environmental sealing: Sealed to resist airborne particulate contaminants
- Dimensions and weight: 4.1 x 4.0 x 5.9 in. (105 x 102 x 150 mm); 14.1 oz. (400 g)
- Warranty: 3-year Honeywell factory warranty
- Scan pattern: 20-line omnidirectional or single-line targeting
- Scan rate: Up to 1,120 scan lines per second
In the Box
- MK7120-31A38-N: black Orbit 7120 scanner and USB cable
- MS7120-38-3: black Orbit 7120 scanner and mounting plate; interface cable not included
- MK7120-71A38-N: light-gray Orbit 7120 scanner, mounting plate and USB cable
- MK7120-31B41-6-N: black Orbit 7120 scanner, mounting plate, RS-232 cable and North American power supply
Designed for presentation scanning
Fast first-pass reads
The 20-line pattern and broad sweet spot help operators present common retail barcodes without precise alignment.

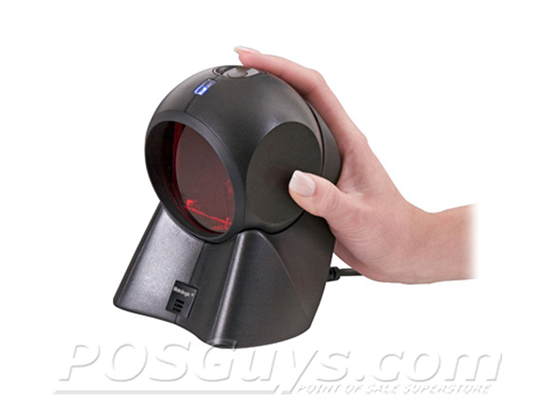

Handheld when needed
Lift the compact scanner from the counter to reach barcodes on bulky merchandise.
Flexible checkout integration
Choose the exact USB, serial, keyboard-wedge or RS-485 configuration and the required cable or power components.
Configuration support
Honeywell MetroSet 2 supports configuration and firmware workflows for this scanner family.
Shop Orbit 7120/7180 Models
MK7120-31A38-N
MS7120 Orbit Omnidirectional Scanner, Black with Cable, USB Interface
Color:
Black
Interface:
USB
Accessories:
USB Cable
MS7120-38-3
Orbit 7120 1D Presentation Scanner, Black, Low-Speed USB, Mounting Plate Included, Cable Not Included
Color:
Black
Accessories:
Mounting Plate, No Cable
Interface:
USB
MK7120-71A38-N

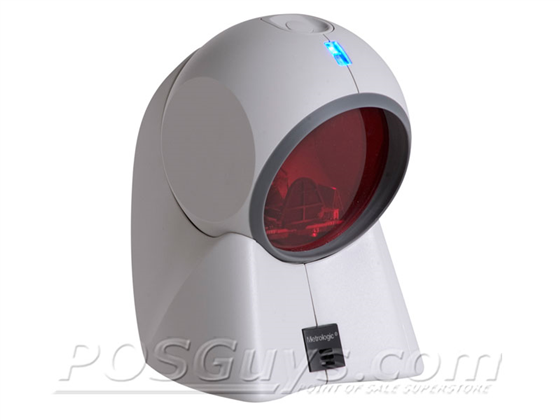

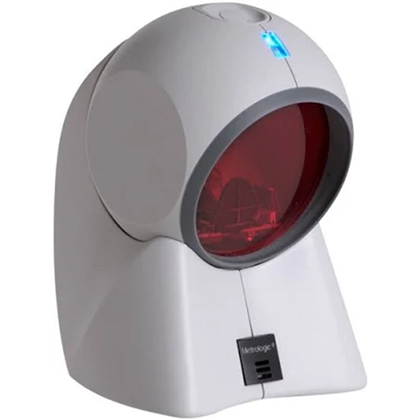

MS7120 Orbit Omnidirectional Scanner, Light-Grey with Cable and Mounting Plate, USB Interface
Color:
Light Gray
Interface:
USB
Accessories:
USB Cable + Mounting Plate
MK7120-31B41-6-N
MS7120 Orbit Omnidirectional Scanner, Black with Cable, Power Supply and Mounting Plate, Serial RS-232 Interface (Sam4s SPS530 Cash Register Compatible)
Color:
Black
Interface:
RS-232
Accessories:
RS-232 Kit
Shop Orbit 7120/7180 Accessories
46-00525-6
Power Supply: NA level 6 plug, 1.0A @ 5.2VDC, 90-255VAC @ 50-60Hz
