MicroTouch Open Frame Series
Commercial PCAP displays designed for clean integration into kiosks, equipment and custom enclosures.
MicroTouch Open Frame Series monitors give integrators a broad choice of screen sizes and mounting approaches without adding a desktop enclosure. Active POSGuys models span 12.1 to 31.5 inches and include gasketed-bezel, rear-flush and front-mount configurations.
The family is suited to point-of-information, point-of-service, industrial controls and interactive signage where the display must become part of the finished enclosure.
Key Specifications
- Product type / application: Commercial open-frame PCAP monitors for kiosks, embedded equipment and interactive enclosures
- Display / resolution: 12.1- through 31.5-inch; 1024 x 768 through 1920 x 1080 by model
- Touch input: Projected capacitive, 10 touch points; USB-HID
- Host compatibility: USB-HID touch for Windows, Linux and Android hosts; current models provide HDMI plus VGA, DisplayPort or DVI according to the selected chassis

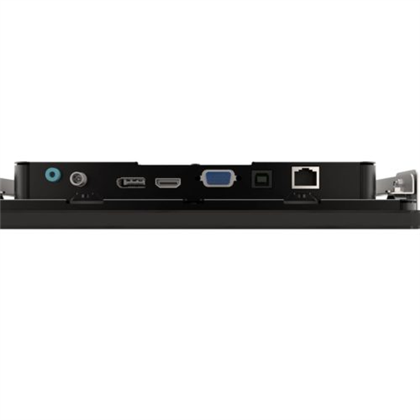

- Interfaces / connectivity: VGA, HDMI and DisplayPort on current models
- Power: External DC power supply; rating varies by model
- Durability / environment: Model-specific front protection; 0°C to 40°C on current models
- Mounting / form factor: Gasketed-bezel, rear-flush or front-mount integration by model
- Dimensions / weight: Integration chassis span 12.1 through 31.5 inches with gasketed-bezel, rear-flush and front-mount designs; the selected option identifies its screen size and mounting style
- Warranty: 3 years
In the Box

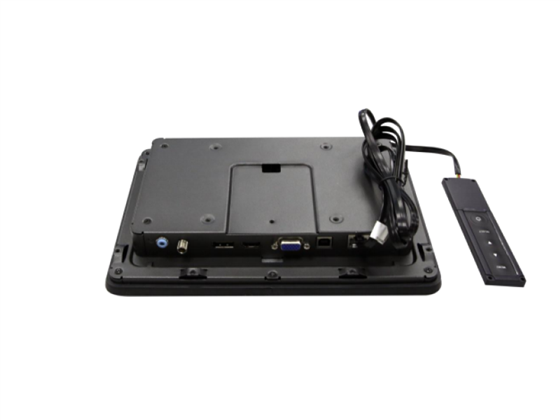

- Core hardware: Selected MicroTouch open-frame touch monitor, external DC power supply and power cord
- Interface kit: USB touch cable plus the HDMI, DisplayPort, DVI or VGA cable supplied for the selected model

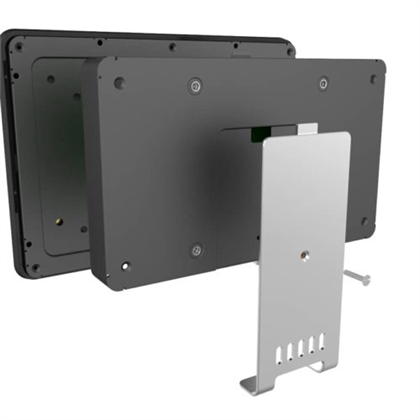

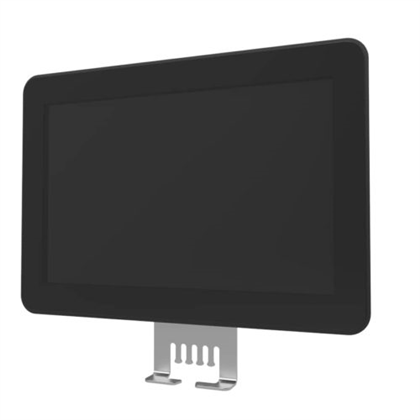

- Installation kit: OSD remote/key and model-specific brackets, clamps or fasteners for the selected gasketed-bezel, rear-flush or front-mount chassis
Flexible enclosure configurations
Three mounting approaches across one family

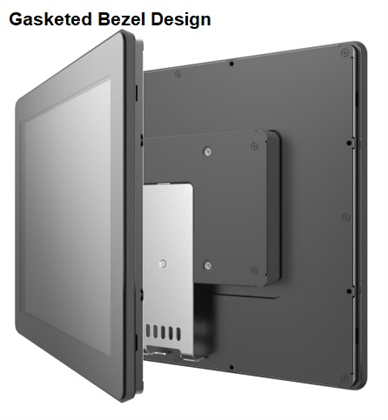

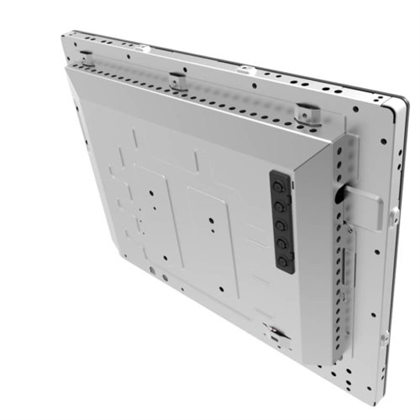

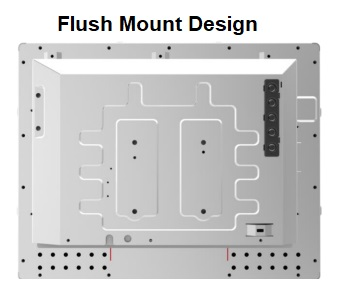

Gasketed-bezel models help protect the finished application, rear-flush models support a clean integrated face, and the 31.5-inch front-mount option serves larger interactive installations.
Scale without changing touch
Consistent PCAP interaction from compact to large format
The series keeps 10-point projected-capacitive touch available across multiple screen formats, letting integrators select the physical size and resolution that fit the application.
Shop Open Frame Series Models
OF-215P-B1
MicroTouch OF-215P-B1 21.5" open-frame PCAP monitor, 1920 x 1080, 16:9 aspect ratio and gasketed bezel
Resolution:
1920 x 1080
Screen Size:
21.5"
Mount Type:
Gasketed Bezel Design
OF-150P-B1
MicroTouch OF-150P-B1 15" open-frame PCAP monitor, 1024 x 768, 4:3 aspect ratio and gasketed bezel
Resolution:
1024 x 768
Screen Size:
15"
Mount Type:
Gasketed Bezel Design
OF-320P-A1
MicroTouch OF-320P-A1 32" open-frame PCAP monitor, 1920 x 1080, 16:9 aspect ratio and front mounting
Resolution:
1920 x 1080
Screen Size:
32"
Mount Type:
Front Mount
M1-27OF-A2
MicroTouch M1-27OF-A2 27" open-frame PCAP monitor, optically bonded etched anti-glare, 1920 x 1080, 500 nits, HDMI and USB-C DisplayPort Alt Mode, IP65 front
Resolution:
1920 x 1080
Screen Size:
27"
Mount Type:
VESA / Side Mount
OF-100P-A2

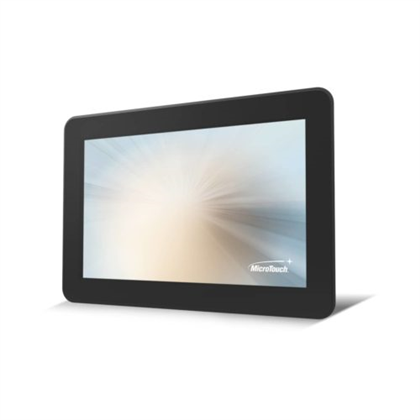

MicroTouch OF-100P-A2 10.1" open-frame PCAP monitor, 1280 x 800, 500-nit panel, VGA, HDMI and DisplayPort, IP65 front
Screen Size:
10.1"
Resolution:
1280 x 800
Mount Type:
Gasketed Bezel Design
OF-195P-B2
MicroTouch OF-195P-B2 19.5" open-frame PCAP monitor, 1920 x 1080, VGA, HDMI and DisplayPort, gasketed bezel and IP65 front
Screen Size:
19.5"
Resolution:
1920 x 1080
Mount Type:
Gasketed Bezel Design
OF-270P-B2
MicroTouch OF-270P-B2 27" open-frame PCAP monitor, anti-glare, 1920 x 1080, VGA, HDMI and DisplayPort, IP54 front
Resolution:
1920 x 1080
Screen Size:
27"
Mount Type:
VESA / Open Frame
OF-120P-A1
MicroTouch OF-120P-A1 12.1" open-frame PCAP monitor, 1024 x 768, 4:3 aspect ratio and gasketed bezel
Resolution:
1024 x 768
Screen Size:
12.1"
Mount Type:
Gasketed Bezel Design
OF-156P-A1
MicroTouch OF-156P-A1 15.6" open-frame PCAP monitor, 1920 x 1080, 16:9 aspect ratio and gasketed bezel
Screen Size:
15.6"
Resolution:
1920 x 1080
Mount Type:
Gasketed Bezel Design
OF-195P-A2
MicroTouch OF-195P-A2 19.5" open-frame PCAP monitor, 1920 x 1080, 16:9 aspect ratio and gasketed bezel
Screen Size:
19.5"
Resolution:
1920 x 1080
Mount Type:
Gasketed Bezel Design
OF-195P-A1
MicroTouch OF-195P-A1 19.5" open-frame PCAP monitor, 1920 x 1080 and gasketed bezel
Screen Size:
19.5"
Resolution:
1920 x 1080
Mount Type:
Gasketed Bezel Design
OF-240P-A1
MicroTouch OF-240P-A1 23.8" open-frame PCAP monitor with 1920 x 1080 resolution, 10-point touch, a gasketed bezel, VGA, DisplayPort, HDMI and IP65 front protection.
Resolution:
1920 x 1080
Screen Size:
23.8"
Mount Type:
Gasketed Bezel Design
OF-170P-A1
MicroTouch OF-170P-A1 17" open-frame PCAP monitor, 1280 x 1024, 5:4 aspect ratio and rear-flush mounting
Resolution:
1280 x 1024
Screen Size:
17"
Mount Type:
Rear Flush Mount
OF-190P-A1
MicroTouch OF-190P-A1 19" open-frame PCAP monitor, 1280 x 1024, 5:4 aspect ratio and rear-flush mounting
Resolution:
1280 x 1024
Screen Size:
19"
Mount Type:
Rear Flush Mount
Shop Open Frame Series Accessories
SS-156-A1
MicroTouch SS-156-A1 slim adjustable stand for DT-156P-B2 and compatible IC-156 systems; 100 x 100 mm VESA mount, cable management and mounting screws included.
