Epson OmniLink TM-T88VII

Name: Epson OmniLink TM-T88VII
Brand: Epson
Price: 388.16 USD
Availability: InStock

Images may not reflect the actual product

OmniLink TM-T88VII (iOS)

TM-T88VII - iOS Compatible Thermal Receipt Printer (USB, WiFi) The OmniLink® TM-T88VII is the fastest receipt printer in the industry, with print speeds up to 500 mm/sec. The TM-T88VII is great for merchants to deliver the best customer experience in virtually every environment, especially high-volume ones like hospitality, retail, grocery, banking and more.

• Software: Jonas Club
• Max Print Width: 3 Inches
• Warranty: 4-Year
• Return Period: 15 Days
• Lifetime Support
• Free Shipping

High-speed receipts with shared-device and online order support

The Epson OmniLink TM-T88VII combines fast thermal receipt printing with support for multiple connected devices. It can serve traditional POS terminals, tablets and cloud applications, with remote setup tools and paper-saving functions.

Key Specifications

Print method: Direct Thermal
Print speed: Up to 500 mm/sec with qualifying power/media; otherwise 450 mm/sec
Paper widths: 58 or 80 mm
Resolution: 180 dpi
Interfaces / connectivity: USB and Ethernet; serial, parallel, powered USB or wireless, by model
Cutter and reliability: Auto cutter: 3 million cuts; printhead: 200 km
Platform support: PC POS, compatible mobile devices and cloud applications
Dimensions and weight: 145 × 195 × 148 mm (W × D × H); approx. 1.7 kg
Warranty: 4 years

In the Box

Selected TM-T88VII printer

Power supply and interface-cable contents vary by configuration. The maximum speed requires approved 80 mm media and a qualifying power supply.

Fast transactions

Receipt printing reaches 500 mm/sec with supported 80 mm media and an Epson PS-180 or PS-190 power supply.

Share across devices

Multiple interfaces allow PC-POS terminals, tablets, mobile devices and cloud servers to share the printer.

Online orders

Server Direct Print retrieves orders from a web server without requiring POS software integration.

Simplified setup

Epson TM Utility assists configuration and replacement. Status LEDs and a network diagnostic sheet help troubleshooting.

Print Method

Direct Thermal

Max. Print Speed

Up to 500 mm/s (19.7 in/s) for text and graphics with 80 mm approved media and PS-190 or PS-180 power supply; configurations without those supplies default to 450 mm/s

Media

80 mm paper: 79.5 ± 0.5 mm wide; 58 mm paper: 57.5 ± 0.5 mm wide. Maximum roll diameter 83 mm (3.27 in).

Paper Roll Diameter

Maximum roll diameter: 83 mm (3.27 in); minimum core diameter: 18 mm (0.71 in)

Printer Reliability

MTBF 360,000 hours MCBF 70,000,000 lines

Auto Cutter Lifespan

3.0 million cuts

Dimensions (W x D x H)

5.71" x 7.68" x 5.83"

Software Drivers

ePOS-Print, ePOS-Display, Server Direct Print and status notification; TM Utility supports backup and restore.

OS/Languages Support

Windows with APD, OPOS, OPOS for .NET or JavaPOS; iOS and Android with ePOS SDK; macOS; Linux with CUPS or JavaPOS. Support depends on software version.

Print Resolution

180 dpi

Print Fonts

Font A: 12 × 24 or 10 × 24 dots; Font B: 9 × 17 dots; Kanji A: 24 × 24 or 20 × 24 dots; Kanji B: 16 × 16 dots

Column Capacity

ANK: 42/48/56 columns in 80 mm mode; 30/36/40 in 58 mm mode. Kanji: 21/24/32 columns in 80 mm mode; 15/18/22 in 58 mm mode.

Character Sets

95 alphanumeric; 18 international; 128 × 43 graphic; Japanese, simplified Chinese, traditional Chinese and Korean character sets

Barcodes

UPC-A, UPC-E, EAN-8, EAN-13, Code 39, Code 93, Code 128, ITF, Codabar, GS1-128, GS1 DataBar and Code 128 Auto

2D Symbols

PDF417, QR Code, MaxiCode, DataMatrix, Aztec Code, two-dimensional GS1 DataBar and composite symbology

Paper Thickness

48–80 µm

Paper Handling

Thermal roll paper; friction feed and backfeed; drop-in loading; paper guide and auto cutter; near-end sensor

Interfaces

Built-in USB and 10/100Base-T/TX Ethernet. Fixed-interface models support optional OT-WL06 dual-band 802.11a/b/g/n/ac Wi-Fi; Connect-It models add a configuration-specific serial, parallel, powered USB or wireless interface.

Network Security

WPA/WPA2/WPA3 personal and enterprise modes, depending on wireless configuration; port open/close settings and IP address filtering

Setup

NFC or QR code; SimpleAP for wireless setup; TM Utility for iOS/Android and TM-T88VII Utility for Windows

Communication Protocols

ESC/POS; ePOS-Print Service and Server Direct Print over Ethernet or wireless

Mechanism and Printhead Life

20 million printing lines; thermal head 200 km, under Epson test conditions

Buffer Memory

Receive: 45 bytes or 4 KB selectable; user-defined: 12 KB; macro: 2 KB; NV graphics: 384 KB; NV user: 1 KB

Sensors and Indicators

Paper-end, cover-open and near-end sensors. Error, paper-out, power, LAN and wireless LEDs. Optional OT-BZ20 external buzzer.

Power

24 VDC ± 7%; PS-190 included on select SKUs, PS-180 compatible. Operating: 27.9 W (UIB) or 28.6 W (fixed interface); standby: 1.4 W.

Operating Environment

5–45°C (41–113°F); 10–90% relative humidity

Acoustic Noise

52 dB under Epson test conditions

Weight

Approx. 1.7 kg (3.74 lb)

Case Colors

Epson White (ENB9) or Epson Black (EBCK)

Peripheral Support

Cash drawer kick; one or two USB POS peripherals, depending on model

Standards

Epson OmniLink TM-T88VII

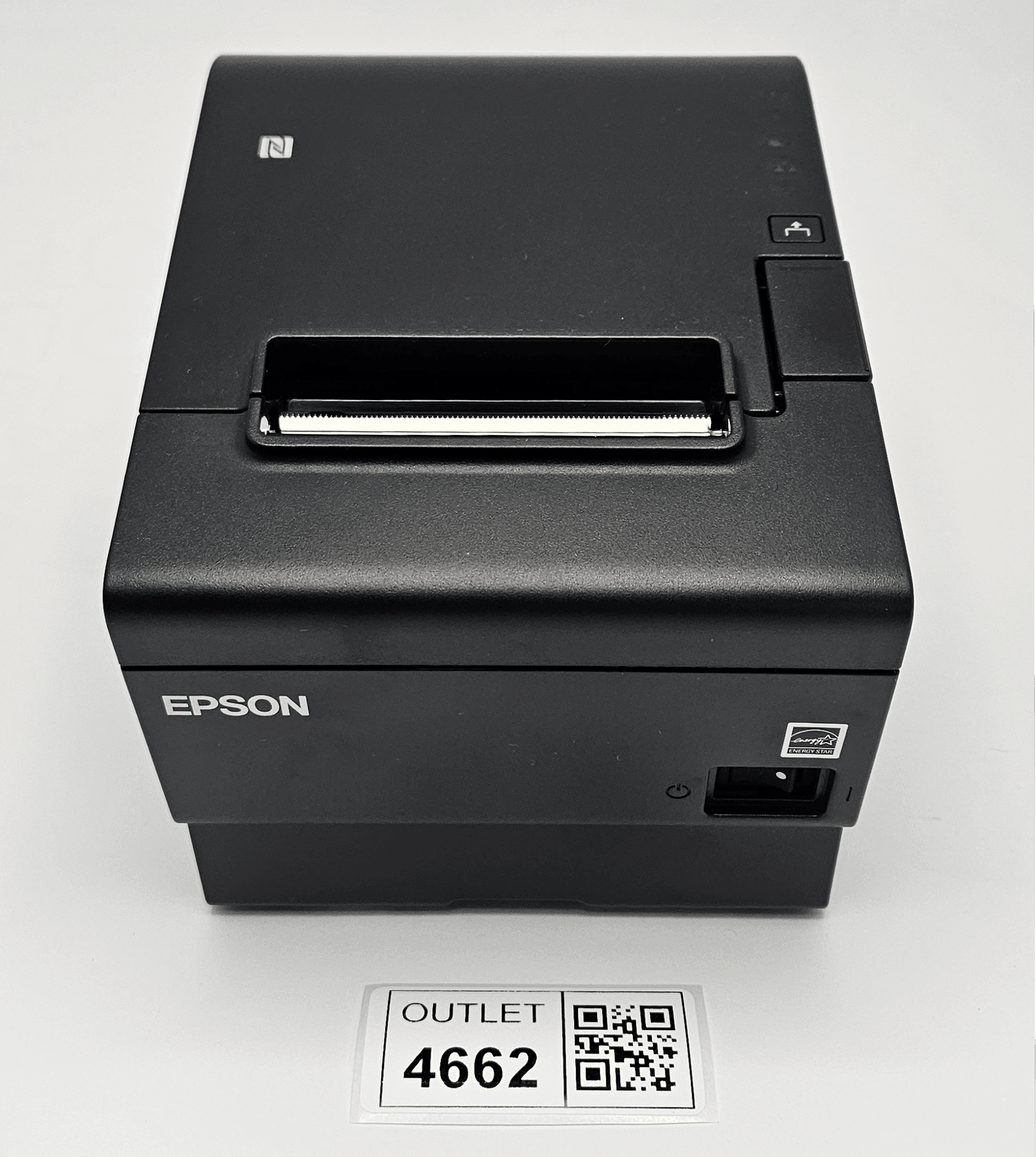

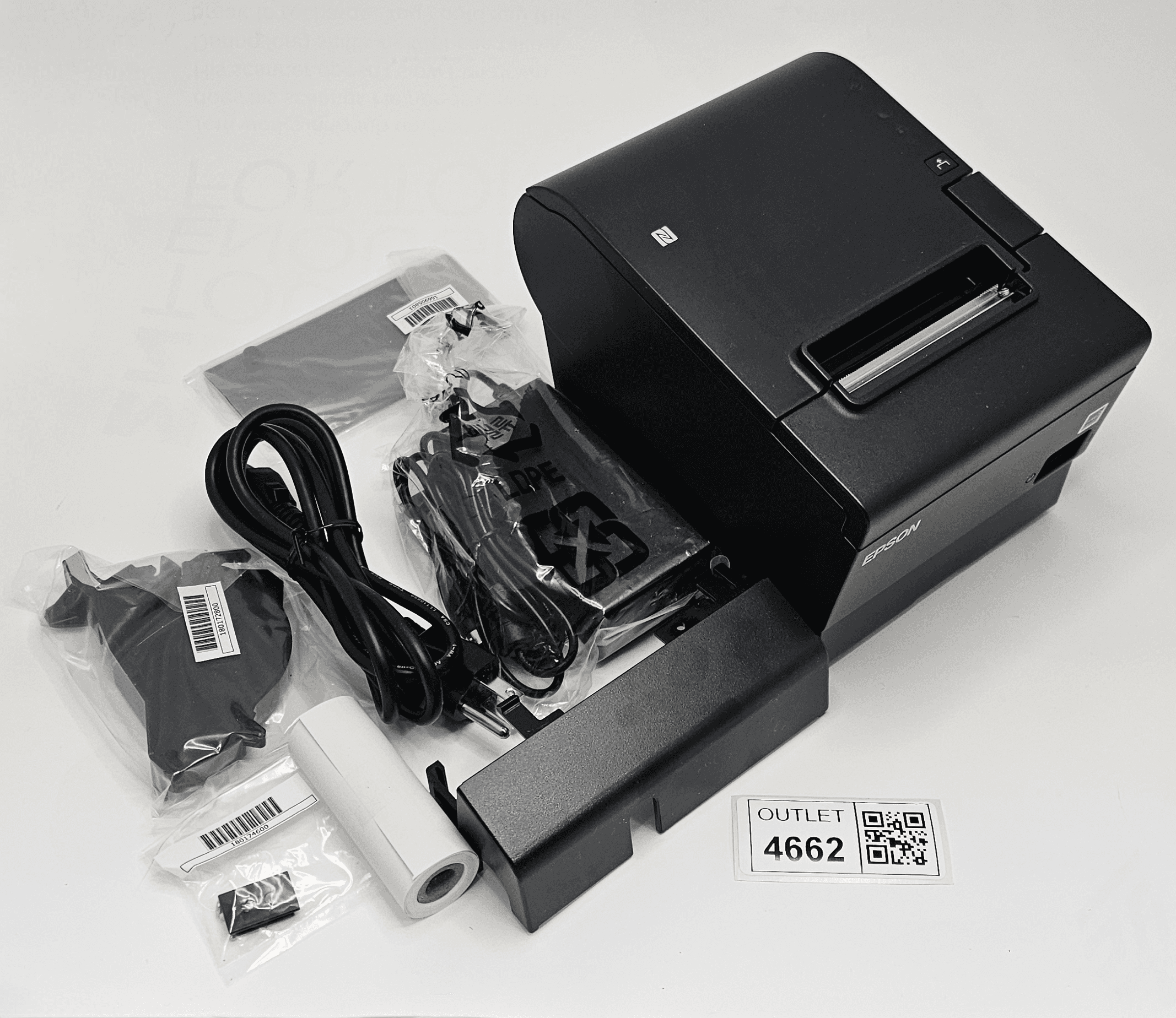

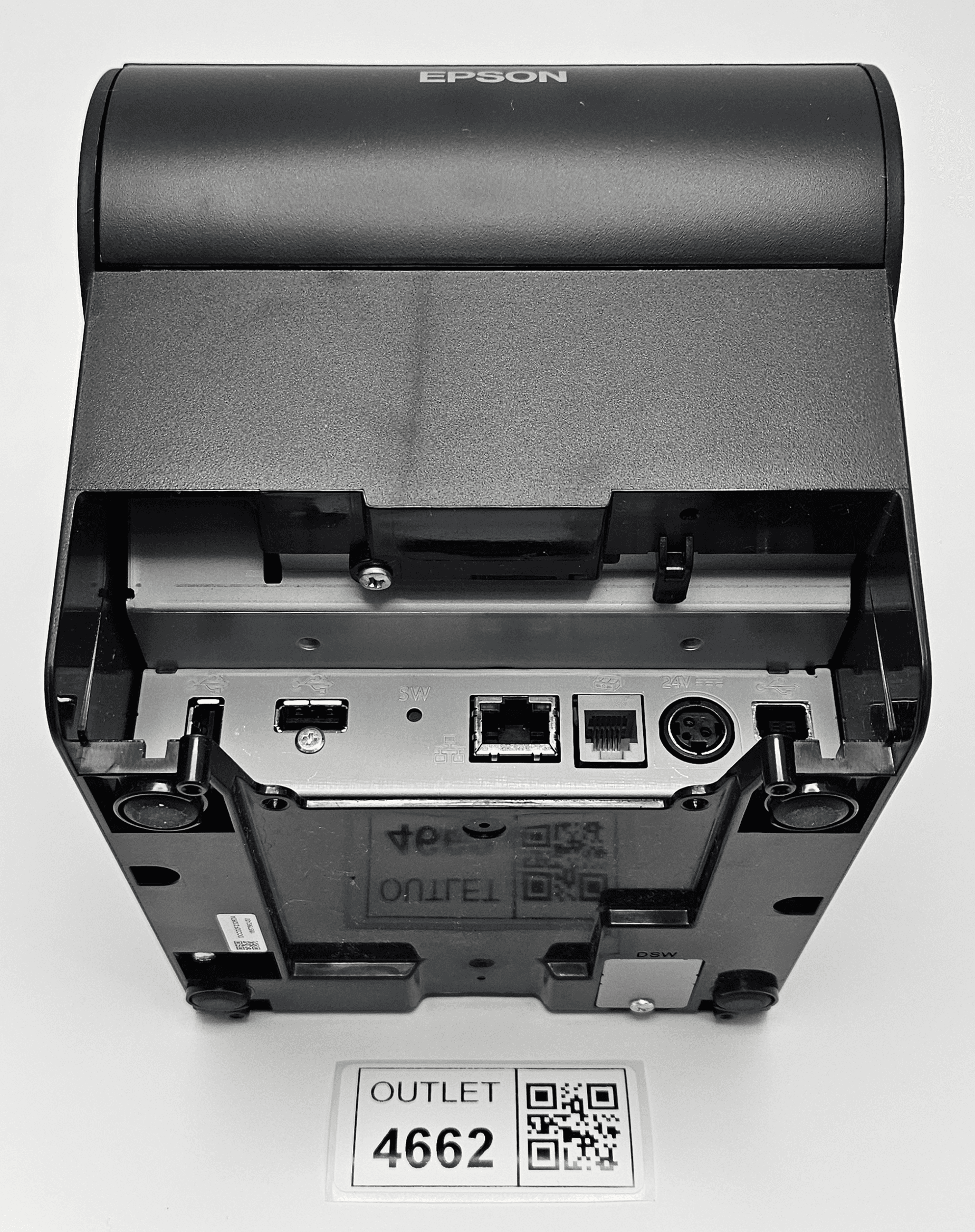

Epson OmniLink TM-T88VII Thermal Receipt Printer (Renewed, Reconditioned). USB, Ethernet. Black. (C31CJ57052) CID: 4662
