Star Micronics NLS-FM431
NLS-FM431 (iOS)
Star Micronics NLS-FM431 compact long-range fixed-mount kiosk barcode scanner. Reads printed and mobile 1D/2D barcodes up to 460 mm with dual aiming, USB/RS-232 and IP54 sealing.Long-range fixed-mount 1D/2D scanning for kiosks, lockers and logistics

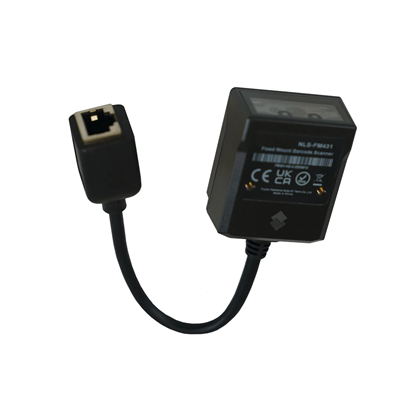

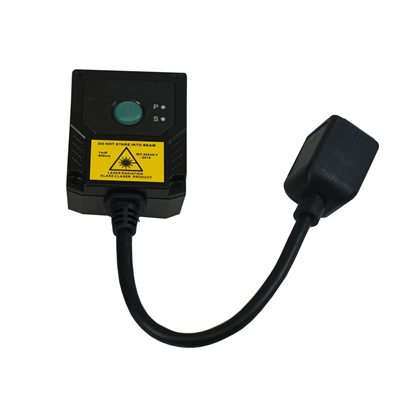

The Star Micronics NLS-FM431 is a compact fixed-mount scanner built for high-throughput self-service and logistics applications. Its 1280 x 800 CMOS imager reads common 1D, 2D and postal codes from printed labels and mobile screens, including damaged, low-contrast and poorly printed symbols.
A reading range up to 460 mm, 3.5 m/s motion tolerance and a dual green LED/red laser aimer help capture large, moving or hard-to-reach barcodes. USB and RS-232 interfaces support embedded kiosk, parcel-locker and terminal integration.
Key Specifications
- Scanner configuration: Compact fixed-mount kiosk megapixel CMOS area imager
- Barcode capability: 1D and 2D, including QR, PDF417 and Data Matrix, plus postal codes
- Reading range: Up to 460 mm depending on symbology and size
- Interfaces / connectivity: USB and RS-232
- Durability: 1.5 m drop resistance
- Environmental sealing: IP54
- Dimensions and weight: 41.5 x 49.5 x 24.7 mm; 56 g
- Image sensor: 1280 x 800 CMOS; minimum 3 mil resolution
- Motion tolerance and aiming: 3.5 m/s; green LED and red laser aimer
- Warranty: 1 year

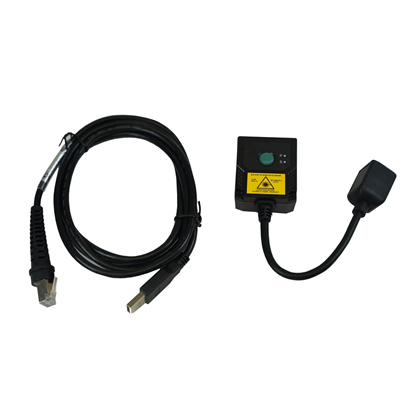

In the Box
- NLS-FM431-SR-U scanner
- RJ45-to-USB-A cable
- Quick Start Guide
Long-Range Capture
Reach labels up to 460 mm away
Capture large and difficult-to-reach barcodes in parcel lockers, warehouse stations, inventory kiosks and bulk retail applications without requiring close presentation.
Built for Throughput
Motion tolerance with precise dual aiming
Up to 3.5 m/s motion tolerance supports fast workflows, while green LED and red laser aiming help users target the intended barcode.
Difficult-Barcode Reading
Reliable capture from print and screens
Advanced decoding supports common 1D, 2D and postal formats and is designed to read damaged, warped, faded, low-contrast and poorly printed symbols.
Compact Integration
USB and RS-232 for embedded systems
The 41.5 x 49.5 x 24.7 mm enclosure fits space-constrained kiosks and terminals. IP54 sealing and 1.5 m drop resistance add protection for demanding installations.
Shop NLS-FM431 Models
37952470
NLS-FM431-SR-U Fixed-Mount 1D/2D Kiosk Barcode Scanner, Long Range, Black, USB/RS-232, Includes RJ45-to-USB-A Cable
