Star Micronics NLS-FM3280
NLS-FM3280 (iOS)

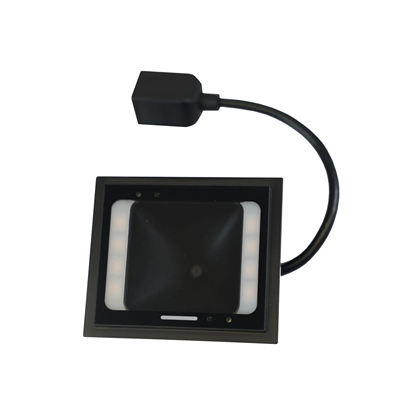

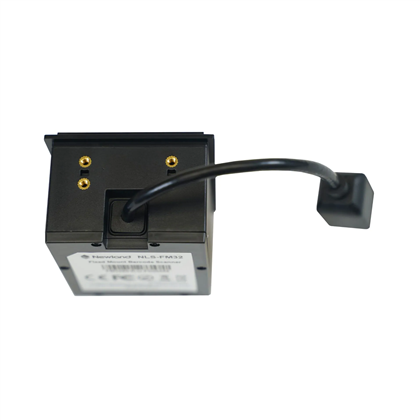

Star Micronics NLS-FM3280 compact high-density fixed-mount kiosk barcode scanner. Reads printed and mobile 1D/2D barcodes up to 310 mm with USB/RS-232 and IP67 sealing excluding the interface.Fast close-range fixed-mount 1D/2D scanning for customer-facing kiosks
The Star Micronics NLS-FM3280 is a compact fixed-mount scanner for hands-free, customer-facing self-service. Its 1280 x 1088 CMOS imager reads common 1D, 2D and postal codes from printed labels and mobile screens, including high-density and low-quality symbols.
A wide field of view, soft illumination and automatic infrared/light triggering support intuitive close-range presentation scanning. USB and RS-232 interfaces simplify integration into retail checkout, ticketing, parking, hospitality and library kiosks.
Key Specifications
- Scanner configuration: Compact fixed-mount kiosk megapixel CMOS area imager
- Barcode capability: 1D and 2D, including QR, PDF417 and Data Matrix, plus postal codes
- Reading range: Up to 310 mm depending on symbology and size
- Interfaces / connectivity: USB and RS-232
- Durability: Fixed-mount design
- Environmental sealing: IP67, excluding the interface
- Dimensions and weight: 78.7 x 47.7 x 67.7 mm; 132 g
- Image sensor: 1280 x 1088 CMOS; minimum 3 mil resolution
- Field of view and scan modes: 58.2° horizontal x 66° vertical; sense, continuous and command
- Warranty: 1 year
In the Box
- NLS-FM3280-R-U scanner
- RJ45-to-USB-A cable
- Quick Start Guide
Intuitive Close-Range Scanning
Wide capture area for fast presentation
The wide 58.2° x 66° field of view helps customers present tickets, loyalty codes, payment barcodes and retail items without precise positioning.
Customer-Facing Illumination
Automatic triggering with soft white light
Infrared and light triggers activate scanning as a barcode enters view, while soft 3000K illumination is suited to front-facing kiosk installations.
Flexible Embedded Control
USB, RS-232 and three scan modes
Choose sense, continuous or command mode to match the kiosk workflow. USB and RS-232 connectivity support integration with a wide range of terminals and POS systems.
Protected Fixed-Mount Design
IP67 sealing, excluding the interface
The housing is rated IP67 apart from the interface connection, helping protect the scanner from dust and moisture in demanding indoor self-service environments.
Shop NLS-FM3280 Models
37951030
NLS-FM3280-R-U Fixed-Mount 1D/2D Kiosk Barcode Scanner, High Density, Black, USB/RS-232, Includes RJ45-to-USB-A Cable
