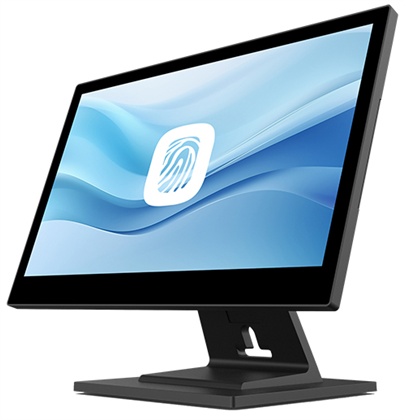

Touch Dynamic Nexus 15.6"

Images may not reflect the actual product
Product Image
small product image0
small product image1

A Powerful All-in-One Solution

The innovative and powerful Nexus All-in-One solution offers two versatile configurations. Choose either the MediaTek CPU with Android 13 and Google Mobile Services support or the Intel® Celeron® J6412, compatible with Windows, Linux, and Android. Enjoy a seamless interactive experience with a sleek 15.6” LCD Widescreen Display featuring Capacitive Touch. Additional features include rear display options and multiple payment integrations.

Featured Specs

Modern Versatility

  • MediaTek (GMS) or Intel® Celeron® J6412 CPU
  • 4GB of high-speed DDR4 memory (Android)
  • 8GB of high-speed DDR4 memory (Windows)
  • Stunning 15.6” LCD Widescreen Display

Custom Configuration

  • 11.6” or 15.6” Optional Touch Rear Displays
  • PIN Pad Integration Option
  • 2D Barcode Scanner Option
CPU / Processor
Intel® Celeron® J6412 up to 2.6 Ghz
Memory
8GB DDR4
Storage 64GB eMMC 128GB eMMC
128GB eMMC
Supported OS
  • Windows 10 IoT
  • Windows 11 Pro
  • Windows 11 IoT GAC
  • I/O Ports
  • 2 x USB 3.0, 2 x USB 2.0
  • 1 x USB-C (data only)
  • 1 x custom miniDP (convertible to HDMI or VGA)
  • 1 x Serial (RJ45/DB9) w. PD*
  • 1 x LAN RJ45
  • 1 x Cash Drawer RJ-11
  • 1 x Power Connector (4-PIN w. lock, barrel)
  • Wireless Connectivity
  • (option) Intel® WiFi-6
  • (option) Bluetooth 5.2
  • Audio
    1 x 3W Integrated Speaker
    Power
    36W / 12V
    Display
    15.6” Widescreen (1920 x 1080)
    Touch Screen
    True-Flat PCAP Multi-Touch
    Peripheral (options)
  • 3-Track MSR (USB)
  • 2D Barcode Scanner (USB)
  • PIN Pad brackets
  • 11.6” or 15.6” Rear Displays w. Touch
  • Wall Mount
    VESA, 75 x 75mm

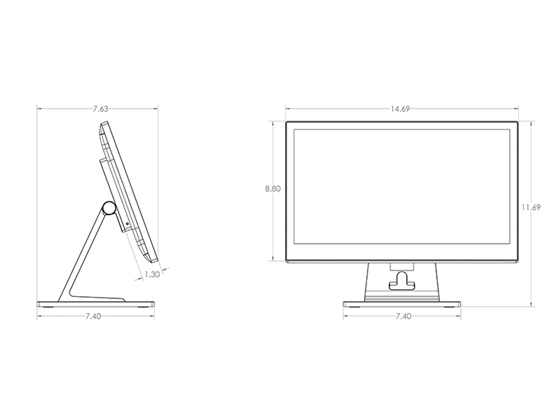

    Dimensions (W x H x D)
    14.69” W x 11.69” H x 7.40” D
    Nexus 15.6" Spec Sheet
    Download
    Nexus 15.6" User Manual
    Download

    Shop Nexus 15.6" Models

    NX15600NNNLNNBL

    Nexus 15.6", Celeron, 8GB RAM, 128GB SSD, Windows 11 IoT, Nexus Base

    $728.00

    NX15600NNNL1NBL

    Nexus 15.6", Celeron, 8GB RAM, 128 GB SSD, Windows 11 IoT, Nexus Base, 11.6" Rear Display

    $1127.16

    NX15600NNNMNNBL

    Nexus 15.6", Celeron, 8GB RAM, 128GB SSD, Windows 10 IoT, Nexus Base

    $728.00

    NX15600NNWMNNBL

    Nexus 15.6", Celeron, 8GB RAM, 128GB SSD, Windows 10 IoT, Bluetooth & WiFi, Nexus Base

    $821.00

    NX15600NNNNNNBL

    Nexus 15.6", Celeron, 8GB RAM, 128GB SSD, NO OS, Nexus Base

    $683.00
