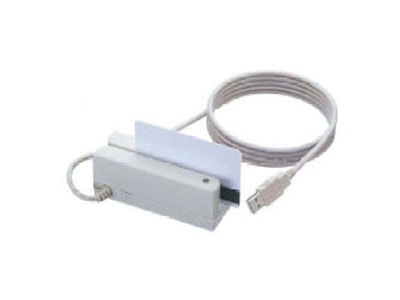

Uniform MSR213
USB magnetic stripe capture for retail and identification
The Uniform MSR213U reads magnetic stripe cards through a USB HID or keyboard-emulation interface. Bidirectional swiping, an LED and a beeper provide straightforward input for retail, timekeeping and identification applications.
Choose tracks 1 and 2 or tracks 1, 2 and 3. Triple-track configurations support suitable ISO and AAMVA card data; software must support the selected output mode.
Key Specifications
- Product type / application: USB magnetic stripe reader
- Track capacity: Two or three tracks, by part number
- Supported cards: ISO 7810/7811 and AAMVA; 300–4,000 Oe
- Platform / compatibility: USB keyboard input or compatible HID application
- Interfaces / connectivity: USB HID or USB keyboard emulation
- Power: 5 V DC ±5%; 35 mA maximum
- Durability / environment: 1 million swipes; −10–55°C operation
- Mounting / form factor: Compact flat-surface mounting
- Dimensions: 100 × 34 × 28 mm
- Weight: Approximately 120 g
In the Box
- MSR213U reader
- Selected two- or three-track reader with USB cable
Other accessories are sold separately unless the selected option explicitly includes them.
Readable swipe feedback
LED and beeper feedback indicate reader status.
Configurable USB output
Keyboard emulation and HID modes support different application requirements.
Shop MSR213 Models
MSR213U-33AUKNR
MSR213 Magnetic Card Reader, Color: Black with Tracks 1, 2, and 3, USB Interface
Tracks:
1 / 2 / 3
MSR213U-12AUKNR
MSR213 Magnetic Card Reader, Color: Black with Tracks 1 & 2, USB Interface
Tracks:
1 / 2
