UniTech MS912
Description
Specifications
Download

UniTech MS912

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6
small product image7

Pocket-sized barcode capture for mobile work

The Unitech MS912+ puts wireless 1D scanning in a compact, single-button device for retail, healthcare and office data collection. Pair it with a smartphone, tablet or computer, or transfer data over USB.

The specifications below describe the currently offered MS912+ memory model. Previously available MS912 models retain their own configuration details. Use the setup guide that matches the scanner’s USB connector.

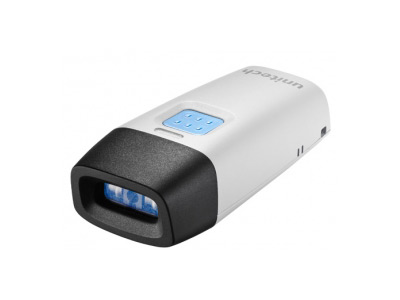

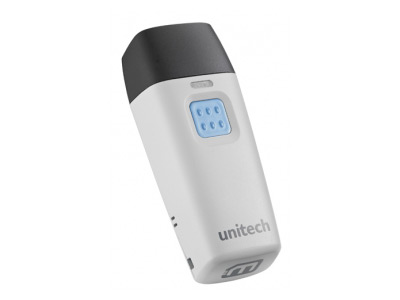

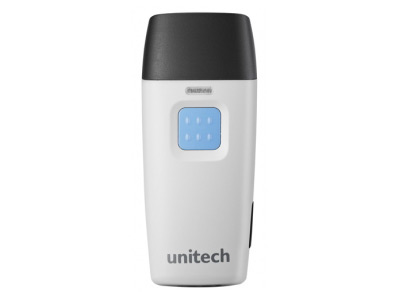

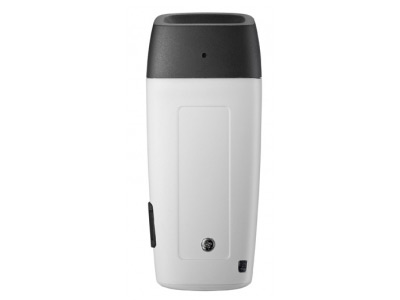

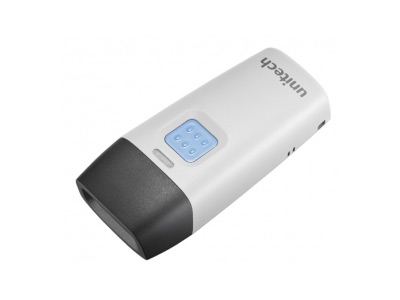

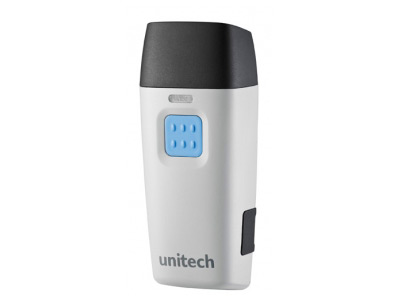

Unitech MS912+ pocket barcode scanner

Key Specifications

  • Scanner configuration: Pocket, cordless linear imager
  • Barcode capability: 1D barcodes on paper and screens
  • Reading range: 35–230 mm for 13 mil UPC/EAN
  • Interfaces / connectivity: Bluetooth 2.1 + EDR; USB
  • Durability: 1.5 m drop resistance
  • Environmental sealing: Not rated by the manufacturer
  • Dimensions: 72 × 30 × 20 mm
  • Weight: 30.2 g
  • Warranty: 1 year

In the Box

  • MS912+ standard package
    • MS912+ barcode scanner
    • USB cable

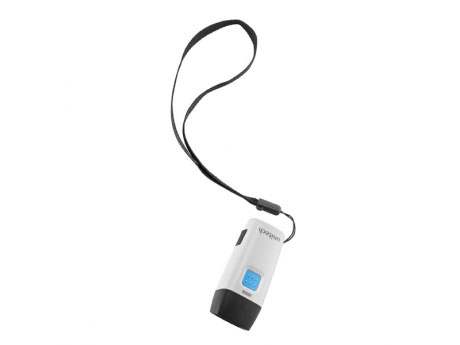

    • Wrist lanyard

Neck lanyards and power adapters are sold separately.

Ultra-portable and durable

The MS912+ reads dense 4 mil barcodes at up to 650 scans per second, including codes displayed on mobile screens. Its 30.2 g housing fits easily in a pocket and withstands 1.5 m drops.

Extended Storage Capacity

The listed 2 MB memory configuration retains scanned data beyond Bluetooth range for later upload. A line-of-sight wireless range of up to 10 m lets you collect data away from the host.

Light source
625 nm visible red LED
Sensor
Linear CMOS
Scan rate
650 scans per second (MS912+)
Resolution
4 mil / 0.1 mm (MS912+)
Print contrast
30% minimum
Width of field
140 mm at 13 mil Code 39
Memory
2 MB on the listed MS912-FUBB00-TG memory configuration
Depth of field
At 800 lux: 4 mil Code 39, 40–65 mm; 5 mil Code 39, 35–90 mm; 10 mil Code 39, 35–195 mm; 15 mil Code 39, 50–280 mm; 13 mil UPC/EAN, 35–230 mm
Supported barcodes
UPC-A/UPC-E; EAN-8/EAN-13; Industrial 2 of 5; Codabar; Matrix 2 of 5; Code 11; Code 93; Code 32; Code 128; Standard Code 39; Full ASCII Code 39; Interleaved 2 of 5; China Postal Code; MSI Plessy; UK Plessy; EAN/UCC 128; Telepen; IATA; GS1 DataBar
Operating voltage
3.7 VDC ±5%
Current consumption
Operation: <145 mA; standby: <55 mA
Power-down current
<500 µA (MS912+)
Battery
3.7 V, 350 mAh lithium battery
Scans per full charge
6,000 scans at one scan per five seconds with PAN connected
Operating temperature
0°C to 50°C
Storage temperature
−20°C to 60°C
Relative humidity
0–95% RH, non-condensing
Drop resistance
1.5 m
Ambient light
100,000 lux, direct sunlight
Wireless range
33 ft / 10 m, line of sight
Radio
Bluetooth 2.1 + EDR
Interfaces and profiles
Bluetooth HID; Bluetooth SPP; USB HID; USB VCP; memory mode on memory configurations
Standard package
MS912+ scanner; USB cable (Mini USB package shown in Rev. E); wrist lanyard. Listed SKU includes scanner and USB cable.
Dimensions
20 mm H × 30 mm W × 72 mm L
Weight
30.2 g
Color
Beige
Housing material
ABS + PC

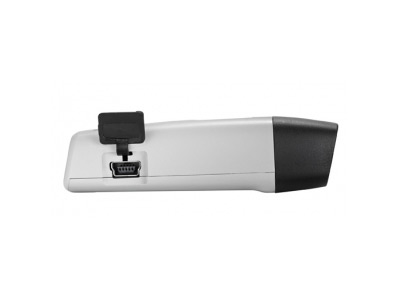

Cable
1.5 m Mini USB cable in the Rev. E standard package; use connector-specific setup documentation
Electrostatic discharge
Functional after 4 kV contact and 8 kV air discharge
EMC
FCC Part 15C; CE
Safety and compliance
WEEE; RoHS 2.0; IEC 62471; NCC; TELEC; VCCI; BSMI
MS912+ Data Sheet (Rev. E)
Download
MS912+ Quick Start Guide (Mini USB)
Download
MS912+ User Guide (Mini USB)
Download

Shop MS912 Models

MS912-FUBB00-TG

MS912+ Mini Wireless Bluetooth Barcode Scanner, 2MB Memory, Linear Imager, Batch, iOS, Android and Windows Compatible, USB Cable Included - Replaces MS912-CUBB00-TG

$218.88

Outlet Items

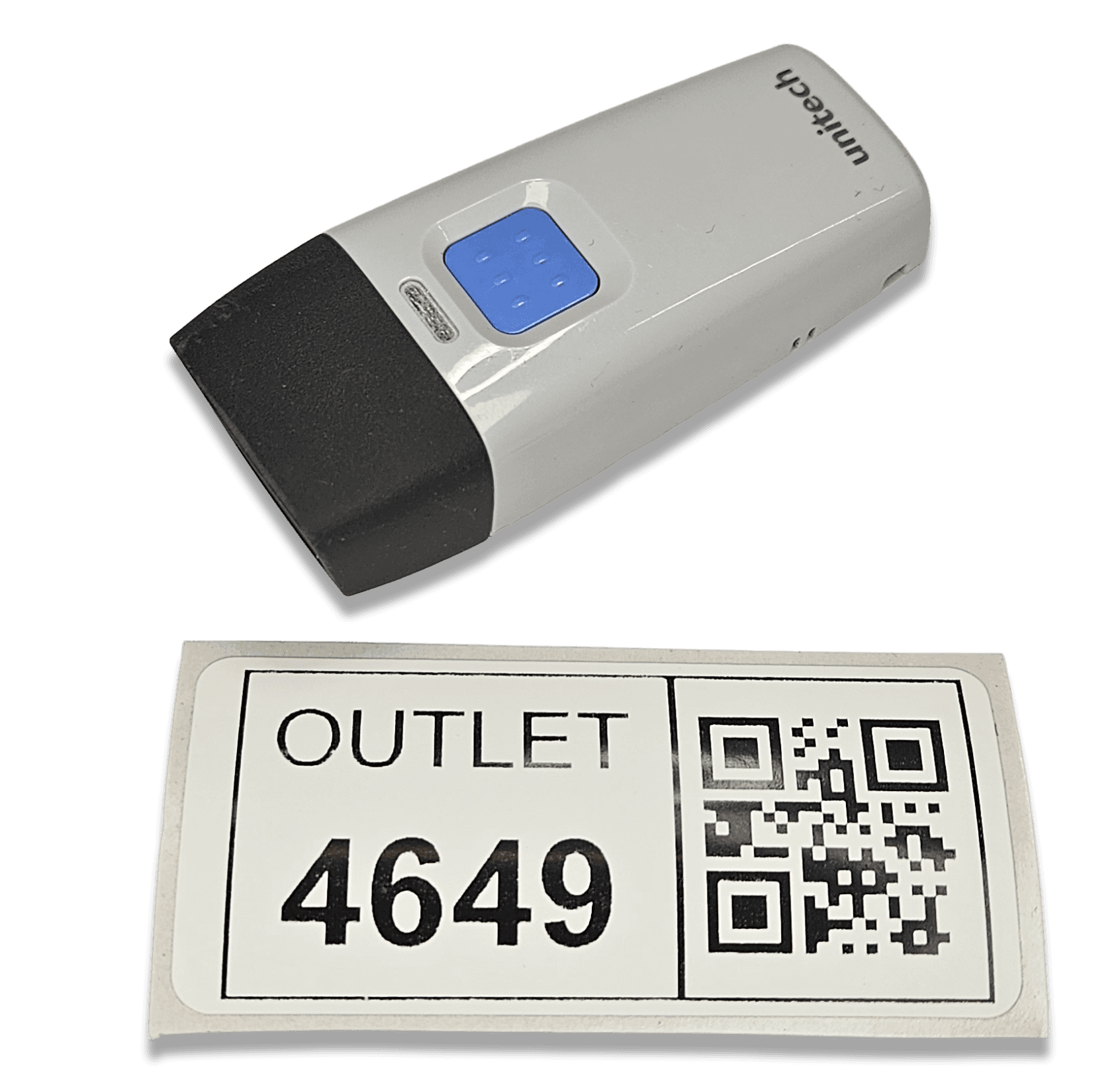

Unitech MS912+ Mini

Mini Wireless Bluetooth Barcode Scanner (Renewed, Reconditioned). iOS, Android, and Windows Compatible. Bluetooth. (MS912-FUBB00-TG) CID: 4649

Item Number: MS912-FUBB00-TG

1 Reconditioned Available

CID: 4649

$145.93
