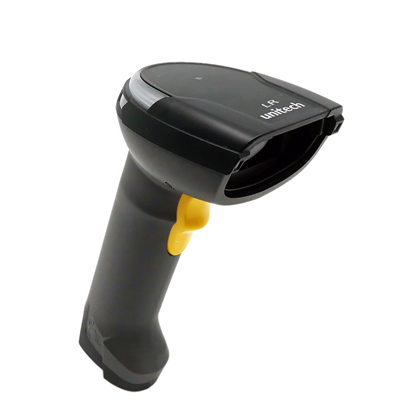

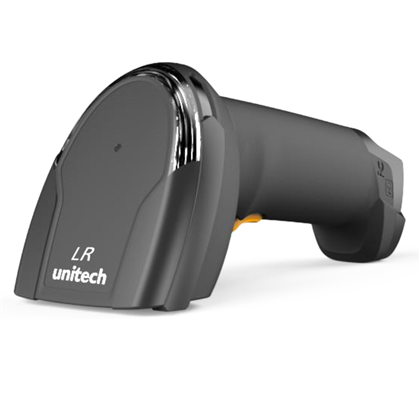

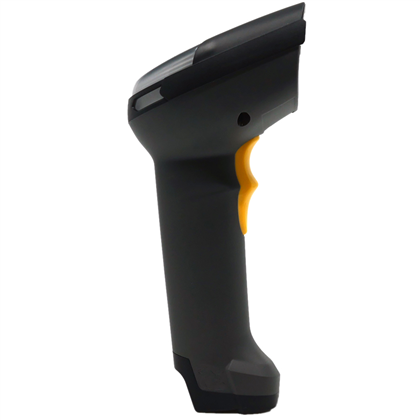

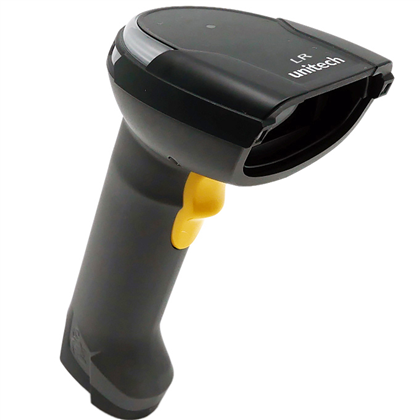

UniTech MS852LR

Name: UniTech MS852LR
Brand: UniTech
Price: 834.79 USD
Availability: InStock

Images may not reflect the actual product

Read nearby labels and distant warehouse barcodes

The Unitech MS852 LR series captures 1D and 2D barcodes across a wide working range, helping operators read shelf labels, pallets and mobile screens with one handheld scanner. Its megapixel imager also supports OCR and DotCode.

Choose a corded USB model for a fixed workstation or the MS852B LR Bluetooth model for movement around the work area. Maximum scanning distance reaches approximately 21 m with suitable large barcodes; range varies with barcode size, quality and conditions.

Key Specifications

Scanner configuration: Corded USB or Bluetooth handheld imager
Barcode capability: 1D, 2D, OCR and DotCode; screen reading
Reading range: Approximately 7.6 cm–21 m, barcode-dependent
Interfaces / connectivity: USB; Bluetooth 4.2 LE / 2.1 + EDR on wireless model
Durability: 1.8 m drop; 2.2 m with protective case
Environmental sealing: IP42
Dimensions: 87.8 × 71.6 × 177.7 mm
Weight: 184 g corded; 233–253 g wireless
Warranty: 5 years corded / 3 years Bluetooth

In the Box

Corded model: MS852 LR scanner, USB interface cable and Y cable
Bluetooth model: MS852B LR scanner with battery

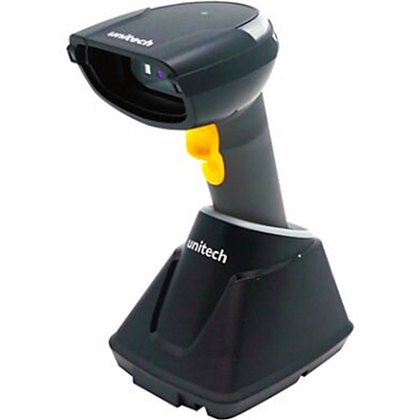

Bluetooth model: charging cradle and USB interface cable

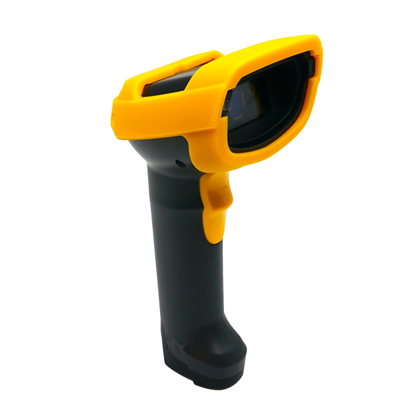

Bluetooth MS852-OUBB0C-SG offer: protective case

Hands-free stand and replacement accessories are sold separately.

Read labels while moving

Motion-tolerant imaging supports barcode capture while moving, with a loud beeper and bright LED feedback to confirm each read. The trigger is rated for 10 million actuations for repeated warehouse and manufacturing use.

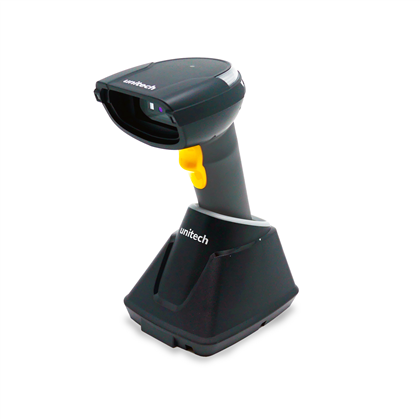

Wireless flexibility with MS852B LR

The Bluetooth model transmits up to 100 m in open line of sight and stores scans beyond wireless coverage for later upload. Its rechargeable battery supports up to 12 hours of operation, depending on use.

Scanner configuration

MS852 LR corded USB or MS852B LR Bluetooth ultra-long-range handheld imager

Image sensor

1280 × 800 global shutter

Aiming element

655 nm

Illumination

Hyper Red 660 nm

Ambient light

10,000 foot-candles (107,639 lux)

Skew angle

±60°

Pitch angle

±60°

Roll angle

0–360°

Optical resolution

3 mil Code 39; 5 mil PDF417

Minimum print contrast

25%

Reading range

Approximately 7.6 cm to 21 m across supported barcode sizes; actual range depends on symbology, barcode size, quality and conditions

Typical depth of field

10 mil Code 39: 7.6–215.9 cm; 13 mil UPC: 8.9–228.6 cm; 15 mil Code 128: 15.2–254 cm; 20 mil Code 39: 10.2–436.9 cm; 40 mil Code 39: 15.2–863.6 cm; 55 mil Code 39: 17.8–1092.2 cm; 100 mil Code 39 paper: 50.8–1778 cm; 100 mil Code 128 reflective: 76.2–1778 cm; 10 mil Data Matrix: 12.7–114.3 cm; 55 mil Data Matrix: 12.7–635 cm; 15 mil Code 128, 4-inch wide: 20.3–254 cm; 100 mil QR: 40–2085 cm. Manufacturer typical ranges are conditional, not a guarantee for every barcode.

Corded host interface

USB

Wireless connectivity

MS852B LR only: Bluetooth LE 4.2 and Bluetooth 2.1 + EDR Class 1 dual mode; Serial Port and HID profiles

Wireless transmission range

MS852B LR only: up to 100 m in open line of sight

Wireless host interfaces

MS852B LR family: USB or RS232; current MS852-OUBB0C-SG offer includes USB interface cable

Memory buffer

MS852B LR only: 7 MB batch mode; 20 KB auto mode; up to 590,000 stored codes according to manufacturer

Dimensions (L × W × H)

87.8 × 71.6 × 177.7 mm

Cradle dimensions

MS852B LR: 120.6 × 88.7 × 86 mm

Weight

MS852 LR: 184 g without cable. MS852B LR: manufacturer webpage and series brochure list 233 g without cradle; current manual V1.4 lists 253 g without cradle. These are device weights, not packed shipping weights.

Trigger switch life

10 million actuations

Operating modes

Trigger and presentation; MS852B LR additionally supports buffer mode and automatic Bluetooth pairing / mode switching with cradle

1D symbologies

Code 39, Full ASCII, Code 32, Italian Pharmacode, Trioptic, Code 128, EAN-128, ISBT-128, Codabar, Code 11, Matrix 2 of 5, Chinese Matrix 2 of 5, UPC/EAN, UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, Bookland/ISBN, ISSN, Coupon Code, Interleaved 2 of 5, Discrete 2 of 5, IATA, Databar, Code 93, MSI, UK Plessey, Telepen

2D and postal symbologies

PDF Standard, Macro PDF, Micro PDF, Macro Micro PDF, Composite, TLC-39, Aztec, Data Matrix, QR, Micro QR, GS1 QR, MaxiCode, Han Xin, Grid Matrix, DotCode, OCR, Japan Postal, Australia Post, Canada Postal, Netherlands KIX, US Planet, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal, Mailmark, French Lottery, Posti4S, Korean 3 of 5

Special barcode support

OCR; barcode reading from mobile screens

Data formatting

Prefix, suffix, Code ID and manufacturer-listed reformatting functions

Operating voltage

MS852 LR corded: 4–5.5 VDC

Current consumption

MS852 LR corded: operating 710 mA; standby 79 mA

Indicators

Corded: buzzer and LED. Bluetooth: LED, beeper and vibration.

Battery

MS852B LR only: rechargeable, replaceable 2850 mAh battery pack

Battery charging time

MS852B LR: current manufacturer webpage lists 7 hours; manual V1.4 specification lists less than 6.5 hours. Actual time depends on charging method and conditions.

Battery operating time

MS852B LR: more than 12 hours / up to 50,000 EAN-8 scans at one scan per second and 20 cm, per series brochure and current webpage; manual V1.4 additionally lists more than 40 hours at one scan per 5 seconds. Actual runtime varies with use.

ESD protection

±8 kV contact; ±15 kV air

Drop resistance

Family webpage: 1.8 m onto concrete; 2.2 m with protective case. MS852B LR manual V1.4 additionally lists 2.1 m for scanner only.

Operating temperature

MS852 LR: −20°C to 50°C; MS852B LR: −10°C to 50°C

Storage temperature

−40°C to 70°C

Relative humidity

95%, non-condensing

Environmental sealing

IP42

Regulatory approvals

MS852 LR: CE, FCC, BSMI, VCCI; MS852B LR: CE, FCC, BSMI, VCCI, NCC, TELEC, BQB. Current corded manufacturer webpage additionally lists TAA compliance.

Package contents

MS852-OUCB00-SG: corded scanner, USB interface cable and manufacturer-listed Y cable. MS852-OUBB0C-SG: Bluetooth scanner with battery, protective case, charging cradle and USB interface cable.

Optional corded accessories

Hands-free stand 5200-900009G; enhanced-ESD USB cable 1550-905920G; protective case 386793G; US 5 V/2 A adapter 1010-900058G; universal-plug adapter 1010-900067G; desktop/wall stand 5200-900011G; Y cable 1550-905902G for computers without USB 3.0

Warranty

Corded MS852 LR: 5 years. Bluetooth MS852B LR: 3 years. Manufacturer regional terms and accessory warranties vary.

Wireless imager field of view

MS852B LR manual V1.4: near camera 32° horizontal × 20° vertical; far camera 12° horizontal × 7.6° vertical

Additional wireless symbology

MS852B LR current manual V1.4 additionally lists Digimarc

Optional wireless accessories

Charging cradle 5000-900064G; carrying bag 3210-900025G; battery 1400-900055G; hands-free stand 5200-900009G; enhanced-ESD USB cable 1550-905920G; protective case 386793G; US adapter 1010-900058G; universal adapter 1010-900067G; desktop/wall stand 5200-900011G

Shop MS852LR Models

MS852-OUCB00-SG

Unitech MS852 LR ultra-long-range 1D/2D imager, corded USB; includes USB interface cable and Y cable. Five-year scanner warranty.

Version:

Cabled

$834.79

MS852-OUBB0C-SG

Unitech MS852B LR ultra-long-range 1D/2D imager, Bluetooth with USB interface; includes battery, protective case, charging cradle and USB cable. Three-year scanner warranty.

Version:

Bluetooth

$1094.20

Shop MS852LR Accessories

386124G

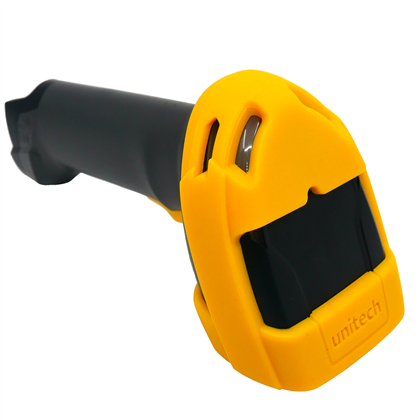

Yellow protective boot for Unitech MS852 and MS852 LR scanners; scanner sold separately.

$25.00

1010-900058G

Unitech 5V/2A US USB power adapter for compatible EA520, PA760, MS652 Plus, HT330, RP902, MS838, MS851B and MS852 series devices.

$5.43
