UniTech MS652
Scan while keeping your hands available for the job

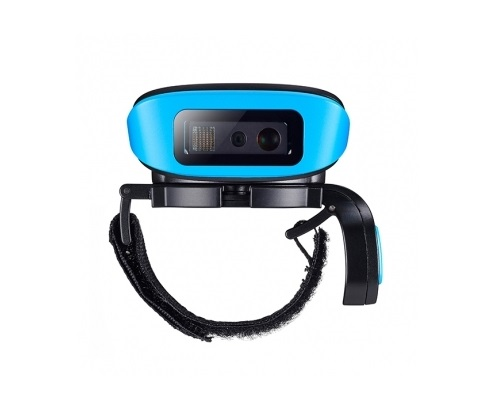

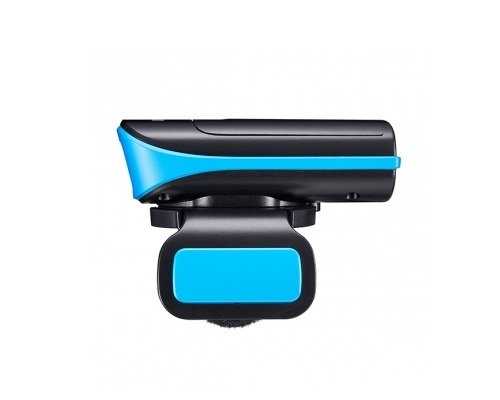

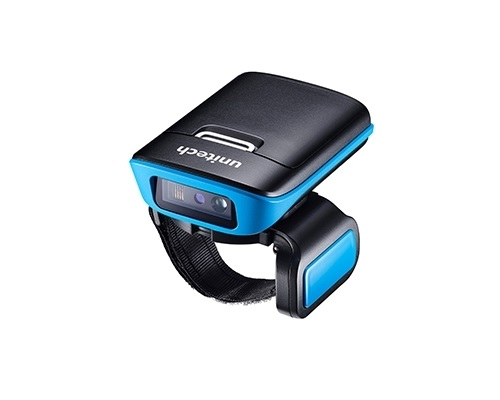

The Unitech MS652 Plus is a wearable ring scanner for picking, packing and inventory work. Its two-finger mount and rotating trigger support left- or right-handed operation while you handle products and packages.
The currently listed MS652-A models use the SE4107 engine to read paper labels and screen barcodes. Choose the standard scanner package or the separately listed adapter kit.
Key Specifications
- Scanner configuration: Wearable two-finger area imager
- Barcode capability: 1D, 2D, QR and PDF417
- Reading range: Standard range; UPC 4.6–49.5 cm
- Interfaces / connectivity: Bluetooth LE 4.2, Classic 2.1+EDR; Micro USB
- Durability: 1.5 m drop resistance, scanner only
- Environmental sealing: IP42
- Dimensions: 50 × 71 × 21 mm
- Weight: 95 g
- Warranty: 1 year
In the Box
- MS652-AUDB00-SG standard package
- Two-finger MS652 Plus SE4107 scanner
- Trigger module, swappable pad and strap
- 800 mAh battery and Micro USB cable
- POSGuys USB adapter kit
- Standard scanner package plus US USB wall adapter (1010-900058G)
USB wall adapter is sold separately with the standard package. Charging cradle is sold separately.
Move through your work area
Bluetooth reaches up to 100 m in open space. Auto mode stores scans outside wireless coverage and uploads them when the connection returns; actual range depends on the environment.
Replace the battery between shifts
The removable 800 mAh battery provides nine hours at one scan every five seconds with the good-read beep enabled. Recharge through Micro USB or a compatible cradle; battery life varies with use.
Shop MS652 Models
MS652-AUDB00-SG-KIT
MS652 Plus SE4107 two-finger scanner kit: trigger module with swappable pad and strap, 800 mAh battery, Micro USB cable and US 5 V / 2 A USB wall adapter (1010-900058G). Charging cradle sold separately.
Included Accessories:
US USB Wall Adapter
MS652-AUDB00-SG
Unitech MS652 Plus SE4107 two-finger barcode scanner, trigger module with swappable pad and strap, 800 mAh battery and Micro USB cable; wall adapter and charging cradle sold separately
Included Accessories:
No Wall Adapter
Shop MS652 Accessories
1550-900105G
Micro USB Cable for MS652
1400-900050G
800 mAh replacement battery for MS652 and MS652 Plus.
383170G
Handstrap - PA550, MS652
MS652-AZ3
Comprehensive Coverage, 3 Years, 48-Hour Repair, 2-Day Shipping (not valid in Canada)
MS652-Z3
Comprehensive Coverage, 3 Years, 5-Day Repair, Ground Shipping
607261G
MS652 Changeable Velcro Finger Strap with Latch
607448G
Trigger Module with Velcro Strap
5000-900047G
5-Slot Charging Cradle for MS652
5000-900045G
MS652 / MS652 Plus single-slot charging cradle with universal wall adapter (1010-900014G); no USB cable.
385238G
MS652 Rubber Silicone Finger Padding, Flat Piece.
385239G
MS652 Rubber Silicone Finger Padding, Finger Groove Support.
385476G
MS652 Changeable Velcro Finger Strap.
5000-900044G
MS652 / MS652 Plus single-slot charging cradle with USB-to-DC cable; compatible USB power source required.
5100-900018G
4-Slot Battery Charger, Power Adapter for (MS652)
1010-900058G
Unitech 5V/2A US USB power adapter for compatible EA520, PA760, MS652 Plus, HT330, RP902, MS838, MS851B and MS852 series devices.
1010-900014G
Power adapter for HT682 / PA520 / PA692 / MS840B / MS840P / MS842P and MS652 / MS652 Plus single-slot charging cradle; not the scanner Micro USB charging adapter.
