UniTech MS250
Reliable 1D scanning from contact to short range
The Unitech MS250 is a compact linear CCD scanner for retail, document processing and inventory tasks. It reads common 1D barcodes, including GS1 DataBar, with support for damaged or poorly printed labels within its performance limits.
Current USB models include the interface cable and come in midnight blue or beige. The lightweight shape and large trigger support everyday handheld use.
Key Specifications
- Scanner configuration: Corded handheld linear CCD
- Barcode capability: 1D, including GS1 DataBar
- Reading range: Up to 90 mm at 20 mil Code 39, PCS 90%
- Interfaces / connectivity: USB on current models
- Durability: 1.5 m concrete drop; 1 million trigger presses
- Environmental sealing: IP rating not specified
- Dimensions: 163.3 × 79 × 62.5 mm
- Weight: 83 g
- Warranty: 2 years
In the Box
- Current USB configurations
- MS250 scanner in the selected color
- USB interface cable for the current USB configurations
Fast reading of small linear codes
The scan engine delivers 200 scans per second ±10% and resolves barcodes as small as 3 mil at PCS 90%. Reading distance reaches 90 mm on a 20 mil Code 39 label at PCS 90%, with an 80 mm field width.
Clear feedback in a light housing
An 83 g ABS body helps keep handling comfortable. A loud 90 dBA beeper confirms successful reads, and the scanner is rated for a 1.5 m drop onto concrete.
Shop MS250 Models

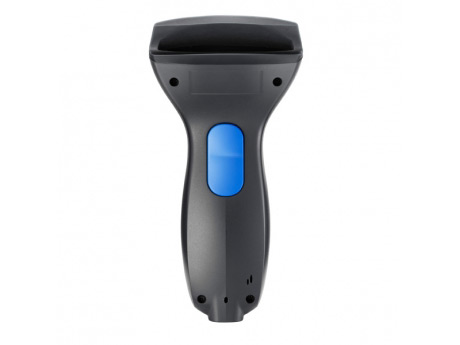

MS250-CUCB00-DG
Unitech MS250 1D linear CCD barcode scanner, midnight blue, USB interface with cable included; 2-year warranty.
Color:
Midnight Blue

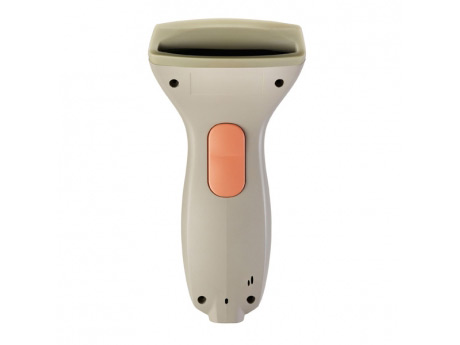

MS250-CUCL00-SG
Unitech MS250 1D linear CCD barcode scanner, beige, USB interface with cable included; 2-year warranty.
Color:
Beige
Shop MS250 Accessories
1010-900008G
Unitech power adapter for compatible RS232 scanner interface cables, including MS851B / MS852 / MS852 Plus / MS852B. RS232 cable sold separately; USB configurations do not require this adapter.
