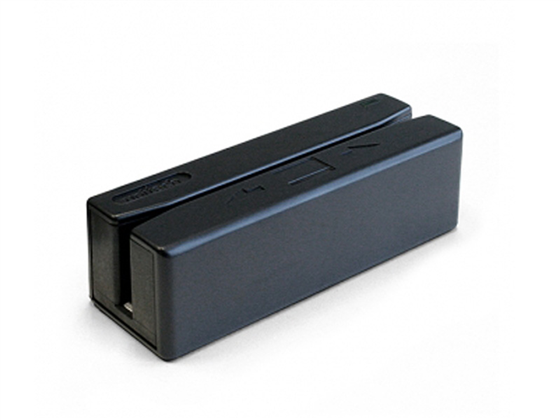

UniTech MS246
Compact magnetic stripe reading with flexible USB output
The Unitech MS246 captures up to three tracks of magnetic stripe data for POS, loyalty, security and other card-based applications. Its compact housing fits into limited counter space, and cards can be swiped in either direction.
USB keyboard emulation or HID mode provides connection choices. The reader draws power from USB and can sit on a desk or mount to a flat surface.
Key Specifications
- Product type / application: Magnetic stripe reader for POS, loyalty and badge systems
- Track capacity / swipe speed: Up to three tracks; bidirectional, 5–50 in/sec
- Supported cards: ISO 7811 and AAMVA; 0.015–0.045 in thick
- Platform / compatibility: Windows or Mac keyboard input; Windows configuration utility
- Interfaces / connectivity: USB keyboard emulation or USB HID
- Power: USB-powered; no external adapter required
- Durability / environment: Minimum 1 million passes; 0–55°C operation
- Mounting / form factor: Freestanding, threaded inserts or hook-and-loop mounting
- Dimensions: 100 × 35 × 30 mm
- Weight: approximately 7 oz
- Warranty: 2 years
In the Box
- MS246 three-track magnetic stripe reader
- Attached 6-foot USB cable
Built for repeated card swipes
The magnetic head, rail and cover are rated for at least one million passes. A beeper and tri-color LED indicate read status, helping operators confirm each swipe.
Shape the output for your application
The Windows configuration manager supports data parsing, control characters and prefixes or suffixes. Threaded inserts and a side-exit cable provide flexibility when mounting the reader at a workstation.
Shop MS246 Models
MS246
Unitech MS246 magnetic stripe reader, three tracks, USB keyboard emulation or HID mode, bidirectional swipe, black
