UniTech MS120
Contact barcode reading in a stainless-steel pen
The Unitech MS120 is a lightweight wand scanner for low-volume barcode entry. Its optics read linear labels as the operator sweeps the tip across the code, including colored, faded and low-contrast labels within the specified contrast limits.
The current MS120-NTCB00-SG supplies an undecoded TTL signal through a DB-9 female squeeze-release cable. It requires a compatible decoder or host connection; the connector is not a standard decoded RS232 interface.
Key Specifications
- Scanner configuration: Stainless-steel contact wand
- Barcode capability: Linear 1D barcodes
- Reading range: Contact reading; manual sweep at 5–75 cm/sec
- Interfaces / connectivity: Undecoded TTL, DB-9 female squeeze-release cable
- Durability: Replaceable sapphire tip; 1.5 m drop rating
- Environmental sealing: IP rating not specified
- Dimensions: Not specified
- Weight: 59.5 g device weight
- Warranty: 15 months
In the Box
- MS120-NTCB00-SG wand scanner
- DB-9 female squeeze-release interface cable

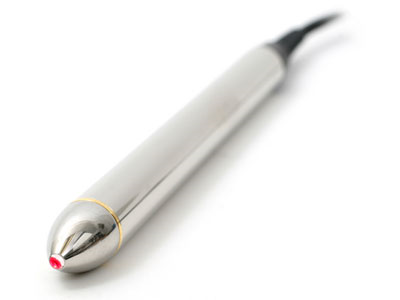

A smooth, replaceable reading tip
The polished sapphire tip reduces wear on barcode labels and can be replaced when damaged. Pen-style handling helps guide the reader across the intended barcode.
Lightweight steel construction
A stainless-steel body and cable strain relief support routine handling. The design draws 37 mA on average and accepts a 0–45° reading tilt.
