UniTech MS100
A lightweight wand for occasional barcode entry
The Unitech MS100 reads linear barcodes as you sweep its tip across a label. Its pen-shaped housing suits low-volume data entry, with optics designed for colored, faded and low-contrast labels within its rated limits.
Current USB configurations include a straight-cable model and a coiled-cable model. A good-read beep confirms a successful scan, and configuration tools support application-specific settings.
Key Specifications
- Scanner configuration: Handheld contact wand
- Barcode capability: Linear 1D barcodes
- Reading range: Contact, 1 mm depth of field
- Interfaces / connectivity: USB; straight or coiled cable
- Durability: ABS housing; 1.5 m concrete drop
- Environmental sealing: IP rating not specified
- Dimensions: 140 × 30 × 23 mm
- Weight: 76 g
- Warranty: 15 months
In the Box
- MS100 wand scanner
- USB interface cable, straight or coiled according to the selected part number
Optional stand is sold separately.

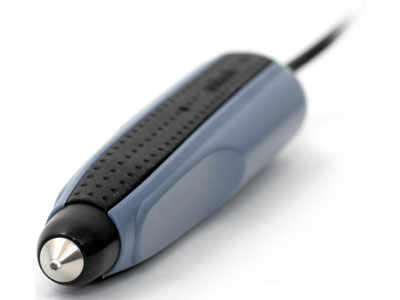

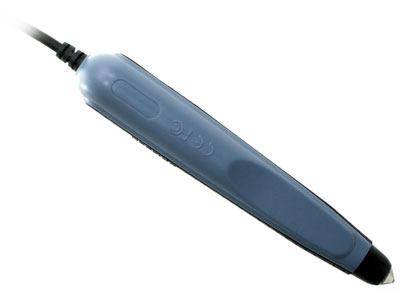

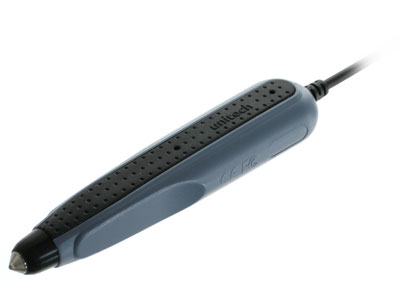

Comfortable pen-style handling
The 76 g ABS housing fits in the hand like a conventional pen. Sweep in either direction across the barcode at 10–60 cm per second, with a 45–90° reading angle.
Durability with low power demand
A rugged housing withstands a 1.5 m drop onto concrete. Typical working current is 60 mA, supporting a simple wired scanning setup.
Shop MS100 Models
MS100-NUCB00-SG
Unitech MS100 1D contact barcode wand, gray, USB with straight cable included; replaces MS100-4G; 15-month warranty.
Cable:
Straight
MS100-NUCB00-JG
Unitech MS100 1D contact barcode wand, gray, USB with 6-foot coiled cable included; 15-month warranty.
Cable:
Coiled
Shop MS100 Accessories
400120-Z010
Stand for the MS100 and MS120
