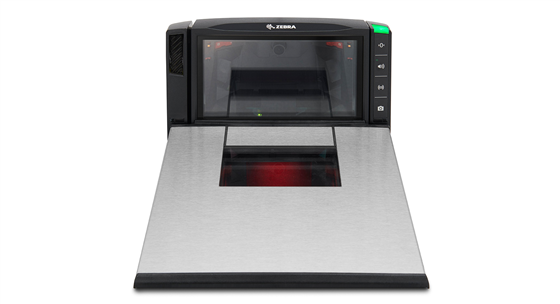

Zebra MP72 Multi-Plane Scanner/Scale
Redefine the checkout experience with unmatched speed and unrivaled innovation
Set a new standard for checkout convenience with Zebra's MP72 Series Multi-Plane Scanner/Scale. Premium scan performance and straightforward operation help cashiers and self-checkout customers move through high-volume lanes quickly.
An optional color camera supports computer-vision applications that can improve produce identification and reduce shrink. Low energy use, superior uptime and compatibility with existing checkout infrastructure make the MP72 Series a practical path to modernizing the front end.
See Zebra’s MP72 Series multi-plane scanner and scale in action.
Key Specifications
- Scanner configuration: Fixed bioptic multi-plane in-counter scanner; scanner-only and scanner/scale configurations
- Barcode capability: Major 1D and 2D barcodes, including QR Code, PDF417, GS1 Digital Link and Digimarc
- Reading range: Not published by the manufacturer
- Interfaces / connectivity: USB, RS-232, IBM 46XX over RS-485 and SNAPI
- Durability: Fixed-use checkout design; drop and tumble ratings are not published by the manufacturer
- Environmental sealing: IP5X
- Dimensions and weight: Varies by short, medium, long and scale configuration: 13.9 to 20 in. long x 11.5 in. wide x 4 in. deep/5 in. high; 11.2 to 17.85 lb.
- Warranty: One year
- Scale: 30 lb./15 kg capacity on scale configurations
- Camera options: Optional HD color camera and customer-facing scanner
In the Box
- Selected Zebra MP72 scanner/scale body
- Matching platter
- Regulatory Guide (MN-004907-xx)
- Leveling-screw kit with medium configurations
Configuration note: All active US options on this page are MP7201 single-interval scanner/scale packages. Power, host cable, trim filler, customer-facing scanner, scale display, and other accessories are sold separately unless the selected option explicitly includes them.
Faster Checkout Performance
A megapixel sensor and PRZM Intelligent Imaging capture 1D, 2D, GS1 Digital Link and Digimarc symbols, including damaged, faded and poorly printed labels. Offset illumination improves phone-screen and glossy-package reads.
High swipe speeds and fields of view up to 100% larger than other scanners in its class reduce careful barcode positioning for staffed and self-checkout users.
Vision and Scale Options
An optional HD color camera supports produce recognition, loss prevention and visible self-checkout livestreaming. The L-shaped platter expands the weighing surface, while Zebra Weight Guard detects items not fully on the scale so underweight readings can be corrected.
Optional Checkpoint or Sensormatic EAS can combine price capture and tag deactivation; interlock can require a successful scan first.
Customer-Friendly Scanning
Recessed illumination dims at idle and remains unobtrusive in use. An optional customer-facing scanner handles coupons, loyalty cards and small items, while auxiliary ports accept a handheld scanner for bulky products. Selectable label identifiers can convert one barcode type to another to reduce POS exceptions.
A Smarter Investment

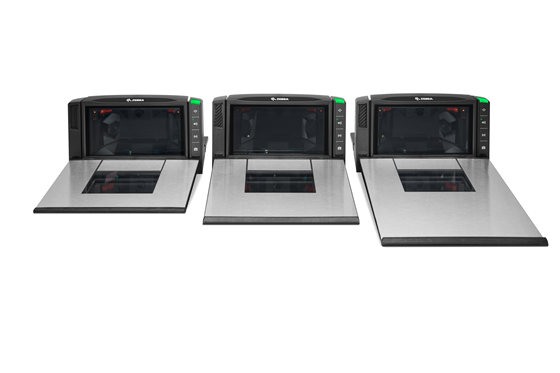

Intelligent Illumination activates only when merchandise enters the zone, using up to 50% less power than other bioptic scanners. Three sizes fit common cash wraps; onboard interfaces and auto-host-detect cables simplify connection.
More than 50% fewer interconnects and PCBs, solid-state construction, spill protection and Sapphire or DLC-coated glass reduce failure points and protect uptime.
Remote Visibility
Remote Diagnostics monitors illumination, sensors, cameras, scales and boards. IoT Connector routes real-time scanner data to a chosen endpoint, while 123Scan and Zebra DNA handle configuration, Advanced Data Formatting and remote management.
Applications
Use the MP72 for high-volume staffed checkout, self-checkout, produce weighing, mobile loyalty, EAS and vision-assisted loss prevention. Exact camera, scale, platter and EAS capabilities depend on the selected configuration.
Shop MP72 Multi-Plane Scanner/Scale Models
MP7201-LNDLN000US
MP7201, Industry Standard Long, Single Interval Scale with Scanner, Diamond-Like Coating, US
Glass Type:
Diamond-Like Coating
Platter Length:
Long
Camera:
Not Included
Driver's License Parsing:
Not Included
MP7201-LNSLN000US
MP7201, Industry Standard Long, Single Interval Scale with Scanner, Sapphire Glass, US
Platter Length:
Long
Camera:
Not Included
Driver's License Parsing:
Not Included
Glass Type:
Sapphire Glass
MP7201-LNDLL000US
MP7201, Industry Standard Long, Single Interval Scale with Scanner, Diamond-Like Coating, Color Camera, US
Camera:
Color Camera
Glass Type:
Diamond-Like Coating
Platter Length:
Long
Driver's License Parsing:
Not Included
MP7201-LNSLL000US
MP7201, Industry Standard Long, Single Interval Scale with Scanner, Sapphire Glass, Color Camera, US
Camera:
Color Camera
Platter Length:
Long
Driver's License Parsing:
Not Included
Glass Type:
Sapphire Glass
MP7201-LPSLL000US
MP7201, Industry Standard Long, Single Interval Scale with Scanner, Driver's License Parsing, Sapphire Glass, Color Camera, US
Camera:
Color Camera
Driver's License Parsing:
Included
Platter Length:
Long
Glass Type:
Sapphire Glass
MP7201-LPSLN000US
MP7201, Industry Standard Long, Single Interval Scale with Scanner, Driver's License Parsing, Sapphire Glass, US
Driver's License Parsing:
Included
Platter Length:
Long
Camera:
Not Included
Glass Type:
Sapphire Glass
MP7201-MNDLN000US
MP7201, Non-Standard Medium, Single Interval Scale with Scanner, Diamond-Like Coating, US
Glass Type:
Diamond-Like Coating
Platter Length:
Medium
Camera:
Not Included
Driver's License Parsing:
Not Included
MP7201-MNSLN000US
MP7201, Non-Standard Medium, Single Interval Scale with Scanner, Sapphire Glass, US
Platter Length:
Medium
Camera:
Not Included
Driver's License Parsing:
Not Included
Glass Type:
Sapphire Glass
MP7201-MNDLL000US
MP7201, Non-Standard Medium, Single Interval Scale with Scanner, Diamond-Like Coating, Color Camera, US
Camera:
Color Camera
Glass Type:
Diamond-Like Coating
Platter Length:
Medium
Driver's License Parsing:
Not Included
MP7201-MNSLL000US
MP7201, Non-Standard Medium, Single Interval Scale with Scanner, Sapphire Glass, Color Camera, US
Camera:
Color Camera
Platter Length:
Medium
Driver's License Parsing:
Not Included
Glass Type:
Sapphire Glass
MP7201-MPSLL000US
MP7201, Non-Standard Medium, Single Interval Scale with Scanner, Driver's License Parsing, Sapphire Glass, Color Camera, US
Camera:
Color Camera
Driver's License Parsing:
Included
Platter Length:
Medium
Glass Type:
Sapphire Glass
MP7201-MPSLN000US
MP7201, Non-Standard Medium, Single Interval Scale with Scanner, Driver's License Parsing, Sapphire Glass, US
Driver's License Parsing:
Included
Platter Length:
Medium
Camera:
Not Included
Glass Type:
Sapphire Glass
Shop MP72 Multi-Plane Scanner/Scale Accessories
CBA-U54-S12ZAR
USB Cable: Series A Connector, 3.65 meter (12 ft.) Straight.
CBA-U52-S16PAR
Cable, Multiplane scanner powered USB Cable, 5M.
CBA-R51-S16ZAR
Cable, Multiplane Scanner RS232, DB-9 Female Cable, 5M
CBA-R52-S16ZAR
CBL:MP6000 Serial DB9-M 5M Cable
CBA-M51-S16PAR
Cable, IBM Port 9B, 5M Cable for RS-485.
CBA-A51-S16ZAR
Auxiliary Scanner Cable, RS232 Serial, Powers Corded Scanners, 5 Meters.
MX72-SR000WW
Customer Facing Scanner (CFS) for MP7200
CBA-A54-S01EAR
Cable, Assembly,Multipane Scanner Checkpoint Interlock Cable.
MX301-SR00004ZZWR
MP6000, Leveling screw pack of 4MP6000 leveling screws: Allows fine adjustment of short and medium models so they are perfectly flush in the checkstand.
MX302-SR00004ZZWR
Kit: MP6000, 2.5CM / 1 INCH Higher Leveling Screw Pack of 4
PWR-BGA12V50W0WW
Power Supply, Requires DC Line Cord CBL-DC-388A1-01 & AC Line Cord 23844-00-00R, Replaces PWRS-14000-148R (Presentation Cradle). EM45 use CBL-DC-388A2-01 for DC Line Cord.
23844-00-00R
7.5ft. AC Line Cord, For Use with PWRS-14000-148R and PWR-BGA12V50W0WW
