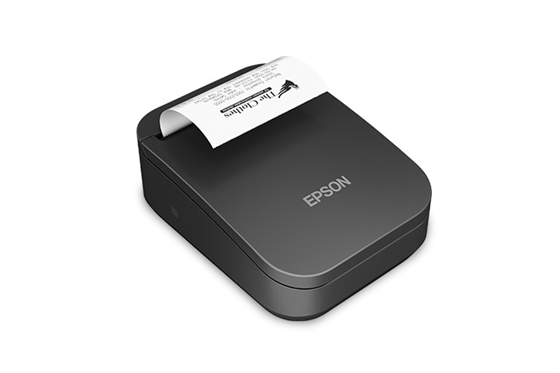

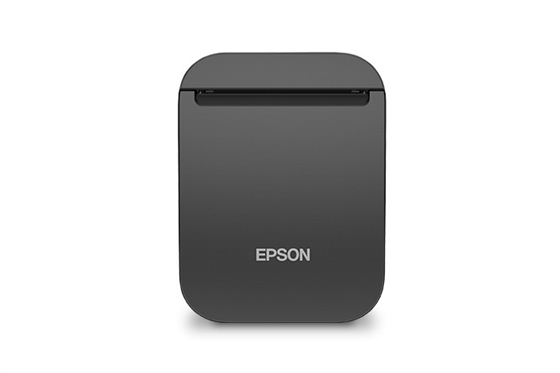

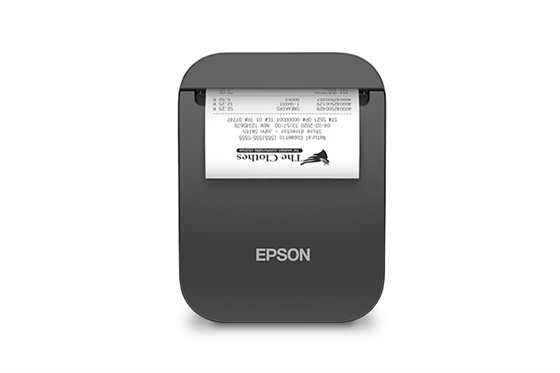

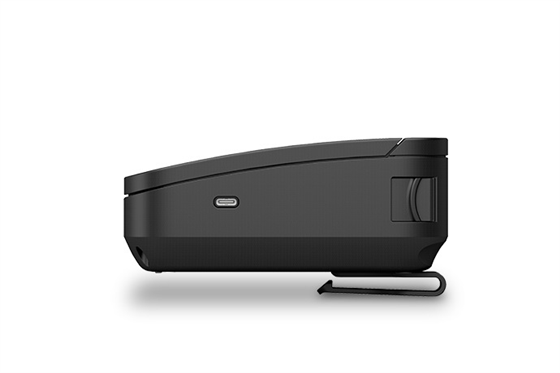

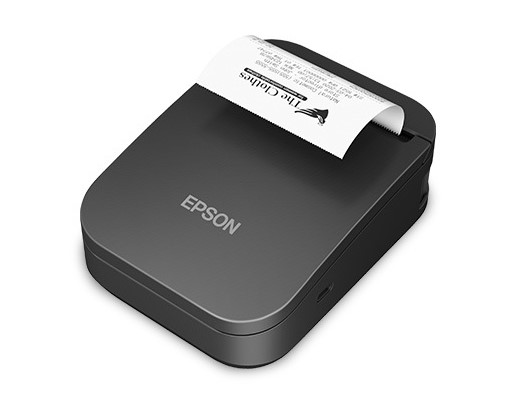

Epson Mobilink TM-P80II

Name: Epson Mobilink TM-P80II
Brand: Epson
Price: 499.45 USD
Availability: InStock

Images may not reflect the actual product

Compact wireless receipts for mobile use

The Epson Mobilink TM-P80II is a lightweight 3-inch wireless receipt printer designed to be worn with its included belt clip. It combines fast receipt output with a large paper basket and extended battery operation.

Key Specifications

Print method: Direct Thermal
Resolution: 203 dpi
Maximum print width: 72 mm on 80 mm paper
Print speed: Up to 100 mm/sec
Media handling: 80 mm rolls; 51 mm maximum diameter; tear bar
Connectivity: USB-C plus Bluetooth 5.0 or dual-band Wi-Fi, by model
Battery / power: Rechargeable battery; up to 47 hours Bluetooth / 25 hours Wi-Fi under Epson test conditions
Durability / environmental sealing: IP54; 6.2 ft drop rating
Dimensions and weight: Approx. 4.1 × 5.4 × 2.2 in (W × D × H); 0.8 lb
Warranty: 1 year

In the Box

TM-P80II printer and battery
Belt clip, starter paper roll and USB-C cable

Battery-cradle packages add the cradle. Charging power is separate unless listed with the selected package.

Rugged enclosure

The IP54 enclosure resists dust and water, with a rated drop height of 6.2 feet.

Long battery runtime

Battery life reaches up to 47 hours under Epson’s test conditions; connection, use and environment affect runtime.

Fewer roll changes

The paper basket accepts rolls up to 51 mm in outside diameter for greater paper capacity.

Wireless flexibility

Wi-Fi 5 and Bluetooth 5.0 model choices support connections to compatible mobile devices and networks.

Print Method

Direct Thermal

Print Speed

Receipt version: 100 mm/sec (max.)

Print Resolution

203 DPI

Media Width

3.13"/79.5 mm

Roll Diameter

2.0"/51.0 mm

Core Diameter

0.71"/18.0 mm

Auto Cutter

Interfaces

USB-C (built-in), Wi-Fi 802.11 a/b/g/n/ac (2.4 GHz or 5 GHz band) or Bluetooth 5.0 (Classic + LE)

Supported OS

iOS®, Android™ and Windows®

Printer Reliability

10 million printing lines

IP Rating

IP54

Drop Rating

6.2 feet

Battery Life

Up to 25 hours with Wi-Fi; up to 47 hours with Bluetooth. Actual life varies with use, connectivity and environment.

Dimensions (W x D x H)

4.1" x 5.4" x 2.2"

Weight

0.8 lb

Warranty

Standard 1-year limited warranty, with optional extended service plans available

Wireless Security

WPA/WPA2-PSK (TKIP/AES), WPA3-SAE (AES), WPA2/WPA3-Enterprise, on Wi-Fi configurations

Setup

SimpleAP, TM Utility, NFC and QR code

Barcodes

UPC-A, UPC-E, EAN-13, EAN-8, Code 39, ITF, Codabar, Code 93, Code 128, GS1-128, GS1 DataBar Omnidirectional, Truncated, Limited and Expanded

2D Symbols

QR Code, MaxiCode, PDF417, Composite Symbology, GS1, Aztec and DataMatrix

Memory

NV user: 192 KB maximum; NV graphics: 384 KB maximum; receive buffer: 4 KB on Wi-Fi or 64 KB on Bluetooth configurations

Drivers and SDKs

ePOS-Print SDK, Windows APD, OPOS, OPOS.NET, JavaPOS for Windows/Linux and TM Virtual Port Driver

Software

TM Utility for iOS/Android, Integrated Utility, TM Bluetooth Connector, Epson WebConfig, Monitoring Tool, Deployment Tool and Firmware Updater

Sensors and Alerts

Paper-end and cover-open sensors; programmable buzzer; power, battery, charging, connection and error LEDs

Power Source

Lithium-ion battery pack; USB-C port; power-saving support

Operating Environment

-15–50°C (5–122°F); 10–90% relative humidity

Standards

FCC Class B, ICES-003 Class B; UL 62368-1 / CAN/CSA C22.2 No. 62368-1

Media Handling

Thermal roll paper; friction feed; drop-in loading

Fonts and Column Capacity

48-column mode: Font A 12 × 24 dots, 48 columns (default); Font B 9 × 17 dots, 64 columns. 42-column mode: Font A 13 × 24 dots, 42 columns; Font B 9 × 17 dots, 60 columns.

Character Size

48-column mode: Font A 1.50 × 3.00 mm; Font B 1.125 × 2.13 mm. 42-column mode: Font A 1.63 × 3.00 mm; Font B 1.125 × 2.13 mm.

Charging

Optional OT-SB80II single-battery or OT-CH80II quad-battery charging cradle; full charge in as little as 2.5 hours under Epson test conditions. Compatible USB-C or wireless charging devices may also be used. Chargers sold separately.

Case Color

Epson Black

Acoustic Noise

53 dB under Epson test conditions

In the Box

TM-P80II printer, belt clip, battery and USB-C cable; charger sold separately

Shop Mobilink TM-P80II Models

C31CK00001

P80II 3" portable receipt printer; Bluetooth, includes battery, belt clip, starter roll paper, USB-C cable.

Connectivity:

Bluetooth

Battery Cradle:

Not Included

$499.45

C31CK00011

P80II 3" portable receipt printer; Wifi, includes battery, belt clip, starter roll paper, USB-C cable.

Battery Cradle:

Not Included

Connectivity:

WiFi

$534.54

C31CK00A9981

P80II 3" portable receipt printer; Wifi; includes battery cradle, battery, belt clip, starter roll paper, USB-C cable.

Extra Featuree:

Battery Cradle

Battery Cradle:

Included

Connectivity:

WiFi

$634.68

C31CK00A9991

P80II 3" portable receipt printer; Bluetooth; includes battery cradle, battery, belt clip, starter roll paper, USB-C cable.

Extra Featuree:

Battery Cradle

Connectivity:

Bluetooth

Battery Cradle:

Included

$499.45

Shop Mobilink TM-P80II Accessories

C32C882301

Lithium Battery for P80II/P80II plus

$107.39

C32C882321

Belt Strap for P80II, P80II plus

$32.02

C32C882331

Shoulder Strap for P80II, P80II Plus

$46.31

C32C882351

Soft case for P80II

$82.15

EPPSDSITAB3

3-Year Spare-in-the-Air Advanced Replacement Warranty For Epson TM-U, TM-P, and TM-H Printers. Includes Paid Two-Way Next Business Day Shipping of Replacement Unit.

$175.33

EPPSDEXTB3

Epson Three Year Extended Warranty Coverage for Epson TM-U, TM-P, and TM-H Printers. Adds 3 Additional Years of Coverage to a Printer's Standard Warranty. Two-Way Shipping Is Included By Epson.

$202.80

9078-0745

3.125" Wide x 94 ft. Thermal Receipt Paper. 2" Diameter. White. BPA Free. Case of 72 Rolls (AKA 140-260). Not for use in California & Washington.

$87.39

EPPSDEXTB1

1-Year Extended Service Plan

$86.36

EPPSDSITAB1

1-Year Spare in the Air Extended Service Plan

$61.52
