Epson Mobilink TM-P80II Plus

Name: Epson Mobilink TM-P80II Plus
Brand: Epson
Price: 530.34 USD
Availability: InStock

Images may not reflect the actual product

Portable receipt printing with automatic cutting

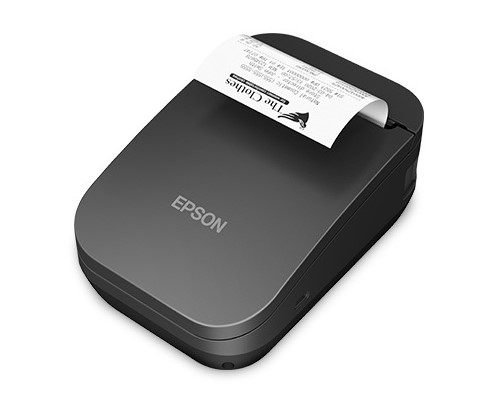

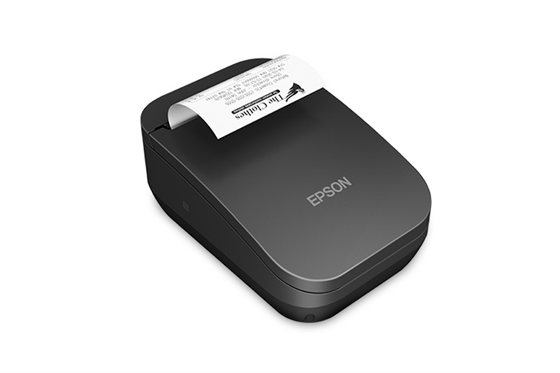

The Epson Mobilink TM-P80II Plus is a compact 3-inch wireless receipt printer with an auto cutter and de-curler. Its lightweight design includes a belt clip, while the larger paper basket helps reduce roll changes.

Key Specifications

Print method: Direct Thermal
Resolution: 203 dpi
Maximum print width: 72 mm on 80 mm paper
Print speed: Up to 100 mm/sec
Media handling: 80 mm rolls; 51 mm maximum diameter; auto cutter and de-curler
Connectivity: USB-C plus Bluetooth 5.0 or dual-band Wi-Fi, by model
Battery / power: Rechargeable battery; up to 34 hours Bluetooth / 24 hours Wi-Fi under Epson test conditions
Durability / environmental sealing: IP54; 4.9 ft drop rating
Dimensions and weight: Approx. 4.1 × 6.0 × 2.6 in (W × D × H); 1.3 lb
Warranty: 1 year

In the Box

TM-P80II Plus printer and battery
Belt clip, starter paper roll and USB-C cable

Battery-cradle packages add the cradle. A charging power source is separate unless listed with the selected package.

Clean receipt edges

The auto cutter and de-curler improve receipt appearance and make printed receipts easier to handle.

Protection on the move

The IP54 enclosure resists dust and water, with a rated drop height of 4.9 feet.

Extended battery operation

Epson rates battery life up to 34 hours; actual runtime varies with connection, use and environment.

Wireless connection choices

Choose a Wi-Fi 5 or Bluetooth 5.0 model to connect compatible devices and networks.

Print Method

Direct Thermal

Print Speed

Receipt version: 100 mm/sec (max.)

Print Resolution

203 DPI

Media Width

3.13"/79.5 mm

Roll Diameter

2.0"/51.0 mm

Core Diameter

0.71"/18.0 mm

Auto Cutter

Yes

Interfaces

USB-C (built-in), Wi-Fi 802.11 a/b/g/n/ac (2.4 GHz or 5 GHz band) or Bluetooth 5.0 (Classic + LE)

Supported OS

iOS®, Android™ and Windows®

Printer Reliability

10 million printing lines

Auto Cutter Reliability

500,000 cuts under Epson test conditions

IP Rating

IP54

Drop Rating

4.9 feet

Battery Life

Up to 24 hours with Wi-Fi; up to 34 hours with Bluetooth. Actual life varies with use, connectivity and environment.

Dimensions (W x D x H)

4.1" x 6.0" x 2.6"

Weight

1.3 lb

Warranty

Standard 1-year limited warranty, with optional extended service plans available

Wireless Security

WPA/WPA2-PSK (TKIP/AES), WPA3-SAE (AES), WPA2/WPA3-Enterprise, on Wi-Fi configurations

Setup

SimpleAP, TM Utility, NFC and QR code

Barcodes

UPC-A, UPC-E, EAN-13, EAN-8, Code 39, ITF, Codabar, Code 93, Code 128, GS1-128, GS1 DataBar Omnidirectional, Truncated, Limited and Expanded

2D Symbols

QR Code, MaxiCode, PDF417, Composite Symbology, GS1, Aztec and DataMatrix

Memory

NV user: 192 KB maximum; NV graphics: 384 KB maximum; receive buffer: 4 KB on Wi-Fi or 64 KB on Bluetooth configurations

Drivers and SDKs

ePOS-Print SDK, Windows APD, OPOS, OPOS.NET, JavaPOS for Windows/Linux and TM Virtual Port Driver

Software

TM Utility for iOS/Android, Integrated Utility, TM Bluetooth Connector, Epson WebConfig, Monitoring Tool, Deployment Tool and Firmware Updater

Sensors and Alerts

Paper-end and cover-open sensors; programmable buzzer; power, battery, charging, connection and error LEDs

Power Source

Lithium-ion battery pack; USB-C port; power-saving support

Operating Environment

-15–50°C (5–122°F); 10–90% relative humidity

Standards

FCC Class B, ICES-003 Class B; UL 62368-1 / CAN/CSA C22.2 No. 62368-1

Media Handling

Thermal roll paper; friction feed; drop-in loading

Fonts and Column Capacity

48-column mode: Font A 12 × 24 dots, 48 columns (default); Font B 9 × 17 dots, 64 columns. 42-column mode: Font A 13 × 24 dots, 42 columns; Font B 9 × 17 dots, 60 columns.

Character Size

48-column mode: Font A 1.50 × 3.00 mm; Font B 1.125 × 2.13 mm. 42-column mode: Font A 1.63 × 3.00 mm; Font B 1.125 × 2.13 mm.

Charging

Optional OT-SB80II single-battery or OT-CH80II quad-battery charging cradle; full charge in as little as 2.5 hours under Epson test conditions. Compatible USB-C or wireless charging devices may also be used. Chargers sold separately.

Case Color

Epson Black

Acoustic Noise

55 dB under Epson test conditions

In the Box

TM-P80II Plus printer, belt clip, battery and USB-C cable; charger sold separately
