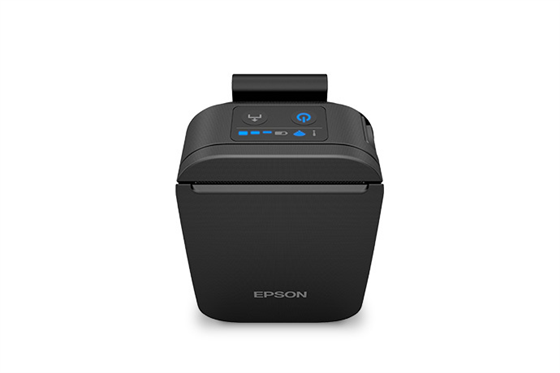

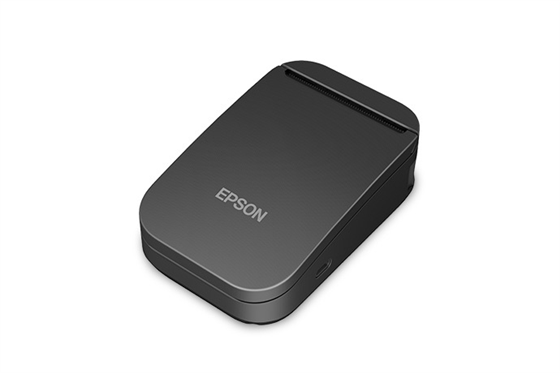

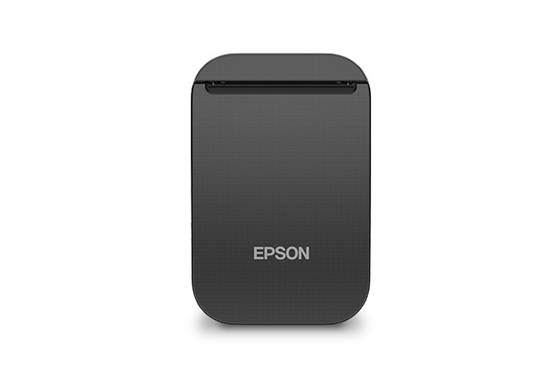

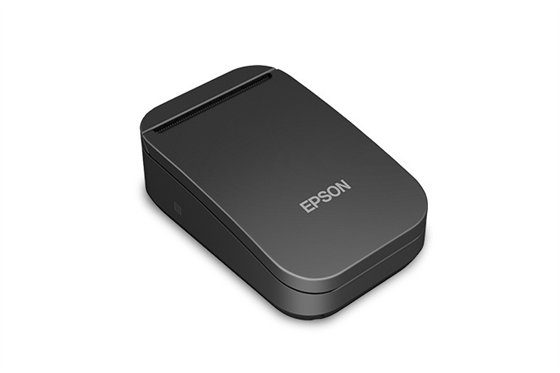

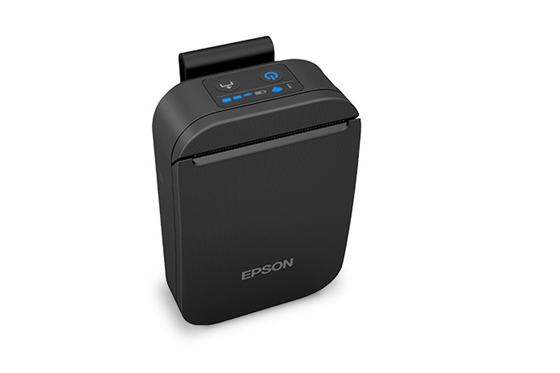

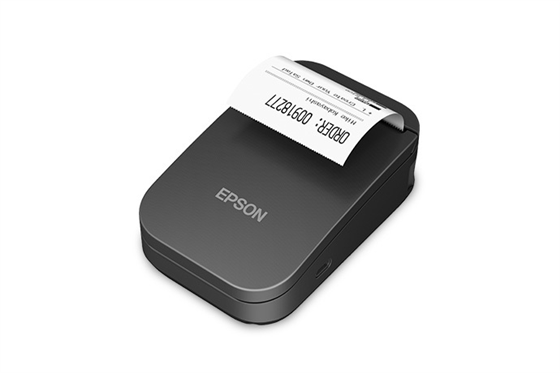

Epson Mobilink TM-P20II

Name: Epson Mobilink TM-P20II
Brand: Epson
Price: 352.87 USD
Availability: InStock

Images may not reflect the actual product

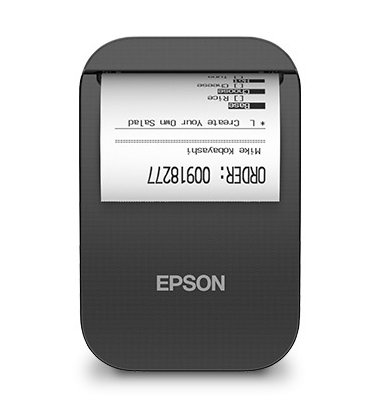

Lightweight wireless printing for 2-inch receipts

The Epson Mobilink TM-P20II combines a compact, wearable design with wireless receipt printing. Its included belt clip, rugged enclosure and rechargeable battery support portable use without a fixed printing station.

Key Specifications

Print method: Direct Thermal
Resolution: 203 dpi
Maximum print width: 48 mm
Print speed: Up to 100 mm/sec
Media handling: 58 mm paper; tear bar; drop-in roll loading
Connectivity: USB-C plus Bluetooth 5.0 or dual-band Wi-Fi, by model
Battery / power: Rechargeable battery; up to 27 hours Bluetooth / 15 hours Wi-Fi under Epson test conditions
Durability / environmental sealing: IP54; 6.9 ft drop rating
Dimensions and weight: Approx. 3.1 × 4.7 × 1.8 in (W × D × H); 0.5 lb
Warranty: 1 year

In the Box

TM-P20II printer and battery
Belt clip, starter paper roll and USB-C cable

Battery-cradle packages add the cradle. Charging power is separate unless specified.

Compact and wearable

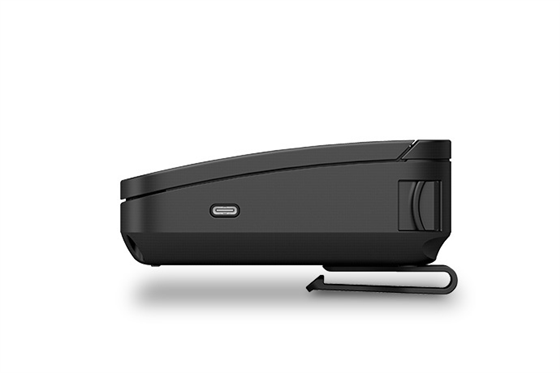

The lightweight body and included belt clip make the printer easy to carry.

Dust and water resistance

The IP54 enclosure is paired with a rated drop height of 6.9 feet.

Rechargeable battery

Epson rates operation up to 27 hours per charge, depending on connectivity, use and environment.

Paper-saving mode

Paper-saving settings reduce receipt paper use. Wi-Fi 5 and Bluetooth 5.0 versions provide wireless connection choices.

Print Method

Direct Thermal

Print Speed

Receipt Version: 100 mm/sec (max.)

Print Resolution

Dots/inch: 203 dpi

Media Type

Thermal Roll Paper

Paper Feed Method

Friction Feed

Paper Loading

Drop-in

Roll Diameter (max)

40 mm (1.57 in) maximum

Core Diameter (min.)

0.71"/18.0 mm

Auto Cutter

Interfaces

USB-C (built-in), Wi-Fi 802.11 a/b/g/n/ac (2.4 GHz or 5 GHz band) or Bluetooth 5.0 (Classic + LE)

Supported OS

iOS, Android, & Windows

Printer Reliability

10 million printing lines

IP Rating

IP54

Drop Rating

6.9 feet

Charging

Optional Epson OT-SB20II single-battery or OT-CH20II quad-battery charging cradle; full charge in as little as 3 hours under Epson test conditions. Compatible third-party USB-C or wireless charging devices may also be used. Chargers sold separately.

Battery Life

Up to 15 hours with Wi-Fi; up to 27 hours with Bluetooth. Actual life varies with use, connectivity and environment.

Dimensions (W x D x H)

3.1" x 4.7" x 1.8"

Weight

0.5 lb

Warranty

Standard 1-year limited warranty, with optional extended service plans available

Wireless Security

WPA/WPA2-PSK (TKIP/AES), WPA3-SAE (AES), WPA2/WPA3-Enterprise, on Wi-Fi configurations

Setup

SimpleAP, TM Utility, NFC and QR code

Barcodes

UPC-A, UPC-E, EAN-13, EAN-8, Code 39, ITF, Codabar, Code 93, Code 128, GS1-128, GS1 DataBar Omnidirectional, Truncated, Limited and Expanded

2D Symbols

QR Code, MaxiCode, PDF417, Composite Symbology, GS1, Aztec and DataMatrix

Memory

NV user: 192 KB maximum; NV graphics: 384 KB maximum; receive buffer: 4 KB on Wi-Fi or 64 KB on Bluetooth configurations

Drivers and SDKs

ePOS-Print SDK, Windows APD, OPOS, OPOS.NET, JavaPOS for Windows/Linux and TM Virtual Port Driver

Software

TM Utility for iOS/Android, Integrated Utility, TM Bluetooth Connector, Epson WebConfig, Monitoring Tool, Deployment Tool and Firmware Updater

Sensors and Alerts

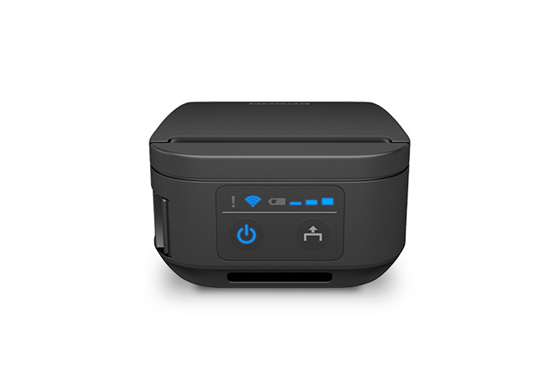

Paper-end and cover-open sensors; programmable buzzer; power, battery, charging, connection and error LEDs

Power Source

Lithium-ion battery pack; USB-C port; power-saving support

Operating Environment

-15–50°C (5–122°F); 10–90% relative humidity

Standards

FCC Class B, ICES-003 Class B; UL 62368-1 / CAN/CSA C22.2 No. 62368-1

Media Width

58 mm (2.28 in)

Fonts and Column Capacity

Font A: 12 × 24 dots, 32 columns; B: 9 × 24, 42 columns (default); C: 9 × 17, 42 columns; D: 10 × 24, 38 columns; E: 8 × 16, 48 columns

Character Size

Font A: 1.5 × 3.0 mm; B: 1.12 × 3.0 mm; C: 1.12 × 2.1 mm; D: 1.25 × 3.0 mm; E: 1.0 × 2.0 mm

Acoustic Noise

53 dB under Epson test conditions

In the Box

TM-P20II printer, belt clip, battery and USB-C cable; charger sold separately

Shop Mobilink TM-P20II Models

C31CJ99A9991

P20II 2" Ultra Compact Portable Receipt Printer; Bluetooth; includes battery cradle, battery, belt clip, starter roll paper, USB-C cable. 1 year limited warranty.

Extra Features:

Battery Cradle

Connectivity:

Bluetooth

Battery Cradle:

Included

$385.96

C31CJ99001

P20II 2" Ultra Compact Portable Receipt Printer; Bluetooth; includes battery, belt clip, starter roll paper, USB-C cable. 1 year limited warranty.

Connectivity:

Bluetooth

Battery Cradle:

Not Included

$352.87

C31CJ99011

P20II 2" Ultra Compact Portable Receipt Printer; Wifi; includes battery, belt clip, starter roll paper, USB-C cable. 1 year limited warranty.

Battery Cradle:

Not Included

Connectivity:

WiFi

$444.72

C31CJ99A9981

P20II 2" Ultra Compact Portable Receipt Printer; Wifi; includes battery cradle, battery, belt clip, starter roll paper, USB-C cable. 1 year limited warranty.

Extra Features:

Battery Cradle

Battery Cradle:

Included

Connectivity:

WiFi

$492.98

Shop Mobilink TM-P20II Accessories

XWP-C50

2.25" Wide x 50 ft. Thermal Receipt Paper. Case of 50 Rolls. BPA Free. Compatible with Most US Payment Terminals & 2" Receipt Printers.

$70.50

C32C882321

Belt Strap for P80II, P80II plus

$32.02

C32C882331

Shoulder Strap for P80II, P80II Plus

$46.31

EPPSDEXTB1

1-Year Extended Service Plan

$86.36

EPPSDSITAB1

1-Year Spare in the Air Extended Service Plan

$61.52

EPPSDEXTB3

Epson Three Year Extended Warranty Coverage for Epson TM-U, TM-P, and TM-H Printers. Adds 3 Additional Years of Coverage to a Printer's Standard Warranty. Two-Way Shipping Is Included By Epson.

$202.80

EPPSDSITAB3

3-Year Spare-in-the-Air Advanced Replacement Warranty For Epson TM-U, TM-P, and TM-H Printers. Includes Paid Two-Way Next Business Day Shipping of Replacement Unit.

$175.33

C32C831093

Spare Lithium Ion Battery for P20 Printer; OT-BY20-093

$104.47

C32C882A8551

Single charger for P20II

$91.08

C32C882A8531

Quad charger for P20II

$295.54

9078-2491

2.25" Wide by 50 ft. Thermal Receipt Paper. White. Case of 50 Rolls. Phenol Free.

$70.50
