APG Minota
Minota (iOS)
Minota Cash Drawer - Printer Driven Delivering reliable performance and consistent quality, the Minota cash drawer provides a cost-friendly cash management solution for light cash-use environments. This light-duty cash drawer is practical, easy to use, and straightforward, enabling your business to maximize efficiency throughout the checkout process and spend more time creating a positive and memorable experience for your customers.- • Warranty: 1-Year
- • Return Period: 15 Days
- • Lifetime Support
- • Free Shipping
Choose an integrated till or a removable till for your checkout

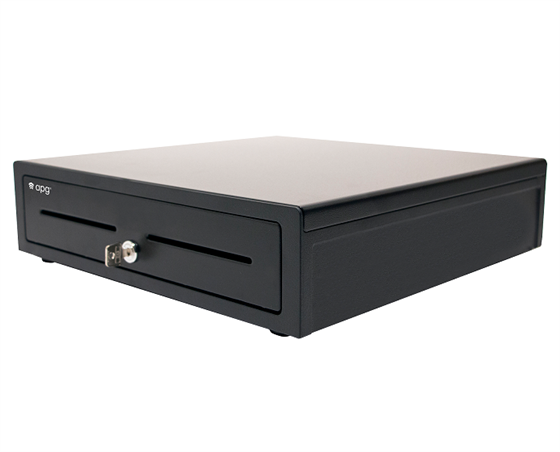

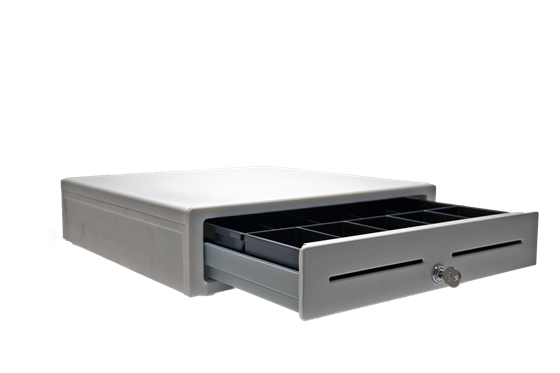

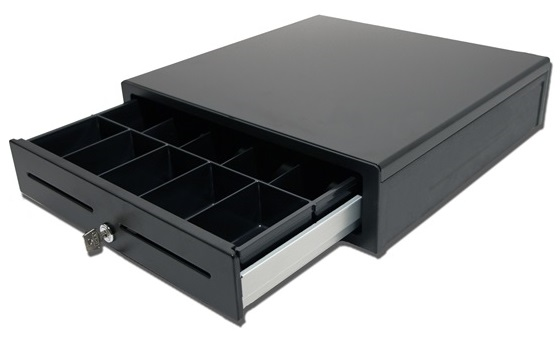

The APG Minota is a light-duty cash drawer with a molded base and two inner-drawer designs. DH models combine the till and inner drawer in one molded assembly. DL models use a steel inner drawer with a separate removable till, making them useful when staff exchange tills between shifts.
Key Specifications
- Product / application: Cash drawer for low cash-transaction volumes
- Till capacity: 5 bill / 5 coin or 4 bill / 8 coin among the listed configurations
- Media storage: Two front media slots
- Interface / power: 320-1: 24V MultiPRO printer-driven
- Construction: Molded base; DH integrated molded till or DL steel inner drawer with removable till
- Durability: DH: 500,000 cycles; DL: 750,000 cycles
- Placement: Countertop; select accessories for the exact inner-drawer type
- Dimensions (W × D × H): 16.125 × 16.375 × 4.25 in. (410 × 416 × 108 mm)
- Warranty: 1 year
In the Box
- APG Minota cash drawer
- Integrated DH till assembly or removable DL till, as selected
- CD-101A printer cable with the listed 320-1 models
Choose the till shown in the individual model listing. Spare tills and covers are sold separately.
Removable-till flexibility
Choose DL when you need to lift out the till independently. The DH till forms part of the inner drawer and is not interchangeable with a separate DL till.
Everyday cash storage
A key-operated lock controls access, while two front slots accept media into the drawer. The molded base keeps the design compact for smaller checkout stations.
Add cable management with APG Architect
The Architect topper is designed to snap onto a separately purchased Minota cash drawer. It provides configurable openings for routing cables around a POS setup.
Shop Minota Models
DL320-1-AW410-B2
Minota 16"x16" White, 5x5 US till. Steel Inner Drawer Model. Includes CD-101A cable.
Bill and Coin:
5 bill / 5 coin
Inner Drawer:
Steel, removable till
Color:
White
DL320-1-BL410-B2
Minota 16"x16" Black, 5x5 US till. Steel Inner Drawer Model. Includes CD-101A cable.
Bill and Coin:
5 bill / 5 coin
Color:
Black
Inner Drawer:
Steel, removable till
DH320-1-BL410-H5
Minota 16"x16" Black, MultiPRO (printer driven), 4 bill / 8 coin molded till/inner drawer, includes removable CD-101A cable
Bill and Coin:
4 bill / 8 coin
Color:
Black
Inner Drawer:
Molded, integrated till
DL320-1-AW410-B5
Minota 16"x16" White, 4 bill / 8 coin Canadian till. Steel Inner Drawer Model. Includes CD-101A cable.
Bill and Coin:
4 bill / 8 coin
Inner Drawer:
Steel, removable till
Color:
White
Shop Minota Accessories
CD-101A
320 MultiPro Cable (Drawer #1, Epson TM, Star TSP, SP, SCP, HSP) 5ft Length - Replaced CD-014A
