ID Tech MiniMag
Description
Specifications
Download

ID Tech MiniMag

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2

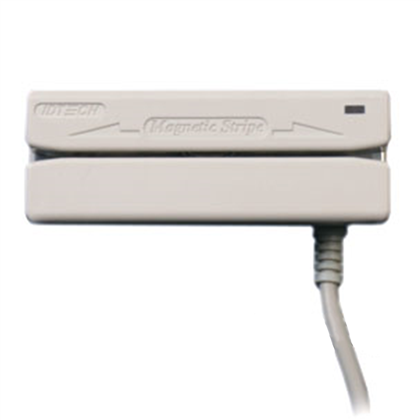

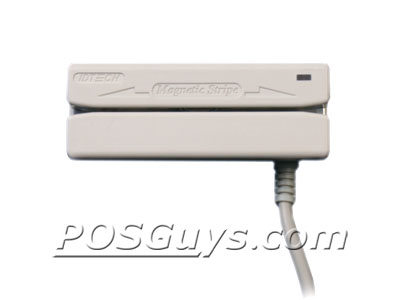

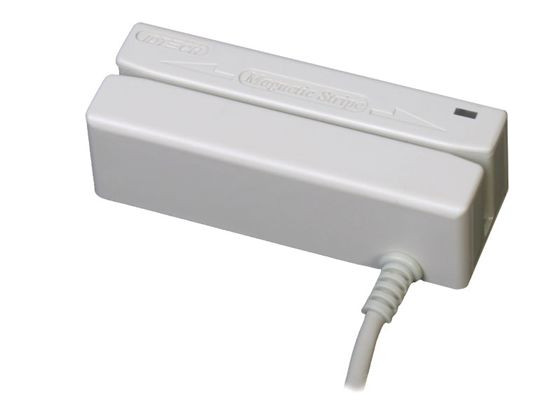

Compact programmable magnetic stripe reading

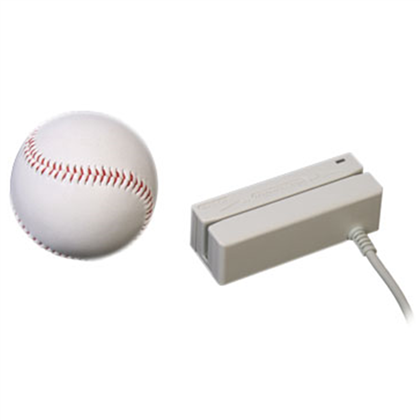

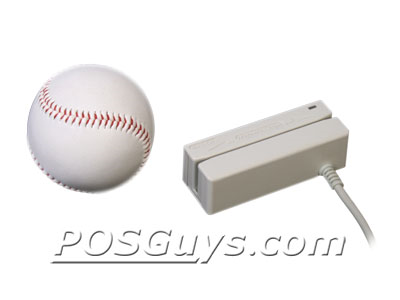

ID TECH MiniMag readers capture magnetic stripe data in either swipe direction. Their 90 mm housing fits counters, kiosks and fixed installations, with configurable output for compatible host applications.

MiniMag II configurations offer USB, RS232 or keyboard-wedge connections. MiniMag Duo variants add a second magnetic head so a card can face either way in the slot; the exact interface and track configuration depend on the part number.

ID Tech MiniMag Magnetic Card Readers

Key Specifications

  • Product type / application: Magnetic stripe capture for POS and access applications
  • Track capacity: One, two or three tracks, depending on model
  • Supported cards: ISO 7811, AAMVA and other F2F formats
  • Platform / compatibility: Keyboard input or compatible serial/HID software
  • Interfaces / connectivity: USB, RS232 or PS/2, by model
  • Power: 5 V DC; USB models draw host power
  • Durability / environment: Minimum 1 million swipes; 0–55°C
  • Mounting / form factor: Freestanding or fixed flat-surface mounting
  • Dimensions: 90 × 34 × 28 mm
  • Weight: 4.6 oz
  • Warranty: 2 years

In the Box

  • MiniMag reader
    • Selected MiniMag II or MiniMag Duo reader
    • Attached interface cable for the selected configuration

Connection type and single- or dual-head configuration vary by part number.

Programmable output

Supported decoded models can parse data and add prefixes, suffixes and control characters.

Mounting flexibility

Threaded inserts and available cable-exit configurations support fixed installations.

Read direction
Bidirectional; MiniMag Duo supports either stripe-facing orientation
Card formats
ISO 7811, AAMVA and other F2F formats
Read-head life
Minimum 1,000,000 card swipes
Power
5 V DC +/-10%; maximum ripple 50 mV; USB models draw host power
Cable length
6 feet
Operating temperature
0 to 55 C
Storage temperature
Current MiniMag II / Duo: -30 to 70 C
Humidity
Maximum 95% non-condensing
Color Options
Black, Beige
Interface
MiniMag II: PS/2 keyboard wedge, RS232, port-powered RS232, USB keyboard, USB HID or USB CDC. Listed MiniMag Duo: USB keyboard. Exact interface depends on part number.
Track Numbers
One, two or three tracks, depending on part number; MiniMag Duo uses dual magnetic heads
Programmability
fully programmable (parses data, inserts control characters, adds prefix/suffix characters while maintaining data integrity through vertical and longitudinal error checking)
Weight
4.6 oz
Dimensions
3.54 (l) x 1.34 (w) x 1.1 (h) in. - 90 x 34 x 28 mm
Mounting Options
threaded inserts or Velcro - cable exits through side or bottom
Warranty
Two Years - Parts and labor
MiniMag Duo manufacturer specification sheet - v10.23
Download
MiniMag II manufacturer specification sheet - v10.23
Download
Manual
Download
Configuration Utility
Download
OPOS Driver - Serial Interface
Download
OPOS Driver - Keyboard Wedge Interface
Download
OPOS Driver- USB Interface
Download

Shop MiniMag Models

IDMB-334133BM

MiniMag Swipe Reader, Color: Black, Tracks 1,2,& 3, USB (Magtek Settings)

Tracks:

1 / 2 / 3

Color:

Black

Output configuration:

MagTek-format settings

Model:

MiniMag II

Interface:

USB keyboard emulation

$72.22

IDMB-334112B

MiniMag Swipe Reader, Color: Black with Tracks 1 & 2, USB Interface, Keyboard Emulation

Tracks:

1 / 2

Color:

Black

Model:

MiniMag II

Output configuration:

Standard

Interface:

USB keyboard emulation

$66.69

IDMB-334133B

MiniMag Swipe Reader, Color: Black with Tracks 1,2 & 3, USB Interface, Keyboard Emulation

Tracks:

1 / 2 / 3

Color:

Black

Model:

MiniMag II

Output configuration:

Standard

Interface:

USB keyboard emulation

$72.79

IDMB-334133

MiniMag Swipe Reader, Color: Beige with Tracks 1, 2 & 3, USB Interface, Keyboard Emulation

Tracks:

1 / 2 / 3

Color:

Beige

Model:

MiniMag II

Output configuration:

Standard

Interface:

USB keyboard emulation

$71.40

IDMB-332133B

MiniMag Swipe Reader, Color: Black with Tracks 1, 2 & 3, Power Supply, RS232 Serial Cable

Tracks:

1 / 2 / 3

Color:

Black

Model:

MiniMag II

Interface:

RS232

Output configuration:

Standard

$71.40

IDMB-334102B

MiniMag Swipe Reader, Color: Black with Track 2, USB Interface, Keyboard Emulation

Tracks:

2 only

Color:

Black

Model:

MiniMag II

Output configuration:

Standard

Interface:

USB keyboard emulation

$63.00

IDMB-336112B

MiniMag II Swipe Reader, Black, Tracks 1 and 2, USB CDC Interface (Serial COM Port Emulation). Special Order.

Tracks:

1 / 2

Color:

Black

Model:

MiniMag II

Output configuration:

Standard

Interface:

USB CDC

$73.39

IDMB-354133B

MiniMag Duo (Keyboard Emulation, Tracks 1, 2 and 3, Black)

Tracks:

1 / 2 / 3

Color:

Black

Model:

MiniMag Duo

Output configuration:

Standard

Interface:

USB keyboard emulation

$64.40

IDMB-336133

MiniMag 2 Swipe Reader, Color: Beige with Tracks 1,2 & 3, USB-CDC Interface (Serial Comm Port Emulation - Special Order)

Tracks:

1 / 2 / 3

Color:

Beige

Model:

MiniMag II

Output configuration:

Standard

Interface:

USB CDC

$71.40

IDMB-335133B

MiniMag II magnetic stripe reader, tracks 1, 2 and 3, USB HID interface, black.

Tracks:

1 / 2 / 3

Color:

Black

Model:

MiniMag II

Output configuration:

Standard

Interface:

USB HID

$64.36

IDMB-354133BM

MiniMag Duo dual-head magnetic stripe reader, tracks 1, 2 and 3, USB keyboard emulation, MagTek-format settings, black.

Tracks:

1 / 2 / 3

Color:

Black

Output configuration:

MagTek-format settings

Model:

MiniMag Duo

Interface:

USB keyboard emulation

$68.70

IDMB-332133

MiniMag Swipe Reader, Beige, Tracks 1, 2 and 3, RS232 Serial Cable and Power Supply.

Tracks:

1 / 2 / 3

Color:

Beige

Model:

MiniMag II

Interface:

RS232

Output configuration:

Standard

$71.40

IDMB-333133B

MiniMag Swipe Reader, Color: Black with Tracks 1,2 & 3, Keyboard Wedge Cable

Tracks:

1 / 2 / 3

Color:

Black

Model:

MiniMag II

Interface:

PS/2

Output configuration:

Standard

$67.00

IDMB-333133

MiniMag Swipe Reader, Color: Beige with Tracks 1,2 & 3, Keyboard Wedge Cable

Tracks:

1 / 2 / 3

Color:

Beige

Model:

MiniMag II

Interface:

PS/2

Output configuration:

Standard

$71.40

IDMB-333112

MiniMag Swipe Reader, Color: Beige with Tracks 1 & 2, Keyboard Wedge Cable

Tracks:

1 / 2

Color:

Beige

Model:

MiniMag II

Interface:

PS/2

Output configuration:

Standard

$67.39

IDMB-333112B

MiniMag Swipe Reader, Color: Black with Tracks 1 & 2, Keyboard Wedge Cable

Tracks:

1 / 2

Color:

Black

Model:

MiniMag II

Interface:

PS/2

Output configuration:

Standard

$63.00

IDMB-334112

MiniMag Swipe Reader, Color: Beige with Tracks 1 & 2, USB Interface, Keyboard Emulation

Tracks:

1 / 2

Color:

Beige

Model:

MiniMag II

Output configuration:

Standard

Interface:

USB keyboard emulation

$65.39

Outlet Items

MiniMag

MiniMag

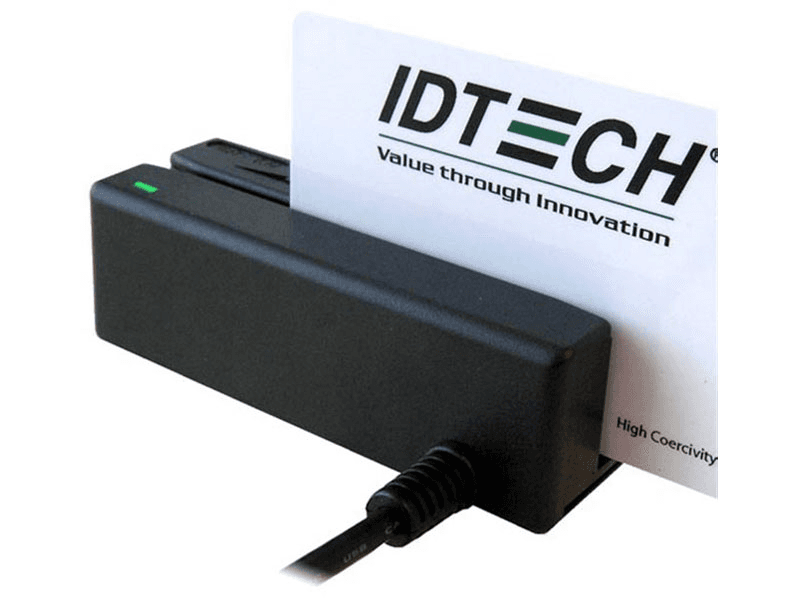

ID Tech MiniMag Swipe Reader (Renewed, Functionality Not-Guaranteed). Tracks 1 & 2. PS/2 Interface (Keyboard Wedge Cable). Black. (IDMB-333112B) CID: 3752

Item Number: IDMB-333112B

1 Functionality Not-Guaranteed Available

CID: 3752

$15.00
