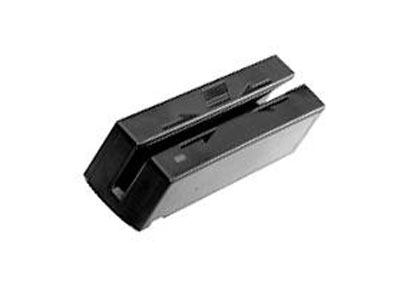

MagTek Mini-Wedge
Compact swipe readers for existing USB and serial applications
MagTek Mini Swipe readers capture magnetic stripe data for compatible desktop and POS applications. Keyboard-emulation models enter data like a keyboard; HID and RS232 models require suitable application software.
Two- and three-track configurations are available in black or white. SureSwipe dual-head variants also read a card with its magnetic stripe facing either side of the slot.
Key Specifications
- Product type / application: Non-encrypting magnetic stripe reader
- Track capacity: Two or three tracks, depending on model
- Supported cards: ISO / ANSI and AAMVA magnetic stripe cards
- Platform / compatibility: Keyboard input or compatible HID / serial software
- Interfaces / connectivity: USB keyboard, USB HID or port-powered RS232
- Power: Host powered; no separate adapter
- Durability / environment: Magnetic head rated to 1 million passes
- Mounting / form factor: Desktop or fixed mounting
- Dimensions: USB models: 100 × 32.5 × 31.3 mm
- Weight: USB models: approximately 127.6 g
- Warranty: 1 year
In the Box
- Mini Swipe / SureSwipe reader
- Selected magnetic stripe reader with its interface cable
Interface, track count, color and single- or dual-head design depend on the part number.
Connection choices
Keyboard emulation, vendor-defined USB HID and RS232 outputs serve different host applications.
Dual-head option
SureSwipe models reduce card-orientation mistakes by reading either stripe-facing direction.
Shop Mini-Wedge Models
21040110
Mini-Wedge Swipe Reader, Color: Black with Tracks 1 & 2, USB Cable, Keyboard Emulation
Tracks:
1 / 2
Color:
Black
Model:
Mini Swipe
Interface:
USB keyboard emulation
21040108
Mini-Wedge Swipe Reader, Color: Black with Tracks 1, 2 & 3, USB Cable, Keyboard Emulation
Tracks:
1 / 2 / 3
Color:
Black
Model:
Mini Swipe
Interface:
USB keyboard emulation
21040145
Mini USB Swipe Reader (Dual Head, USB, Keyboard Emulation and Tracks 1, 2 and 3) - Color: Black
Tracks:
1 / 2 / 3
Color:
Black
Model:
SureSwipe dual-head
Interface:
USB keyboard emulation
21040071
Mini-Wedge Swipe Reader Color: White with Tracks 1 & 2, Port Powered, RS232 Serial Cable
Tracks:
1 / 2
Model:
Mini Swipe
Interface:
RS232
Color:
White
21040109
Mini-Wedge Swipe Reader, Color: Pearl White with Tracks 1 & 2, USB Cable, Keyboard Emulation
Tracks:
1 / 2
Model:
Mini Swipe
Interface:
USB keyboard emulation
Color:
White
21040079
Mini-Wedge Swipe Reader, Color: Black with Tracks 1 & 2, RS232 Serial Cable
Tracks:
1 / 2
Color:
Black
Model:
Mini Swipe
Interface:
RS232
21040082
Mini-Wedge Swipe Reader Color: Black with Tracks 1, 2, & 3, Port Powered, RS232 Serial Cable
Tracks:
1 / 2 / 3
Color:
Black
Model:
Mini Swipe
Interface:
RS232
21040102
Mini-Wedge Swipe Reader, Color: Black with Tracks 1, 2, & 3, HID (Human Interface Device), USB Cable
Tracks:
1 / 2 / 3
Color:
Black
Model:
Mini Swipe
Interface:
USB HID
21040104
Mini-Wedge Swipe Reader, Color: Black with Tracks 1 & 2, USB Cable, USB HID Interface.
Tracks:
1 / 2
Color:
Black
Model:
Mini Swipe
Interface:
USB HID
21040074
Mini-Wedge Swipe Reader Color: White with Tracks 1, 2, & 3, Port Powered, RS232 Serial Cable
Tracks:
1 / 2 / 3
Model:
Mini Swipe
Interface:
RS232
Color:
White
