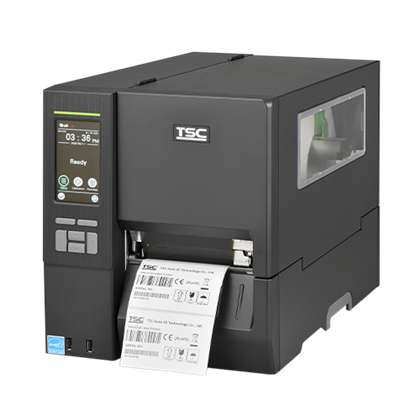

4-inch high-performance industrial printers

Built for demanding, high-volume label workflows

The TSC MH241 Series pairs industrial construction with fast 4-inch printing, a 4.3-inch color touchscreen, and flexible connectivity for manufacturing, warehousing, transportation, and compliance labeling.

Up to 14 ipsFast output on 203 dpi models
203 to 600 dpiChoose speed or very fine detail
4.09-inch widthCommon shipping and product labels
600 m ribbonLong thermal-transfer runs

Choose the right configuration

Model family
Resolution
Top speed
Best fit
MH241T / MH241P
203 dpi
Up to 14 ips
Fast logistics and production labels
MH341T / MH341P
300 dpi
Up to 12 ips
Smaller text, dense barcodes, and compliance graphics
MH641T / MH641P
600 dpi
Up to 6 ips
Ultra-fine text, compact labels, and specialized graphics

Configuration and workflow choices

T and P configurations

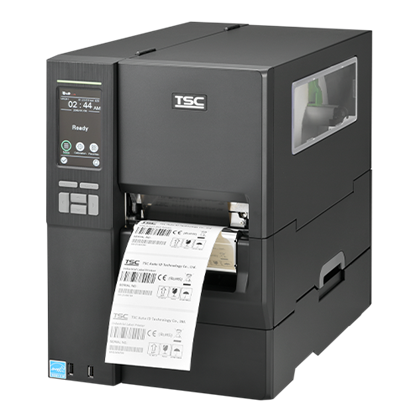

T models cover general industrial work; P models add an internal full-roll rewinder for peel and batch workflows.

Connected operation

USB, serial, Ethernet, and dual USB Host are standard, with wireless and industrial I/O available by configuration.

Flexible media handling

Cutter, peel-off, rewinder, and broad media support adapt the printer to changing industrial applications.

What's in the box

Standard package

  • TSC MH241-series printer
  • Quick installation guide
  • Power cord
  • USB interface cable
Printing Method
Thermal transfer and direct thermal
Resolution
203 dpi (MH241T/MH241P)
300 dpi (MH341T/MH341P)
600 dpi (MH641T/MH641P)
Maximum Print Speed
14 ips at 203 dpi
12 ips at 300 dpi
6 ips at 600 dpi
Maximum Print Width
4.09 inches (104 mm)
Maximum Print Length
1,000 inches at 203 dpi
450 inches at 300 dpi
100 inches at 600 dpi
Media Types
Continuous, die-cut, black mark, fanfold, notch, perforated, tag and care label (outside wound)
Media Width
0.79 to 4.5 inches (20 to 114 mm)
Media Thickness
2.36 to 11 mil (0.06 to 0.28 mm)
Media Roll Capacity
8-inch outside diameter; 1.5- or 3-inch core
Ribbon
Up to 600 m; 1-inch core; 1 to 4.5 inches wide; ink coated inside or outside
Memory
512 MB Flash; 256 MB SDRAM; microSD expansion up to 32 GB
Interfaces
RS-232, USB 2.0, 10/100 Ethernet and two USB Host ports
Optional GPIO/Centronics, MFi Bluetooth 5.0 and 802.11ac Wi-Fi/Bluetooth
Display and Controls
4.3-inch 480 × 272 color resistive touchscreen; six operation buttons; status LED
Sensors
Adjustable gap and black-mark sensors; head-open, ribbon encoder, ribbon-end and media-near-end sensors
Printer Language
TSPL-EZD; compatible with EPL, ZPL, ZPL II and DPL
Dimensions and Weight
T models: 10.87 W × 12.83 H × 19.76 D inches; 34.61 lb
P models: 10.87 W × 16.22 H × 19.76 D inches; 41.73 lb
Power
Internal universal power supply; AC 100–240 V, 50–60 Hz
Operating Environment
32 to 104°F (0 to 40°C), 25–85% non-condensing
Storage: -40 to 140°F (-40 to 60°C), 10–90% non-condensing
Warranty
Printer: 2 years
Printhead: 25 km or 12 months
Platen: 50 km or 12 months
MH241/MH261 Series Data Sheet
Download
MH241 Series User Manual
Download

Shop MH241 Models

MH241T-A001-0301

MH241T industrial label printer, 203 dpi, up to 14 ips, Wi-Fi-ready.

DPI:

203 dpi

Add Ons:

None

$1387.85

MH341P-A001-0301

MH341P industrial label printer, 300 dpi, Wi-Fi-ready, built-in 8-inch rewinder.

DPI:

300 dpi

Add Ons:

Internal rewinder

$2083.59

MH341T-A001-0301

MH341T industrial label printer, 300 dpi, up to 12 ips, Wi-Fi-ready.

DPI:

300 dpi

Add Ons:

None

$1648.48

MH641P-A001-0301

MH641P industrial label printer, 600 dpi, Wi-Fi-ready, built-in 8-inch rewinder.

DPI:

600 dpi

Add Ons:

Internal rewinder

$2866.20

MH641T-A001-0301

MH641T industrial label printer, 600 dpi, up to 6 ips, Wi-Fi-ready.

DPI:

600 dpi

Add Ons:

None

$2431.81

MH241P-A001-0301

MH241P industrial label printer, 203 dpi, Wi-Fi-ready, built-in 8-inch rewinder.

DPI:

203 dpi

Add Ons:

Internal rewinder

$1822.24
