MicroTouch Medical Series
Medical-grade projected-capacitive displays sized for healthcare workstations, carts, instruments and connected equipment.
MicroTouch Medical Series monitors bring familiar multi-touch interaction to clinical and healthcare-facing installations. The active POSGuys range spans standard-format 15- and 17-inch displays plus widescreen 21.5- and 23.8-inch choices.
The family is designed for nursing stations, medical carts, laboratory instruments, equipment interfaces and other environments that need durable commercial touch performance with medical-oriented compliance.
Key Specifications
- Product type / application: Medical-grade desktop PCAP monitors for carts, nursing stations, instruments and connected equipment
- Display / resolution: 15-, 17-, 21.5- or 23.8-inch; 1024 x 768 through 1920 x 1080 by model
- Touch input: Projected capacitive, up to 10 touch points; USB-HID
- Host compatibility: USB-HID touch with VGA, HDMI and DisplayPort on DT-150P-M2, DT-170P-M1/M2, DT-190P-M2 and DT-215P-M2/M3; DT-238P-M1/M2 adds DVI-I, USB 3.0 and audio
- Interfaces / connectivity: VGA, HDMI and DisplayPort on current M2 models
- Power: 60W medical external adapter on DT-150P-M2 through DT-215P-M2/M3; 100-240VAC, 50/60Hz AC input on DT-238P-M1/M2
- Durability / environment: IP65 front on the 15-, 17- and 19-inch models; IP54 front on the 21.5- and 23.8-inch models; IEC 60601 medical compliance and 0°C to 40°C operation
- Mounting / form factor: Integrated desktop stand on DT-150P-M2, DT-170P-M1/M2, DT-190P-M2 and DT-215P-M2/M3; DT-238P-M1/M2 uses 100 x 100 mm VESA with stand sold separately
- Dimensions / weight: 15-inch: 337.0 x 304.2 x 200.9 mm / 4.4 kg; 17-inch: 369.0 x 334.9 x 202.0 mm / 5.3 kg; 19-inch: 416.0 x 379.6 x 219.0 mm / 6.7 kg; 21.5-inch: 517.4 x 351.7 x 219.0 mm / 7.8 kg; 23.8-inch: 566.58 x 338.52 x 58 mm / 5.8 kg
- Warranty: 3 years
In the Box
- DT-150P-M2 / DT-170P-M1/M2 / DT-190P-M2 / DT-215P-M2/M3: LCD touch monitor, stand, power cord, DC power supply, HDMI cable, VGA cable, USB A-to-B cable, M3 screw and I/O cover
- DT-238P-M1/M2: LCD touch monitor, power cord, DisplayPort cable, DVI-to-VGA cable, HDMI cable, USB 3.0 A-to-B cable and audio cable; stand sold separately
Choose the right format
Standard or widescreen layouts
Use a 15- or 17-inch standard-format model where existing medical equipment or application layouts favor 4:3 or 5:4 screens. Choose a Full HD 21.5- or 23.8-inch model when the workflow benefits from a wider canvas.
Built for clinical workflows
Responsive touch without consumer-display compromises
Ten-point PCAP touch supports familiar gestures while protected front surfaces and medical-oriented compliance help fit the monitors into demanding healthcare installations.
Shop Medical Series Models
DT-170P-M2
MicroTouch DT-170P-M2 17" medical-grade PCAP desktop touch monitor, 1280 x 1024, anti-glare, VGA, HDMI and DisplayPort, USB touch; stand included
Resolution:
1280 x 1024
Screen Size:
17"
Stand Included:
Stand Included

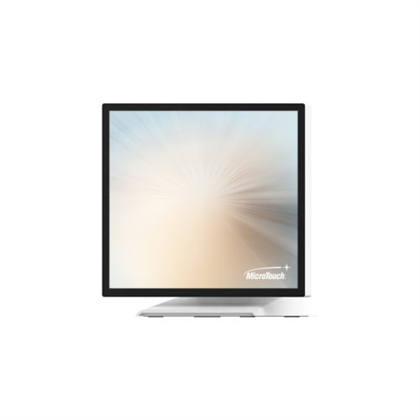

DT-190P-M2
MicroTouch DT-190P-M2 19" medical-grade PCAP desktop touch monitor, 1280 x 1024, anti-glare, VGA, HDMI and DisplayPort, USB touch; stand included
Resolution:
1280 x 1024
Screen Size:
19"
Stand Included:
Stand Included

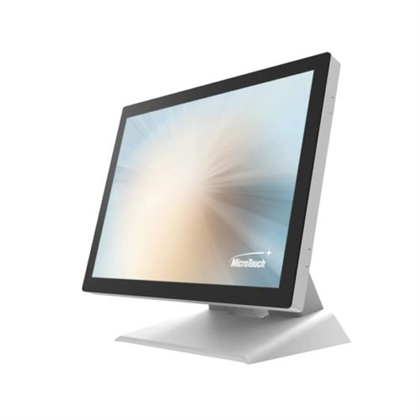

DT-150P-M2
MicroTouch DT-150P-M2 15" medical-grade PCAP desktop touch monitor, 1024 x 768, anti-glare, VGA, HDMI and DisplayPort, USB touch; stand included
Resolution:
1024 x 768
Screen Size:
15"
Stand Included:
Stand Included

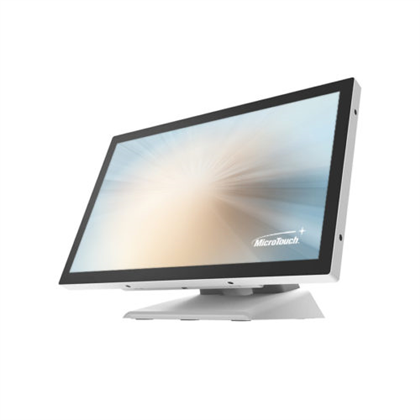

DT-215P-M3
MicroTouch DT-215P-M3 21.5" medical-grade PCAP desktop touch monitor, 1920 x 1080, anti-glare, VGA, HDMI and DisplayPort, USB touch; stand included
Resolution:
1920 x 1080
Screen Size:
21.5"
Stand Included:
Stand Included
DT-238P-M2
MicroTouch DT-238P-M2 23.8" medical-grade PCAP touch monitor, 1920 x 1080, anti-glare and anti-fingerprint, DVI-I, HDMI and DisplayPort, USB touch; stand sold separately
Resolution:
1920 x 1080
Screen Size:
23.8"
Stand Included:
Stand Sold Separately
Shop Medical Series Accessories
MS-240-A1
24" Tilting Medical Stand, VESA 100x100 & 75x75
MS-170-A1
15 & 17" Tilting Medical Stand, VESA 100x100
MS-215-A1
19" & 22" Tilting Medical Stand, VESA 100x100
