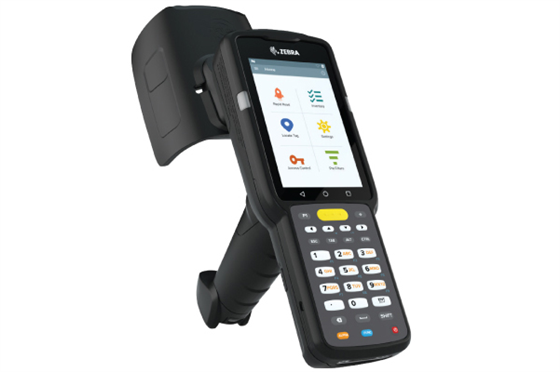

Zebra MC3390xR
Best-in-class long-range RFID reading with a powerful, enterprise-ready Android platform
The Zebra MC3390xR combines long-range UHF/RAIN RFID, enterprise barcode scanning and Android computing in one purpose-built handheld. Its integrated linear-polarized antenna reaches tags up to 95 ft. away, helping workers complete inventory counts, order fulfillment, cross-docking and item-location tasks with fewer steps and fewer devices.
A large touchscreen, three keypad choices and an ergonomic gun-style design support both modern touch applications and familiar key-based workflows. Zebra adds a 2.2 GHz octa-core processor, a 7,000 mAh battery, Wi-Fi, Bluetooth, NFC and rugged construction for demanding warehouse, manufacturing and transportation environments.
The Zebra MC3390xR brings long-range RFID capture to industrial workflows.
Key Specifications
- Integrated UHF/RAIN RFID with 900+ tags/sec read rate and nominal read range up to 95 ft./29 m
- SE4770 standard-range or SE4850 extended-range 1D/2D imager; extended-range scanning from 3 in. to 70 ft.
- 4-inch WVGA 800 x 480 color touchscreen with Corning Gorilla Glass
- Qualcomm Snapdragon 660 octa-core 2.2 GHz processor with 4 GB RAM/32 GB Flash; upgradeable to Android 14

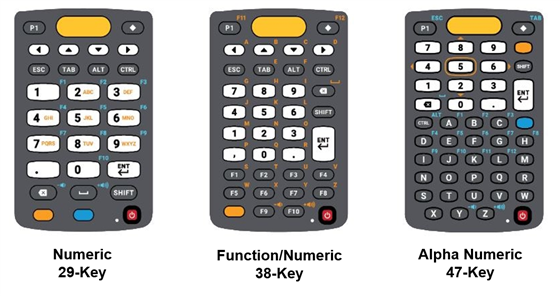

- Numeric 29-key, function-numeric 38-key and alphanumeric 47-key keypad options
- Wi-Fi 5, Bluetooth 5.0, integrated NFC, USB 2.0 and microSD support up to 512 GB
- 7,000 mAh removable PowerPrecision+ battery with hot-swap support and full charge in under five hours
- IP54 sealing, multiple 5 ft./1.5 m drops to concrete and 1,000 tumbles at 1.6 ft./0.5 m
In the Box
- MC3390xR mobile computer
- Rechargeable 7,000 mAh PowerPrecision+ lithium-ion battery
- Regulatory Guide
Configuration note: Charging cradles, cables, power supplies and other applicable accessories are sold separately unless the selected option explicitly states they are included.
Long-Range RFID Performance
Count and locate inventory faster
The integrated Zebra RFID engine reads more than 900 tags per second at a nominal distance of up to 95 feet. Item Finder uses audible and visual feedback to guide a worker toward a specific tagged item, while the built-in antenna keeps the reader balanced and ready for one-handed use.
One device for RFID and barcodes
Workers can capture UHF RFID tags and 1D/2D barcodes without switching devices. The SE4770 handles standard-range work, while the SE4850 reaches labels from about three inches to as far as 70 feet for high racks, yards and loading areas.
Flexible Data Entry
Touch and keypad input together
Applications can use the full 4-inch touchscreen while workers retain physical keys for fast, familiar data entry. Choose 29-key numeric, 38-key function-numeric or 47-key alphanumeric layouts to match the workflow.
Capture more with fewer scans
Zebra data-capture tools can collect multiple barcodes on one or more labels with a single trigger press, reducing repetitive scanning and helping standardize receiving, picking and shipping tasks.
Enterprise Android Platform
Performance for demanding applications
The Snapdragon 660 octa-core processor, 4 GB of RAM and 32 GB of Flash provide a stable platform for RFID, warehouse and line-of-business applications. The operating system is upgradeable through Android 14.
Wireless connections for the workday
Wi-Fi 5 supports enterprise wireless networks, Bluetooth 5.0 connects peripherals and headsets, and integrated NFC enables tap-to-pair and tap-to-authenticate workflows.
Power and Ruggedness
A 7,000 mAh battery is standard
The removable PowerPrecision+ battery is designed for long shifts and supports hot swapping with temporary Wi-Fi and Bluetooth session persistence. Battery health metrics help teams identify aging packs before they interrupt work.
Built for semi-industrial environments
IP54 sealing protects against dust and splashing liquid, while the housing is rated for repeated 5-foot drops and 1,000 tumbles. Gorilla Glass protects both the touch panel and imager window.
Ergonomics and Fleet Deployment
Lightweight, balanced handling
The streamlined gun-style design is made for one-handed use by right- or left-handed workers. High-visibility LEDs on both sides make status and task confirmation easier to see in noisy facilities.
A practical upgrade path
Many MC3200, MC3300 and MC3300R accessories remain compatible, and Zebra Mobility DNA tools can simplify staging, security and management. POSGuys can also pair the reader with TagMatiks Wedge for supported RFID-to-application workflows.
Common Applications
Warehouse and distribution
Use the MC3390xR for cycle counting, replenishment, receiving, shrink control, item locating, omnichannel fulfillment and cross-docking.
Manufacturing and transportation
The long RFID range and extended-range barcode option support work-in-process tracking, parts inventory, finished-goods control, yard operations and shipping.
Shop MC3390xR Models
MC339U-GF4EG4FT
MC3390xR UHF RFID Mobile Computer, Linear Antenna, 802.11 a/b/g/n/ac, SE4750MR 2D Imager, 47 Key, Extended Capacity Battery, GMS, 4GB RAM / 32GB ROM, US, FIPS, TAA Compliant
Key Layout:
Alpha Numeric 47-Key
Government Standards:
FIPS & TAA Compliant
Scan Engine:
Mid Range - SE4750
MC339U-GF3EG4FT
MC3390xR UHF RFID Mobile Computer, Linear Antenna, 802.11 a/b/g/n/ac, SE4750MR 2D Imager, 38 Key, Extended Capacity Battery, GMS, 4GB RAM / 32GB ROM, US, FIPS, TAA Compliant
Government Standards:
FIPS & TAA Compliant
Key Layout:
Function/Numeric 38-Key
Scan Engine:
Mid Range - SE4750
MC339U-GE4EG4US
MC3390xR UHF RFID Mobile Computer, Linear Antenna, 802.11 a/b/g/n/ac, SE4850 Extended Range 2D Imager, 47 Key, Extended Capacity Battery, GMS, 4GB RAM / 32GB ROM, FCC Bands
Key Layout:
Alpha Numeric 47-Key
Scan Engine:
Extended Range - SE4850
Government Standards:
FCC Bands
MC339U-GF2EG4FT
MC3390xR UHF RFID Mobile Computer, Linear Antenna, 802.11 a/b/g/n/ac, SE4750MR 2D Imager, 29 Key, Extended Capacity Battery, GMS, 4GB RAM / 32GB ROM, US, FIPS, TAA Compliant
Government Standards:
FIPS & TAA Compliant
Scan Engine:
Mid Range - SE4750
Key Layout:
Numeric 29-Key
MC339U-GE4EG4FT
MC3390xR UHF RFID Mobile Computer, Linear Antenna, 802.11 a/b/g/n/ac, SE4850 Extended Range 2D Imager, 47 Key, Extended Capacity Battery, GMS, 4GB RAM / 32GB ROM, US, FIPS, TAA Compliant
Key Layout:
Alpha Numeric 47-Key
Scan Engine:
Extended Range - SE4850
Government Standards:
FIPS & TAA Compliant
MC339U-GE2EG4FT
MC3390xR UHF RFID Mobile Computer, Linear Antenna, 802.11 a/b/g/n/ac, SE4850 Extended Range 2D Imager, 29 Key, Extended Capacity Battery, GMS, 4GB RAM / 32GB ROM, US, FIPS, TAA Compliant
Scan Engine:
Extended Range - SE4850
Government Standards:
FIPS & TAA Compliant
Key Layout:
Numeric 29-Key
MC339U-GE3EG4FT
MC3390xR UHF RFID Mobile Computer, Linear Antenna, 802.11 a/b/g/n/ac, SE4850 Extended Range 2D Imager, 38 Key, Extended Capacity Battery, GMS, 4GB RAM / 32GB ROM, US, FIPS, TAA Compliant
Scan Engine:
Extended Range - SE4850
Government Standards:
FIPS & TAA Compliant
Key Layout:
Function/Numeric 38-Key
MC339U-GE3EG4US
MC3390xR UHF RFID Mobile Computer, Linear Antenna, 802.11 a/b/g/n/ac, SE4850 Extended Range 2D Imager, 38 Key, Extended Capacity Battery, GMS, 4GB RAM / 32GB ROM, FCC Bands
Scan Engine:
Extended Range - SE4850
Government Standards:
FCC Bands
Key Layout:
Function/Numeric 38-Key
MC339U-GE2EG4US
MC3390xR UHF RFID Mobile Computer, Linear Antenna, 802.11 a/b/g/n/ac, SE4850 Extended Range 2D Imager, 29 Key, Extended Capacity Battery, GMS, 4GB RAM / 32GB ROM, FCC Bands
Scan Engine:
Extended Range - SE4850
Government Standards:
FCC Bands
Key Layout:
Numeric 29-Key
MC339U-GF2EG4US
MC3390XR UHF RFID GUN, LINEAR ANTENNA, 802.11 A/B/G/N/AC, SE4750MR 2D IMAGER, 29 KEY, EXTENDED CAPACITY BATTERY, GMS, 4GB RAM / 32GB ROM, FCC BANDS
Government Standards:
FCC Bands
Scan Engine:
Mid Range - SE4750
Key Layout:
Numeric 29-Key
MC339U-GF4EG4US
MC3390XR UHF RFID GUN, LINEAR ANTENNA, 802.11 A/B/G/N/AC, SE4750MR 2D IMAGER, 47 KEY, EXTENDED CAPACITY BATTERY, GMS, 4GB RAM / 32GB ROM, FCC BANDS
Key Layout:
Alpha Numeric 47-Key
Government Standards:
FCC Bands
Scan Engine:
Mid Range - SE4750
Shop MC3390xR Accessories
CRD-MC33-2SUCHG-01
Single Slot Charge/Communication Cradle for Zebra MC3300 Mobile Computers. Includes Charge Slot For Single Battery. Requires Power Cable Accessories (ZBR-CRADLE-POWER-KIT). If Connecting to a PC, USB Cable (25-124330-01R) is Required.
ZBR-CRADLE-POWER-KIT
Power Supply Kit For Zebra Presentation Cradle and Mobile Computers (Three Piece). Includes Power Supply (PWR-BGA12V50W0WW), Line Cord (23844-00-00R), and DC Line Cord (CBL-DC-388A1-01). For Presentation Cradle or Zebra Mobile Computers Only.
CBL-MC33-USBCHG-01
USB Communication/Charging Cable for Zebra MC3300 Mobile Computer. 60" Cable. Order Wall Adapter Separately (PWR-WUA5V12W0US). Allows for USB communication to the device when connected to a PC.
Z1AE-MC33XX-3C00
3 Year Comprehensive Coverage for Zebra MC3300 Mobile Computer. Includes Accidental Damage and Issues Caused By Wear & Tear. 3 Business Day Repair Depot Turnaround. Can Be Added Up to 30 Days After Product Purchase.
PG-TM-WEDGEA
TagMatiks Wedge Android License: Simplifies RFID inventory data collection with configurable tag filtering, supporting all-in-one handhelds and iOS/Android devices with an RFID sled.
CRD-MC33-4SC4BC-01
4-Slot charge only cradle with 4-Slot spare battery charger, charges up to 4 devices and up to 4 spare batteries on the same cradle. Cradles Require: Power supply PWR-BGA12V108W0WW, DC cord CBL-DC381A1-01 and country specific 3 wire AC line cord.
SAC-MC33-4SCHG-01
MC33, 4 Slot Spare Battery Charger. Requires: Level VI Power Supply PWR-BGA12V50W0WW, DC LINE CORD CBL-DC-388A1-01 AND COUNTRY SPECIFIC 3 WIRE AC LINE CORD.
CRD-MC33-4SE4BC-01
MC33, 4 Slot Ethernet Sharecradle with 4 Slot Battery Charger. Requires: Level VI Power Supply PWR-BGA12V108W0WW, DC CORD CBL-DC-381A1-01 AND COUNTRY SPECIFIC 3 WIRE AC LINE CORD.
CRD-MC33-5SCHG-01
MC33, 5 Slot Charge Only Sharecradle. Requires: Level VI Power Supply PWR-BGA12V108W0WW, DC CORD CBL-DC-381A1-01 and Country Specific 3 Wire AC Line Cord
CRD-MC33-5SETH-01
MC33, 5 Slot Ethernet Sharecradle. Requires: Level VI Power Supply PWR-BGA12V108W0WW, DC CORD CBL-DC-381A1-01 AND COUNTRY SPECIFIC 3 WIRE AC LINE CORD.
SAC-MC33-20SCHG-01
MC33, 20 Slot Spare Battery Charger. Requires: Level VI Power Supply PWR-BGA12V108W0WW, DC CORD CBL-DC-381A1-01 and Country Specific 3 Wire AC Line Cord.
25-124330-01R
Cradle to USB cable. Single slot cradle to PC/host USB cable.
SG-MC3021212-01R
Fabric holster, secures to a belt or a shoulder strap. Allows to carry the gun device on the hip or crossbody. Requires belt or shoulder strap ordered separately.
SG-MC33-HDSTPG-01
MC33, Handstrap For Gun Terminal
SG-TC7X-STYLUS-03
Stylus with coiled tether (Qty. 3). Made of conductive carbon-filled plastic material, optimized for enterprise durability.
PWR-WUA5V12W0US
Power Supply Brick, US Plug, For Zebra Mobile Computers, Requires CBL-TC5X-USBC2A-01.
PWR-BGA12V108W0WW
Cable, Level VI AC/DC Power Supply Brick. AC Input: 100-240V, 2.8A. DC Output: 12V, 9A, 108W. Requires: DC line cord and Country specific grounded AC line cord.
CBL-DC-381A1-01
Cable, DC PWR CRD, 4 or 5 Slot Cradle
23844-00-00R
7.5ft. AC Line Cord, For Use with PWRS-14000-148R and PWR-BGA12V50W0WW
BRKT-SCRD-SMRK-01
Rack/Wall bracket, allows to install any Multi-Slot sharecradle on a wall or a 19inch IT rack and provides a holder for pwrs and cords. It also allows to install up to four spare battery chargers. Includes screws required for installation
MISC-MC33-SCRN-01
MC33, Tempered Glass Screen Protector - 5 Pack.
BTRY-MC33-52MA-01
MC33, Battery Pack,Lithium Ion,PP+ MC3300 HIGH CAPACITY BATTERY QTY-1 (Batteries must be shipped via ground shipping)
BTRY-MC33-70MA-01
Battery Pack, Lithium Ion, PP+ BLE Enabled, MC33XX Series Extended Capacity Battery. Single Pack.
