Star Micronics mC-Label2

Name: Star Micronics mC-Label2
Brand: Star Micronics
Price: 528.38 USD
Availability: InStock

Images may not reflect the actual product

Compact 2-inch label and receipt printing with 300 dpi detail.

The Star Micronics mC-Label2 is a front-loading, front-exit direct-thermal printer for labels, linerless media, receipts, and continuous rolls. Its compact footprint, 300 dpi resolution, and adjustable 25 mm to 60 mm media path fit foodservice, retail, healthcare, and other small-format labeling workflows.

Choose an all-media cutter model for linerless, die-cut, continuous, and receipt stock, or an LBL tear-bar model for die-cut labels and receipts. Wired Ci models provide USB-C, USB-A, and Ethernet connectivity, while CWBi X4 models add Wi-Fi and Bluetooth for more flexible countertop placement.

Key Specifications

Print Method: Direct thermal label and receipt printing
Print Speed: Up to 180 mm per second
Paper Widths: 25 mm to 60 mm
Resolution: 300 dpi
Interfaces / Connectivity: USB-C, USB-A, and Ethernet on all current models, plus Wi-Fi and Bluetooth on CWBi X4 models
Cutter and Reliability: Cutter models support full and partial guillotine cutting; LBL models use a tear bar for die-cut labels and receipts
Platform Support: iOS, Android, Windows, macOS, Linux, CloudPRNT Next, StarIO.Online, and Star Micronics Cloud Services
Dimensions and Weight: 98 x 185 x 145.5 mm and approximately 1.6 kg
Warranty: 2-year limited manufacturer warranty in the US and Canada

In the Box

mC-Label2 printer
Power supply
AC cable
USB-A to USB-C cable
Easy Setup Guide
Safety Guide

Cutter, tear-bar, Wi-Fi, and Bluetooth features depend on the selected configuration. Media compatibility also varies by all-media cutter versus LBL tear-bar models.

Flexible Media by Model

Choose the right cut and media path for the job

Current MCL21 cutter models support removable linerless, permanent linerless, die-cut, continuous, and receipt media. Current MCL21 LBL models are the tighter-fit choice for die-cut labels and thermal receipts, using a tear bar instead of the full cutter assembly.

Connected for Modern Labeling

USB-C, Ethernet, Wi-Fi, and Bluetooth where needed

All current configurations support Star's cloud and tablet-friendly workflows with USB-C power delivery support, Ethernet, CloudPRNT Next, and SteadyLAN. CWBi X4 models add Wi-Fi and Bluetooth for tablet-based counters and mobile-friendly labeling stations.

Front-Access Serviceability

Built for quick media changes and guided maintenance

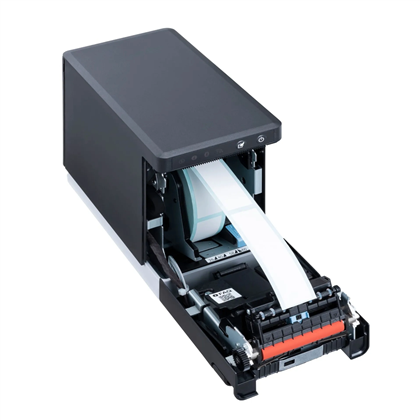

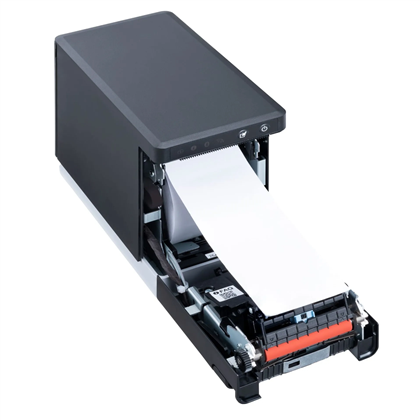

Front loading and front exit help the mC-Label2 fit under counters and against walls while keeping media swaps easy. Tool-free replacement parts, color-coded service points, maintenance alerts, and QR-linked guidance help reduce downtime in busier labeling environments.

Cloud and One-Touch Labeling

Stored templates and remote management support

One Touch Label lets users store and print up to three static labels directly from the printer, while StarIO.Online and Star Micronics Cloud Services support centralized template control and cloud-connected workflows across multi-station deployments.

Star Micronics compatible mC-Label2 label media

Star Micronics Media

Looking for Compatible Labels or Receipt Paper?

Labels: Choose die-cut media for every current model. Use linerless or continuous label rolls only with compatible cutter configurations.

Receipt paper: Choose direct-thermal receipt rolls sized for the mC-Label2's 25 mm to 60 mm media path. Cutter and LBL tear-bar configurations both support receipts.

Need help matching media to your exact configuration? Call our POS specialists at 800-903-6571.

Shop Compatible Star Labels →Shop Compatible Star Receipt Paper →

Printer Method

Direct Thermal

Print Resolution

300 dpi (11.8 dots/mm)

Print Speed

Up to 180 mm/sec

Paper Width

25 mm – 60 mm

Print Width

15 mm – 56.9 mm

Roll Diameter

Max. φ102mm

Paper Thickness

53 – 154μm (Varies depending on paper type)

Media Types Supported

MCL21 Models: Linerless labels (sticky/permanent), Die-cut, Continuous, Thermal receipt

MCL21 LBL Models: Die-cut labels, Thermal receipt

Top Margin

3 mm (default), 11 mm supported

Cut Method

MCL21 Models: Full and partial guillotine cut

MCL21 LBL Models: Tear bar

Interfaces

MCL21Ci / MCL21Ci LBL: USB-C, USB-A, LAN

MCL21CWBi X4 / MCL21CWBi LBL X4: USB-C, USB-A, LAN, WLAN, Bluetooth (MFi-certified)

Emulation

StarPRNT

Flexible Connection

StarXpand SDK, StarPRNT SDK, Star PassPRNT™, CloudPRNT™, CloudPRNT Next, Various drivers, Star Quick Setup Utility®, SteadyLAN

System Compatibility

All major operating systems: iOS (MFi on Bluetooth models), macOS, Android, Windows, Linux

Cloud Compatibility

CloudPRNT Next, CloudPRNT, StarIO.Online, Star Micronics Cloud Services, Label Builder

One Touch Label

Store and print up to 3 static label designs offline

Paper Loading

Front loading and drop in

Paper Exit

Front exit

Sensors

MCL21 Models: Cover open, paper end, GAP/black mark, hold print (taken), paper jam, cutter home position

MCL21 LBL Models: Cover open, paper end, GAP/black mark

Dimensions

98 x 185 x 145.5 mm (W x D x H)

Weight

Approx. 1.6 kg (main unit only)

Ingress Protection Rating

IP22

Included Accessories

Power supply, AC cable, USB cable (A to C), easy setup guide, safety guide

AC Adapter

PS65AT-24A

Model Variants

MCL21 Models (all-media): MCL21Ci, MCL21CWBI

MCL21 LBL Models (die-cut & receipt only): MCL21Ci LBL, MCL21CWBI LBL

Operating Temperature

5°C to 45°C

Humidity Range

10% to 90% RH (non-condensing)

Options

Replacement Parts: 2in1(Cutter & Platen), Cutter Unit, Platen Roll Unit

Peripherals: Star Barcode Scanners, Wireless LAN Unit (MCW10), mC-Sound (MCS10), BU01-24-A Ticket Alarm/Buzzer

Warranty

2-Year Limited Manufacturer Warranty (US & Canada)

Shop mC-Label2 Models

39653410

mC-Label2 Label and Linerless Label Printer, Black, USB-C, Ethernet, Cutter, External Power Supply Included

Cut / Media Configuration:

Cutter; die-cut, receipt, linerless, continuous

Media Type:

Label and Linerless Label, Receipt

Connectivity:

USB-C, Ethernet

Interface:

USB-C, Ethernet

$616.39

39653510

mC-Label2 LBL Barcode Label Printer, Black, USB-C, Ethernet, Tear Bar, External Power Supply Included

Media Type:

Label, Receipt

Cut / Media Configuration:

Tear bar; die-cut, receipt

Interface:

USB-C, Ethernet

Connectivity:

USB-C, Ethernet

$528.38

39653810

mC-Label2 X4 LBL Barcode Label Printer, Black, USB-C, Ethernet, Wi-Fi, Bluetooth, Tear Bar, External Power Supply Included

Media Type:

Label, Receipt

Interface:

USB-C, Ethernet, WLAN, Bluetooth(MFI)

$608.96

39653611

mC-Label2 X4 Label and Linerless Label Printer, Black, USB-C, Ethernet, Wi-Fi, Bluetooth, Cutter, External Power Supply Included

Cut / Media Configuration:

Cutter; die-cut, receipt, linerless, continuous

Connectivity:

USB-C, Ethernet, Wi-Fi, Bluetooth

$657.13

39653811

mC-Label2 X4 LBL Barcode Label Printer, Black, USB-C, Ethernet, Wi-Fi, Bluetooth, Tear Bar, External Power Supply Included

Cut / Media Configuration:

Tear bar; die-cut, receipt

Connectivity:

USB-C, Ethernet, Wi-Fi, Bluetooth

$623.59

Shop mC-Label2 Accessories

XWP-T220PF-10-ADD

Phenol-Free Thermal Receipt Paper, 3.125 Inches by 220 Feet, 10-Roll Pack; Introductory Pack Price, Ground Shipping Only

$45.00

37951600

Label, Die-Cut, Star Blue Eco, mC-Label2, mC-Label3: 35 mm Width, 1.25 x 1.00 inch, 1,700 Labels per Roll, 100 mm Diameter, 25 mm Core, 12 Rolls/Case

$201.46

37951610

Label, Die-Cut, Star Blue Eco, mC-Label2, mC-Label3: 54 mm Width, 1.875 x 0.4375 inch, Double Barbell, 2,100 Labels per Roll, 100 mm Diameter, 25 mm Core, 12 Rolls/Case

$170.30

37951580

Label, Die-Cut, Star Blue, mC-Label3: 58 mm Width, 2.125 x 1.00 inch, 1,700 Labels per Roll, 100 mm Diameter, 25 mm Core, 12 Rolls/Case

$151.47

37951910

Label, Linerless Removable, Star Blue Eco, mC-Label3: 40 mm Width, 270 ft Length, 101 mm Diameter, 25 mm Core, Diamond Coverage, 24 Rolls/Case

$220.75

37951920

Label, Linerless Removable, Star Blue Eco, mC-Label3: 40 mm Width, 270 ft Length, 101 mm Diameter, 25 mm Core, Full Coverage, 24 Rolls/Case

$251.77

37951930

Label, Linerless Removable, Star Blue Eco, mC-Label3: 58 mm Width, 270 ft Length, 101 mm Diameter, 25 mm Core, Diamond Coverage, 16 Rolls/Case

$206.77

37951940

Label, Linerless Removable, Star Blue Eco, mC-Label3: 58 mm Width, 270 ft Length, 101 mm Diameter, 25 mm Core, Full Coverage, 16 Rolls/Case

$234.68

37951580

Label, Die-Cut, Star Blue Eco, mC-Label2, mC-Label3: 58 mm Width, 2.125 x 1.00 inch, 1,700 Labels per Roll, 100 mm Diameter, 25 mm Core, 12 Rolls/Case

$180.82

37951860

Label, Continuous, Star Blue Eco, mC-Label2, mC-Label3: 40 mm Roll Width, 165 ft Length, 102 mm Diameter, 25 mm Core, Exposed Liner, 12 Rolls/Case

$219.46

37951870

Label, Continuous, Star Blue Eco, mC-Label2, mC-Label3: 58 mm Roll Width, 165 ft Length, 102 mm Diameter, 25 mm Core, Exposed Liner, 12 Rolls/Case

$247.03

37966930

Extends standard warranty to total of three (3) years. Valid in US / CA / Latin America. See terms & conditions for details.

$79.00

37966940

Extends standard warranty to total of four (4) years. Valid in US / CA / Latin America. See terms & conditions for details.

$102.00

37967110

Adds next business day shipment via 2nd day air to standard two (2) year warranty. Valid in contiguous US only. See terms & conditions for details.

$117.00

37967120

3-Year Swap-A-Star Enhanced Warranty for Star Micronics mC-Label2 and mPOP products. Extends the standard warranty to 3 years and provides next-business-day shipment via 2nd Day Air. Valid in the contiguous US. See terms and conditions for details.

$141.00
