Star Micronics mC-Connect Drawer
Description
Specifications
Download

Star Micronics mC-Connect Drawer

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5

Open cash drawers directly from modern POS systems.

The Star Micronics mC-Connect Drawer controls printer-driven cash drawers without a receipt printer. USB-C, Ethernet, Wi-Fi, and Bluetooth Low Energy connect it to supported fixed-counter and mobile POS applications.

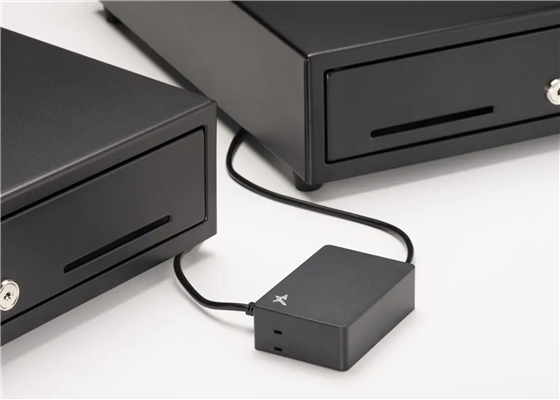

Two ports provide independent control of two drawers. Optional dual-drawer cables expand capacity to four, while the compact magnetic enclosure keeps installation tidy.

Key Specifications

  • Product Type: Cash drawer controller
  • Capacity: 2 drawers; up to 4 with optional cables
  • Drawer Connections: 2 RJ-12 DK ports
  • Software Compatibility: StarPRNT; StarXpand SDK
  • Connectivity: USB-C, Ethernet, 2.4 GHz WLAN, Bluetooth LE 5.0
  • Power: USB-C; 5 V / 0.5 A
  • Reliability: MTBF over 360,000 hours

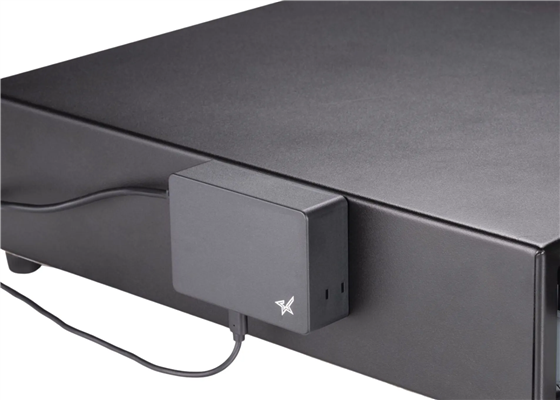

  • Installation: Compact enclosure with magnetic mount
  • Dimensions / Weight: 98 × 67 × 31 mm; 105 g
  • Warranty: 1 year

In the Box

  • mC-Connect Drawer controller
  • 1.8 m USB-A to USB-C cable
  • Easy Setup Guide
  • Safety Guide

Cash drawers and expansion cables are available separately. Network and wireless operation require USB power; a power adapter is not included.

Flexible Drawer Control

Support shared and independent tills

Multiple compatible POS devices can open one shared cash drawer, while separate ports support independent tills. Drawer-status monitoring shows activity, and smart power and command handling helps prevent failed drawer opens.

Simple Setup and Integration

Star tools for connected POS systems

Star Quick Setup Utility and Star Windows Software simplify configuration, while StarXpand SDK supports application integration. The online manual covers setup, including WPA3 Personal and Bluetooth Secure Connections for supported wireless links.

Model
MCD10UEWB BK

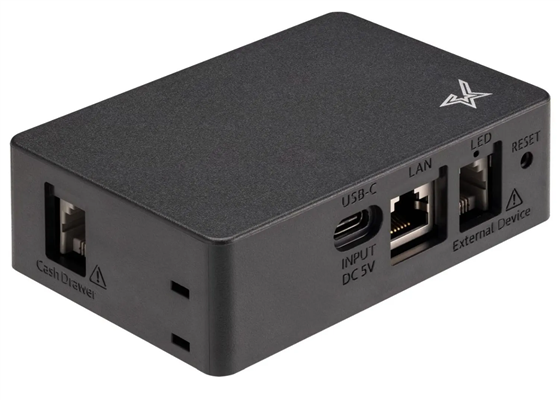

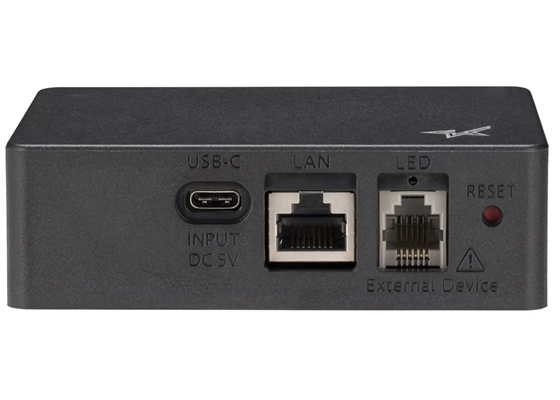

Interfaces
USB-C x 1 (also used for power); Ethernet x 1; 2.4 GHz IEEE 802.11b/g/n wireless LAN; Bluetooth Low Energy 5.0
Cash Drawer Ports
Two RJ-12 (DK) ports for two cash drawers; supports up to four with optional DK-S12YE12Y-DDSC-72 dual-drawer secure cables
Power Input
DC 5 V, 0.5 A via USB-C; USB power is required for wireless LAN and Bluetooth communication. Power adapter not included.
Dimensions
98 x 67 x 31 mm (W x D x H)
Weight
Approximately 105 g
Operating Environment
0°C to 45°C; 10% to 90% RH, non-condensing
Wireless Security
WPA3 Personal; Bluetooth Low Energy 5.0 Secure Connections
Supported Software
Star Quick Setup Utility, Star Windows Software, StarXpand SDK
Included Accessories
1.8 m USB-A to USB-C cable, Easy Setup Guide, Safety Guide
Color
Black
Emulation
StarPRNT
Optional Ticket Alarm
BU01-24-A
MTBF
More than 360,000 hours
Specification Sheet
Download
Star Windows Software 3.11.0
Download
mC-Connect Drawer Windows Setup Manual
Download
Star Windows Software Installation Manual
Download
OPOS Drawer Application Development Guide
Download

Shop mC-Connect Drawer Models

39700000

mC-Connect Drawer Cash Drawer Controller, USB-C, Ethernet, WLAN, Bluetooth Low Energy, Two DK Ports for 2 Drawers (Up to 4 with Optional Cables), USB Cable Included, USB-C Powered

$167.08

Shop mC-Connect Drawer Accessories

37969680

Dual-Drawer Secure Cable, Two Star CD3/CD4/CD5 Max Drawers to Star/Epson Printer or mC-Connect Controller, 72 in., Black

$32.27

39594002

BU01-24-A Ticket Alarm, for Compatible Star Printers and mC-Connect Drawer Controller

$50.00
