DataLogic Magellan 9550i

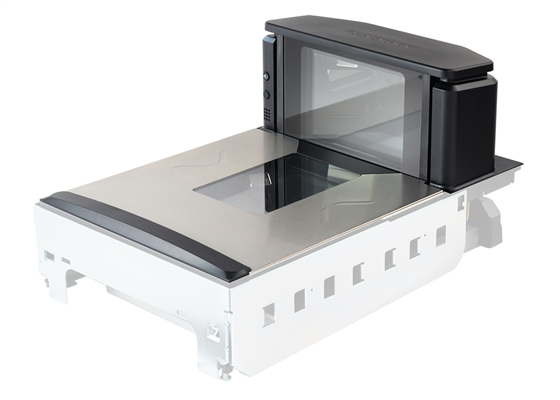

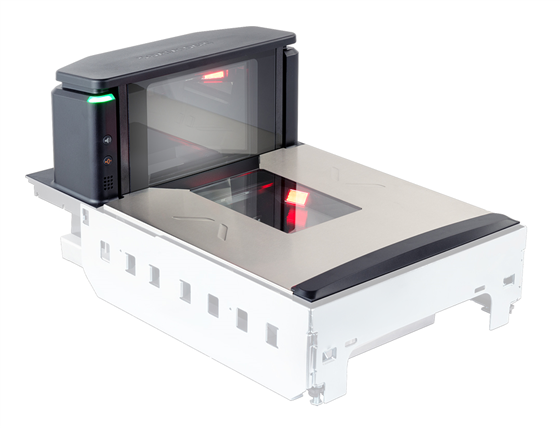

Name: DataLogic Magellan 9550i
Brand: DataLogic
Price: 971.73 USD
Availability: InStock

Images may not reflect the actual product

Fast bi-optic scanning with low power consumption

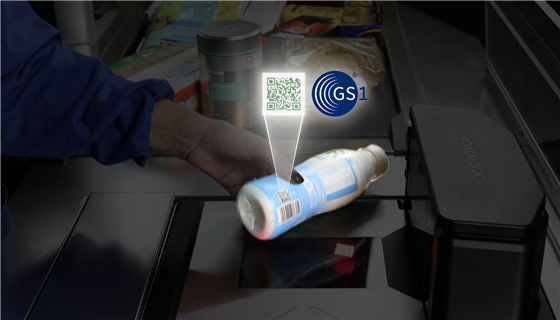

The Datalogic Magellan 9550i reads retail 1D and 2D barcodes, including GS1 Digital Link codes, through horizontal and vertical windows. Its familiar in-counter form factor supports existing checkout techniques, with scanner-only, adaptive-scale-ready and integrated scanner/scale configurations.

Key Specifications

Scanner configuration: Corded bi-optic scanner or scanner/scale
Barcode capability: 1D, 2D, stacked and GS1 Digital Link codes
Reading range: Five-sided bi-optic scan zone
Interfaces / connectivity: USB and RS-232
Durability: Fixed in-counter, spill-resistant design
Environmental sealing: IP5X optics cavity
Dimensions: 29.2 cm wide; 12.9 cm above counter
Weight: 6–8 kg*
Scale capacity: Up to 15 kg / 30 lb on scale models
Warranty: 1 year

*Weight varies by configuration. Short shelf: 35.2 cm long; medium shelf: 39.9 cm; long flange: 50.7 cm. Below-counter depth: 10.4 cm. IP5X applies to the optics cavity.

In the Box

Magellan 9550i with the selected platter, produce rail and mounting style
USB or RS-232 cable only when specified by the selected model
Power supply and regional cord only on packages that list them; USB POT kits require a compatible powered USB host
Scale display or color camera only on configurations explicitly marked with those features

Scanner-only and adaptive-scale-ready models do not include an integrated scale. Power and interface cables are sold separately on cableless configurations. Model 957011001-00512 includes an Italy/Chile power cord. Images and video may show optional equipment.

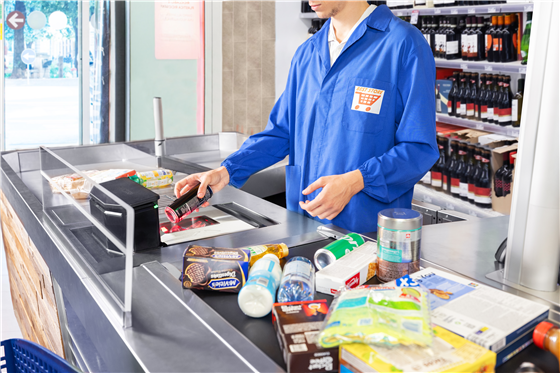

Faster barcode reading, lower energy use

Datalogic testing found 2D reading 45% faster than the Magellan 9400i. Eco mode reduces nominal operating power to 2.6 W, helping busy checkout lanes save energy while reading printed and mobile-screen codes.

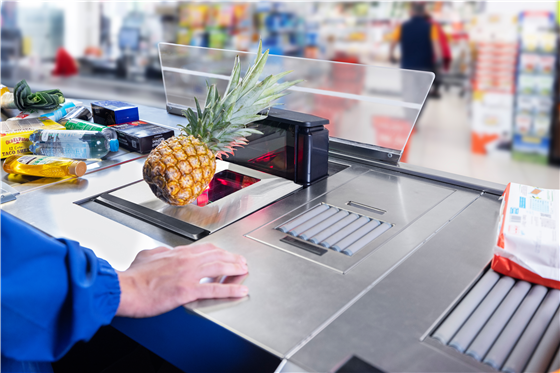

Support accurate weighing and loss prevention

The All-Weighs platter extends the weighing surface to the bonnet for bulky produce. Optional color-camera configurations capture images for workflows such as produce recognition when connected to an external PC running suitable AI software.

Model selection glossary

Platter length: The scanning surface length. Choose a size that fits the counter cutout; available sizes vary by model.

Shelf / flange mount: Shelf mount rests on support below the scanner. Flange mount hangs from brackets resting in countertop recesses.

Produce rail: Supports bulky items above the surrounding counter while weighing. Fixed stays raised; flip-up is movable; flush/no rail has no raised rail. A rail does not include a scale.

Scanner only / scanner-scale: Scanner only reads barcodes; scanner-scale also includes a weighing mechanism. A weight display may be separate.

Adaptive-scale-ready: Designed to accept a compatible third-party scale. The scale and integration hardware are separate.

Scale display: The separate weight readout. No display included does not mean no scale is included.

Color camera: Captures item images for supported applications, such as produce recognition. Compatible processing hardware and software are required.

USB Type-A / RS-232: USB or serial connection to the POS. Cable, host connection and POS software must be compatible.

USB POT: Power Off Terminal: requires a compatible powered USB connection. An ordinary USB-A port may not power the scanner.

Power / cable separate: The power supply powers the scanner; the interface cable connects to the POS. Separate means that item is not included.

Regional configuration: Scale settings and power-cord type are separate. This page includes US and Italy/Chile power packages; choose the package for your installation.

Single interval: Uses one weighing increment across the scale’s rated range.

Scanner Configuration

In-counter bi-optic scanner, adaptive-scale-ready scanner or integrated scanner/scale; selected configuration determines platter, mount, power and cable package.

1D Decoding

Autodiscriminates standard linear barcodes, including GS1 DataBar linear codes.

Stacked Decoding

EAN/JAN composites; GS1 DataBar composites, expanded stacked, stacked and stacked omnidirectional; MicroPDF417, PDF417 and UPC A/E composites.

2D Decoding

Aztec, Data Matrix, QR Code and Micro QR Code; GS1 Digital Link support out of the box.

Input Voltage

12 VDC.

Eco-Mode Power Consumption

Nominal operating: 2.6 W. Nominal idle: 1.7 W. Values apply to Eco mode configuration.

Power Supply Input

Optional scanner DC brick: 100–240 VAC, 50–60 Hz. Included supply and regional cord depend on package.

Ambient Light

0–86,080 lux.

Electrostatic Discharge

25 kV air discharge.

Humidity

5–95%, non-condensing.

Operating Temperature

10 to 40 °C / 50 to 104 °F.

Storage and Transport Temperature

−40 to 70 °C / −40 to 158 °F.

Environmental Protection

Dust-resistant optics cavity rated IP5X. Spill-proof design under Datalogic method MS-0006-13-0004; the IP5X rating applies to the optics cavity.

Host Interfaces

RS-232 single-cable or dual-cable operation; USB COM, OEM and keyboard interfaces; USB single-cable COM. Selected host cable and configuration determine the connection.

Auxiliary Ports

Remote scale display, EAS controller port and two powered USB Type-A host ports.

Remote Management

Diagnostic reporting; WMI with OPOS/JavaPOS; MBeans with JavaPOS; host download; Toshiba Remote Management Agent, DLRMUS and other ERP management solutions.

All-Weighs Platter

Integrated horizontal and vertical platter surfaces expand the active weighing area on scale configurations.

EAS Support

Configuration-dependent integrated Checkpoint/Nedap antenna and Sensormatic deactivation-controller support. Exact Checkpoint EAS packages are identified in model descriptions.

Optional Color Camera

Optional in-bonnet nominal 1 MP USB color camera for image capture and AI workflows. Requires an external PC running suitable software; CCI indicates a color-camera configuration.

Single-Interval Scale

Equipped models: 0–15 kg / 0–30 lb capacity; minimum increment 0.005 kg / 0.010 lb. English or metric regional configurations vary by model.

Dual-Interval Scale

Optional family configuration. Range 1: 0–6 kg / 0–15 lb, increments 0.002 kg / 0.005 lb. Range 2: 6–15 kg / 15–30 lb, increments 0.005 kg / 0.010 lb. Listed scanner/scale configurations are US single interval.

Adaptive Scale Models

957022201-00050 and 957022201-00053 are medium-platter, flip-up-rail, shelf-mount adaptive-scale-ready scanners. External scale is not included; see the Adaptive Scale Integration Guide for supported installation requirements.

Dimensions

Width: 29.2 cm / 11.5 in. Height above counter: 12.9 cm / 5.1 in. Depth below counter: 10.4 cm / 4.1 in.

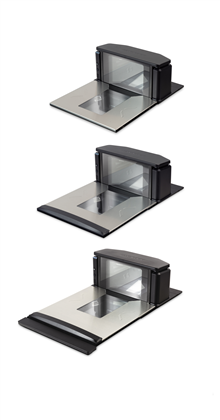

Platter Lengths

Short shelf: 35.2 cm / 13.9 in. Medium shelf: 39.9 cm / 15.7 in. Long flange: 50.7 cm / 20.0 in. Use the exact installation drawing for counter cutouts.

Configuration Weights

Short scanner-only: 6.0 kg. Medium scanner-only shelf/flange: 6.2/6.6 kg; medium scanner/scale shelf/flange: 7.5/7.9 kg. Long scanner-only shelf/flange: 6.3/6.7 kg; long scanner/scale shelf/flange: 7.6/8.0 kg.

Indicators

Adjustable volume and tone; visual good-read confirmation for all reading planes; scale center-of-zero indication on scale configurations.

Barcode Imagers

Two 1 MP global-shutter monochrome imagers, 1280 × 800 pixels, 40 frames per second.

Image Capture

Horizontal and vertical window image capture; BMP and JPEG formats; 256, 16 or 2 grayscale levels.

Illumination

Multiple diffused LEDs with orientation and wavelength optimized for eye comfort.

Reading Coverage

Linear and 2D reading across five sides. Optional Customer Service Scanner supports customer-facing scanning of mobile screens, coupons and loyalty cards.

Agency Approvals

Meets applicable safety and regulatory approvals for its intended use; consult the manufacturer Quick Start Guide and regulatory documentation.

Environmental Compliance

China RoHS, EU RoHS and REACH EC 1907/2006.

Configuration Software

Datalogic Aladdin configuration utility; available at no charge.

POS Software

OPOS and JavaPOS utilities available at no charge; remote management supports Windows- and Linux-based systems.

Cableless Packages

Models described as power/cable sold separately require compatible power accessories and an interface cable. USB POT packages require a compatible powered USB host; USB Type-A external-power and RS-232 packages must use the specified power arrangement.

Regional Power Package

957011001-00512 includes an Italy/Chile power brick/cord package and standard RS-232 cable. It is not a US-cord kit.

Warranty

1-year standard factory warranty.

9500130011-000231

Datalogic Magellan 9550i Scanner/Scale, Long Platter/Fixed Produce Rail/Flange Mount, US/Single Interval/English Config, US Power Brick/Cord, RS-232 Cable

Produce Rail:

Fixed rail

Mount Type:

Flange mount

Platter Length:

Long

Color Camera:

Not included

Scale Display:

Not included

Interface:

RS-232 cable

Configuration:

Scanner/scale

Power Package:

US power supply and cord

$1581.79

9500230011-0102131

Datalogic Magellan 9550i Scanner/Scale, Long Platter/Fixed Produce Rail/Flange Mount, US/Single Interval/English Config with Display, US Power Brick/Cord, RS-232 Cables, Checkpoint EAS

Produce Rail:

Fixed rail

Mount Type:

Flange mount

Scale Display:

Included

Platter Length:

Long

Color Camera:

Not included

Interface:

RS-232 cable

Configuration:

Scanner/scale

Power Package:

US power supply and cord

$1682.59

9500230011-011055

Datalogic Magellan 9550i Scanner/Scale, Long Platter/Fixed Produce Rail/Flange Mount, US/Single Interval/English Config with Display, Color Camera, USB POT Cable

Produce Rail:

Fixed rail

Mount Type:

Flange mount

Color Camera:

Included

Scale Display:

Included

Platter Length:

Long

Configuration:

Scanner/scale

Interface:

USB POT cable

Power Package:

USB terminal power

$1626.32

957013101-002311

Datalogic Magellan 9550i Scanner Only, Long Platter/Fixed Produce Rail/Flange Mount, US Power Brick/Cord, RS-232 Cable, Checkpoint EAS

Produce Rail:

Fixed rail

Mount Type:

Flange mount

Platter Length:

Long

Color Camera:

Not included

Scale Display:

Not included

Interface:

RS-232 cable

Configuration:

Scanner only

Power Package:

US power supply and cord

$1040.45

9500220011-010252

Datalogic Magellan 9550i Scanner/Scale, Medium Platter/Fixed Produce Rail/Shelf Mount, US/Single Interval/English Config with Display, US Power Brick/Cord, USB Type-A External-Power Cable

Produce Rail:

Fixed rail

Scale Display:

Included

Platter Length:

Medium

Color Camera:

Not included

Configuration:

Scanner/scale

Mount Type:

Shelf mount

Power Package:

US power supply and cord

Interface:

USB Type-A external-power cable

$1657.56

9500130011-001050

Datalogic Magellan 9550i Scanner/Scale, Long Platter/Fixed Produce Rail/Flange Mount, US/Single Interval/English Config, Color Camera (Power Accessories and Cable Sold Separately)

Produce Rail:

Fixed rail

Mount Type:

Flange mount

Color Camera:

Included

Platter Length:

Long

Scale Display:

Not included

Configuration:

Scanner/scale

Power Package:

Sold separately

Interface:

USB / RS-232 (cable separate)

$1578.53

9500230011-010252

Datalogic Magellan 9550i Scanner/Scale, Long Platter/Fixed Produce Rail/Flange Mount, US/Single Interval/English Config with Display, US Power Brick/Cord, USB Type-A External-Power Cable

Produce Rail:

Fixed rail

Mount Type:

Flange mount

Scale Display:

Included

Platter Length:

Long

Color Camera:

Not included

Configuration:

Scanner/scale

Power Package:

US power supply and cord

Interface:

USB Type-A external-power cable

$1657.56

957022201-00050

Datalogic Magellan 9550i Scanner Only, Adaptive-Scale-Ready, Medium Platter/Flip-up Produce Rail/Shelf Mount (Power Accessories and Cable Sold Separately)

Configuration:

Adaptive-scale-ready scanner

Produce Rail:

Flip-up rail

Platter Length:

Medium

Color Camera:

Not included

Scale Display:

Not included

Mount Type:

Shelf mount

Power Package:

Sold separately

Interface:

USB / RS-232 (cable separate)

$971.73

957022201-00053

Datalogic Magellan 9550i Scanner Only, Adaptive-Scale-Ready, Medium Platter/Flip-up Produce Rail/Shelf Mount, USB POT Cable

Configuration:

Adaptive-scale-ready scanner

Produce Rail:

Flip-up rail

Platter Length:

Medium

Color Camera:

Not included

Scale Display:

Not included

Mount Type:

Shelf mount

Interface:

USB POT cable

Power Package:

USB terminal power

$1001.82

957013101

Datalogic Magellan 9550i Scanner Only, Long Platter/Fixed Produce Rail/Flange Mount (Power Accessories and Cable Sold Separately)

Produce Rail:

Fixed rail

Mount Type:

Flange mount

Platter Length:

Long

Color Camera:

Not included

Scale Display:

Not included

Configuration:

Scanner only

Power Package:

Sold separately

Interface:

USB / RS-232 (cable separate)

$971.73

957033101-01010

Datalogic Magellan 9550i Scanner Only, Long Platter/Fixed Produce Rail/Flange Mount, Color Camera (Power Accessories and Cable Sold Separately)

Produce Rail:

Fixed rail

Mount Type:

Flange mount

Color Camera:

Included

Platter Length:

Long

Scale Display:

Not included

Configuration:

Scanner only

Power Package:

Sold separately

Interface:

USB / RS-232 (cable separate)

$1001.82

957012101

Datalogic Magellan 9550i Scanner Only, Medium Platter/Fixed Produce Rail/Shelf Mount (Power Accessories and Cable Sold Separately)

Produce Rail:

Fixed rail

Platter Length:

Medium

Color Camera:

Not included

Scale Display:

Not included

Configuration:

Scanner only

Mount Type:

Shelf mount

Power Package:

Sold separately

Interface:

USB / RS-232 (cable separate)

$971.73

957032101-01010

Datalogic Magellan 9550i Scanner Only, Medium Platter/Fixed Produce Rail/Shelf Mount, Color Camera (Power Accessories and Cable Sold Separately)

Produce Rail:

Fixed rail

Color Camera:

Included

Platter Length:

Medium

Scale Display:

Not included

Configuration:

Scanner only

Mount Type:

Shelf mount

Power Package:

Sold separately

Interface:

USB / RS-232 (cable separate)

$1001.82

957032101-01053

Datalogic Magellan 9550i Scanner Only, Medium Platter/Fixed Produce Rail/Shelf Mount, Color Camera, USB POT Cable

Produce Rail:

Fixed rail

Color Camera:

Included

Platter Length:

Medium

Scale Display:

Not included

Configuration:

Scanner only

Mount Type:

Shelf mount

Interface:

USB POT cable

Power Package:

USB terminal power

$1084.42

957011001

Datalogic Magellan 9550i Scanner Only, Short Platter/Shelf Mount (Power Accessories and Cable Sold Separately)

Produce Rail:

No rail

Color Camera:

Not included

Scale Display:

Not included

Configuration:

Scanner only

Mount Type:

Shelf mount

Platter Length:

Short

Power Package:

Sold separately

Interface:

USB / RS-232 (cable separate)

$1025.11

957011001-00020

Datalogic Magellan 9550i Scanner Only, Short Platter/Shelf Mount (Power Accessories and Cable Sold Separately)

Produce Rail:

No rail

Color Camera:

Not included

Scale Display:

Not included

Configuration:

Scanner only

Mount Type:

Shelf mount

Platter Length:

Short

Power Package:

Sold separately

Interface:

USB / RS-232 (cable separate)

$1025.11

957031001-01010

Datalogic Magellan 9550i Scanner Only, Short Platter/Shelf Mount, Color Camera (Power Accessories and Cable Sold Separately)

Color Camera:

Included

Produce Rail:

No rail

Scale Display:

Not included

Configuration:

Scanner only

Mount Type:

Shelf mount

Platter Length:

Short

Power Package:

Sold separately

Interface:

USB / RS-232 (cable separate)

$1001.82

957011001-00512

Datalogic Magellan 9550i Scanner Only, Short Platter/Shelf Mount, Italy/Chile Power Brick/Cord, RS-232 Cable

Power Package:

Italy/Chile power supply and cord

Produce Rail:

No rail

Color Camera:

Not included

Scale Display:

Not included

Interface:

RS-232 cable

Configuration:

Scanner only

Mount Type:

Shelf mount

Platter Length:

Short

$1030.73

957011001-00053

Datalogic Magellan 9550i Scanner Only, Short Platter/Shelf Mount, USB POT Cable

Produce Rail:

No rail

Color Camera:

Not included

Scale Display:

Not included

Configuration:

Scanner only

Mount Type:

Shelf mount

Platter Length:

Short

Interface:

USB POT cable

Power Package:

USB terminal power

$1001.82

9500130011

Datalogic Magellan 9550i Scanner/Scale, Long Platter/Fixed Produce Rail/Flange Mount, US/Single Interval/English Config (Power Accessories and Cable Sold Separately)

Produce Rail:

Fixed rail

Mount Type:

Flange mount

Platter Length:

Long

Color Camera:

Not included

Scale Display:

Not included

Configuration:

Scanner/scale

Power Package:

Sold separately

Interface:

USB / RS-232 (cable separate)

$1521.89

9500930011-011055

Datalogic Magellan 9550i Scanner/Scale, Long Platter/Fixed Produce Rail/Flange Mount, US/Single Interval/English Config with Display, Color Camera, USB POT Cable

Produce Rail:

Fixed rail

Mount Type:

Flange mount

Color Camera:

Included

Scale Display:

Included

Platter Length:

Long

Configuration:

Scanner/scale

Interface:

USB POT cable

Power Package:

USB terminal power

$1621.32

9500230011-010055

Datalogic Magellan 9550i Scanner/Scale, Long Platter/Fixed Produce Rail/Flange Mount, US/Single Interval/English Config with Display, USB POT Cable

Produce Rail:

Fixed rail

Mount Type:

Flange mount

Scale Display:

Included

Platter Length:

Long

Color Camera:

Not included

Configuration:

Scanner/scale

Interface:

USB POT cable

Power Package:

USB terminal power

$1650.51

9500830011-001010

Datalogic Magellan 9550i Scanner/Scale, Long Platter/Fixed Produce Rail/Flange Mount, US/Single Interval/English Config, Color Camera (Power Accessories and Cable Sold Separately)

Produce Rail:

Fixed rail

Mount Type:

Flange mount

Color Camera:

Included

Platter Length:

Long

Scale Display:

Not included

Configuration:

Scanner/scale

Power Package:

Sold separately

Interface:

USB / RS-232 (cable separate)

$1429.57

9500120011

Datalogic Magellan 9550i Scanner/Scale, Medium Platter/Fixed Produce Rail/Shelf Mount, US/Single Interval/English Config (Power Accessories and Cable Sold Separately)

Produce Rail:

Fixed rail

Platter Length:

Medium

Color Camera:

Not included

Scale Display:

Not included

Configuration:

Scanner/scale

Mount Type:

Shelf mount

Power Package:

Sold separately

Interface:

USB / RS-232 (cable separate)

$1521.89

9500820011-001053

Datalogic Magellan 9550i Scanner/Scale, Medium Platter/Fixed Produce Rail/Shelf Mount, US/Single Interval/English Config, Color Camera, USB POT Cable

Produce Rail:

Fixed rail

Color Camera:

Included

Platter Length:

Medium

Scale Display:

Not included

Configuration:

Scanner/scale

Mount Type:

Shelf mount

Interface:

USB POT cable

Power Package:

USB terminal power

$1534.59

9500821011-001010

Datalogic Magellan 9550i Scanner/Scale, Medium Platter/Flip-up Produce Rail/Shelf Mount, US/Single Interval/English Config, Color Camera (Power Accessories and Cable Sold Separately)

Produce Rail:

Flip-up rail

Color Camera:

Included

Platter Length:

Medium

Scale Display:

Not included

Configuration:

Scanner/scale

Mount Type:

Shelf mount

Power Package:

Sold separately

Interface:

USB / RS-232 (cable separate)

$1429.57

9500230011-010231

Datalogic Magellan 9550i Scanner/Scale, Long Platter/Fixed Produce Rail/Flange Mount, US/Single Interval/English Config with Display, US Power Brick/Cord, RS-232 Cable

Produce Rail:

Fixed rail

Mount Type:

Flange mount

Scale Display:

Included

Platter Length:

Long

Color Camera:

Not included

Interface:

RS-232 cable

Configuration:

Scanner/scale

Power Package:

US power supply and cord

$1685.32

Shop Magellan 9550i Accessories

90ACC0505

Datalogic Remote Scale Display, Black, US/Canada, Single Head, Single Interval, Magellan M9xx

$116.11

90A052138

Cable for Dual Cable Mode, RS-232, PC Scale, Female, 15 ft for dual cable setup. For Datalogic Magellan.

$28.50

90A052121

Cable for Single Cable Mode, RS-232, PC, 4.5 m/15 ft (9 PIN). For Datalogic Magellan.

$28.00

90ACC0194

Power Adapter,12V/30W, PSAC3OU-120L6D-R. For Datalogic Magellan.

$59.00

B0G39C81RL

RS-232 to USB HID keyboard cable, DB9 male to USB-A, 1.5 m. Requires a compatible Magellan RS-232 scanner/scale cable.

$36.99

90A052135

Cable, USB, Type A, External Power, 4.5 m/15 ft. For Datalogic Magellan.

$28.18

6003-0941

Power Cord, 110V, US

$15.00

Have Questions?Call Us at: (800) 241-6264

DataLogic Magellan 9550i

Fast bi-optic scanning with low power consumption

Key Specifications

In the Box

Faster barcode reading, lower energy use

Support accurate weighing and loss prevention

Shop Magellan 9550i Models

9500130011-000231

9500230011-0102131

9500230011-011055

957013101-002311

9500220011-010252

9500130011-001050

9500230011-010252

957022201-00050

957022201-00053

957013101

957033101-01010

957012101

957032101-01010

957032101-01053

957011001

957011001-00020

957031001-01010

957011001-00512

957011001-00053

9500130011

9500930011-011055

9500230011-010055

9500830011-001010

9500120011

9500820011-001053

9500821011-001010

9500230011-010231

Shop Magellan 9550i Accessories

90ACC0505

90A052138

90A052121

90ACC0194

B0G39C81RL

90A052135

6003-0941
