DataLogic Magellan 900i

Name: DataLogic Magellan 900i
Brand: DataLogic
Price: 208.09 USD
Availability: InStock

Images may not reflect the actual product

Compact scanning for checkout, service counters and kiosks

The Datalogic Magellan 900i reads printed and mobile-screen 1D and 2D barcodes in sweep or presentation mode. Its compact body and routed host cable fit tight counter spaces, while stand and kiosk-mount configurations support attended checkout and self-service installations.

Key Specifications

Scanner configuration: Corded 2D presentation scanner
Barcode capability: 1D, 2D, postal and stacked codes
Reading range: 13 mil UPC: 0–21 cm
Interfaces / connectivity: USB and RS-232
Durability: Repeated 1.2 m drops to concrete
Environmental sealing: IP52
Dimensions: Stand: 7.6 × 7.8 × 14 cm
Weight: 345 g
Image capture: 1 MP; JPEG and BMP
Warranty: 3 years

Kiosk/OEM version: 10.3 × 5.7 × 11.9 cm; 200 g. Reading distance varies with symbol size, print quality and conditions.

In the Box

Black Magellan 900i scanner with the selected stand or kiosk mount
USB kits: specified 1 m or 2 m USB Keyboard cable
Magnetic-mount kits: magnetic mount included
MG0901-10001-1100: 2 m RS-232 cable and US power supply

MG0901-10000 and MG0902-11000 require a separately purchased interface cable. See the selected model for its exact package.

Comfortable scanning with clear feedback

Adaptive illumination supports printed labels and device screens, while an LED aimer helps target small items and lookup lists. Green Spot feedback visibly confirms a successful read.

Configure and manage your fleet

Configure scanners with Aladdin or programming guides, and use supported remote-management tools to monitor and update deployed devices. Image capture adds JPEG and BMP output for workflows that need more than barcode data.

Scanner Configuration

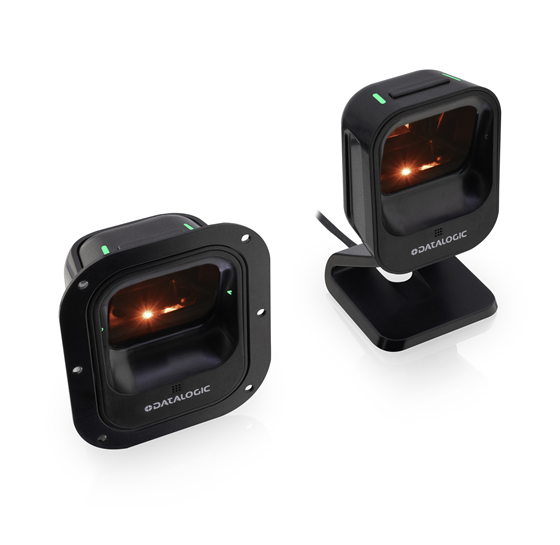

Corded omnidirectional 2D presentation scanner; tilting stand and kiosk/OEM configurations.

1D Barcode Support

Auto-discriminates standard 1D codes including GS1 DataBar linear codes.

2D Code Support

Aztec Code, Data Matrix, MaxiCode and QR Code.

Postal Code Support

Australian, British, Canadian, China, Japanese, Portuguese and Swedish Post; IMB, KIX Post, Planet Code, Postnet and Royal Mail RM4SCC.

Stacked Code Support

GS1 DataBar Composites, Expanded Stacked, Stacked and Stacked Omnidirectional; MicroPDF417 and PDF417.

Operating Current

Typical operating: less than 300 mA. Typical standby/idle: less than 170 mA.

Input Voltage

5 VDC ±10%.

Ambient Light

0–86,100 lux.

Drop Resistance

Repeated 1.2 m / 4 ft drops onto concrete.

ESD Protection

25 kV air discharge.

Humidity

5–95%, non-condensing.

Environmental Sealing

IP52.

Operating Temperature

0–40°C / 32–104°F.

Storage / Transport Temperature

−40 to 70°C / −40 to 158°F.

Interfaces

USB Keyboard, USB COM, OEM (IBM) USB and RS-232; supplied cable depends on the selected model.

Colors

Black and white family variants; current listed models are black.

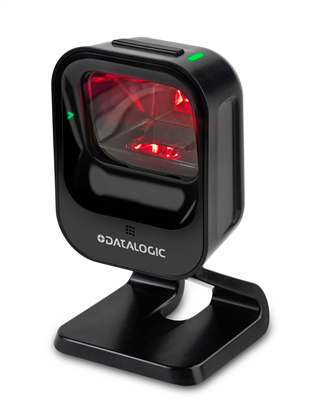

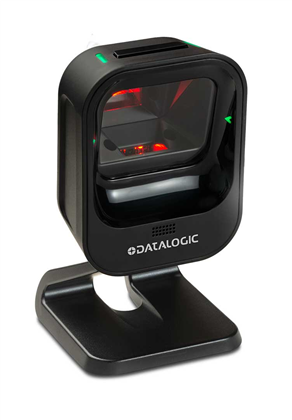

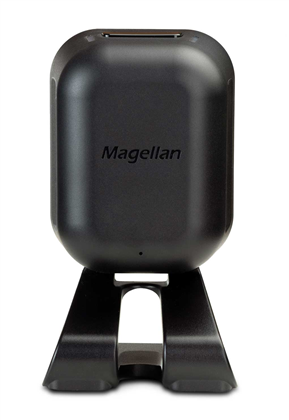

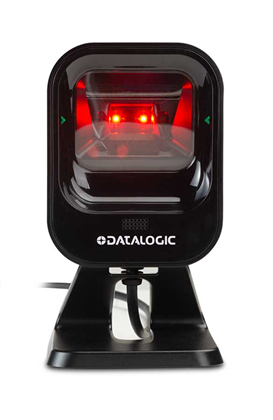

Dimensions with Tilting Riser

7.6 × 7.8 × 14 cm / 3.0 × 3.1 × 5.5 in (W × D × H).

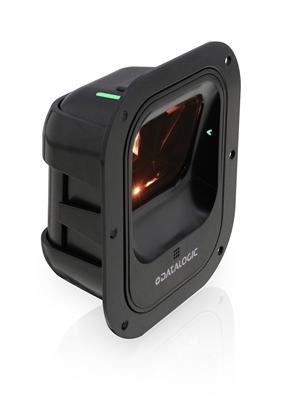

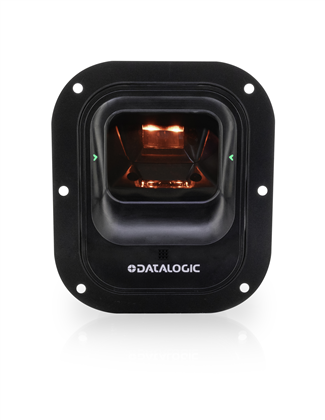

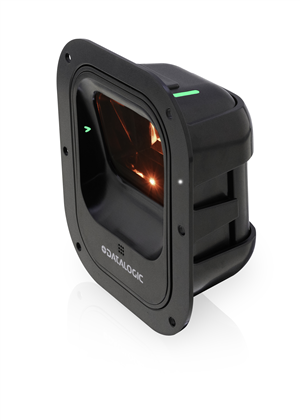

Kiosk / OEM Dimensions

10.3 × 5.7 × 11.9 cm / 4.1 × 2.2 × 4.7 in (W × D × H).

Weight

Tilting stand: 345 g / 12.2 oz. Kiosk/OEM: 200 g / 7 oz.

Aiming

LED aimer for precision scanning.

Image Capture

1 MP, 1280 × 800 pixels; JPEG and BMP.

Minimum Print Contrast

25%.

Reading Angles

Pitch ±70°; roll/tilt 0–360°; skew/yaw ±70°.

Reading Indicators

Adjustable-tone/volume beeper, Datalogic Green Spot good-read feedback and good-read LED.

Maximum Resolution

0.100 mm / 4 mil.

Reading Range Conditions

Depends on printing resolution, symbol length, scan angle, contrast and ambient light.

Typical 1D Depth of Field

5 mil: 2.5–11 cm; 7.5 mil: 0–15 cm; 10 mil: 0–18 cm; 13 mil UPC: 0–21 cm; 20 mil: 0–28 cm.

Typical 2D Depth of Field

10 mil PDF: 0–18 cm; 10 mil Data Matrix: 1–13 cm; 15 mil Data Matrix: 0–19 cm.

Agency Approvals

Meets applicable safety and regulatory approvals for intended use; consult the Quick Reference Guide for certifications.

Environmental Compliance

EU RoHS, China RoHS and UAE RoHS.

LED Classification

EN 62471 and IEC 62471 lamp illumination.

Configuration Utility

Datalogic Aladdin scanner configuration; available at no charge.

OPOS / JavaPOS

Manufacturer utilities available at no charge.

Remote Host Download

Supported for remote servicing and updates.
