DataLogic Magellan 3600VSi
Description
Specifications
Download

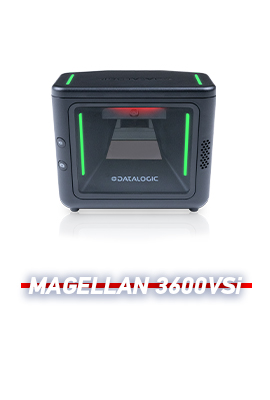

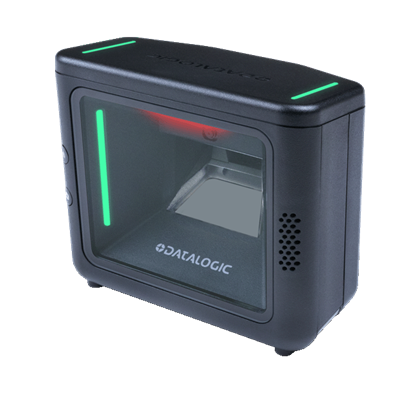

DataLogic Magellan 3600VSi

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6

Fast checkout scanning in a compact vertical design

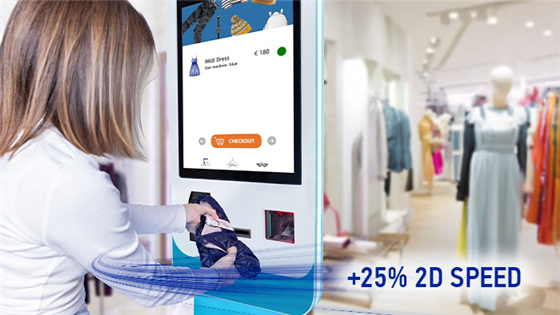

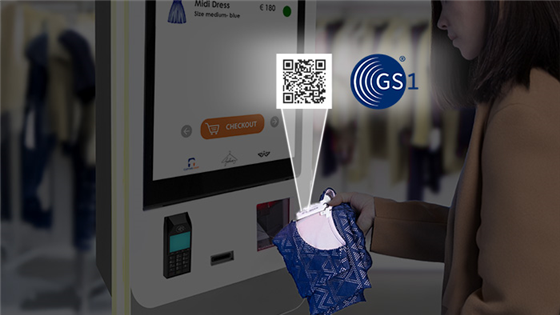

The Datalogic Magellan 3600VSi reads printed and mobile-screen 1D and 2D barcodes at attended checkouts, self-service stations and kiosks. GS1 Digital Link, Digimarc and OCR support help retailers work with newer identification and product-data applications.

Choose the 3610VSi for barcode scanning, the 3650VSi for added color image capture, or the 3670VSi for color video. RFID is available only on designated 3650VSi and 3670VSi configurations.

Key Specifications

  • Scanner configuration: Corded, vertical presentation scanner
  • Barcode capability: 1D, 2D, GS1 Digital Link and Digimarc
  • Reading range: 13 mil EAN: 0–22 cm
  • Interfaces / connectivity: USB COM, keyboard, OEM USB and RS-232
  • Durability: Solid-state scanner with cable retention
  • Environmental sealing: IP52

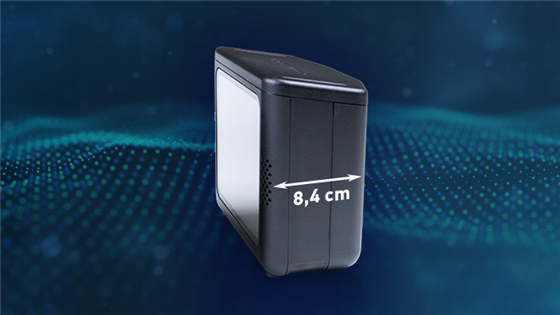

  • Dimensions: 13.7 × 15.2 × 8.4 cm
  • Weight: 0.60 kg
  • Imager: 1360 × 1120 pixels, global shutter
  • Warranty: 3 years

Reading distance varies with barcode size, print quality, angle and lighting. USB auxiliary-device and RFID operation require suitable 12 V power or 9–12 V USB-C Power Delivery on equipped models.

In the Box

  • Magellan 3610VSi, 3650VSi or 3670VSi scanner in the selected configuration
  • Wall/counter mount only when listed by the selected model
  • Specified OEM powered-USB or USB Type-A cable on cable-included packages
  • US/Canada power supply on models whose description includes it

Cableless models require separately purchased connection and power accessories. Powered-USB packages need a compatible host. Color video is a 3670VSi feature; North American RFID is included only on the two models explicitly labeled NA RFID. Images and video may show optional equipment.

Capture more than a barcode

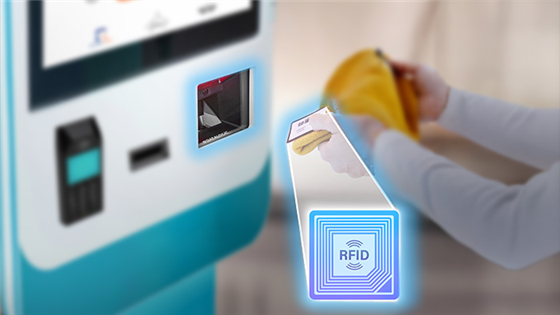

Color image capture on 3650VSi and 3670VSi models supports document and loyalty workflows. The 3670VSi adds a 1280 × 800 color video camera for recording or external AI applications. Optional RFID and supported EAS integrations extend checkout tracking and loss-prevention capabilities.

Manage scanners across your checkout fleet

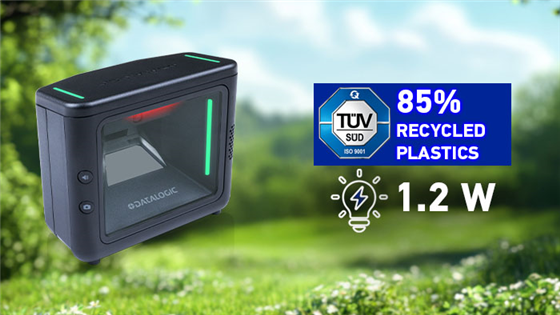

Use Aladdin for configuration and supported remote tools for diagnostics and software updates. OPOS, JavaPOS and Android integration options support different host environments. Without an auxiliary handheld attached, nominal scanner power consumption is 1.2 W.

Dimensions
13.7 x 15.2 x 8.4 cm / 5.4 x 6.0 x 3.3 in
Weight
0.60 kg / 1.3 lb
Power Requirements
AC Input: 100-240 VAC, 50-60 Hz; DC Input: 5-12 V; USB-C Power Delivery (3650/3670): 9 or 12 V
Power Consumption
Without auxiliary handheld: 3 W maximum, 1.2 W nominal, 1.0 W sleep. On 3650/3670 with an auxiliary handheld and 12 V source: 6 W maximum, 1.8 W nominal, 1.5 W sleep; averages based on a Datalogic QD2500 handheld.
Interfaces
OEM (IBM) USB; RS-232; USB Keyboard; USB Com
Auxiliary Ports (3650/3670)
Powered Type A USB (USB Com); Requires 12 V Power Supply, 12 V OEM-USB, or 9-12 V USB-C Power Delivery
1D / Linear Codes
Standard linear barcodes, including GS1DataBar linear codes.
2D Codes
Aztec Code; Data Matrix (ECC200 only); QR Code
Stacked Codes
GS1Digital Link, GS1DataBar Composites; GS1DataBar Expanded Stacked; GS1DataBar Stacked; GS1DataBar Stacked Omnidirectional; MicroPDF417; PDF417
Digital Watermarks
Digimarc® Barcodes/GS1DW Code
Typical Depth of Field
Printing resolution, symbol length, scan angle, contrast and ambient light dependent. Distances measured from the product window; 1D Codes; 5 mils Code 39: 1 to 13 cm / 0.5 to 5.0 in; 7.5 mils Code 39: 0 to 18 cm / 0 to 7.0 in; 10 mils EAN: 0 to 19 cm / 0 to 7.5 in; 13 mils EAN: 0 to 22 cm / 0 to 8.7 in; 20 mils Code 39: 0 to 26 cm / 0 to 10.0 in; 2D Codes; 6.6 mils PDF: 1 to 12 cm / 0.5 to 4.7 in; 10 mils PDF: 0 to 18 cm / 0 to 7.0 in; 10 mils DM: 1 to 9 cm / 0.5 to 3.5 in; 15 mils DM/QR: 0 to 16 cm / 0 to 6.3 in; 20 mils DM/QR: 0 to 18 cm / 0 to 7.0 in
Image Capture
Graphic Formats: BMP, JPEG, TIFF, RAW; Color (3650/3670) and Grayscale
Image Sensor
1360 x 1120 pixels, Global Shutter
Print Contrast Ratio (Minimum)
25%
Resolution (Maximum)
1D Codes: 3 mil; 2D Codes: 6 mil
Reading Angle
Pitch: +/- 65°; Roll (Tilt): 0 - 360°; Skew (Yaw): +/- 65°
Reading Indicators
Audio speaker with adjustable tone and volume; Good Read LED; Good Transmission
Ambient Light
0 to 86,100 lux
ESD Protection (Air Discharge)
25 kV
Humidity (Non-Condensing)
5 - 95%
Particulate and Water Sealing
IP52
Operating Temperature
0 to 40 °C.
Storage / Transport Temperature
−40 to 70 °C / −40 to 158 °F.
RFID Availability
Optional on designated 3650VSi and 3670VSi models. Listed NA RFID packages: M3650-010212-01604 and M3670-010212-01604. Requires 12 V power supply, 12 V OEM-USB or 9–12 V USB-C Power Delivery.
RFID Standard
EPC UHF Class 1 Gen 2 / ISO 18000-6C; ASK modulation.
RFID Frequency
North America: 902–928 MHz. EU family variants: 865–868 MHz; only North American RFID configurations are listed here.
RFID Power and Range
Configurable output up to 9 dBm; linear reading range up to 20 cm / 7.9 in.
Color Video Camera
3670VSi only: 1280 × 800 pixels, global shutter, 40 frames per second; 74° horizontal × 50° vertical field of view.
Video Camera Connection
Dedicated USB Type-B USB 2.0 port, USB Video Class (UVC) protocol; dedicated 5 V USB interface.
Video Camera Power
Without white illumination: 0.5 W operating. With illumination: 2.5 W maximum, 0.8 W nominal, 0.5 W sleep.
Model Differences
3610VSi: standard barcode scanner. 3650VSi adds color image capture, auxiliary USB and USB-C Power Delivery. 3670VSi also adds color video. RFID is configuration-dependent on 3650/3670.
Auxiliary Scanner Power
A standard 5 V USB connection does not power an auxiliary reader. Use a suitable 12 V supply, 12 V OEM-USB source or 9–12 V USB-C Power Delivery on 3650/3670.
EAS Support
Optional integrated Checkpoint hardware supports Counterpoint IX and Evolve D11; Sensormatic good-read acknowledgement. Depends on equipped configuration.
Read Height
15 cm / 6 in for 13 mil EAN at 15 cm distance.
Image Read Rates
Grayscale: up to 60 million pixels/second. Color image capture on 3650/3670: 4 seconds per JPEG image.
Light Source
Multiple diffused LEDs with orientation and wavelength optimized for eye comfort.
Configuration and Management
Aladdin configuration; diagnostic reporting, host download and Magellan ULE scripting. Supported remote-management tools for diagnostics and updates.
POS Integration
OPOS and JavaPOS utilities available at no charge; Android SDK support. See exact host requirements in the reference guide.
Environmental Compliance
China RoHS and EU RoHS.
LED Classification
EN 62471 and IEC 62471 Lamp Illumination, Exempt Group.
Warranty
3-year factory warranty.
Magellan 3600VSi Spec Sheet
Download
Magellan 3600VSi Quick Start Guide
Download
Magellan 3600VSi Product Reference Guide (Rev B)
Download
Datalogic USB-COM Driver 7.1.5
Download

Shop Magellan 3600VSi Models

M3650-010210-01604

Magellan 3650VSi, Color Image Capture, AUX Port, Wall/Counter Mount, US/Canada Power Supply, USB Keyboard Type A Ext Pwr 15' Cable

Model:

3650VSi

Power Supply:

Included

RFID:

No

Color Video:

No

Interface:

USB Keyboard

Mount:

Wall/Counter Mount

$651.36

M3650-010212-01604

Magellan 3650VSi, Color Image Capture, AUX Port, NA RFID, Wall/Counter Mount, US/Canada Power Supply, USB Keyboard Type A Ext Pwr 15' Cable

Model:

3650VSi

Power Supply:

Included

Color Video:

No

Interface:

USB Keyboard

Mount:

Wall/Counter Mount

RFID:

Yes

$1071.44

M3670-010200

Magellan 3670VSi, Color Image Capture, AUX Port, Color Video (Mount, Power Supply and Cable Sold Separately)

Model:

3670VSi

Interface:

Cable Sold Separately

RFID:

No

Power Supply:

Sold Separately

Mount:

Sold Separately

Color Video:

Yes

$788.83

M3670-010210-00604

Magellan 3670VSi, Color Image Capture, AUX Port, Color Video, Wall/Counter Mount, USB Keyboard Type A Ext Pwr 15' Cable (Power Supply Sold Separately)

Model:

3670VSi

RFID:

No

Power Supply:

Sold Separately

Interface:

USB Keyboard

Mount:

Wall/Counter Mount

Color Video:

Yes

$803.58

M3670-010212-01604

Magellan 3670VSi, Color Image Capture, AUX Port, Color Video, NA RFID, Wall/Counter Mount, US/Canada Power Supply, USB Keyboard Type A Ext Pwr 15' Cable

Model:

3670VSi

Power Supply:

Included

Interface:

USB Keyboard

Mount:

Wall/Counter Mount

RFID:

Yes

Color Video:

Yes

$1246.67

M3610-010200

Magellan 3610VSi (Mount, Power Supply and Cable Sold Separately)

Model:

3610VSi

Interface:

Cable Sold Separately

RFID:

No

Color Video:

No

Power Supply:

Sold Separately

Mount:

Sold Separately

$552.56

M3610-010210

Magellan 3610VSi, Wall/Counter Mount (Power Supply and Cable Sold Separately)

Model:

3610VSi

Interface:

Cable Sold Separately

RFID:

No

Color Video:

No

Power Supply:

Sold Separately

Mount:

Wall/Counter Mount

$520.97

M3610-010210-00403

Magellan 3610VSi, Wall/Counter Mount, OEM USB POT 4.6M Cable

Model:

3610VSi

RFID:

No

Color Video:

No

Interface:

OEM USB Power Off Terminal

Power Supply:

Terminal Powered

Mount:

Wall/Counter Mount

$556.96

M3610-010210-00604

Magellan 3610VSi, Wall/Counter Mount, USB Keyboard Type A Ext Pwr 15' Cable (Power Supply Sold Separately)

Model:

3610VSi

RFID:

No

Color Video:

No

Power Supply:

Sold Separately

Interface:

USB Keyboard

Mount:

Wall/Counter Mount

$535.72

M3650-010200

Magellan 3650VSi, Color Image Capture, AUX Port (Mount, Power Supply and Cable Sold Separately)

Model:

3650VSi

Interface:

Cable Sold Separately

RFID:

No

Color Video:

No

Power Supply:

Sold Separately

Mount:

Sold Separately

$613.60

M3650-010200-00403

Magellan 3650VSi, Color Image Capture, AUX Port, OEM USB POT 4.6M Cable

Model:

3650VSi

RFID:

No

Color Video:

No

Interface:

OEM USB Power Off Terminal

Mount:

Sold Separately

Power Supply:

Terminal Powered

$649.59
